- - 48.T OUCH P A NEL COMPO N E NT S 2 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00766 AWC(M)F MECHANIC ASM 1
2 400-00776 AWC(M)R MECHANIC ASM 1
3 SL-6041092-TN SCREW (4)
4 400-00768 AWC PULLEY A ASM (1)
5 E2153-725-000 AWC PULLEY A (1)
6 SM-8040602-TP SCREW M4X0.7 L=6 (2)
7 SL-6051492-TN BOLT (2)
8 400-00769 AWC PULLEY B ASM (1)
9 E2154-725-000 AWC PULLEY B (1)
10 SM-8040402-TP SCREW M4X0.7 L=4 (2)
11 SM-8040602-TP SCREW M4X0.7 L=6 (2)
12 E2155-725-000 AWC BELT (M/L) (1)
13 E2156-725-000 AWC OP DOG (M/L) (1)
14 SL-6030692-TN BOLT (2)
15 E4801-729-000 AWC SENSOR BRACKET B (M/L) (1)
16 SL-6031092-TN SCREW (2)
17 400-02120 AWC ORG SENSOR ASM (1)
18 400-01100 SENSOR BRACKET A(AWC) (2)
19 SL-6031092-TN SCREW (4)
20 400-02237 BU PIN SENSOR ASM (1)
21 400-02239 BU PIN RECEIVE SENSOR ASM (1)
22 SL-6031092-TN SCREW (4)
23 400-00767 AWC DRIVER BRACKET (1)
24 SL-6040892-TN BOLT (2)
25 E2151-725-000 AWC BRACKET F (1)
26 E2152-725-000 AWC BRACKET R (1)
27 E9434-729-0A0 WIDTH ADJUST MOTOR ASM. (1)
28 400-19212 BU_PIN SENSOR DOG (1)
29 SM-4030501-SN SCREW M3 L=5 (1)
- -

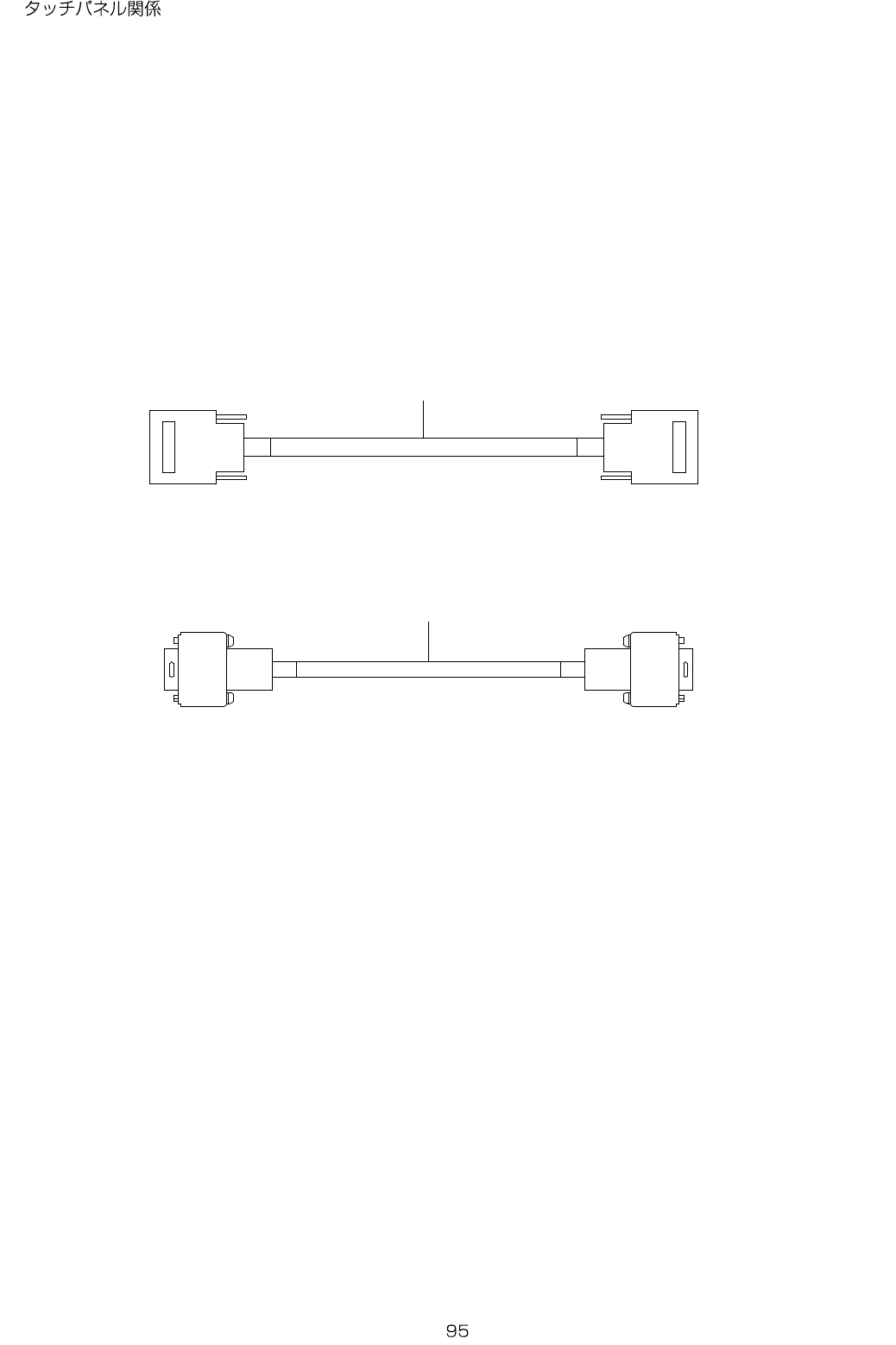

48.TOUCH PANEL COMPONENTS
2
1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-02260 F-232C CABLE ASM 1
2 400-27815 F-232C CABLE ASM 1
