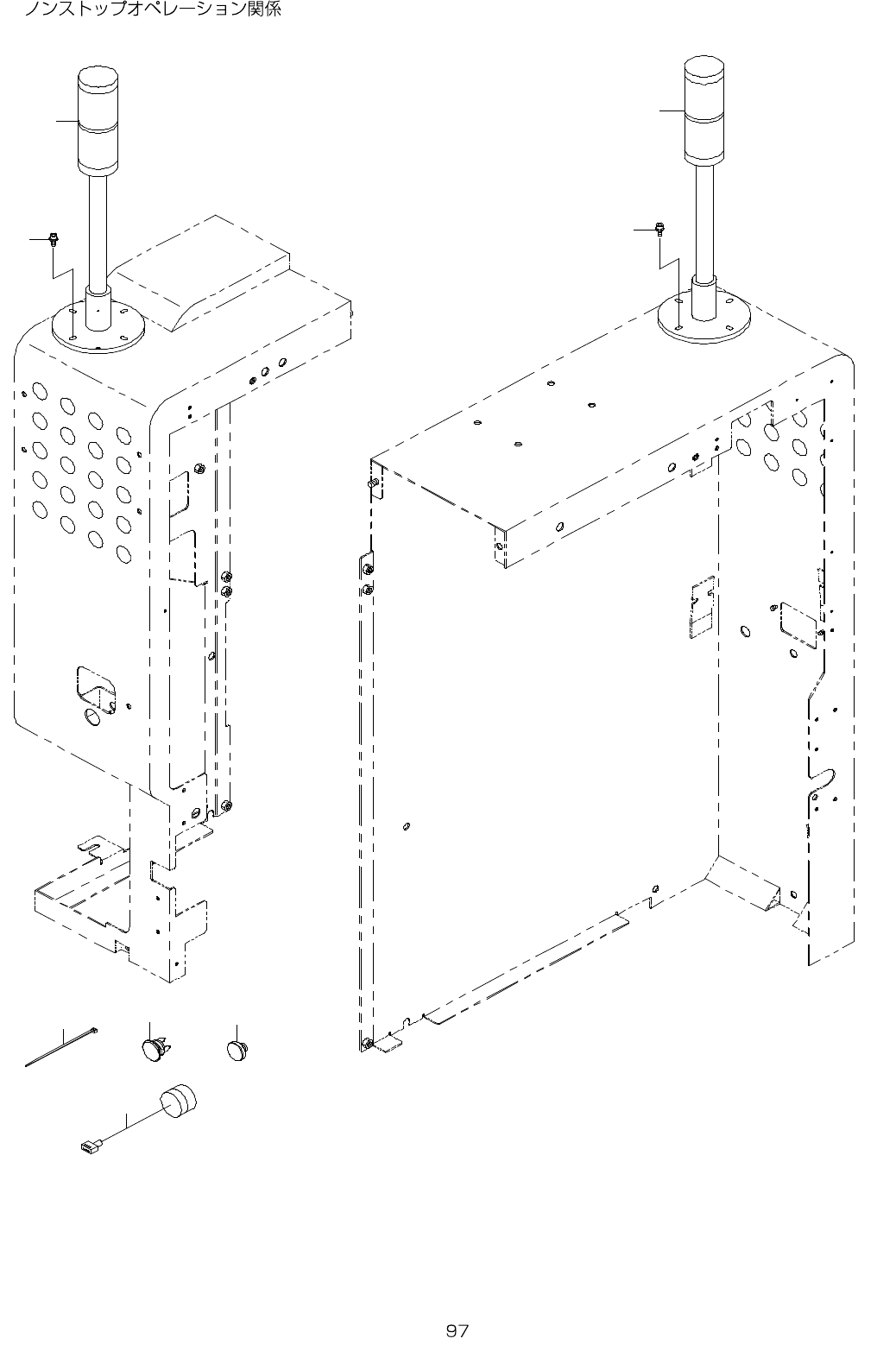

49.NON-STOP OPERATION COMPONENTS
2
1
2
1
3
4
5
6
- -

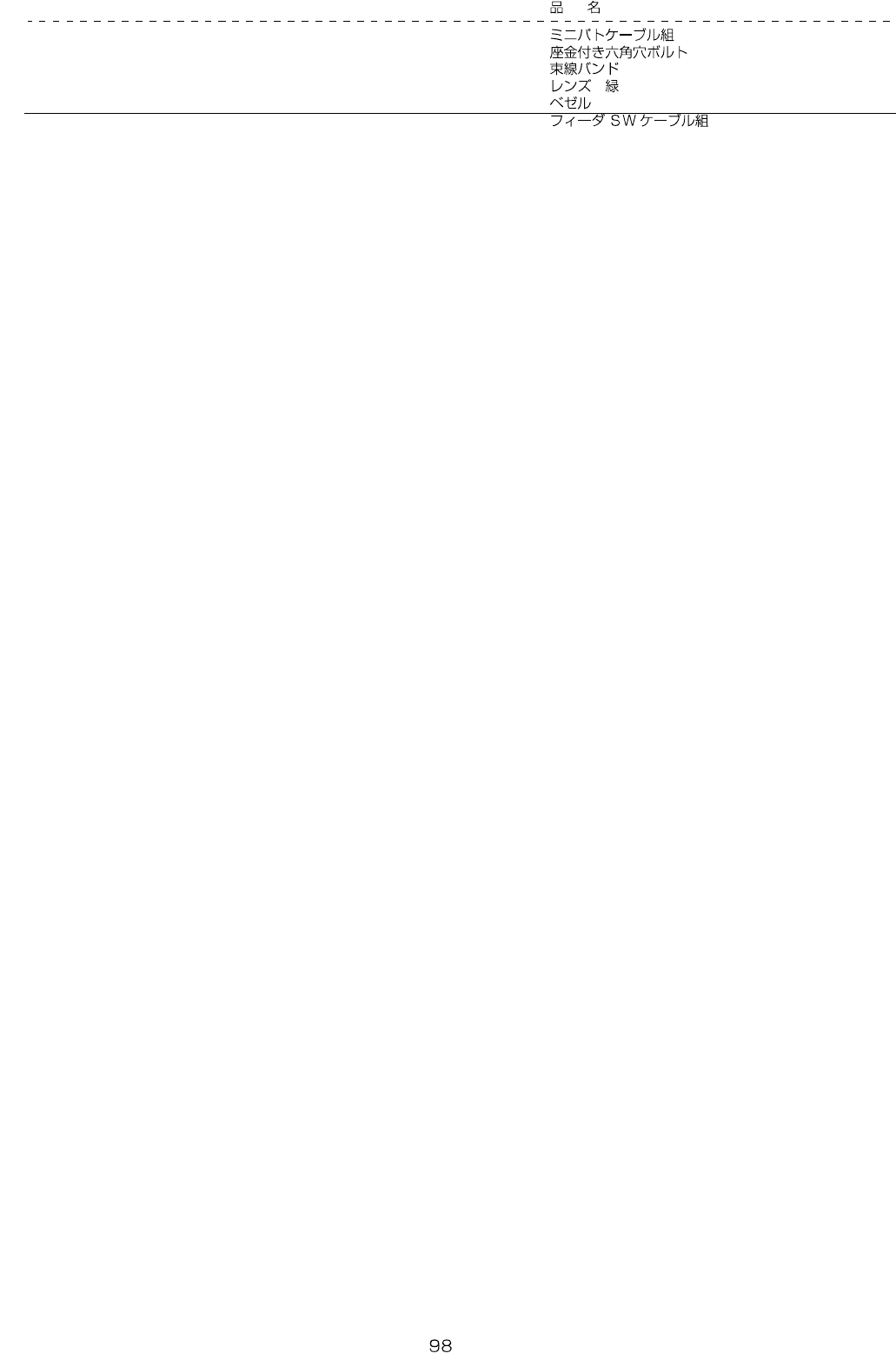

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 CABLE ASM. 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
4 HA-0055300-10 LENSE GREEN 2
5 HA-0055300-20 BEZEL 2
6 400-02252 FEEDER SWITCH CABLE ASM 2
- -

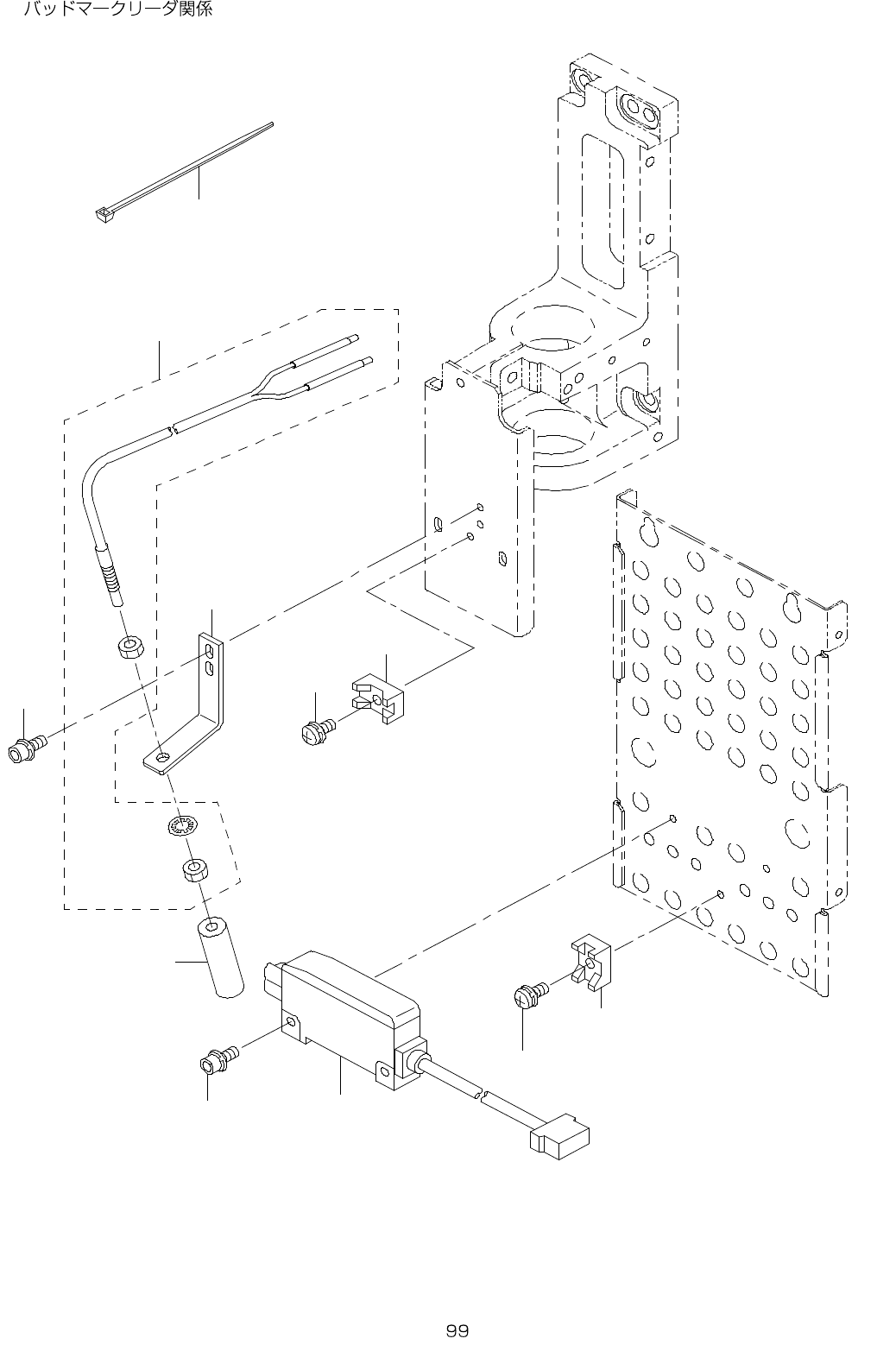

50.BAD MARK READER COMPONENTS
1
2
4
5
8
7
3
7
8
6
9
