- - 52.F PI CO MPONENTS 4 5 5 6 7 8 9 1 2 1 3 1 4 1 5 1 6 1 8 3 2 1 9 1 9 2 0 2 0 2 0 2 0 3 3 3 4 3 2 3 8 2 3 2 4 2 5 3 6 2 6 2 7 2 8 2 9 3 1 3 0 3 5 4 0 4 1 3 9 4 1 2 5 2 2 2 1 3 7 1 1 0 1 7 1 1
- -

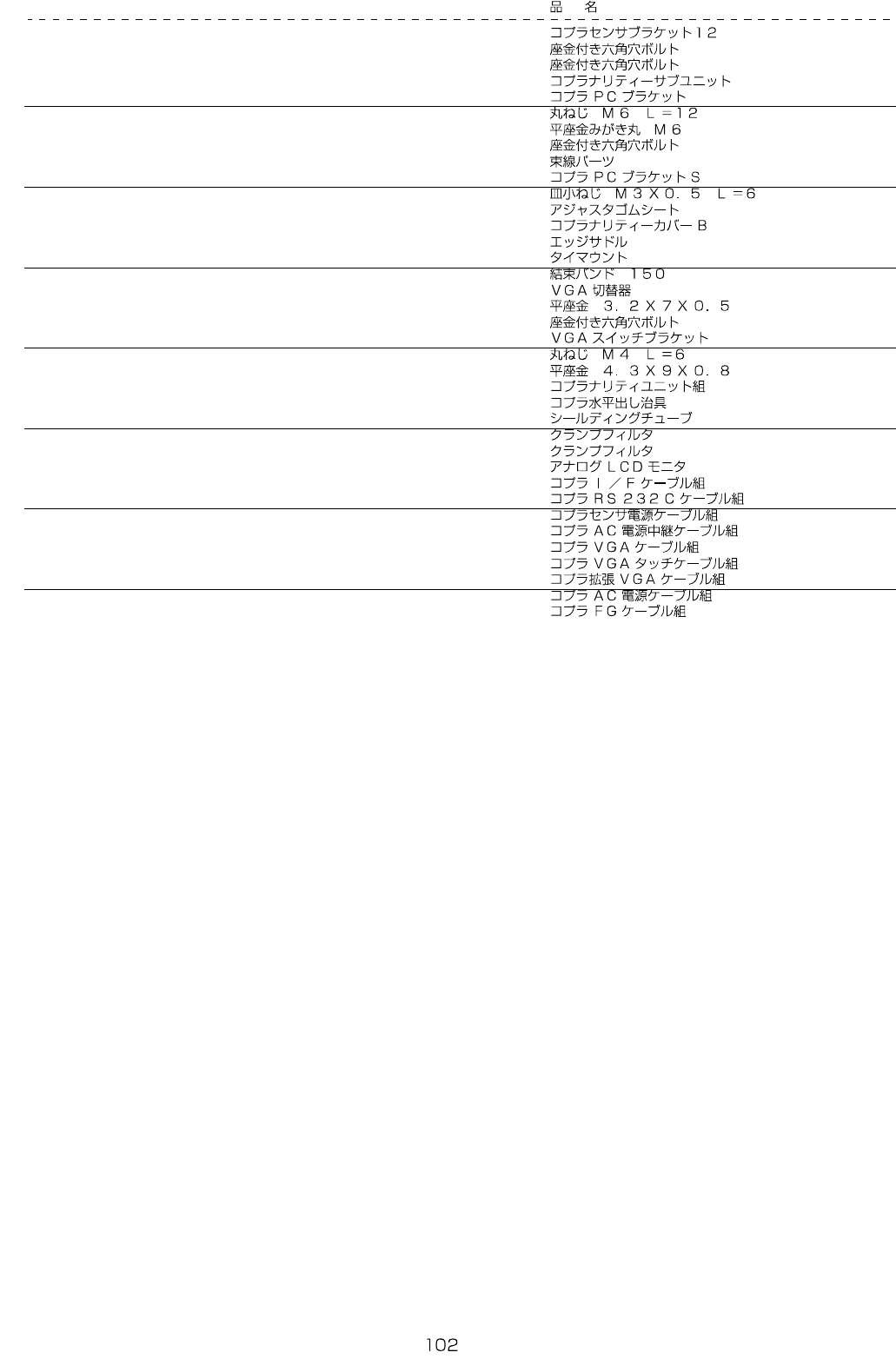

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E6501-729-000 COPLA SENSOR BRACKET 12 1
2 SL-6062092-TN SCREW M6 L=20 2
3 SL-6041092-TN SCREW 4
4 400-01717 COPLANALITY SUB UNIT 1
5 400-01718 COPLANALITY PC BRACKET (1)
6 SM-3061252-TN SCREW M6 L=12 (2)
7 WP-0641601-SC WASHER (2)
8 SL-6030892-TN SCREW (4)
9 HX-0034400-00 HARNESS PARTS (2)
10 E6503-729-000 COPLA PC BRACKET S (1)
11 SM-1030601-SC SCREW M3 L=6 (2)
12 E1049-729-000 ADJUSTER RUBBER SHEET (1)
13 400-01719 COPLANALITY COVER B (1)
14 HX-0055600-00 EDGE SADDLE (1)
15 HX-0055700-00 TIE MOUNT (8)
16 EA-9500B02-00 CABLE BAND 150 (20)
17 E9676-729-000 VGA TRANSFER SWITCH (1)
18 WP-0320501-SC WASHER M3 (2)
19 SL-6032542-TN SCREW (2)
20 400-01720 VGA SWITCH BRACKET (1)
21 SM-3040652-TN SCREW M4 L=6 (2)
22 WP-0430801-SC WASHER 4.3X9X0.8 (2)
23 E9674-729-0B0 COPLANARITY UNIT ASM. (1)
24 E2156-998-000 COPLA HORIZONTAL FEED SHAFT (1)
25 400-03305 SHIELDING TUBE (1)
26 HN-0014900-00 CLAMP FILTER(L) (4)
27 HN-0014900-0A CLAMP FILTER (3)
28 400-28131 LCD DISP (1)
29 400-02289 COPLA I F CABLE ASM 1
30 400-02290 COPLA RS232C CABLE ASM 1
31 400-02291 COPLA SENSOR POWER CABLE ASM 1
32 400-02292 COPLA AC POWER RELAY CABLE ASM 1
33 400-02293 COPLA VGA CABLE ASM 1
34 400-02295 COPLA TOUCH VGA CABLE ASM 1
35 400-02296 COPLA TOUCH VGA EXT CABLE ASM 1
36 E9858-729-0A0 COPLA AC POWER CABLE ASM. 1
37 400-02332 COPLA FG WIRE ASM 1
- -
52.FPI COMPONENTS
4
5
5
6
7
8
9
1 2
1 3
1 4
1 5
1 6
1 8
3
2
1 9
1 9
2 0
2 0
2 0
2 0
3 3
3 4
3 2
3 8
2 3
2 4
2 5
3 6
2 6
2 7
2 8
2 9
3 1
3 0
3 5
4 0
4 1
3 9
4 1
2 5
2 2
2 1
3 7
1
1 0
1 7
1 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01702 FPI UNIT F 1
2 400-01704 FPI ASM. F (1)
3 400-01708 FPI BRACKET F (1)
4 400-01709 FPI COVER B (1)
5 SM-6030402-TN BOLT M3X4 (7)
6 E6025-729-0A0 FPI COVER U 20 ASM. (1)
7 E6025-729-000 FPI COVER U 20 (1)
8 E6028-729-000 FPI PLATE 20 (1)
9 SM-6030402-TN BOLT M3X4 (2)
10 400-01710 HARNESS CLUMP (4)
11 SM-6030402-TN BOLT M3X4 (4)
12 E8626-729-0A0 FPI LED BOARD ASM. (4)
13 SM-5030801-SC SCREW M3X0.5 L=8 (8)
14 E2143-715-000 TIMER SPACER A (8)
15 E4901-760-000 POLY SLIDER THRUST WASHER (8)
16 WP-0320501-SC WASHER M3 (2)
17 WP-0320501-SC WASHER M3 (4)
18 E6033-729-000 FPI INSULATION SHEET (0.2)
19 400-01705 FPI SIDE BRACKET F (2)
20 SL-6061292-TN SCREW (6)
21 400-01703 FPI UNIT R 1
22 400-01714 FPI ASM. R (1)
23 E6023-729-000 FPI BRACKET R 20 (1)
24 E6024-729-000 FPI COVER B 20 (1)
25 SM-6030402-TN BOLT M3X4 (7)
26 E6025-729-0A0 FPI COVER U 20 ASM. (1)
27 E6025-729-000 FPI COVER U 20 (1)
28 E6028-729-000 FPI PLATE 20 (1)
29 SM-6030402-TN BOLT M3X4 (2)
30 E6068-729-000 HARNESS CLAMP (4)
31 SM-6030402-TN BOLT M3X4 (4)
32 E8626-729-0A0 FPI LED BOARD ASM. (4)
33 SM-5030801-SC SCREW M3X0.5 L=8 (8)
34 E2143-715-000 TIMER SPACER A (8)
35 E4901-760-000 POLY SLIDER THRUST WASHER (8)
36 WP-0320501-SC WASHER M3 (2)
37 WP-0320501-SC WASHER M3 (4)
38 E6033-729-000 FPI INSULATION SHEET (0.2)
39 400-01706 FPI BRACKET RL (1)
40 400-01707 FPI BRACKET RR (1)
41 SL-6061292-TN SCREW (6)
