- - 4. B ASE FRA M E ELECTRI C A PPARATUS C OMPONENT S (3) 3 4 1 2 9 8 1 0 1 1 1 4 1 7 1 6 2 0 2 1 2 2 2 3 2 4 5 2 3 0 2 9 2 7 2 6 2 8 3 1 7 1 8 1 9 1 3 6 3 3 2 5 1 5 3 6 4 0 4 1 4 3 3 7 3 5 3 8 3 9 4 9 4 9 4 7 4 5 4 5…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00481 AC INPUT UNIT 1
2 HK-0699501-10 BLOCK TERMINAL (2)
3 HK-0699900-20 BLOCK TERMINAL (3)
4 HK-0699900-30 BLOCK TERMINAL (4)
5 HX-0057800-00 POWER SUPPLY (1)
6 HB-0010200-0A RELAY (1)
7 HB-0011000-10 RELAY COVER (1)
8 HA-0053300-00 MAGNETIC CONTACTOR (2)
9 HN-0023700-00 NOISE FILTER (1)
10 HC-0566030-P0 CAPACITOR (1)
11 HN-0023600-00 VARISTOR (1)
12 400-21645 RESISTOR ASM (1)
13 400-00466 POWER UNIT 1
14 HA-0054200-0B CIRCUIT PROTECTOR (1)
15 HX-0054300-0A POWER SUPPLY 24V (1)
16 HX-0057700-00 POWER SUPPLY (1)
17 HX-0049400-0A POWER SOURCE 3.3V (1)
18 KX-0000001-50 POWER SOURCE 6V (1)
19 HX-0054200-00 POWER SOURCE 12V (1)
20 HM-0003300-0A FAN (1)
21 400-01902 Z THETA POWER PCB ASM (1)
22 HB-0012800-00 RELAY (1)
23 HB-0005800-10 RELAY CLASP (1)
24 HB-0011000-0B RELAY (1)
25 HB-0011000-0A RELAY (1)
26 HB-0012800-0C RELAY (2)
27 HA-0052900-00 SWITCH (1)
28 HB-0005800-10 RELAY (2)
29 HX-0049400-0B POWER SUPPLY 12V (1)
30 HA-0054200-0C CIRCUIT PROTECTOR (1)
31 HA-0054200-0D CIRCUIT PROTECTOR (2)
32 400-16764 TD HOLDER (1)
33 400-95745 UPS (1)
34 400-00479 UPS BRACKET (1)
35 SL-4040891-SC SCREW M4 L=8 (1)
36 400-01945 POWER PCB ASM (1)
37 HB-0011000-00 RELAY (1)
38 HB-0011000-0C RELAY (1)
39 HA-0052400-0C CIRCUIT PROTECTOR (1)
40 HA-0052400-0D CIRCUIT PROTECTOR (1)
41 HA-0052500-00 CIRCUIT PROTECTOR (1)
42 HA-0052600-00 CIRCUIT PROTECTOR (1)
43 HA-0052700-0A CIRCUIT PROTECTOR (1)
44 HA-0052700-00 CIRCUIT PROTECTOR (1)
45 HA-0054200-0A CIRCUIT PROTECTOR (1)
46 400-11120 UPS BATTERY (1)
47 400-01563 DUCT ASSY 1
48 SL-4040891-SC SCREW M4 L=8 (2)
49 400-00522 DUCT BFR (1)
50 400-00523 DUCT BRL (1)
51 SL-4040891-SC SCREW M4 L=8 (2)
52 400-00524 DUCT BRR (1)
53 SL-4040891-SC SCREW M4 L=8 (2)
54 400-00525 DUCT BRC (1)
55 SL-4040891-SC SCREW M4 L=8 (2)
56 400-00526 DUCT BRC2 (1)
57 SL-4040891-SC SCREW M4 L=8 (2)
58 400-00527 DUCT UL (2)
59 ST-4040651-SN SCREW M4 X 6 (4)
60 400-00528 DUCT UR (2)
61 ST-4040651-SN SCREW M4 X 6 (4)
62 400-00520 DUCT BF (1)
63 SL-4040891-SC SCREW M4 L=8 (2)
64 400-00521 DUCT BFL (1)
65 SL-4040891-SC SCREW M4 L=8 (2)
- -

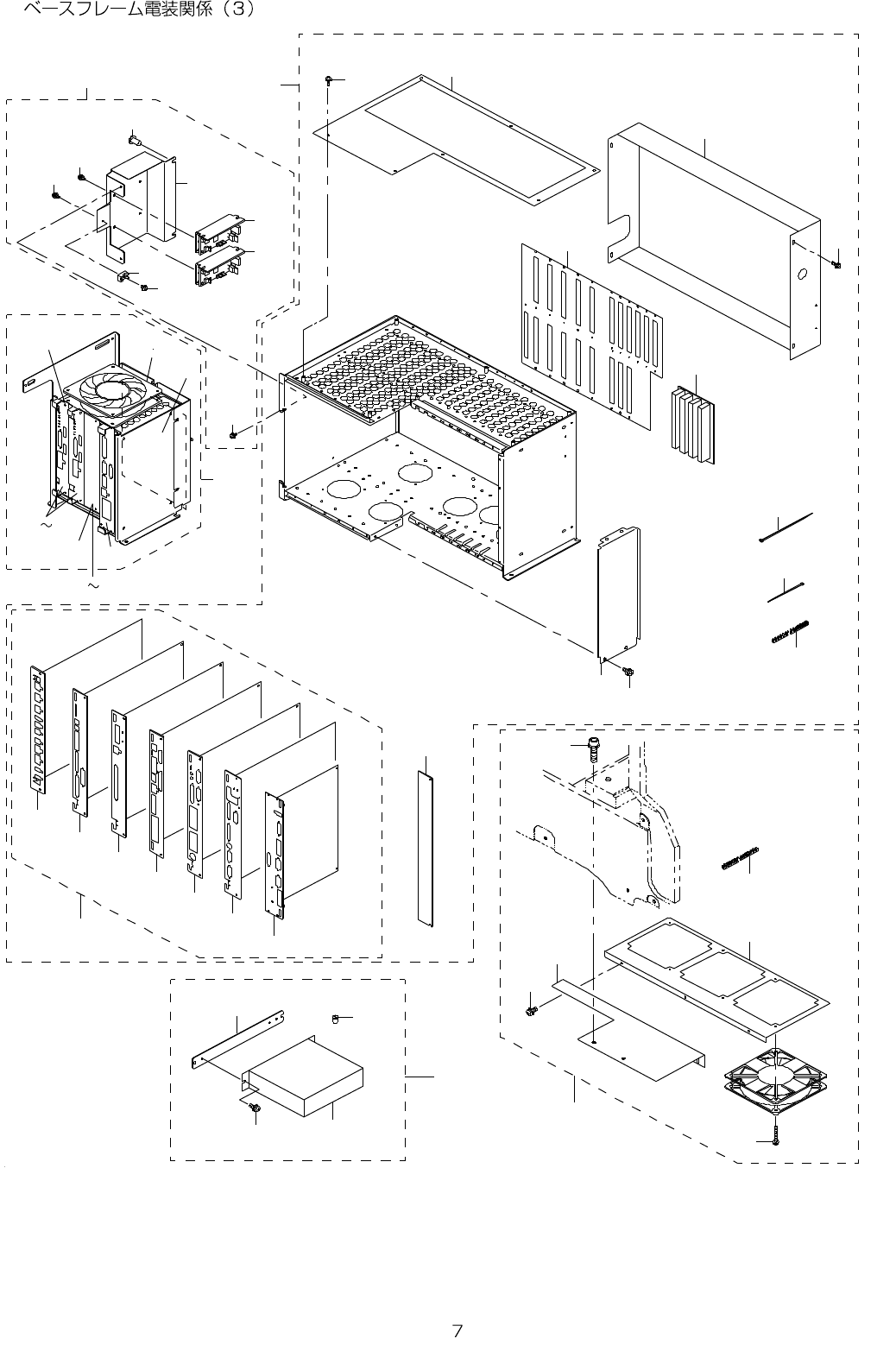

4. BASE FRAME ELECTRIC APPARATUS COMPONENTS (3)
3
4
1 2
9
8
1 0
1 1
1 4
1 7
1 6
2 0
2 1
2 2
2 3
2 4
5
2
3 0
2 9
2 7
2 6
2 8
3 1
7
1 8
1 9
1 3
6
3 3
2 5
1 5
3 6
4 0
4 1 4 3
3 7
3 5
3 8 3 9
4 9
4 9
4 7
4 5
4 5
4 5
4 5
4 6
4 8
4 4
3 4
3 2
1
5 0 5 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01565 BU DRIVER ASSY 1
2 400-00534 BACK UP DRI V PLATE (1)
3 SL- 4040891-SC SCREW M4 L=8 (3)
4 E1038- 871-000 PLATEN LOCK CAM SCREW (1)
5 HX-0042000-00 5 PHASE STEP DRIVER (1)
6 400-01566 CTRL FAN ASSY 1
7 400-00430 CTRL FAN BRACKET (1)
8 SL- 4040891-SC SCREW M4 L=8 (3)
9 400-00429 CTRL FAN BASE (1)
10 SL-6062592-TN SCREW (2)
11 HX-0022300-00 ADJUSTABLE BUS H (0.1)
12 SL-4032591-SC SCREW M3X25 (6 )
13 400-34024 CONTROL U NIT CX-1 1
14 400-03283 VME BACK PCB ASM (1)
15 400-03314 C-PCI BACK BOAR D (1)
16 400-00424 CTRL SIDE COVER (1)
17 SL-4040891-SC SCREW M4 L=8 (4)
18 400-00425 CTRL TOP COVER (1)
19 SL-4030691-SC SCREW M3X6 (7)
20 400-00426 CTRL REAR COVE R (1)
21 SL-4030691-SC SCREW M3X6 (4)
22 HX-0022300-00 ADJUSTABLE BUS H (0.2)
23 EA-9500B01-00 CABLE BAND (9)
24 EA-9500B02-00 CABLE BAND 150 (3)
25 400-34026 CTRL PCB SET (CX-1) (1)
26 400-01904 LIGHT CTRL PCB ASM (60) (1)
27 400-82923 BAS E FEEDER PCB ASM (FOR CX-1) (1)
28 400-01924 SAFETY PCB ASM (1)
29 400-01943 I O CTRL PC B ASM (1)
30 400-54800 IP- X3R ASM C (1)
31 400-01906 CTRL PWR PCB ASM (1 )
32 400-31754 I-CX PCB (1)
33 E1649-729-000 BRANK PANEL B (3)
34 400-34316 ZT UNIT (CX-1) 1
35 400-00431 PANEL SCREW (8)
36 400-01930 Z THETA EXT PCB ASM (1)
37 400-01928 Z THETA BACK BORD PCB ASM A (1)
38 400-03267 Z T AMP FAN (1)
39
#02
400-62557 ZT AMP FAN (1 )
40 400-00462 ZT BLANK PANEL (1)
41 400-03261 JHRMB (2)
42 400-32604 ZT AMP CX-1 (2)
43
#02
400-63927 ZT AMP CX-1 R-S PEC (2)
44 400-34027 IN/OUT DRIVER UNIT (CX-1) 1
45 SL-4030691-SC SCREW M3X6 (7)
46 E1038-871-000 PLATEN LOCK CAM SCREW (2)
47 HX-0029400-00 FIXED BASE (1)
48 400-30795 DRIVER BASE (1)
49 HM-0013200-00 MOTOR DRIVER (2 )
50
#01
400-00460 Z THETA CTRL PCB PANEL 1
51
#01
400-03286 IC ZTHETA DRIVER 1
52
#01
400-03261 JHRMB 1
53
#03
400-62558 ZT IC DR IVER 1
