- - 79.S YS T EM DIAGRAM (OCC ) C N 8 2 4 C N 4 O CC -C O C C - A L IG H T RL Y O CC A L IG H T 2 O C C A LI G H T 1 O C C C ( L ) L I G H T - C T R L C N 1 CN 1 0 O C C R E L A Y P C B ( S T A N D A R D ) R E C O N S …
- -

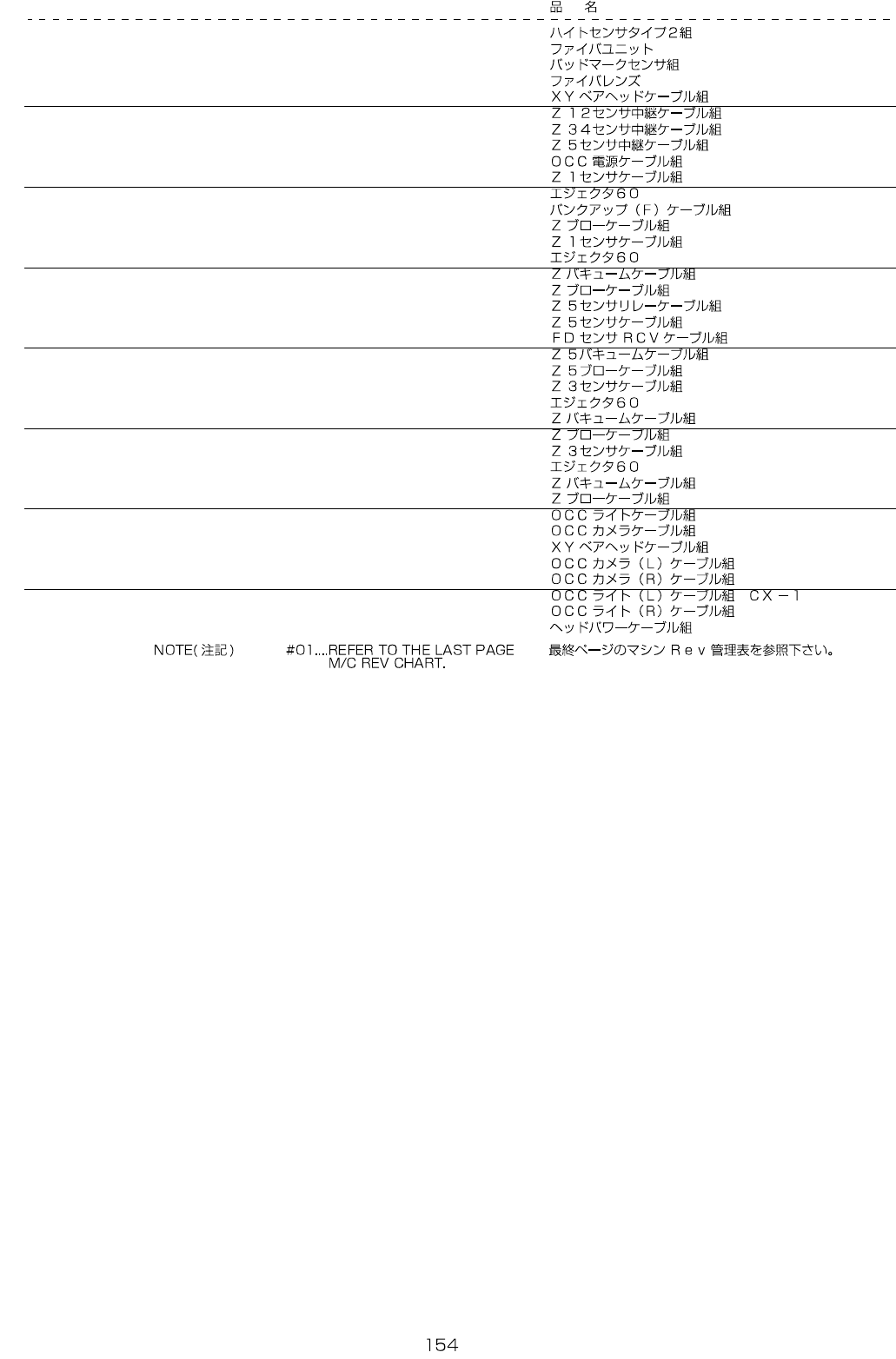

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-32129 HIGHT SENSOR TYPE 2 ASM 1
2 HD-0013100-30 FIBER UNIT 1
3 400-02267 BAD MARK SENSOR ASM 1
4 E9638-729-000 FIBER LENS 1
5 400-31861 XY BEAR HEAD CABLES ASM 1
6 400-02181 Z12 SENSOR RELAY CABLE ASM 1
7
#01
400-30517 Z34 SENSOR RELAY CABLE ASM 1
8 400-02183 Z5 SENSOR RELAY CABLE ASM 1
9 400-02188 OCC RELAY POWER CABLE ASM 1
10 400-02222 Z1 SENSOR CABLE ASM 1
11 400-01266 EJECTOR 60 1
12 400-02168 BANK UP(F)CABLE ASM 1
13 400-02187 Z BLOW CABLE ASM 1
14 400-02222 Z1 SENSOR CABLE ASM 1
15 400-01266 EJECTOR 60 1
16 400-02186 Z VACUUM CABLE ASM 1
17 400-02187 Z BLOW CABLE ASM 1
18 400-02226 Z5 SENSOR RELAY CABLE ASM 1
19 400-02184 Z5 SENSOR CABLE ASM 1
20 400-02166 FD SENS RCV CABLE ASM 1
21 400-02189 Z5 VACUUM CABLE ASM 1
22 400-02190 Z5 BLOW CABLE ASM 1
23 400-02224 Z3 SENSOR CABLE ASM 1
24 400-01266 EJECTOR 60 1
25 400-02186 Z VACUUM CABLE ASM 1
26 400-02187 Z BLOW CABLE ASM 1
27 400-02224 Z3 SENSOR CABLE ASM 1
28 400-01266 EJECTOR 60 1
29 400-02186 Z VACUUM CABLE ASM 1
30 400-02187 Z BLOW CABLE ASM 1
31 400-02140 OCC LIGHT CABLE ASM 1
32 400-02151 OCC CAMERA CABLE ASM 1
33 400-31861 XY BEAR HEAD CABLES ASM 1
34 400-02155 OCC CAMERA(L)CABLE ASM 1
35 400-02156 OCC CAMERA(R)CABLE ASM 1
36 400-32818 OCC LIGHT (L) CABLE ASM CX-1 1
37 400-02154 OCC LIGHT(R)CABLE ASM 1
38 400-02092 HEAD PWR CABLE ASM 1
- -

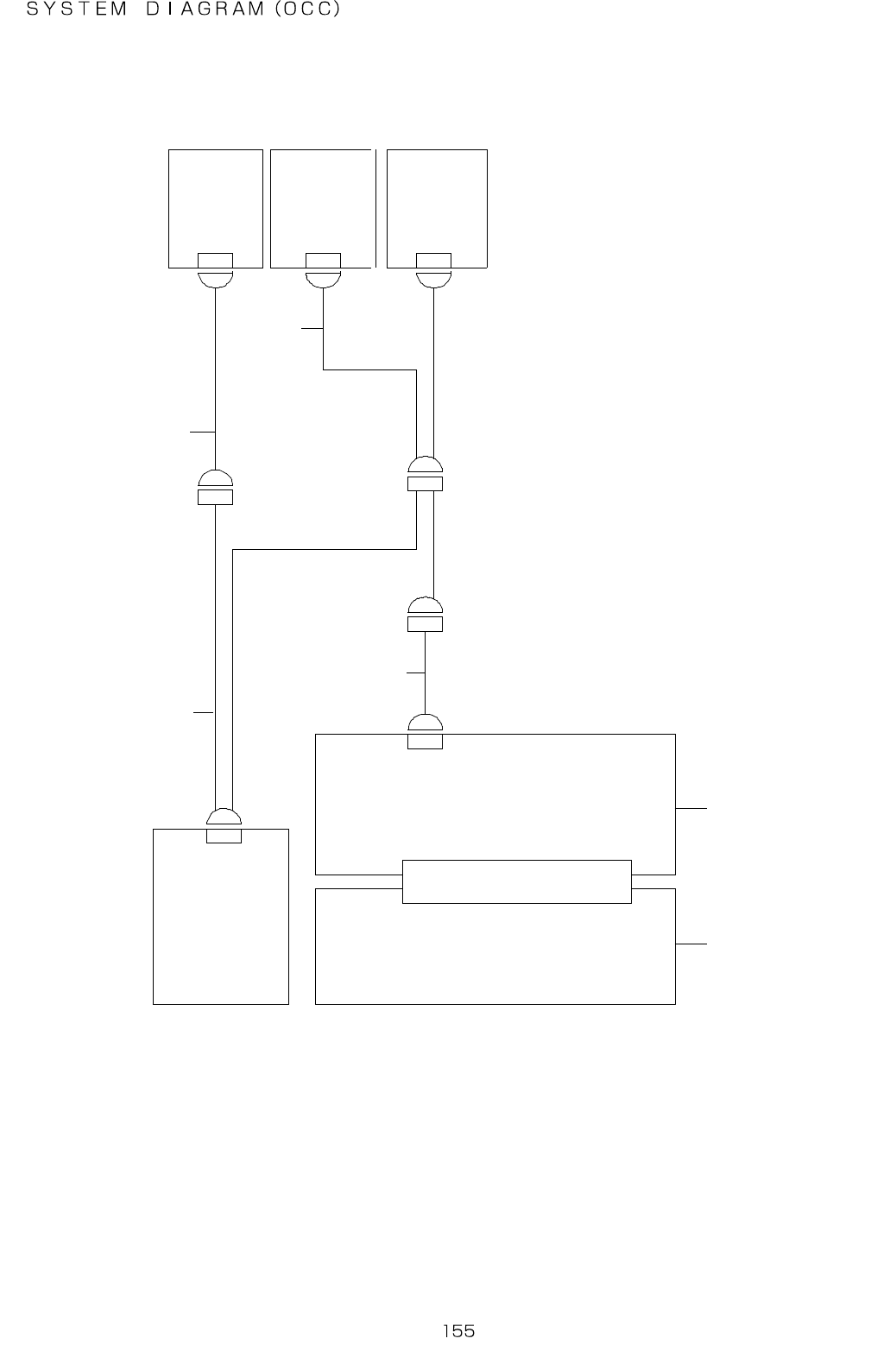

79.SYSTEM DIAGRAM (OCC)
CN824
CN4
OCC-C
OCC-A
LIGHT RLY
OCC A LIGHT2
OCC A LIGHT1
OCCC(L)
LIGHT-CTRL
CN1CN10
O C C R E L A Y P C B
( S T A N D A R D )
R E C O N S T R U C T I O N
H E A D M A I N P C B
* W A R N I N G
R E C O N S T R U C T I O N
H M S 5 P C B A S M
* W A R N I N G
1
2
5
6
4
3
O C C - C
L I G H T
P C B
( S T A N D A R D )
O C C - A
L I G H T
P C B
( B O T T O M )
O C C - A
L I G H T
P C B
( S T A N D A R D )
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46250 OCC LIGHT (L) RELAY CABLE ASM 1
2 400-48676 OCC C (L) LIGHT CABLE ASM 1
3 400-50574 RECONSTRUCTION HEAD MAIN PCB ASM 1
4 400-50575 RECONSTRUCTION HMS5 PCB ASM 1
5 400-50577 OCC A LIGHT-HMS CABLE ASM 1
6 400-50576 OCC A LIGHT CABLE ASM 1
