- - 7. C AL BLOCK CO M P ONE NT S 3 3 4 1 4 5 6 6 1 0 1 2 1 3 1 5 1 6 1 4 1 8 1 9 2 0 2 7 3 3 3 2 3 4 3 5 3 1 3 6 1 7 2 7 2 8 3 0 5 3 5 1 5 2 3 7 3 8 3 9 4 4 4 2 4 4 4 5 4 8 4 7 4 6 4 8 4 3 4 7 4 0 4 1 4 9 5 0 5 0 2 4 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00410 COVER STUD ASSY 1
2 400-01510 COVER STUD RL (4)
3 400-01512 COVER STUD YF (4)
4 400-01515 COVER STUD YS (4)
5 400-01516 COVER STUD YR (2)
6 SL-6040892-TN BOLT 4
7 400-34011 Y-AXIS SENSOR BR ASSY (CX-1) 1
8 400-30865 SENSOR BRACKET L (1)
9 SM-3040652-TN SCREW M4 L=6 (6)
10 400-21293 SENSOR BRACKET R (1)
11 SM-3040652-TN SCREW M4 L=6 (4)
12 PS-0500202-KP SPRING PIN 5X20 (2)
13 400-34012 FEEDER FLOAT SENS ASSY (CX-1) 1
14 400-34015 FD FLOAT FL ASSY (CX-1) (1)
15 400-02133 FD FLOAT(FR)RECEIVE SENS ASM (1)
16 SL-4031481-SC SCREW M3 X 14 (4)
17 EA-9500B01-00 CABLE BAND (2)
18 400-02130 FD FLOAT(FF)SENS ASM (1)
19 400-30863 FSD BRACKET S (1)
20 E2157-729-000 FSD SPACER (1)
21 400-34016 FD FLOAT FR ASSY (CX-1) (1)
22 E2157-729-000 FSD SPACER (1)
23 400-02131 FD FLOAT(FF)RECEIVE SENS ASM (1)
24 400-02132 FD FLOAT(FR)SENS ASM (1)
25 SL-4031481-SC SCREW M3 X 14 (4)
26 EA-9500B01-00 CABLE BAND (2)
27 400-30863 FSD BRACKET S (1)
28 400-34017 FD FLOAT RL ASSY (CX-1) (1)
29 E2157-729-000 FSD SPACER (1)
30 400-02134 FD FLOAT(RF)SENS ASM (1)
31 400-02137 FD FLOAT(RR)RECEIVE SENS ASM (1)
32 SL-4031481-SC SCREW M3 X 14 (4)
33 EA-9500B01-00 CABLE BAND (2)
34 400-30863 FSD BRACKET S (1)
35 400-34018 FD FLOAT RR ASSY (CX-1) (1)
36 E2157-729-000 FSD SPACER (1)
37 400-02135 FD FLOAT(RF)RECEIVE SENS ASM (1)
38 400-02136 FD FLOAT(RR)SENS ASM (1)
39 SL-4031481-SC SCREW M3 X 14 (4)
40 400-30863 FSD BRACKET S (1)
41 EA-9500B01-00 CABLE BAND (1)
42 400-34013 FEEDER SENS ASSY (CX-1) 1
43 400-34019 FD SENS ASSY (CX-1) (1)
44 400-02138 FD SENS ASM (1)
45 EA-9500B01-00 CABLE BAND (1)
46 400-30863 FSD BRACKET S (1)
47 SL-4031481-SC SCREW M3 X 14 (2)
48 400-34020 FD SENS RCV ASSY (CX-1) (1)
49 400-30863 FSD BRACKET S (1)
50 SL-4031481-SC SCREW M3 X 14 (2)
51 400-02139 FD RECEIVE SENS ASM (1)
52 EA-9500B01-00 CABLE BAND (1)
53 400-00543 CPCI BORD ASSY(50) 1
54 E9609-729-000 MCM(4 SHAFT) (1)
55 400-03259 XMP CPCI (1)
56 400-03313 BUS-BRIDGE BOARD (1)
57
#01
400-03280 CPU BOARD (1)
58 #02 400-44475 CPU BOARD (1)
59 HX-0033900-00 STUD 2
60 400-01583 BANK PCB F ASSY 1
61 E1017-715-000 BASE COVER CUSHION A 1
62 400-01584 BANK PCB R ASSY 1
63 400-00503 BANK PCB BRACKET (1)
64 SL-6061292-TN SCREW (4)
65 400-01949 BANK FPI R PCB ASM (1)
66 SL-4030891-SC SCREW M3X8 (2)
67 400-00501 BASE COVER SEALING R (1)
68 SL-6041492-TN SCREW 2
69 400-21294 FSD BRACKET SPACER 1
70 SL-6040892-TN BOLT 8
71 SL-4030891-SC SCREW M3X8 4
72 400-00504 BANK PCB COVER F 1
73 SL-4040891-SC SCREW M4 L=8 4
74 400-34313 CARRY BASE ASSY (CX-1) 1
75 400-00502 CARRY PCB BRACKET (1)
76 SL-6061292-TN SCREW (4)
77 400-01947 CARRY PCB ASM (1)
78 EA-9002B11-00 BUSHING L (1)
79 #03 E9610-729-000 MCM(1 SHAFT) 1
- -

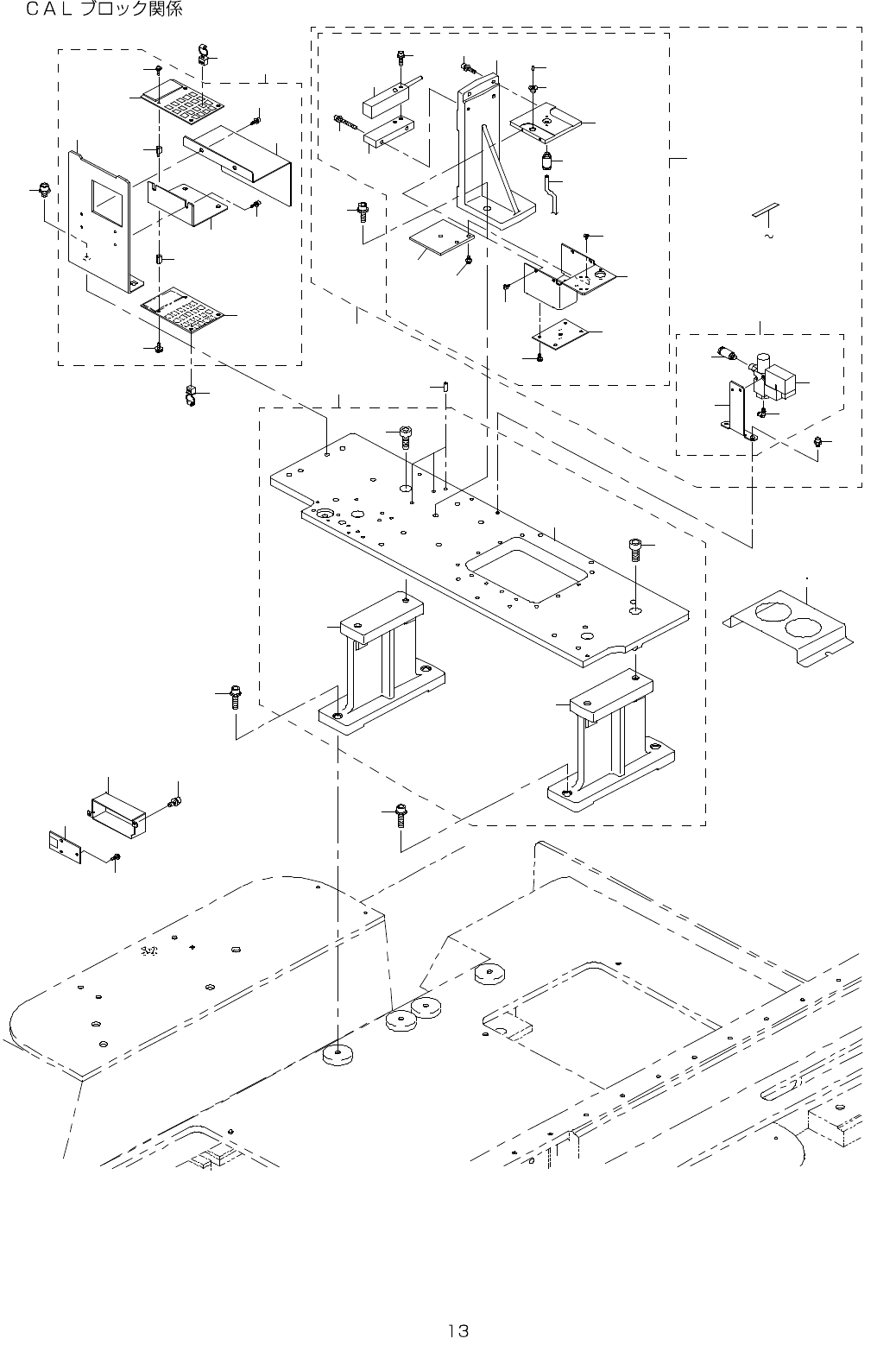

7. CAL BLOCK COMPONENTS
3
3
4
1
4
5
6
6
1 0
1 2
1 3
1 5
1 6
1 4
1 8
1 9
2 0
2 7
3 3
3 2
3 4
3 5
3 1
3 6
1 7
2
7
2 8 3 0
5 3
5 1
5 2
3 7
3 8 3 9
4 4
4 2
4 4
4 5
4 8
4 7
4 6
4 8
4 3
4 7
4 0
4 1
4 9
5 0
5 0
2 4
2 5
1 1
2 2
2 1
8
2 3
9
2 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-33284 BASE BRIDGE ASM 1
2 400-30598 BASE BRIDGE (1)
3 400-00633 BASE BRIDGE B (2)
4 SM-6082502-TP SCREW M8 L=25 (4)
5 PS-0400122-KP SPRING PIN 3
6 SL-6062592-TN SCREW 4
7 400-34079 CAL BLOCK UNIT (CX-1) 1
8 400-34081 CAL BLOCK ASSY (CX-1) (1)
9 400-21265 CAL STAND (1)
10 400-23868 CAL PLATE (1)
11 SL-6041692-TN SCREW (2)
12 PJ-3010405-05 HALF UNION (1)
13 BT-0400251-EB URETHANE HOSE, BLACK (0.2)
14 400-00644 CAL SIDE COVER (1)
15 SL-4030691-SC SCREW M3X6 (4)
16 E3605-721-000 CAL DIFFUSER (1)
17 SL-4030891-SC SCREW M3X8 (2)
18 SM-4030401-SC SCREW M3X0.5 L=4 (4)
19 E8609-721-0A0 CAL BLOCK CIRCUIT BOARD ASM (1)
20 SL-4030891-SC SCREW M3X8 (4)
21 400-21266 ROAD CELL BASE (1)
22 400-30594 OFFSET BOSS (1)
23 E2113-998-000 BOC OFFSET PIN (J003) (1)
24 SL-6043092-TN BOLT (2)
25 400-31620 LOAD CELL ASM (1)
26 SL-6041692-TN SCREW (2)
27 SL-6062092-TN SCREW M6 L=20 (2)
28 E2061-760-000 SHIM A (1)
29 E2062-760-000 SHIM B (1)
30 E2063-760-000 SHIM C (1)
31 400-00642 CAL VACUUM UNIT (1)
32 400-02125 CAL VCUM SV ASM (1)
33 400-00649 CAL EJECTOR STAY (1)
34 PJ-3040405-05 ELBOW (1)
35 PJ-3010405-05 HALF UNION (1)
36 SL-6040892-TN BOLT (2)
37 SL-4030691-SC SCREW M3X6 3
38 400-11418 DUSTPROOF COVER NC 1
39 400-11419 DUSTPROOF COVER HC 1
40 400-01302 TRANSFER STATION ASM 1
41 400-08909 CHIP BOX HANGER (1)
42 400-08907 TRANSFER STATION BRACKET (1)
43 400-08908 TRANSFER STATION COVER (1)
44 SL-6030692-TN BOLT (4)
45 HX-0007900-0B SPACER (4)
46 HX-0035400-0B PCB SUPPORT L=8MM (4)
47 SL-4030691-SC SCREW M3X6 (8)
48 400-01964 CARRY SENSOR RELAY PCB ASM (2)
49 SL-6061292-TN SCREW 2
50 400-02353 SENSOR SIGNAL SHORT WIRE ASM C 2
51 E2142-729-000 TEMPERATURE SENSOR COVER 1
52 E8621-729-0A0 TEMPERATURE SENSOR PWB ASM. 1
53 SL-6030692-TN BOLT 2
