- - 17.X - Y COMPONENTS (2) 2 6 2 4 6 7 7 9 9 1 1 1 2 2 1 2 0 2 6 4 2 4 3 3 2 3 3 3 4 2 4 3 1 2 9 3 8 3 7 4 0 4 0 4 8 5 1 5 4 5 6 5 7 5 9 5 8 5 8 5 9 4 9 5 0 5 2 5 3 6 1 4 1 3 6 4 6 5 6 6 8 5 2 5 2 7 6 0 3 6 3 5 4 6 6 …
- -

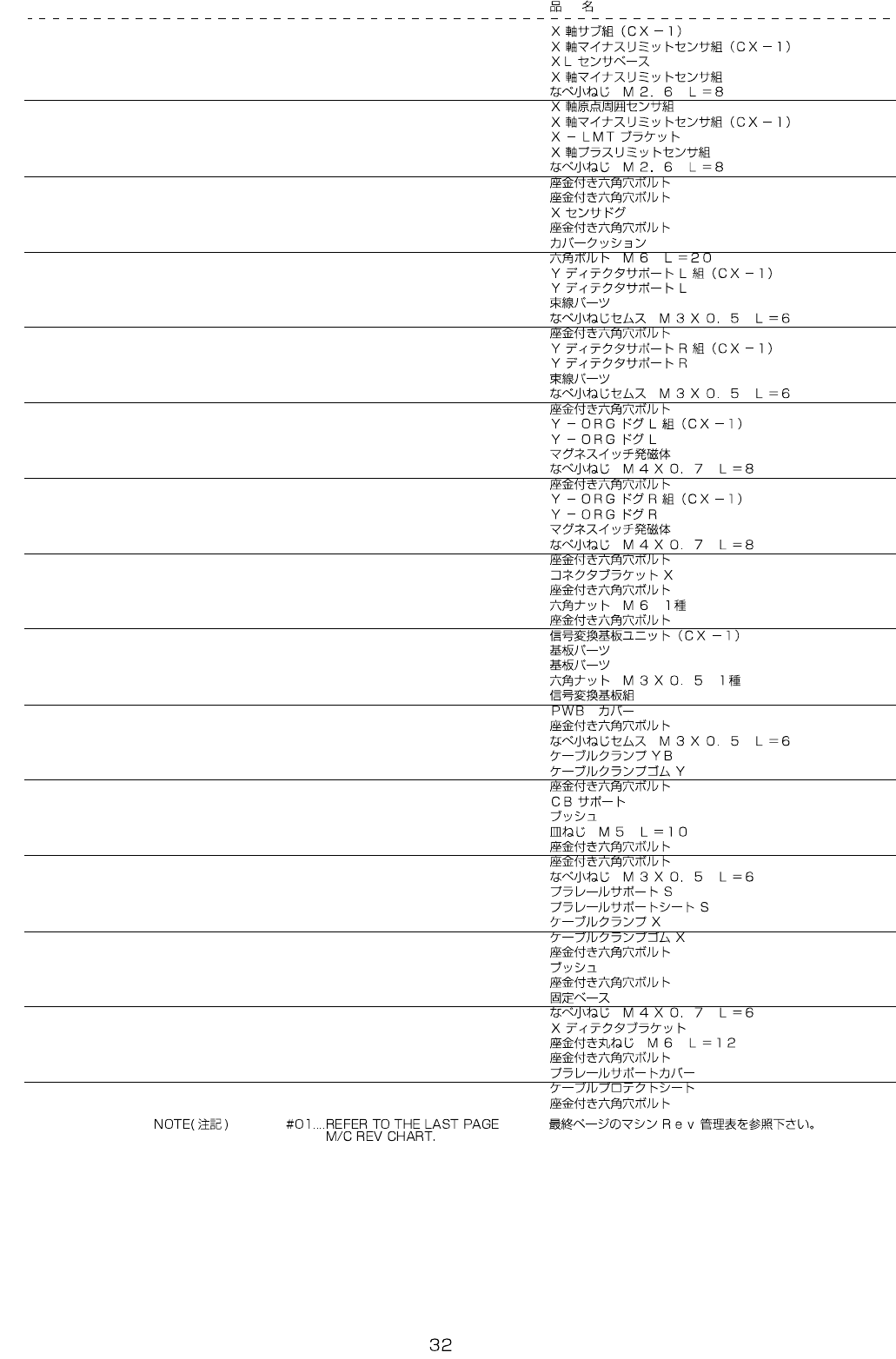

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-34339 X AXIS SUB ASSY (CX-1) 1
2 400-34340 X MINUS LMT SENSOR ASSY (CX-1) (1)
3 400-30858 XL SENSOR BASE (1)
4 400-02228 X MINUS LMT SENSOR ASM (1)
5 SM-4860801-SC SCREW M2.6 L=8 (2)
6 400-02229 X ORG RANGE SENSOR ASM (1)
7 400-01669 X PLUS LMT SENSOR ASSY (1)
8 400-00667 X-LMT BRACKET (1)
9 400-02227 X PLUS LMT SENSOR ASM (1)
10 SM-4860801-SC SCREW M2.6 L=8 (1)
11 SL-6030892-TN SCREW (2)
12 SL-6030892-TN SCREW (2)
13 400-42326 X-SENSOR DOG (1)
14 SL-6041092-TN SCREW (2)
15 400-49671 COVER CUSHION (4)
16 SM-9062003-SC SCREW M6 L=20 (2)
17 400-34343 Y-DETECTOR SUPPORT L ASSY (CX-1) (1)
18 400-21285 Y-DETECTOR SUPPORT L (1)
19 HX-0034400-00 HARNESS PARTS (2)
20 SL-4030691-SC SCREW M3X6 (2)
21 SL-6051492-TN BOLT (2)
22 400-34344 Y-DETECTOR SUPPORT R ASSY (CX-1) (1)
23 400-21286 Y-DETECTOR SUPPORT R (1)
24 HX-0034400-00 HARNESS PARTS (2)
25 SL-4030691-SC SCREW M3X6 (2)
26 SL-6051492-TN BOLT (2)
27 400-34341 Y-ORG DOG L ASSY (CX-1) (1)
28 400-21289 Y-ORG DOG L (1)
29 E9607-715-B00 MAGNET SWITCH (1)
30 SM-4040801-SC SCREW M4X0.7 L=8 (2)
31 SL-6042092-TN SCREW M4 L=20 (2)
32 400-34342 Y-ORG DOG R ASSY (CX-1) (1)
33 400-21290 Y-ORG DOG R (1)
34 E9607-715-B00 MAGNET SWITCH (1)
35 SM-4040801-SC SCREW M4X0.7 L=8 (2)
36 SL-6042092-TN SCREW M4 L=20 (2)
37 400-00674 CONEECTOR BRACKET X (1)
38 SL-6051092-TN BOLT (2)
39 NM-6060001-SC NUT M6 (2)
40 SL-6041092-TN SCREW (4)
41 400-34345 SIGNAL CONVERT PCB UNIT (CX-1) (2)
42 HX-0035400-0C BASE PARTS (3)
43 HX-0035400-0F BOARD SUPPORT (3)
44 NM-6030001-SC NUT M3 (3)
45 400-30345 SIGNAL CONVERT PCB (1)
46 400-30586 PWB COVER (1)
47 SL-6031092-TN SCREW (6)
48 SL-4030691-SC SCREW M3X6 (4)
49 400-00747 CABLE CLAMP YB (1)
50 400-00749 CABLE CLAMP RUBBER Y (1)
51 SL-6061092-TN SCREW (2)
52 400-01655 CB SUPPORT (1)
53 HX-0022700-0A BUSH (4)
54 SM-1051052-TN SCREW M5 L=10 (3)
55 SL-6051292-TN BOLT (2)
56 #01 SL-6061292-TN SCREW (1)
57 SM-4030601-SC SCREW M3 X 6 (4)
58 400-30960 P-RAIL SUPPORT S (1)
59 400-30859 PLASTIC RAIL SUPPORT SHEET S (1)
60 400-00746 CABLE CLAMP X (1)
61 400-00748 CABLE CLAMP RUBBER X (1)
62 SL-6061092-TN SCREW (3)
63 HX-0054100-00 BUSH (4)
64 SL-6061292-TN SCREW (4)
65 HX-0029400-00 FIXED BASE (6)
66 SM-4040601-SC SCREW M4X0.7 L=6 (6)
67 400-42327 X-DETECTOR BRACKET (1)
68 SL-3061232-TN SCREW (2)
69 SL-6040892-TN BOLT (2)
70
#01
400-82729 P-RAIL SUPPORT COVER (1)
71
#01
400-01306 CABLE PROTECTOR SHEET (1)
72
#01
SL-6041092-TN SCREW (3)
- -

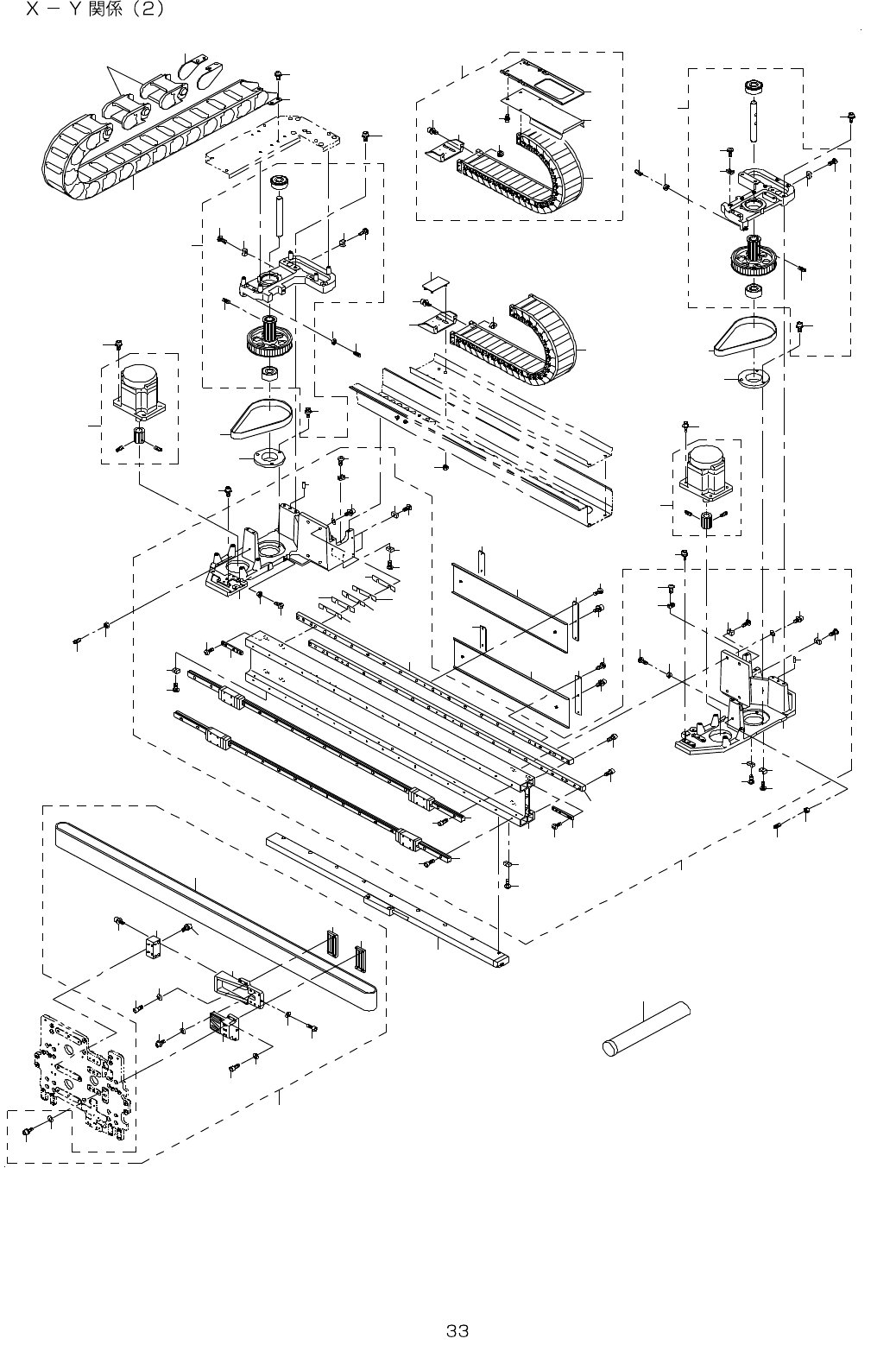

17.X-Y COMPONENTS (2)
2 6
2
4
6
7
7
9
9
1 1
1 2
2 1
2 0
2 6
4 2
4 3
3 2
3 3
3 4
2 4
3 1
2 9
3 8
3 7
4 0
4 0
4 8
5 1
5 4
5 6
5 7
5 9
5 8
5 8
5 9
4 9
5 0
5 2
5 3
6
1 4
1 3
6 4
6 5
6 6
8
5
2 5
2 7
6 0
3 6
3 5
4 6
6 7
1
3 3
3 4
3 9
3 9
8
4 2
4 3
4 1
1 6
1 6
3
1 8
1 7
1 7
1 8
1 7
1 8
1 0
1 7
1 7
1 8
1 7
2 7
3 0
1 8
1 8
1 7
1 7
1 8
1 7
1 8
7 1
7 1
5
1 0
1 2
2 8
2 1
2 0
4 1
6 1
6 8
6 2
1 1
1 5
2 2
7 2
7 2
2 3
4 7
5 5
1 9
1 9
1 7
7 0
7 3
7 3
7 4
7 5
7 5
7 4
7 5
7 5
7 6
7 6
4 5
4 5
4 4
6 9
6 3
7 7
6 4
8 5
7 9
8 3
8 2
8 1
8 0
8 4
7 8
8 6
- -

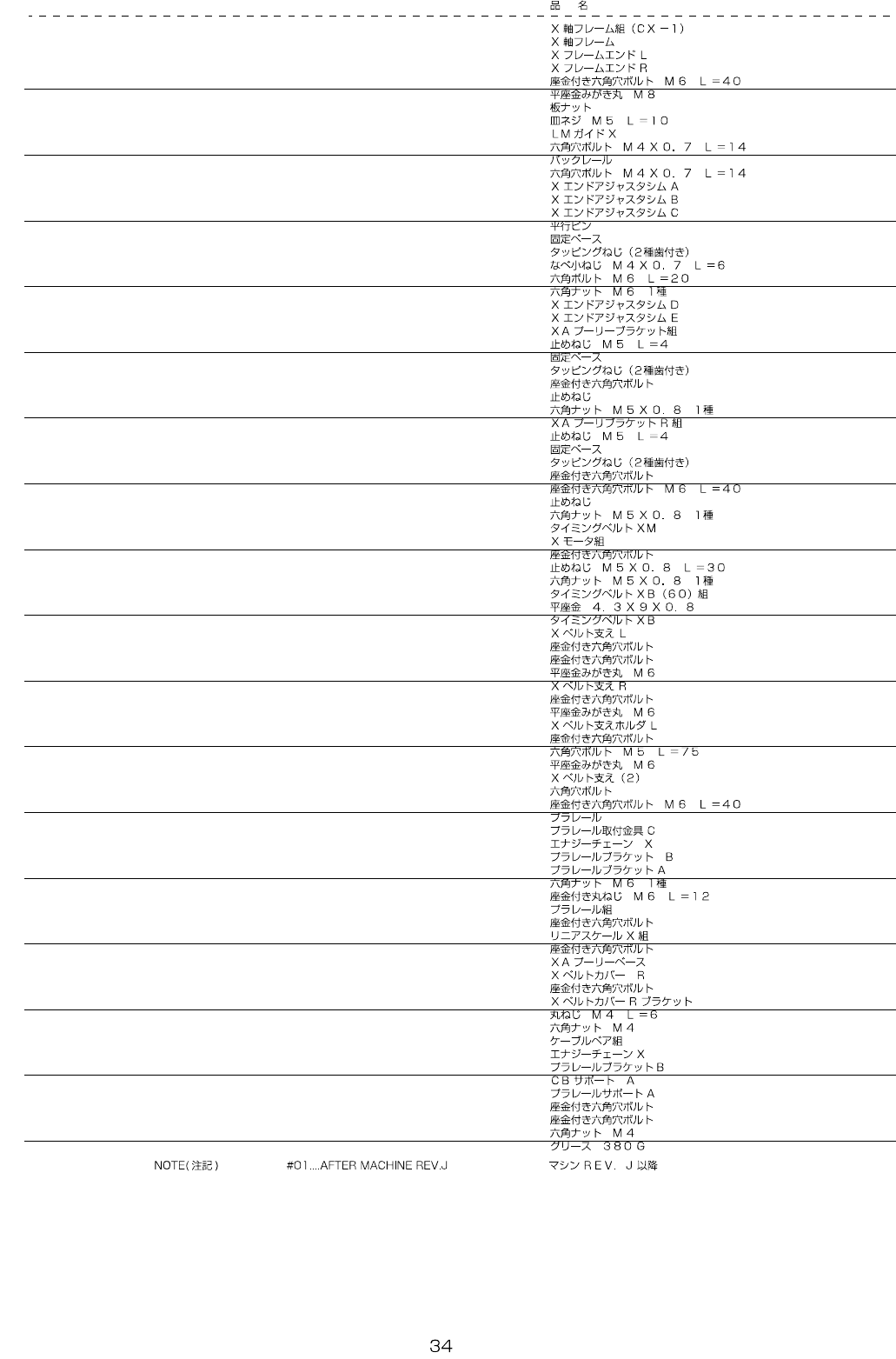

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-34338 X AXIS FRAME ASSY (CX-1) 1
2 400-21168 X AXIS FRAME (1)
3 400-00657 X FRAME END L (1)
4 400-00658 X FRAME END R (1)
5 SL-6064092-TN SCREW (8)
6 WP-0841601-SC WASHER 8.4X17.4X1.6 (8)
7 400-00661 PLATE NUT (4)
8 SM-1051052-TN SCREW M5 L=10 (8)
9 400-00659 LM GUIDE X (2)
10 SM-6041402-TN SCREW M4X0.7 L=14 (34)
11 400-21295 BACK RAIL (2)
12 SM-6041402-TN SCREW M4X0.7 L=14 (38)
13 400-00662 X END ADJUST SHIM A (4)
14 400-00663 X END ADJUST SHIM B (2)
15 400-00664 X END ADJUST SHIM C (2)
16 PH-0600164-C0 PIN (2)
17 HX-0029400-00 FIXED BASE (13)
18 ST-4040651-SN SCREW M4 X 6 (10)
19 SM-4040601-SC SCREW M4X0.7 L=6 (3)
20 SM-9062003-SC SCREW M6 L=20 (2)
21 NM-6060001-SC NUT M6 (2)
22 400-15660 X END ADJUST SHIM D (2)
23 400-33623 X END ADJUST SHIM E (2)
24 400-00676 XA PULLEY BRACKET L ASSY 1
25 SM-8050412-TP SCREW M5 L=4 (2)
26 HX-0029400-00 FIXED BASE (6)
27 ST-4040651-SN SCREW M4 X 6 (6)
28 SL-6062092-TN SCREW M6 L=20 (3)
29 SM-8052502-TP SCREW M5X0.8 L=25 1
30 NM-6050001-SC NUT M5 1
31 400-00683 XA PULLEY BRACKET R ASS'Y 1
32 SM-8050412-TP SCREW M5 L=4 (2)
33 HX-0029400-00 FIXED BASE (9)
34 ST-4040651-SN SCREW M4 X 6 (9)
35 SL-6062092-TN SCREW M6 L=20 (6)
36 SL-6064092-TN SCREW 6
37 SM-8052502-TP SCREW M5X0.8 L=25 1
38 NM-6050001-SC NUT M5 1
39 400-00675 TIMING BELT XM 2
40 400-00685 X MOTOR ASS'Y 2
41 SL-6051692-TN BOLT 8
42 SM-8053002-TP SCREW M5 L=30 2
43 NM-6050001-SC NUT M5 2
44 400-01685 TIMING BELT XB (60) ASS'Y 1
45 WP-0430801-SC WASHER 4.3X9X0.8 (16)
46 400-00688 TIMING BELT XB (1)
47 400-00689 X BELT STAY L (1)
48 SL-6053592-TN BOLT (4)
49 SL-6052592-TN BOLT (4)
50 WP-0641601-SC WASHER (4)
51 400-00690 X BELT STAY R (1)
52 SL-6052592-TN BOLT (3)
53 WP-0641601-SC WASHER (3)
54 400-01659 X BELT STAY HOLDER L (1)
55 SL-6053592-TN BOLT (4)
56 SM-6057552-TP SCREW M5 L=75 (1)
57 WP-0641601-SC WASHER (1)
58 400-00691 X BELT STAY (2) (2)
59 SM-6051602-TN BOLT (8)
60 SL-6064092-TN SCREW 6
61 400-00741 PLASTIC RAIL 2
62 400-00742 PLASTIC RAIL TABLE CLAMP C 1
63 400-58017 ENERGY CHAIN X 1
64 400-65019 PLASTIC RAIL BRACKET B 1
65 400-01674 PLASTIC RAIL BRACKET A 1
66 NM-6060001-SC NUT M6 4
67 SL-3061232-TN SCREW 4
68 400-00740 PLASTIC RAIL ASSY 1
69 SL-6041292-TN SCREW 2
70 400-31812 LINEAR SCALE X ASM 1
71 SL-6052592-TN BOLT 22
72 400-00682 XA PULLEY BASE 2
73 400-21329 X BELT COVER R 2
74 SL-6041092-TN SCREW 4
75 400-21330 X BELT COVER R BRACKET 4
76 SM-3040652-TN SCREW M4 L=6 8
77 NM-6040001-SC NUT M4 2
78
#01
400-69117 CABLE BEAR ASSY 1
79 400-58017 ENERGY CHAIN X (1)
80 400-65019 PLASTIC RAIL BRACKET B (1)
81 400-66028 CB SUPPORT A (1)
82 400-66027 PLASTIC RAIL SUPPORT A (1)
83 SL-6040892-TN BOLT (2)
84 SL-6041292-TN SCREW (4)
85 NM-6040001-SC NUT M4 (2)
86 MGR-EAS380G0 GREASE 380G 1
