- - 21.F EEDER BAN K COMPO N E NT S (2) 2 4 5 5 6 6 9 2 5 1 0 2 6 2 7 1 2 1 3 1 4 1 5 1 6 1 8 1 9 2 0 2 1 2 2 2 3 2 4 1 7 1 8 1 7 8 2 9 3 0 3 1 2 8 1 1 1 3 7
- -

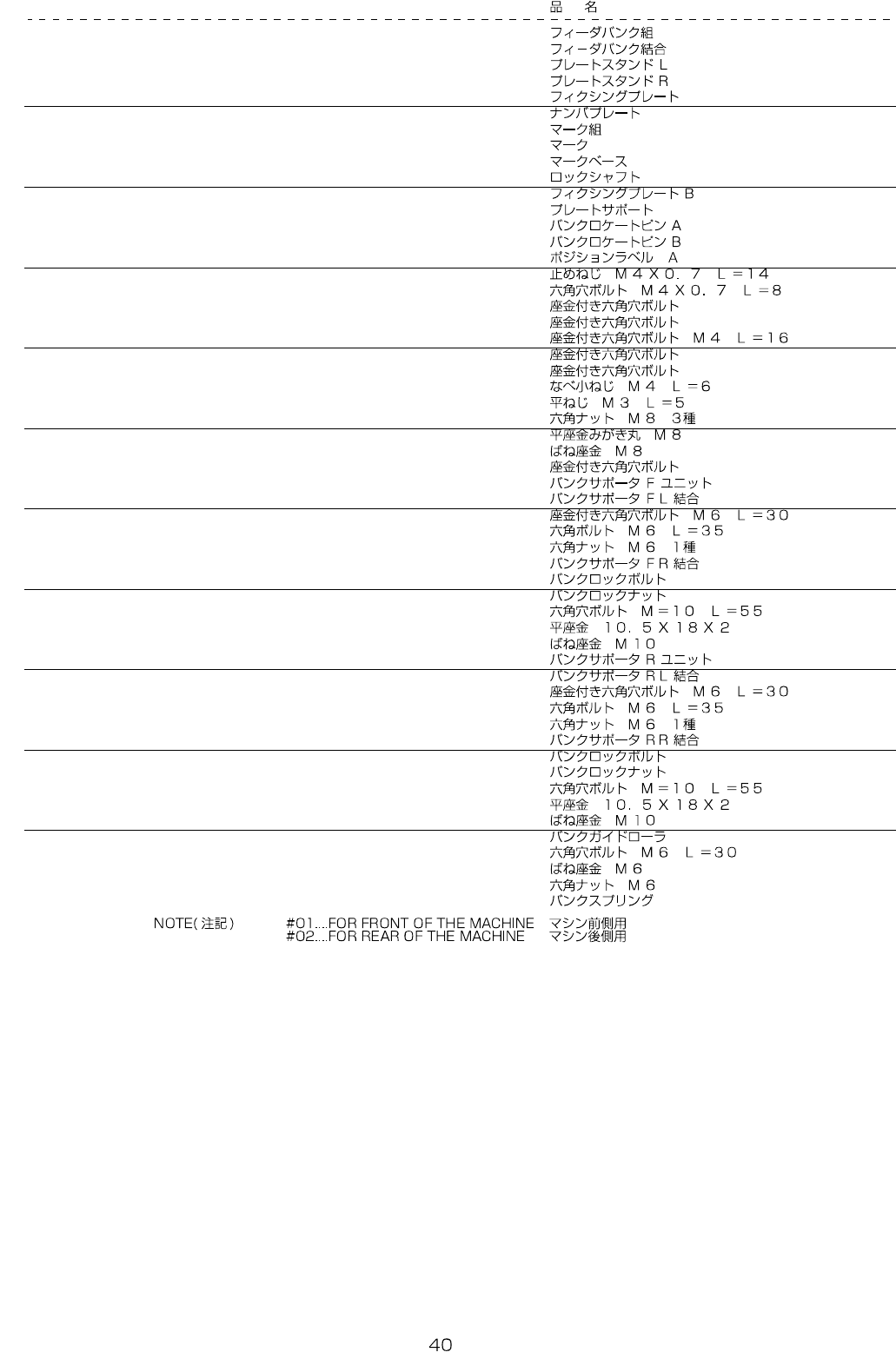

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2501-729-AA0-A FEEDER BANK ASM. 1
2 E2501-729-0B0 FEEDER BANK (30) COMPL. (1)
3 E2502-729-000 PLATE STAND L (1)
4 E2503-729-000 PLATE STAND R (1)
5 E2515-729-000 FIXING PLATE (30) (1)
6 E2516-729-000 NUMBER PLATE (1)
7 E2505-729-0A0 MARK ASM. (2)
8 E2601-725-000 MARK (1)
9 E2505-729-000 MARK BASE (1)
10 E2504-729-000-A LOCK SHAFT (30) (1)
11 E2513-729-000-A FIXING PLATE B (30) (4)
12 E2608-721-000 PLATE SUPPORT (4)
13 E2609-721-000 BANK LOCATE PIN A (1)
14 E2610-721-000 BANK LOCATE PIN B (1)
15 E2611-721-000 POSITION LABEL A (1)
16 SM-8041402-TP SCREW M4X0.7 L=14 (4)
17 SM-6040802-TN SCREW (17)
18 SL-6031292-TN BOLT (12)
19 SL-6041292-TN SCREW (5)
20 SL-6041692-TN SCREW (8)
21 SL-6041292-TN SCREW (4)
22 SL-6052092-TN SCREW (4)
23 SM-4040655-SN SCREW M4X0.7 L=6 (8)
24 SM-6030552-KS SCREW (5)
25 NM-6080003-SC NUT M8 (2)
26 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
27 WS-0820002-KN SPRING WASHER M8 (2)
28 SL-6082592-TN BOLT 4
29
#01
400-00573 BANK SUPPORTER F UNIT 1
30 400-00566 BANK SUPPORTER FL COMPL. (1)
31 SL-6063092-TN SCREW M6 L=30 (4)
32 SM-9063503-SE SCREW M6 L=35 (2)
33 NM-6060001-SC NUT M6 (2)
34 400-00567 BANK SUPPORTER FR COMPL. (1)
35 400-00555 BANK LOCK BOLT (2)
36 400-00556 BANK LOCK NUT (2)
37 SM-6105502-TN HEXAGONAL-HOLE BOLT M10 L=55 (2)
38 WP-1052000-SC WASHER 10.5X18X2 (2)
39 WS-1020002-KN SPRING WASHER M10 (2)
40
#02
400-00577 BANK SUPPORTER R UNIT 1
41 400-00568 BANK SUPPORTER RL COMPL. (1)
42 SL-6063092-TN SCREW M6 L=30 (4)
43 SM-9063503-SE SCREW M6 L=35 (2)
44 NM-6060001-SC NUT M6 (2)
45 400-00569 BANK SUPPORTER RR COMPL. (1)
46 400-00555 BANK LOCK BOLT (2)
47 400-00556 BANK LOCK NUT (2)
48 SM-6105502-TN HEXAGONAL-HOLE BOLT M10 L=55 (2)
49 WP-1052000-SC WASHER 10.5X18X2 (2)
50 WS-1020002-KN SPRING WASHER M10 (2)
51 E2732-721-000 BANK GUIDE ROLLER 4
52 SM-6063002-TN SCREW M6 L=30 2
53 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 2
54 NM-6060003-SC NUT M6 2
55 E2734-721-000 BANK SPRING 2
- -
21.FEEDER BANK COMPONENTS (2)
2
4
5
5
6
6
9
2 5
1 0
2 6
2 7
1 2
1 3
1 4
1 5
1 6
1 8
1 9
2 0
2 1
2 2
2 3
2 4
1 7
1 8
1 7
8
2 9
3 0
3 1
2 8
1 1
1
3
7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00574 DRIVE CYLINDER ASSY 1
2 400-00575 DRIVE CYLINDER L (1)
3 400-00576 DRIVE CYLINDER R (1)
4 400-08458 DRIVER SUPPORT (1)
5 SL-6052092-TN SCREW (6)
6 SL-6051292-TN BOLT (2)
7 400-23687 DRIVE CYLINDER CABLE (2)
8 E2508-729-0A0 CONNECTOR BRACKET (30) ASM. 1
9 E2508-729-000 CONNECTOR BRACKET (30) (1)
10 SM-4860601-SC SCREW M2.6 L=6 (16)
11 SM-4031201-SC SCREW M3 X 12 (4)
12 B4011-210-000 SPACER (4)
13 NM-6030003-SC NUT M3 (4)
14 SM-4020801-SC SCREW M2 X 8 (4)
15 HX-0029400-00 FIXED BASE (1)
16 SM-4030601-SC SCREW M3 X 6 (1)
17 PJ-3010651-06 KNIFE UNION (2)
18 E2904-700-000 SOCKET (2)
19 PJ-2300061-00 UNION 06 (1)
20 PJ-3050600-04 TEE (1)
21 PJ-0320090-05 NIPPLE (1)
22 E2642-721-000 CONNECTOR NO. LABEL (1)
23 BT-0600400-EC TUBE HOSE, BLUE (1.3)
24 EA-9500B01-00 CABLE BAND (4)
25 E8615-715-0A0 FEEDER BANK CIRCUIT BOARD ASM. (2)
26 E8618-721-0A0 FEEDER I/F BOARD ASM. (1)
27 HX-0032600-0M DOME PLUG 1
28 E2634-721-0A0 DRIVER BRACKET SUPPORT A ASM. 2
29 SL-6052092-TN SCREW (4)
30 SL-6053592-TN BOLT (4)
31 E2634-721-000 DRIVER BRACKET SUPPORT A (2)
