- - REF.NO N OTE PART NO D E S C R I P T I O N Qty 1 400-00580 F RONT LIFTER UNIT 1 2 400-00582 L IFTER L UNI T (1) 3 400-00557 L IFTER SUPPORTER L (1) 4 400-00587 L IFTER BUSH COMBINATION ( 2) 5 SM -60 4 08 02-TN SC R…
- -
22.LIFTER UNIT COMPONENTS (1)
4
4
5
5
6
2 3
7
8
9
1 1
1 2
1 3
1 5
1 6
1 7
2
2 0
2 1
2 0
2 1
2 2
2 4
2 5
2 7
2 8
2 9
3 1
3 2
3 3
1 8
3 4
3 4
1 9
3
1 0
1
2 6
1 4 3 0
- -

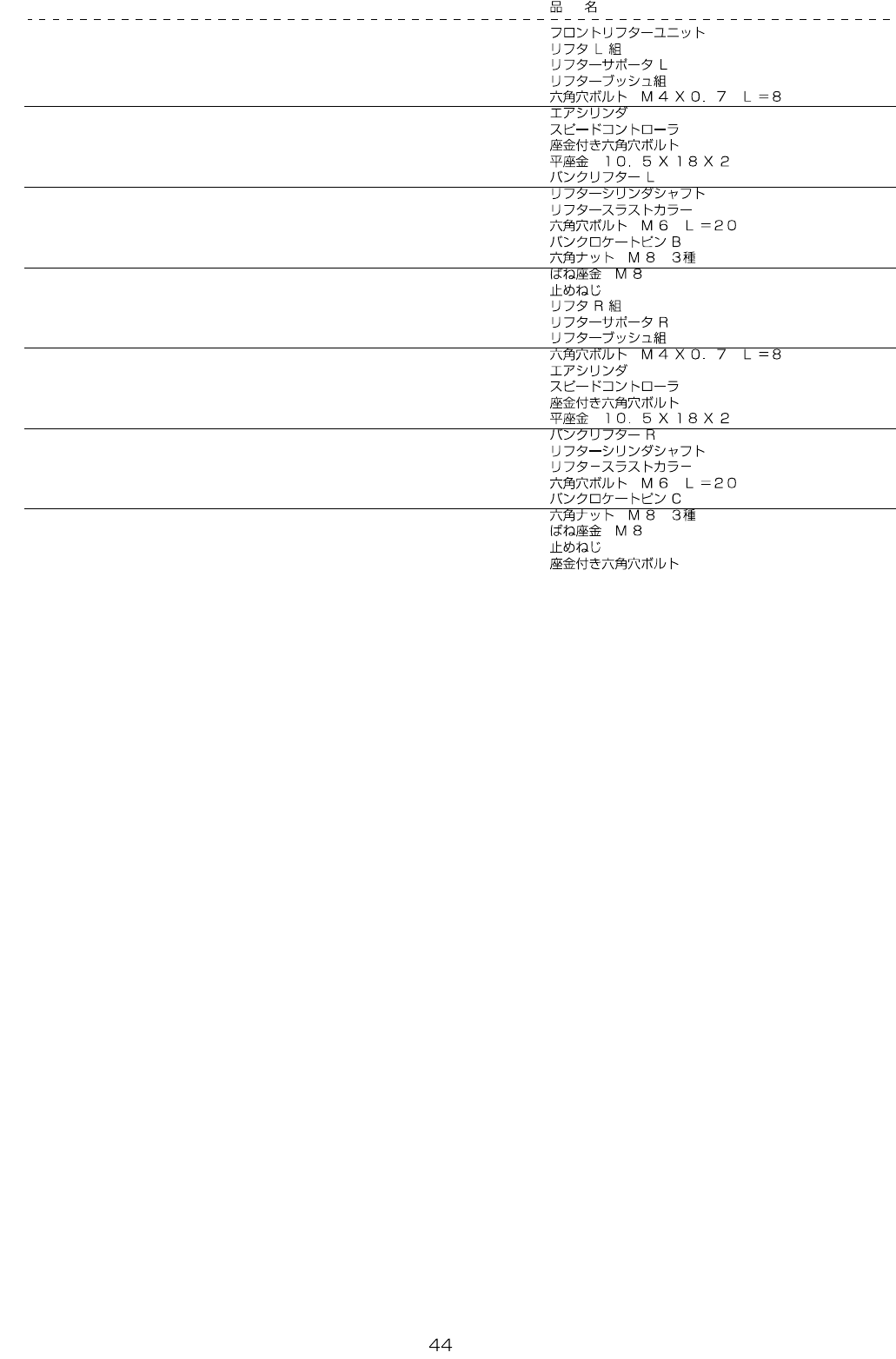

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00580 FRONT LIFTER UNIT 1
2 400-00582 LIFTER L UNIT (1)
3 400-00557 LIFTER SUPPORTER L (1)
4 400-00587 LIFTER BUSH COMBINATION (2)
5 SM-6040802-TN SCREW (8)
6 PA-6307503-00 AIR CYLINDER (1)
7 PC-0152030-00 SPEED CONTROLLER (2)
8 SL-6104042-TN BOLT (4)
9 WP-1052000-SC WASHER 10.5X18X2 (4)
10 400-00588 BANK LIFTER L (1)
11 400-00589 LIFTER CYLINDER SHAFT (1)
12 E2622-729-000 LIFTER THRUST COLLAR (1)
13 SM-1062052-TP SCREW M6 L=20 (1)
14 E2610-721-000 BANK LOCATE PIN B (1)
15 NM-6080003-SC NUT M8 (1)
16 WS-0820002-KN SPRING WASHER M8 (1)
17 SM-8060552-TP SCREW M6 L=5 (2)
18 400-00583 LIFTER R UNIT (1)
19 400-00558 LIFTER SUPPORTER R (1)
20 400-00587 LIFTER BUSH COMBINATION (2)
21 SM-6040802-TN SCREW (8)
22 PA-6307503-00 AIR CYLINDER (1)
23 PC-0152030-00 SPEED CONTROLLER (2)
24 SL-6104042-TN BOLT (4)
25 WP-1052000-SC WASHER 10.5X18X2 (4)
26 400-00590 BANK LIFTER R (1)
27 400-00589 LIFTER CYLINDER SHAFT (1)
28 E2622-729-000 LIFTER THRUST COLLAR (1)
29 SM-1062052-TP SCREW M6 L=20 (1)
30 400-00595 BANK LOCATE PIN C (1)
31 NM-6080003-SC NUT M8 (1)
32 WS-0820002-KN SPRING WASHER M8 (1)
33 SM-8060552-TP SCREW M6 L=5 (2)
34 SL-6082592-TN BOLT (4)
- -

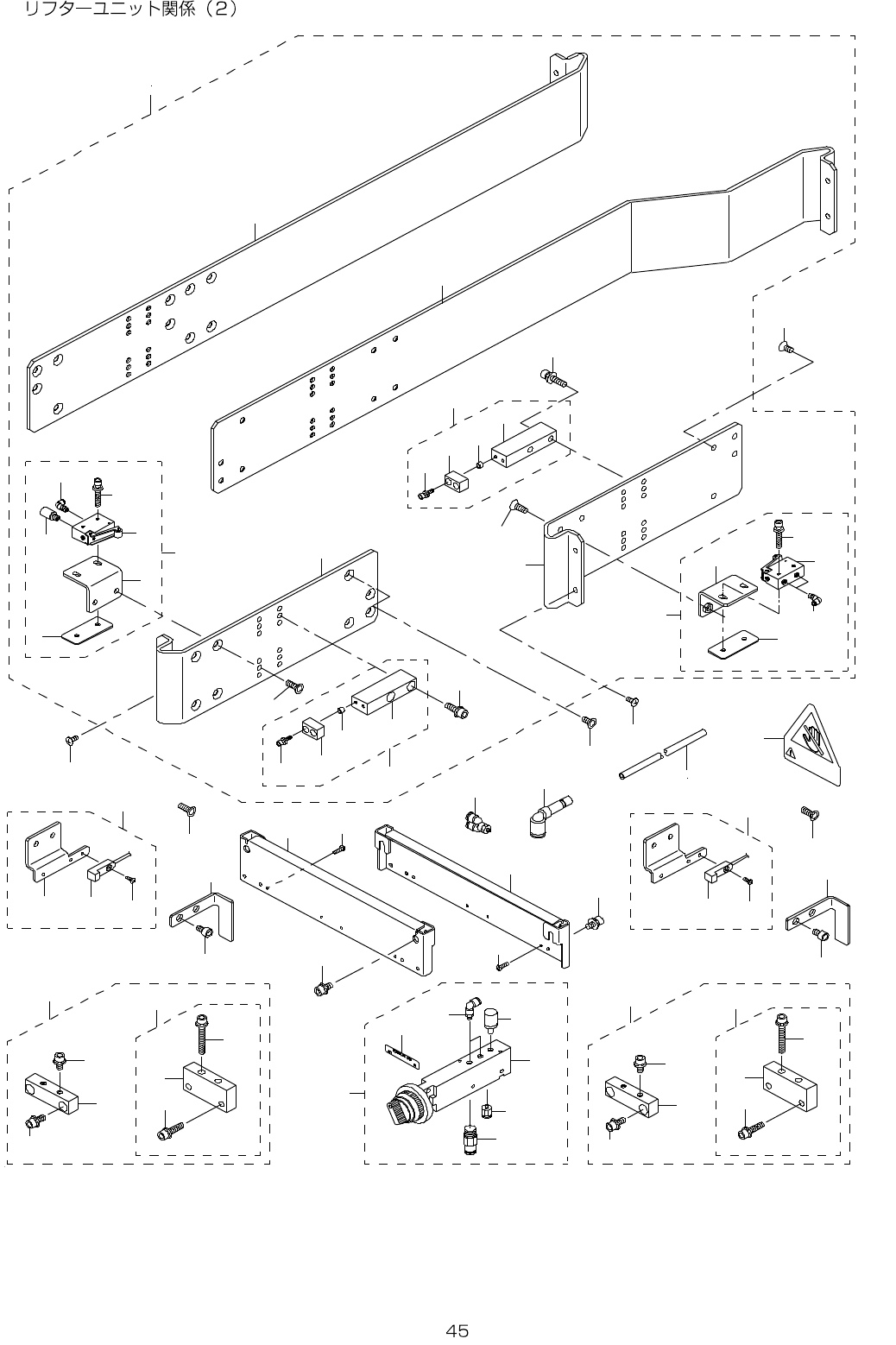

23.LIFTER UNIT COMPONENTS (2)
3
5
1 1
7
8
1 0
6
9
1 6
1 3
1 2
1 5
1 4
1 7
1 8
2 3
2 2
2 1
2 0
2 4
3
1 9
2 4
2 0
2 2
2 1
2 3
1 9
2 5
4
7 1
1 2
3 1
3 0
3 2
2 8
3 3
3 4
3 5
4 1
4 0
3 9
3 8
4 7
4 6
4 9
5 0
5 1
4 8
4 5
5 3
4 2
4 4
4 3
5 5
5 6
5 8
5 7
6 0
5 9
6 3
6 2
6 7
6 6
6 5
6 4
6 1
6 9
1 8
7 1
3 7
2 9
3 6 5 4
2 6
2 6
7 0
7 0
5 2
6 8
7 2
2 7
7 3
