- - 24.F LO O R TROL L EY UNIT CO MPONENTS (FO R REPL A CING O VE R A LL CH A NG ER TABLE WIT HOUT EAR TH WI RE ) 3 4 5 6 6 8 9 7 1 0 1 1 1 2 1 3 1 4 1 6 1 5 1 9 2 1 2 2 2 2 2 1 2 3 2 3 2 0 2 4 2 4 2 5 2 5 2 5 2 5 2 6 …
- -

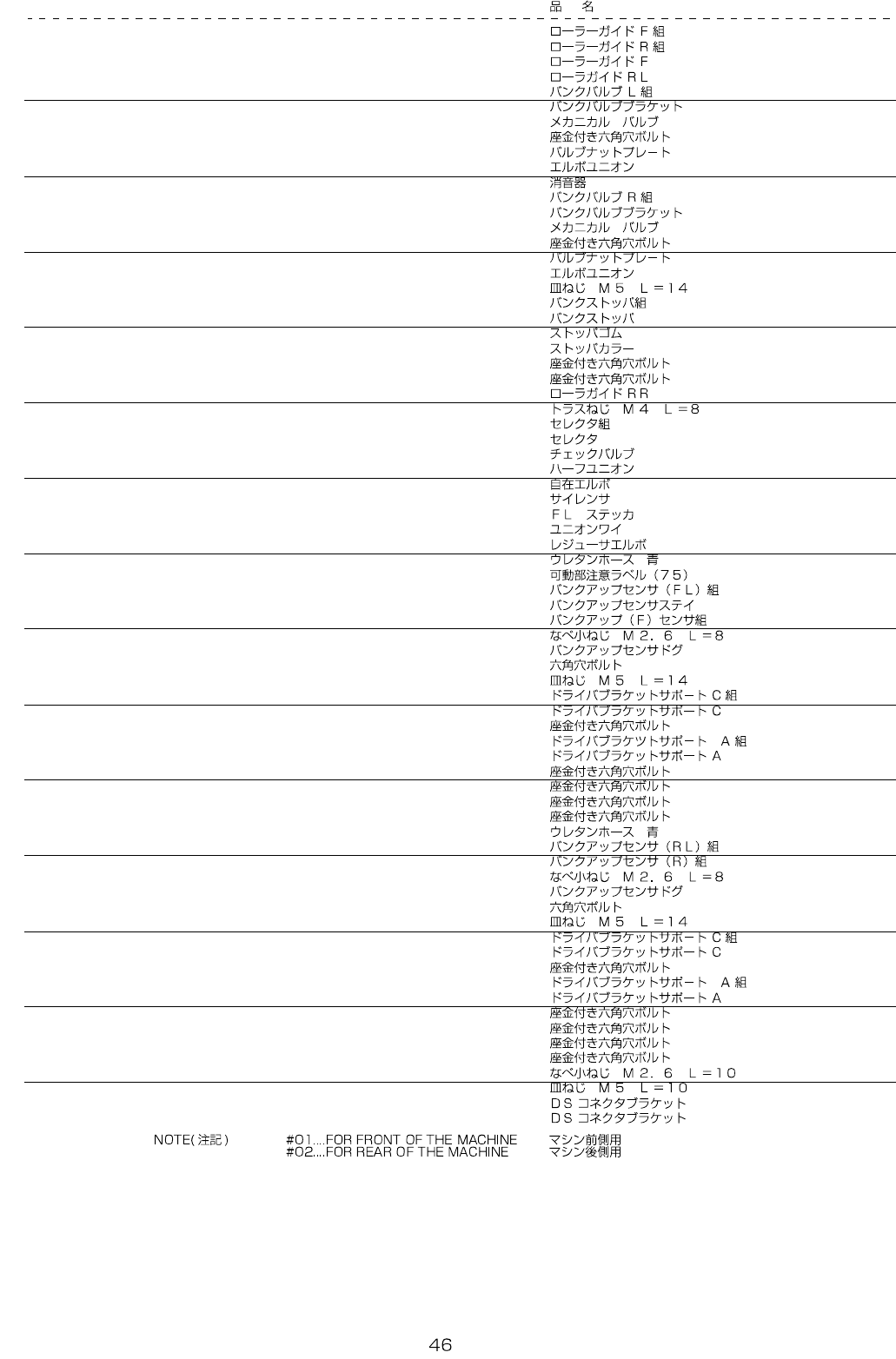

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00584 ROLLER GUIDE F ASSY 1
2
#02
400-00586 ROLLER GUIDE R ASSY 1
3 400-00591 ROLLER GUIDE F (2)
4 400-30605 ROLLER GUIDE RL (1)
5 E2631-729-0A0 BANK VALVE L ASM. (1)
6 E2631-729-000 BANK VALVE BRACKET (1)
7 PV-0105050-00 MECHANICAL VALVE (1)
8 SL-6042592-TN SCREW (2)
9 E2811-729-000 VALVE NUT PLATE (1)
10 PJ-3040405-05 ELBOW (1)
11 PX-0505010-00 SILENCER (1)
12 E2631-729-AA0 BANK VALVE R ASM. (1)
13 E2631-729-000 BANK VALVE BRACKET (1)
14 PV-0105050-00 MECHANICAL VALVE (1)
15 SL-6042592-TN SCREW (2)
16 E2811-729-000 VALVE NUT PLATE (1)
17 PJ-3040405-05 ELBOW (2)
18 SM-1051452-TN PLATE SCREW (4)
19 E2777-721-0A0 BANK STOPPER ASM. (2)
20 E2777-721-000 BANK STOPPER (1)
21 E2778-721-000 STOPPER RUBBER (1)
22 E2779-721-000 STOPPER COLLAR (2)
23 SL-6031292-TN BOLT (2)
24 SL-6051642-TN BOLT (4)
25 400-30606 ROLLER GUIDE RR (1)
26 SM-0040801-SC SCREW 4
27 400-00585 SELECTOR ASSY 1
28 PV-0151170-A0 SELECTOR (1)
29 PV-0251030-00 CHECK VALVE (1)
30 PJ-3010651-03 HALF UNION 6XPT1/8 (1)
31 PJ-3040651-03 SWIVEL ELBOW (2)
32 PX-0551040-00 SILENCER (PT1/8) (1)
33 E2793-721-000 FL LABEL (1)
34 PJ-3080600-03 Y UNION 2
35 PJ-3040600-01 ELBOW 1
36
#01
BT-0600400-EC TUBE HOSE, BLUE 6.5
37 CM-3009001-05 LABEL 1
38
#01
400-01770 BANK UP SENSOR(FL)ASSY 1
39 400-12012 BANK UP SENSOR STAY (1)
40 400-02167 BANK UP(F)SENS ASM. (1)
41 SM-4860801-SC SCREW M2.6 L=8 (1)
42
#01
400-12013 BANK UP SENSOR DOG 1
43 #01 SM-6050802-TN BOLT 2
44
#01
SM-1051452-TN PLATE SCREW 2
45
#01
400-00565 DRIVER BRACKET SUPPORT C ASM. 1
46 400-00598 DRIVER BRACKET SUPPORT C (2)
47 SL-6051042-TN SCREW (4)
48 E2634-721-0A0 DRIVER BRACKET SUPPORT A ASM. (1)
49 E2634-721-000 DRIVER BRACKET SUPPORT A (2)
50 SL-6052092-TN SCREW (4)
51 SL-6053592-TN BOLT (4)
52 SL-6051242-TN SCREW (4)
53
#01
SL-6051092-TN BOLT 4
54
#02
BT-0600400-EC TUBE HOSE, BLUE 11.4
55
#02
400-01771 BANK UP SENSOR(RL)ASSY 1
56 400-02169 BANK UP(R)SENS ASM. (1)
57 SM-4860801-SC SCREW M2.6 L=8 (1)
58
#02
400-12013 BANK UP SENSOR DOG 1
59
#02
SM-6050802-TN BOLT 2
60
#02
SM-1051452-TN PLATE SCREW 2
61
#01
400-00565 DRIVER BRACKET SUPPORT C ASM. 1
62 400-00598 DRIVER BRACKET SUPPORT C (2)
63 SL-6051042-TN SCREW (4)
64 E2634-721-0A0 DRIVER BRACKET SUPPORT A ASM. (1)
65 E2634-721-000 DRIVER BRACKET SUPPORT A (2)
66 SL-6052092-TN SCREW (4)
67 SL-6053592-TN BOLT (4)
68 SL-6051242-TN SCREW (4)
69 #02 SL-6051092-TN BOLT 4
70 SM-4861001-SC SCREW M2.6 L=10 4
71 SM-1051052-TN SCREW 4
72
#01
400-26804 DS CONNECTOR BRACKET 4
73
#02
400-26804 DS CONNECTOR BRACKET 1
- -
24.FLOOR TROLLEY UNIT COMPONENTS
(FOR REPLACING OVERALL CHANGER TABLE WITHOUT EARTH WIRE)
3
4
5
6
6
8
9
7
1 0
1 1
1 2
1 3
1 4
1 6
1 5
1 9
2 1
2 2
2 2
2 1
2 3
2 3
2 0
2 4
2 4
2 5
2 5
2 5
2 5
2 6
2 7
2 7
2 8
2 8
2 9
3 2
3 2
3 1
3 7
3 0
3 4
3 4
3 0
3 3
3 5
3 3
3 5
3 6
3 6
3 8
8 1
3 8
8 1
1 7
4 1
4 2
4 3
4 5
4 4
4 2
4 3
4 4
4 6
4 7
4 7
4 9
4 9
4 8
5 0
5 1
5 1
5 2
3 9
5 8
6 0
6 5
6 6
6 7
6 9
7 0
6 8
7 1
7 2
7 4
7 4
7 3
7 5
7 5
7 6
7 7
8 0
7 8
7 9
8 0
7 9
7 8
5 4
5 5
5 6
5 9
6 1
6 3
6 3
5 3
6 2
5 7
1 8
3 1
A
A
6 4
4 0
8 6
8 5
8 4
8 3
9 1
9 2
2
B
B
8 5
1
8 8
8 7
8 9
8 9
9 0
9 0
8 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00560 FLOOR TROLLEY SUB UNIT 1
2 400-00562 TROLLEY BOTTOM ASSY (1)
3 400-01723 TROLLEY FRAME BL (1)
4 400-01724 TROLLEY FRAME BR (1)
5 400-01725 TROLLEY BASE PLATE (1)
6 SM-3061252-TN SCREW M6 L=12 (6)
7 400-01747 TROLLEY CASTER (75MM) (2)
8 WP-0612516-SD WASHER 6.1X15.2X2.5 (8)
9 SM-6060802-TN BOLT (8)
10 400-01746 TROLLEY CASTER (50MM) (2)
11 SM-6060802-TN BOLT (8)
12 E2711-721-000 TROLLEY STOPPER (2)
13 E2710-721-000 STOPPER ATTACHMENT (2)
14 SM-6060802-TN BOLT (8)
15 SL-6061242-TN BOLT (8)
16 NM-6060003-SC NUT M6 (8)
17 400-00563 TROLLEY UPPER ASSY (1)
18 400-01726 TROLLEY FRAME L (1)
19 400-01629 RATED FP2060(EN) (1)
20 400-01727 TROLLEY FRAME R (1)
21 SM-6125052-TR SCREW (2)
22 NM-6120003-SC NUT M12 (4)
23 400-01730 SCALE MARKS SEAL (2)
24 400-01729 TROLLEY FRONT STAY (2)
25 SL-6061692-TN BOLT (8)
26 400-01728 TROLLEY UPPER PLATE (1)
27 SM-3061252-TN SCREW M6 L=12 (6)
28 400-01731 TROLLEY RUBBER B (4)
29 400-01735 TROLLEY STOPPER PLATE (1)
30 SL-6082092-TN BOLT (4)
31 400-01748 TROLLEY SUB GUIDE (2)
32 SL-6063092-TN SCREW M6 L=30 (2)
33 E2703-721-000 TROLLEY SHAFT (2)
34 S1021-710-000 ST RUBBER FOOT (2)
35 SB-8160005-00 BEARING (2)
36 SL-6041042-TN BOLT (8)
37 400-53180 TROLLEY STOPPER PLATE L (1)
38 SL-6102042-TN SCREW (4)
39 400-00564 TROLLEY SLIDE ASSY (1)
40 400-01732 BANK PLATE L (1)
41 400-01733 BANK PLATE R (1)
42 E2761-721-000 BUSH SUPPORT (2)
43 SL-6062542-TN SCREW (4)
44 E2206-725-000 BU SHAFT L (2)
45 400-01736 FS BRACKET L (1)
46 400-01737 FS BRACKET R (1)
47 SL-6061692-TN BOLT (4)
48 400-01739 FS PLATE (1)
49 SM-0040601-SC SCREW M4X0.7 L=6 (4)
50 400-01738 FS TAPE GUIDE (1)
51 400-68308 SET SCREW M4 L=8 (2)
52 E5721-729-000 LABEL (1)
53 400-00599 TROLLEY HANDLE L ASSY (1)
54 400-01744 TROLLEY HANDLE (1)
55 E2641-729-000 HANDLE CLIP (1)
56 E2635-729-000 HANDLE SLIDER (1)
57 400-01743 HANDLE SHAFT (1)
58 SL-6082092-TN BOLT (2)
59 400-01745 HANDLE PIN (1)
60 400-01742 HANDLE PLATE (1)
61 SM-8030602-TP SCREW M3X0.5 L=6 (1)
62 SM-6030602-TN HEX SCREW M3 X 6 (1)
63 SL-6040642-TN BOLT (2)
64 400-00600 TROLLEY HANDLE R ASSY (1)
65 400-01744 TROLLEY HANDLE (1)
66 E2641-729-000 HANDLE CLIP (1)
67 E2635-729-000 HANDLE SLIDER (1)
68 400-01743 HANDLE SHAFT (1)
69 SL-6082092-TN BOLT (2)
70 400-01745 HANDLE PIN (1)
71 400-01742 HANDLE PLATE (1)
72 SM-8030602-TP SCREW M3X0.5 L=6 (1)
73 SM-6030602-TN HEX SCREW M3 X 6 (1)
74 SL-6040642-TN BOLT (2)
75 SL-6051092-TN BOLT (12)
76 400-01740 TROLLEY COVER AL (1)
77 400-01741 TROLLEY COVER AR (1)
78 SM-0040601-SC SCREW M4X0.7 L=6 (4)
79 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
80 SL-6081242-TN BOLT (2)
81 WP-1052001-SC WASHER 10,5X21X2 (4)
82 E4981-700-000 LABEL (1)
83 CM-3002000-03 ATTENTION LABEL 2
84 HX-0015000-0K CABLE CLIP 1
85 400-01734 SCREW 4
86 SL-6051492-TN BOLT 4
87
#01
E1173-725-000 PLATE STAND COVER L 1
88
#01
E1174-725-000 PLATE STAND COVER R 1
89 SL-6040892-TN BOLT 2
90 SL-6051092-TN BOLT 2
91 SM-4030601-SC SCREW M3 X 6 2
92 E2737-721-000 BRACKET COVER 1
