- - 30.O CC CO MPO NENTS 7 2 4 4 4 1 9 2 0 1 7 3 8 2 1 2 5 2 7 2 8 2 9 3 0 3 1 3 2 3 3 3 4 3 5 3 6 4 3 3 9 4 1 4 2 3 7 4 5 4 6 4 0 1 6 1 8 2 6 1 0 1 4 8 3 4 5 1 3 9 A A 1 1 1 5 1 2 5 1 4 8 4 7 4 9 5 0 5 2 5 5 6 5 5 5 3…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-82789 SLIGHTLY BLOW ASM 1
2 EA-9500B01-00 CABLE BAND (2)
3 400-83483 SLIGHTLY BLOW SV ASM (1)
4 PV-1405080-00 4-PORT SOLENOID VALVE (4)
5 PJ-0205000-02 PLUG (8)
6 PC-0105190-00 SPEED CONTROLLER (4)
7 PJ-3040405-04 ELBOW UNION (4)
8 400-82725 SOL VALVE PLATE (2)
9 SM-6035052-TN SCREW (4)
10 NM-6030001-SC NUT M3X0.5 TYPE1 (4)
11 WS-0310002-KN SPRING WASHER M3 (4)
12 WP-0330516-SC WASHER 3.3X8X0.5 (4)
13 400-82724 VALVE BRACKET VQD (1)
14 SL-6040892-TN BOLT (2)
15 PJ-3030800-02 STRAIGHT (1)
16 BT-0600400-EC TUBE HOSE, BLUE (0.04)
17 PJ-3090600-05 DIFFERENT DIAMETER DOUBLE UNION Y (1)
18 SL-6043092-TN BOLT (1)
19 BT-0400251-EA TUBE HOSE, BLUE (0.44)
20 PJ-3040400-05 STREET ELBOW (2)
21 400-82728 VALVE STAY (1)
22 SL-6051092-TN BOLT (1)
23 WP-0531001-SC WASHER M5 (1)
24 SL-6030892-TN SCREW M3 L=8 (3)
- -
30.OCC COMPONENTS
7
2 4
4 4
1 9
2 0
1 7
3 8
2 1
2 5
2 7
2 8
2 9
3 0
3 1
3 2
3 3
3 4
3 5
3 6
4 3
3 9
4 1
4 2
3 7
4 5
4 6
4 0
1 6
1 8
2 6
1 0
1 4
8
3 4
5
1 3
9
A
A
1 1
1 5
1 2
5 1
4 8
4 7
4 9
5 0
5 2
5 5
6
5 5
5 3
5 4
2 2
2 3
1 2
- -

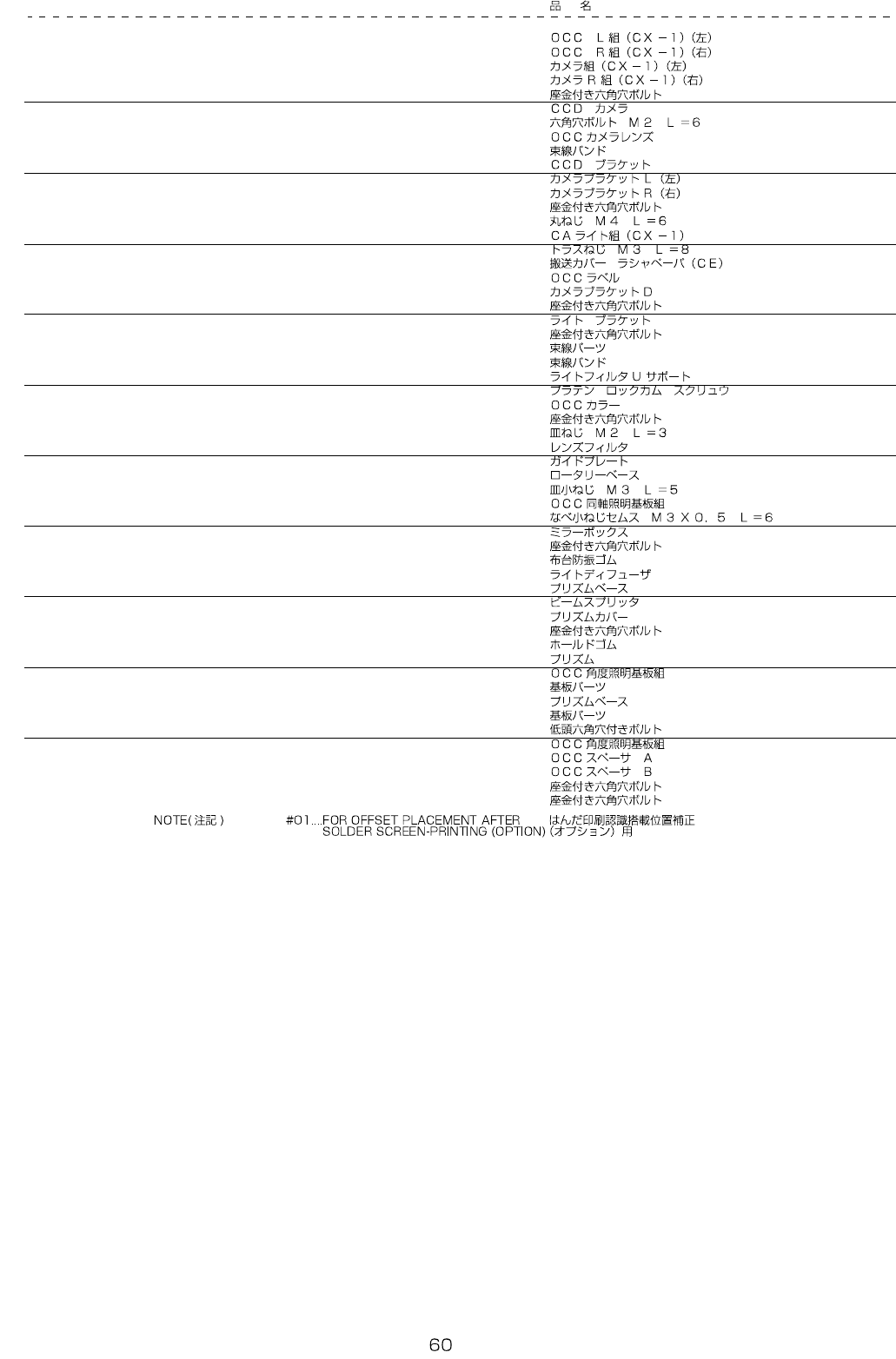

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-34248 OCC L ASM (CX-1)(LEFT) 1
2 400-34249 OCC R ASM (CX-1)(RIGHT) 1
3 400-34250 CAMERA L ASM (CX-1)(LEFT) (1)
4 400-34251 CAMERA R ASM (CX-1)(RIGHT) (1)
5 SL-6052092-TN SCREW (4)
6 400-10386 CCD CAMERA (1)
7 SM-6020602-TN SCREW M2 L=6 (4)
8 E9636-729-000 OCC CAMERA LENS (1)
9 EA-9500B01-00 CABLE BAND (1)
10 L154E-621-000 CCD BRACKET (1)
11 400-21162 CAMERA BRACKET L(LEFT) (1)
12 400-21163 CAMERA BRACKET R(RIGHT) (1)
13 SL-6041292-TN SCREW (2)
14 SM-3040652-TN SCREW M4 L=6 (2)
15 400-34252 CA LIGHT ASM (CX-1) (1)
16 SM-0030801-SC SCREW M3 X 8 (4)
17 E1143-721-000 WOOLEN CLOTH PAPER (1)
18 400-15962 OCC LABEL (1)
19 400-01214 CAMERA BRACKET D (1)
20 SL-6030892-TN SCREW (4)
21 L154E-821-000 LIGHT BRACKET (1)
22 SL-6042092-TN SCREW M4 L=20 (2)
23 HX-0034400-00 HARNESS PARTS (1)
24 EA-9500B01-00 CABLE BAND (1)
25 400-13949 LIGHT FILTER U SUPPORT (1)
26 E1038-871-000 PLATEN LOCK CAM SCREW (2)
27 400-15847 OCC COLLAR (1)
28 SL-6030892-TN SCREW (1)
29 SM-1020301-SN SCREW (4)
30 400-43896 LENS FILTER (1)
31 400-13948 GUIDE PLATE (1)
32 400-13944 ROTARY BASE (1)
33 SM-1030501-SC SCREW M3 L=5 (3)
34 400-01979 OCC C LIGHT P.C.B ASM (1)
35 SL-4030691-SC SCREW M3X6 (2)
36 400-44028 MIRROR BOX (1)
37 SL-6030692-TN BOLT (3)
38 118-04606 RUBBER PLUG (10)
39 400-43895 LIGHT DIFFUSER (1)
40 400-14043 PRISM BASE (1)
41 400-14037 BEAM SPRITTER (1)
42 400-13943 PRISM COVER (1)
43 SL-6030692-TN BOLT (3)
44 400-01225 HOLD RUBBER (1)
45 400-14042 PRISM (1)
46 400-01982 OCC A LIGHT P.C.B ASM (1)
47
#01
HX-0035400-0D BASE PARTS 4
48
#01
400-14043 PRISM BASE 1
49
#01
HX-0035400-0G BOARD PARTS 4
50
#01
400-32433 LOW HEAD SCREW M3_10 4
51
#01
400-01982 OCC A LIGHT P.C.B ASM 1
52
#01
400-52191 OCC SPACER A 1
53
#01
400-52529 OCC SPACER B 1
54
#01
SL-6042092-TN SCREW M4 L=20 2
55
#01
SL-6052092-TN SCREW 4
