- - 37.P WB CONV E YOR COMPONENTS (7) 2 4 2 5 1 5 1 5 2 6 4 5 1 6 7 8 9 1 0 1 1 1 1 9 1 2 1 4 1 6 1 7 1 8 1 9 2 0 2 1 2 2 1 3 2 2 1 7 1 6 1 9 1 8 2 7 4 4 2 3 2 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00865 RAIL SUPPORT 1
2 SL-6041092-TN SCREW 2
3 SL-6051092-TN BOLT 2
4 400-00868 MOTOR BRAKET C 1
5 400-00869 MOTOR ADJUST PLATE 1
6 E9431-729-0A0 CENT MOTOR ASM. 1
7 SL-6041242-TN BOLT 4
8 400-00870 MOTOR PULLEY C 1
9 SM-8030602-TP SCREW M3X0.5 L=6 3
10 SL-6051292-TN BOLT 2
11 400-32048 IN STEPPING MOTOR ASM 1
12 SL-6040842-TN SCREW M4 L=8 4
13 400-30592 MOTOR BRACKET A 1
14 400-00870 MOTOR PULLEY C 1
15 SM-8030602-TP SCREW M3X0.5 L=6 2
16 400-32049 OUT STEPPING MOTOR ASM 1
17 SL-6040842-TN SCREW M4 L=8 4
18 E4197-729-000 MOTOR BRACKET A (20) 1
19 400-00870 MOTOR PULLEY C 1
20 SM-8030602-TP SCREW M3X0.5 L=6 2
21 SL-6051092-TN BOLT 8
22 SL-6051492-TN BOLT 2
23 E2120-725-000 PUSHER PLATE 1
24 BT-0400251-EA TUBE HOSE, BLUE 0.3
25 E2165-721-000 PUSHER SPACER 4
26 WP-0430801-SC WASHER 4.3X9X0.8 4
27 WS-0410002-KN SPRING WASHER 4
28 NM-6040001-SC NUT M4 4
29 400-00885 Y PUSHER ASM 5
30 PJ-0460525-01 ELBOW 1
31 PJ-0460590-05 CONNECTOR 4
32 HX-0029400-00 FIXED BASE 1
33 HX-0034400-00 HARNESS PARTS 3
34 SL-6030692-TN BOLT 3
35 E2090-725-000 WEIGHT SENSOR BLOCK 1
36 SL-6031492-TN SCREW 2
37 400-00875 WAIT SENSOR BRACKET 1
38 SL-6041092-TN SCREW 1
39 400-00880 FIXED BELT 1
40 400-00881 ADJUST BELT CLAMP 1
41 SL-6030892-TN SCREW 2
42 400-00882 ADJUST BELT PLATE 1
43 400-00879 PIN ADJUST BELT 1
- -

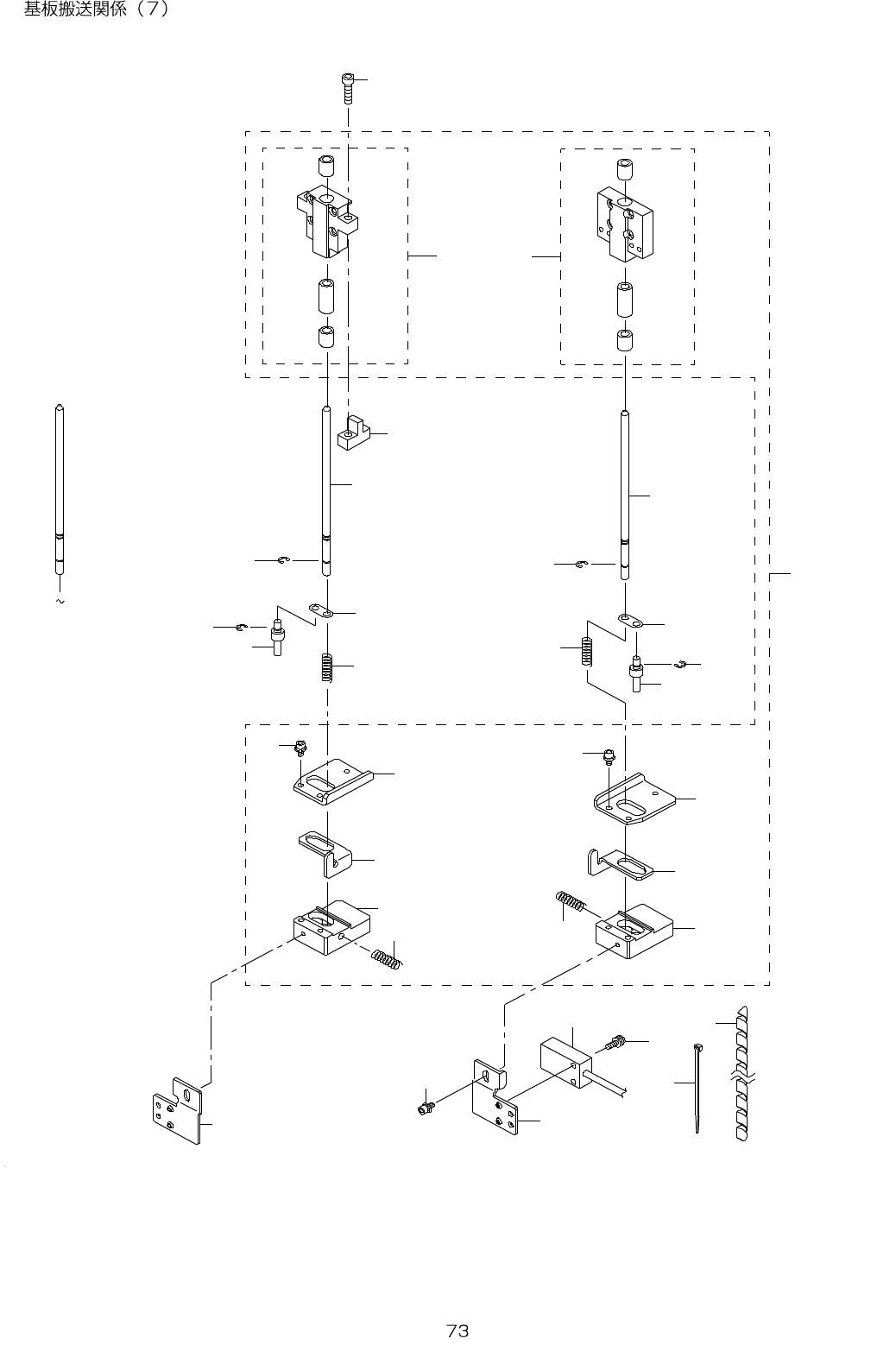

37.PWB CONVEYOR COMPONENTS (7)
2 4
2 5
1 5
1 5
2 6
4
5
1
6
7
8
9
1 0
1 1
1 1
9
1 2
1 4
1 6
1 7
1 8
1 9
2 0
2 1
2 2
1 3
2 2
1 7
1 6
1 9
1 8
2 7 4 4
2
3
2 3
- -

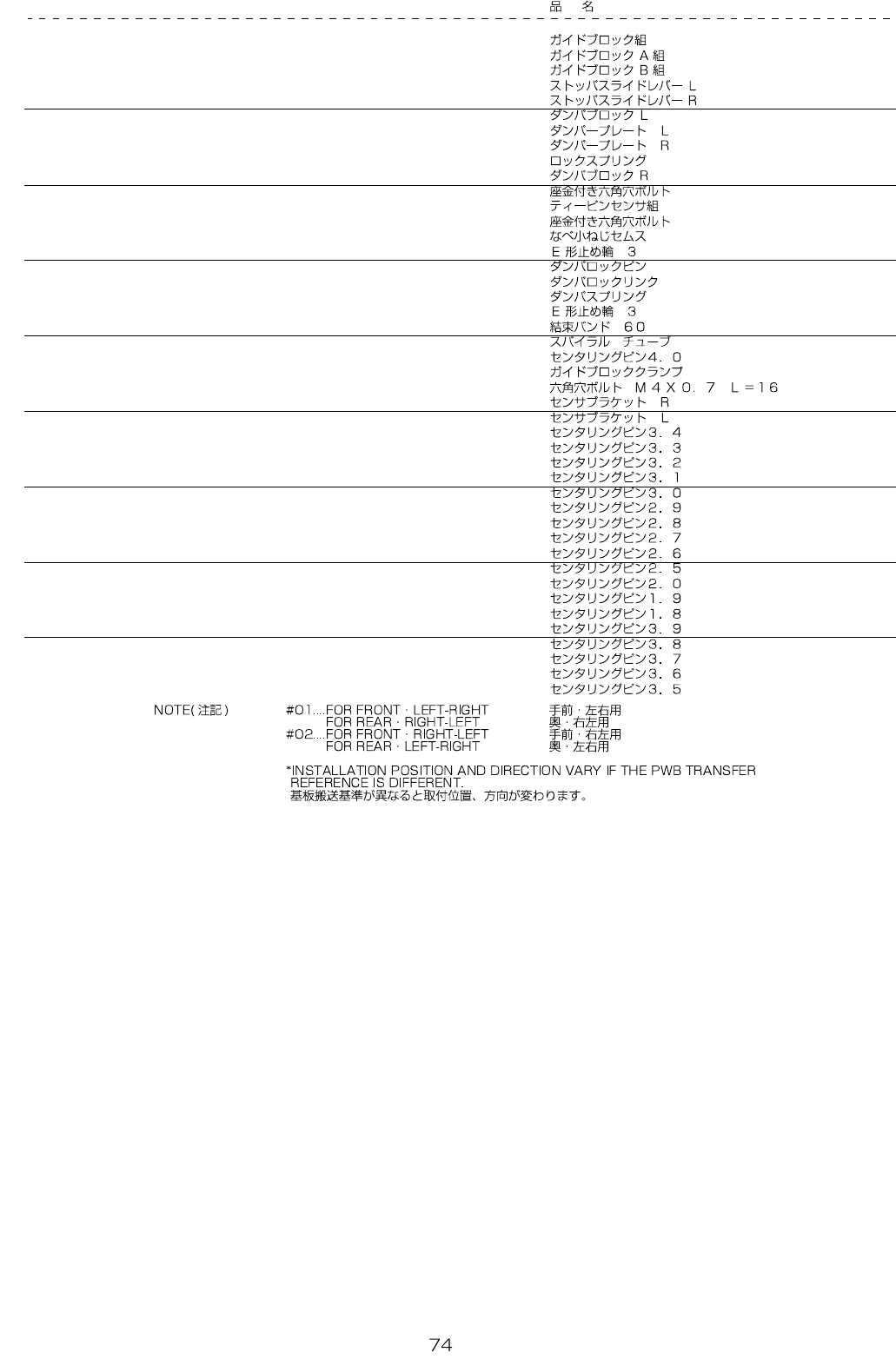

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00886 GUIDE BLOCK ASM 1
2 400-00887 GUIDE_BLOCK_A_ASM (1)
3 400-00889 GUIDE BLOCK B ASM (1)
4 400-00891 STOPER SLIDE LEVER L (1)
5 400-00897 STOPER SLIDE LEVER R (1)
6 400-00892 DAMPER BLOCK L (1)
7 400-15791 DAMPER PLATE L (1)
8 400-15792 DAMPER PLATE R (1)
9 400-15793 LOCK SPRING (2)
10 400-00895 DAMPER BLOCK R (1)
11 SL-6030892-TN SCREW (4)
12 400-02122 T.PIN SENS ASM 1
13 SL-6030692-TN BOLT 1
14 SL-4031091-SC SCREW M3 X 10 2
15 RE-0300000-K0 E-RING 3 2
16 400-00896 DAMPER LOCK PIN 2
17 400-00978 DAMPER LOCK LINK 2
18 400-00950 DAMPER SPRING 2
19 RE-0300000-K0 E-RING 3 6
20 EA-9500B00-00 CLIP CV-70S 5
21 HX-0031400-00 SPIRAL TABE 0.3
22 400-01081 CENTERING PIN 4.0 2
23 400-00877 GUIDE BLOCK CLAMP 1
24 SM-6041602-TN SCREW M4 X 16 1
25
#01
E2148-721-000 SENSOR BRACKET R 1
26
#02
E2147-721-000 SENSOR BRACKET L 1
27 400-01087 CENTERING PIN 3.4 1
28 400-01088 CENTERING PIN 3.3 1
29 400-01089 CENTERING PIN 3.2 1
30 400-01090 CENTERING PIN 3.1 1
31 400-01091 CENTERING PIN 3.0 1
32 400-01092 CENTERING PIN 2.9 1
33 400-01093 CENTERING PIN 2.8 1
34 400-01094 CENTERING PIN 2.7 1
35 400-01095 CENTERING PIN 2.6 1
36 400-01096 CENTERING PIN 2.5 1
37 400-01097 CENTERING PIN 2.0 1
38 400-01098 CENTERING PIN 1.9 1
39 400-01099 CENTERING PIN 1.8 1
40 400-01082 CENTERING PIN 3.9 1
41 400-01083 CENTERING PIN 3.8 1
42 400-01084 CENTERING PIN 3.7 1
43 400-01085 CENTERING PIN 3.6 1
44 400-01086 CENTERING PIN 3.5 1
