CX-1-Rev10PDF - 第87页
- - REF.NO N OTE PART NO D E S C R I P T I O N Qty 1 EA-9500B01-00 CABL E BAND 1 2 E2281-725 -0 A0 PUSHER XL ASM . 1 3 E2280-725 -0 00 P USHER X (1) 4 E2173-715 -0 00 T H RUST W ASH ER (1) 5 E2172-715 -0 00 P USHER SH …
- -

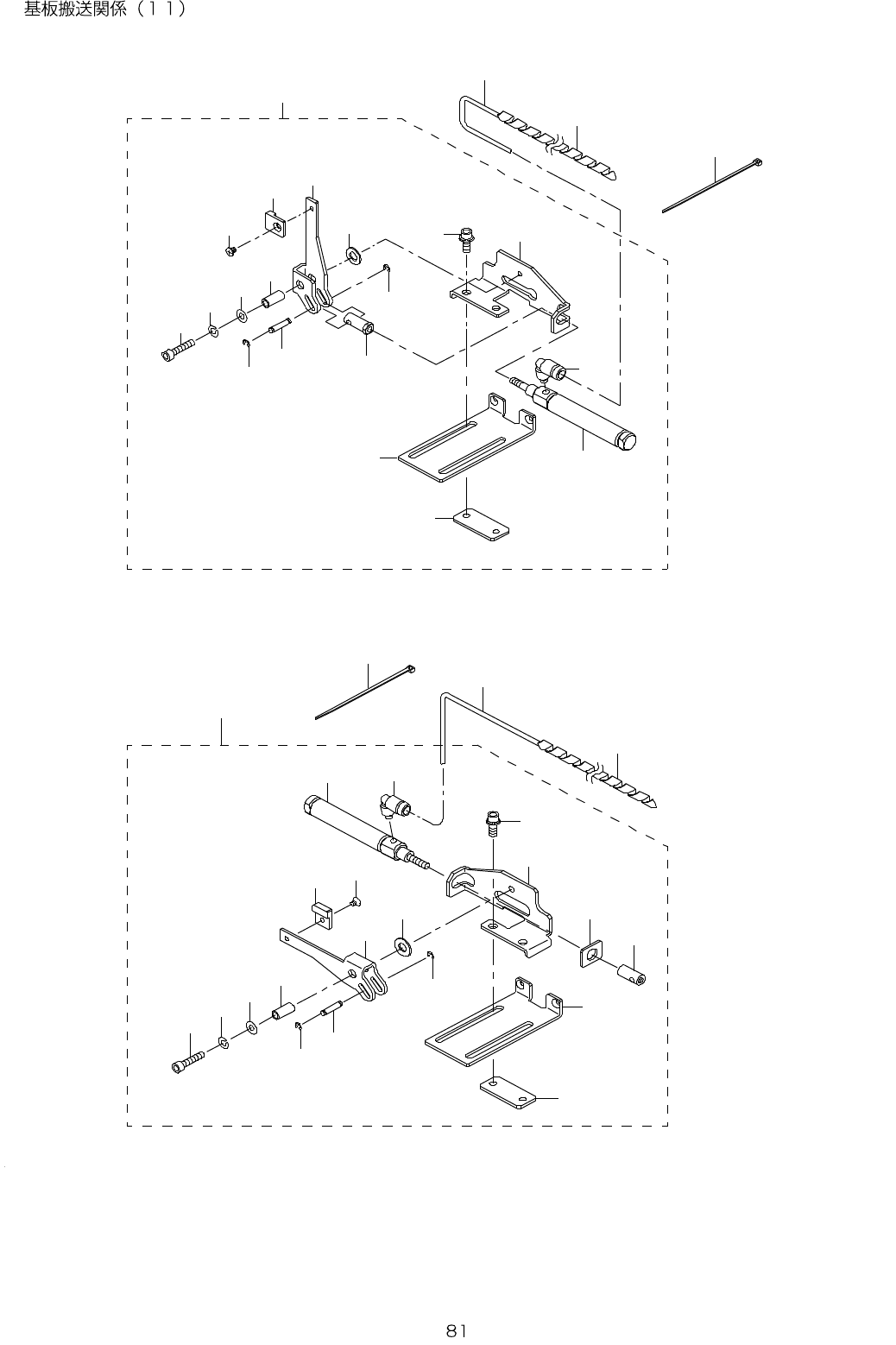

41.PWB CONVEYOR COMPONENTS (11)
2 3
1 0
1 9
1 8
9
8
7
5
6
2
2 0
3
1 3
1 7
1 5
1 9
1 1
1 6
1 4
4
2 1
1
2 6
2 7
2 8
3 1
3 0
2 9
3 2
3 6
3 7
3 5
3 8
3 3
3 9
4 0
3 4
4 2
4 1
4 2
4 3
2 4
2 2
2 5
1 2
- -

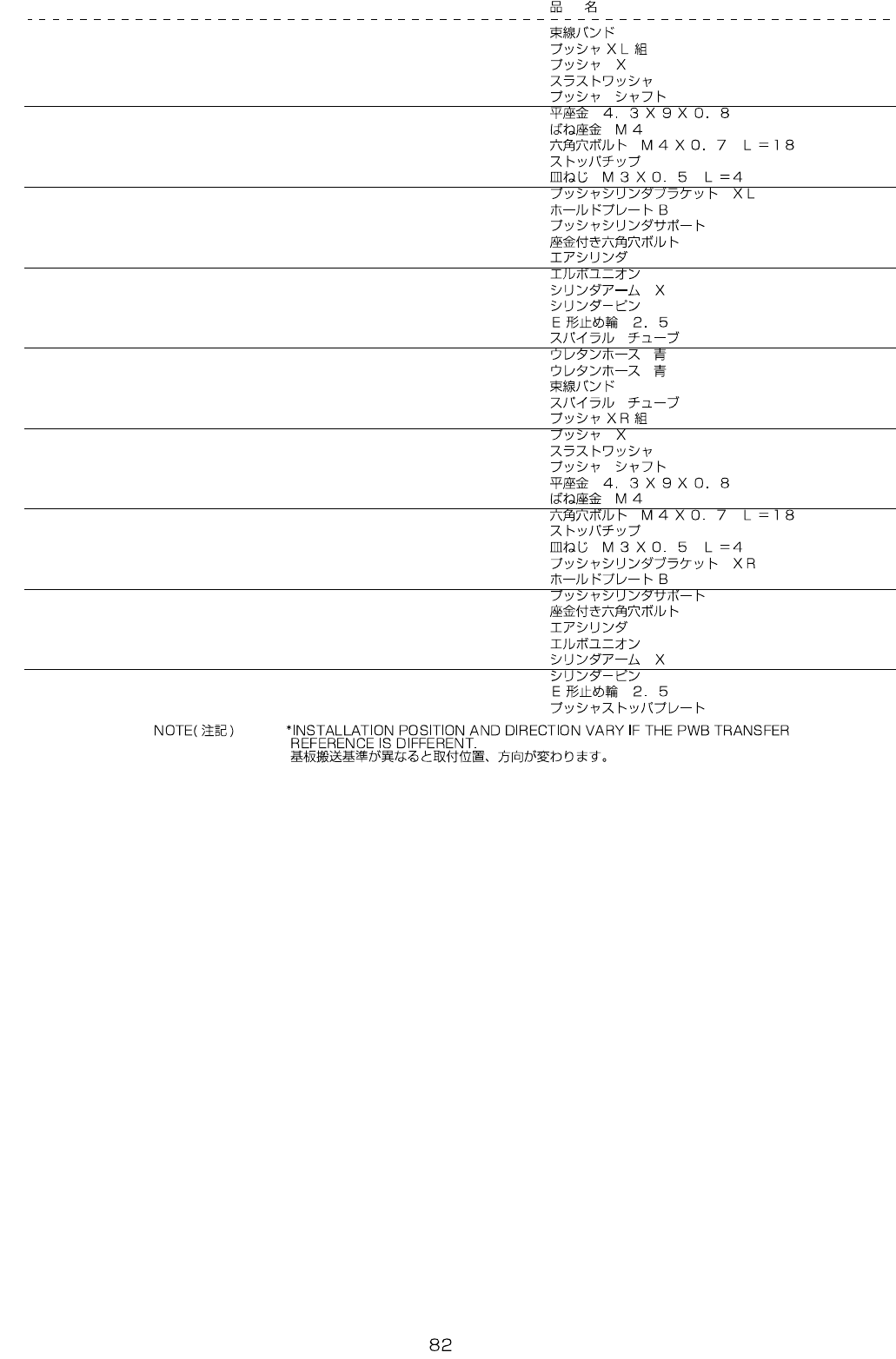

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 EA-9500B01-00 CABLE BAND 1
2 E2281-725-0A0 PUSHER XL ASM. 1
3 E2280-725-000 PUSHER X (1)
4 E2173-715-000 THRUST WASHER (1)
5 E2172-715-000 PUSHER SHAFT (1)
6 WP-0430801-SC WASHER 4.3X9X0.8 (1)
7 WS-0410002-KN SPRING WASHER (1)
8 SM-6041802-TN SCREW M4X0.7 L=18 (1)
9 E2233-725-000 STOPPER CHIP (1)
10 SM-1030401-SE SCREW M3 L=4 (1)
11 E2281-725-000 PUSHER CYLINDER BRACKET XL (1)
12 E2284-725-000 HOLD PLATE B (1)
13 E2283-725-000 PUSHER CYLINDER SUPPER (1)
14 SL-6041042-TN BOLT (2)
15 PA-1002101-A0 AIR CYLINDER (1)
16 PJ-3040405-11 ELBOW UNION (1)
17 E2177-715-000 CYLINDER ARM X (1)
18 E4843-760-000 CYLINDER PIN (1)
19 RE-0250000-K0 E-RING 2.5 (2)
20 HX-0031400-00 SPIRAL TABE 0.6
21 BT-0400251-EA TUBE HOSE, BLUE 1.8
22 BT-0400251-EA TUBE HOSE, BLUE 1.8
23 EA-9500B01-00 CABLE BAND 1
24 HX-0031400-00 SPIRAL TABE 0.6
25 E2282-725-0A0 PUSHER XR ASM. 1
26 E2280-725-000 PUSHER X (1)
27 E2173-715-000 THRUST WASHER (1)
28 E2172-715-000 PUSHER SHAFT (1)
29 WP-0430801-SC WASHER 4.3X9X0.8 (1)
30 WS-0410002-KN SPRING WASHER (1)
31 SM-6041802-TN SCREW M4X0.7 L=18 (1)
32 E2233-725-000 STOPPER CHIP (1)
33 SM-1030401-SE SCREW M3 L=4 (1)
34 E2282-725-000 PUSHER CYLINDER BRACKET XR (1)
35 E2284-725-000 HOLD PLATE B (1)
36 E2283-725-000 PUSHER CYLINDER SUPPER (1)
37 SL-6041042-TN BOLT (2)
38 PA-1002101-A0 AIR CYLINDER (1)
39 PJ-3040405-11 ELBOW UNION (1)
40 E2177-715-000 CYLINDER ARM X (1)
41 E4843-760-000 CYLINDER PIN (1)
42 RE-0250000-K0 E-RING 2.5 (2)
43 E2116-725-000 PUSHER STOPPER PLATE (1)
- -

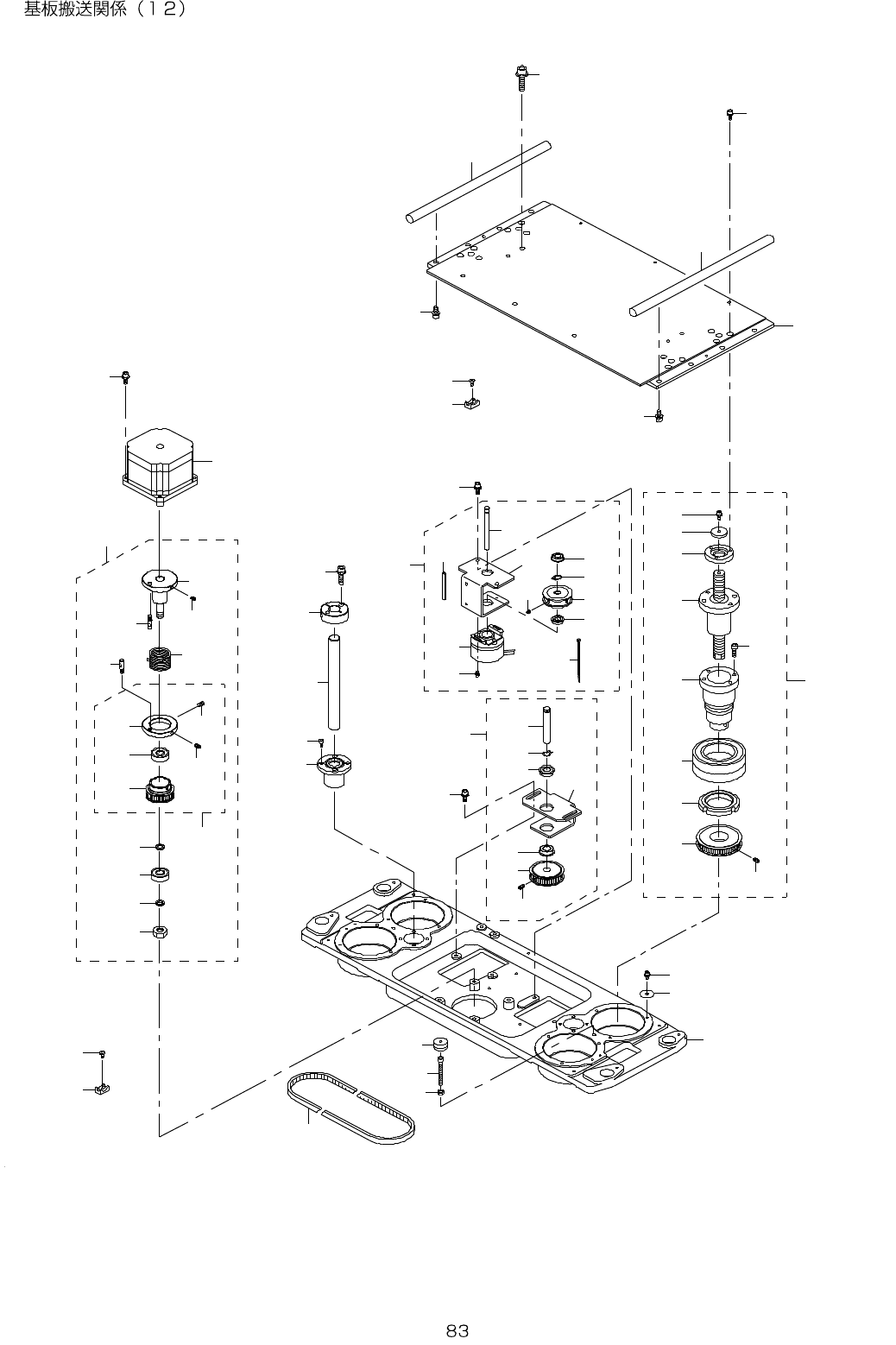

42.PWB CONVEYOR COMPONENTS (12)
1 5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 7
2 1
2 2
2 3
2 4
2 5
1 9
1 9
1 8
1 6
2 6
2 8
2 6
2 7
2 9
3 3
3 5
3 2
3 6
3 8
3 9
4 1
4 0
4 4
4 5
3 8
4 6
4 6
4 7
4 8
2
5 2
5 3
5 4
5 5
5 1
4
5 6
6 0
4 3
3
3 4
5 8
1
4 9
6 3
6 4
6 3
2 0
3 0
6 8
6 7
5 0
6 1
4 2
3 7
5
3 1
5 7
6 4
6 2
6 5
6 6
5 9
