- - RE F .NO N OTE PART NO D E S C R I P T I O N Qty 1 H X-00 29400-00 FI X ED BA SE 4 2 S M- 404 0801-SC SCREW M4X0.7 L=8 4 3 4 00-01024 CONV E YOR BASE(L) 1 4 4 00-01023 TI MI NG B E LT(L) 1 5 S L-60514 92- TN BO L T…
- -

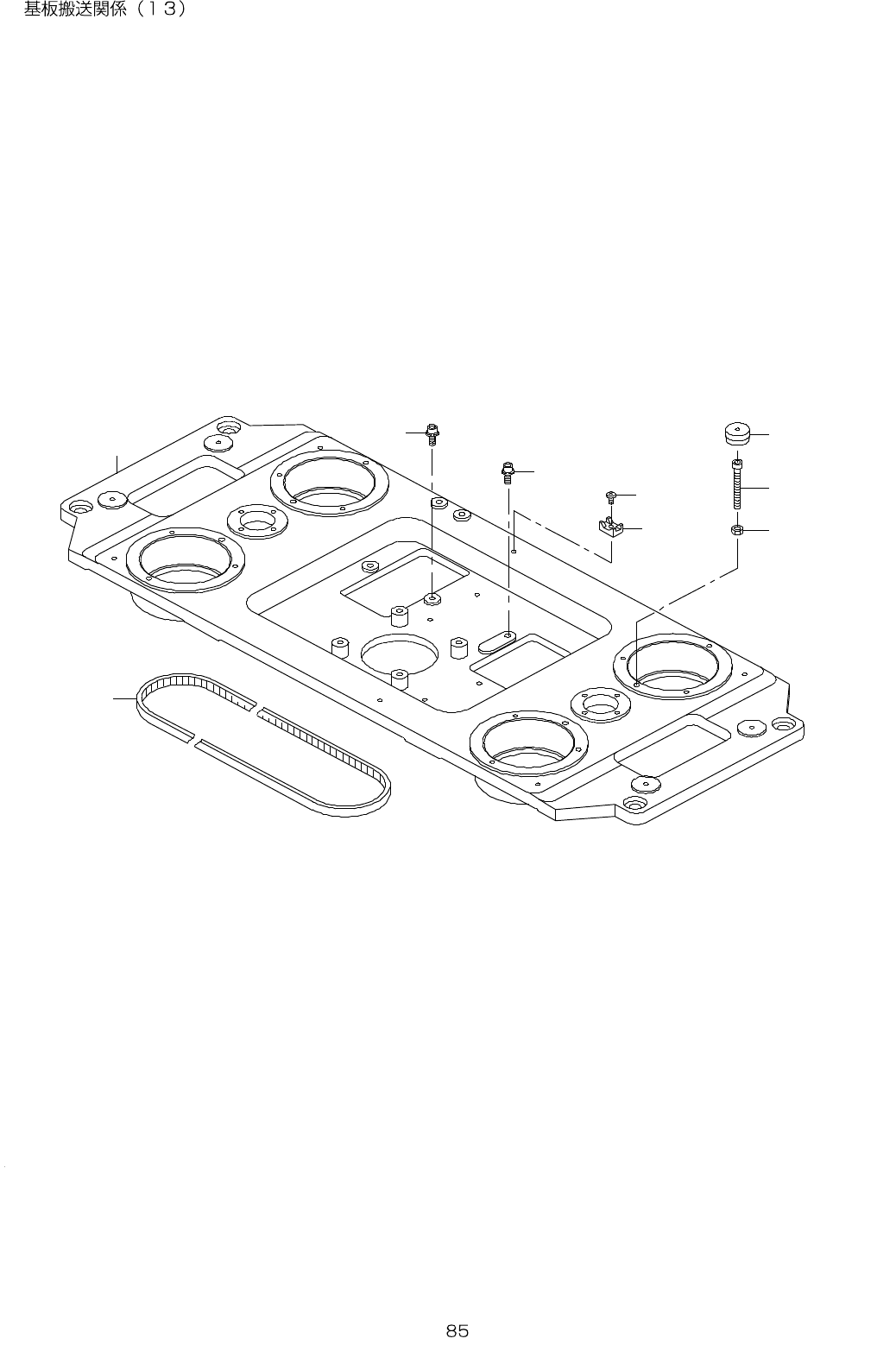

43.PWB CONVEYOR COMPONENTS (13)
4
5
6
2
1
3
7
8
9
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 HX-0029400-00 FIXED BASE 4
2 SM-4040801-SC SCREW M4X0.7 L=8 4
3 400-01024 CONVEYOR BASE(L) 1
4 400-01023 TIMING BELT(L) 1
5 SL-6051492-TN BOLT 2
6 SL-6051492-TN BOLT 2
7 NM-6050001-SC NUT M5 4
8 SM-6054502-TN SCREW M5 L=45 4
9 M1008-511-000 FOOT SWITCH FIXING PLATE 4
- -

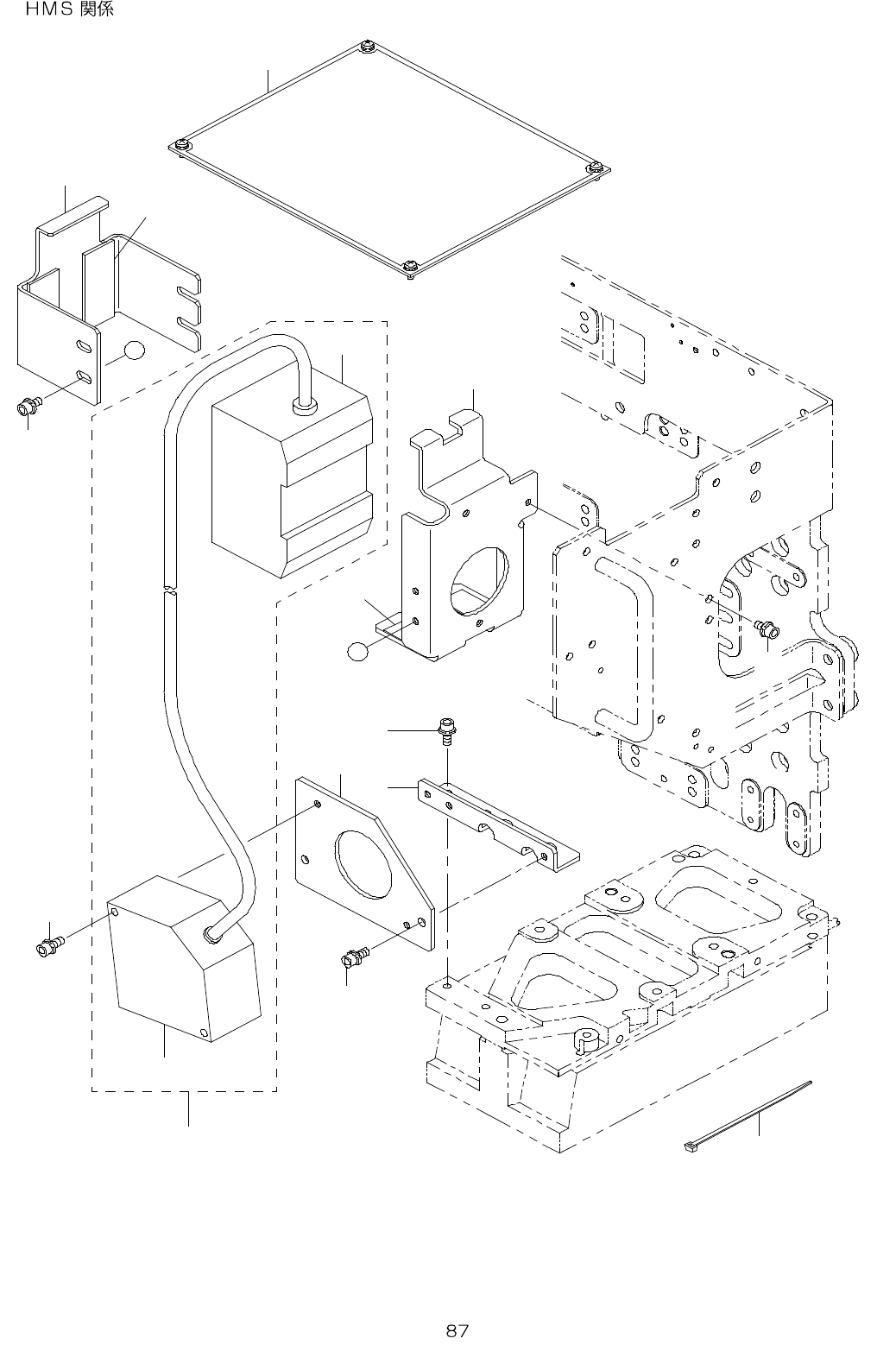

44.HMS COMPONENTS
1
2
6
3
4
8
1 0
5
7
1 3
1 1
1 6
1 2
9
A
A
1 4
1 5
