CX-1-Rev10PDF - 第95页
- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 400-72349 HAND KNOB ASM 1 2 400-72363 HAND KNOB (1) 3 400-72364 HAND KNOB ARM (1) 4 NM-6050001-SC NUT M5 (1) 5 WS-0510002-KN SPRING WASHER (1) 6 400-34506 BACK UP PIN…
- -

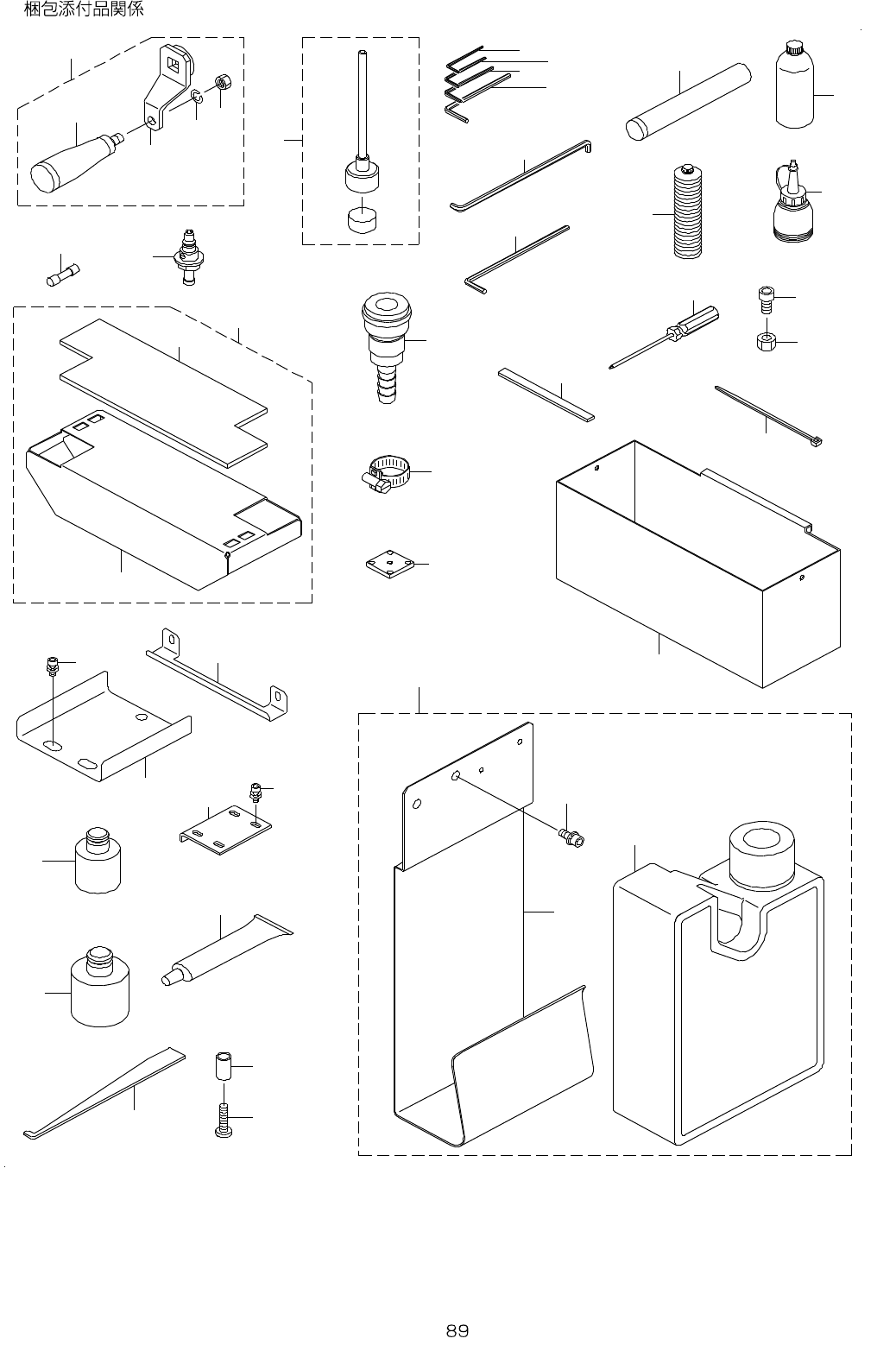

45.ACCESSORIES PART COMPONENTS
3 0
3 1
2 6
2 2
2 9
1 2
1 7
1 6
1 8
1 5
1 4
1 9
2 4
2 5
2 7
3 2
3 3
3 4
3 5
3 6
3 7
3 8
3 9
4 3
4 4
4 5
4 0
2 3
1 0
4 1
4 2
2 1
1 1
6
8
9
7
2 0
3
1
2
4
5
2 8
1 3
- -

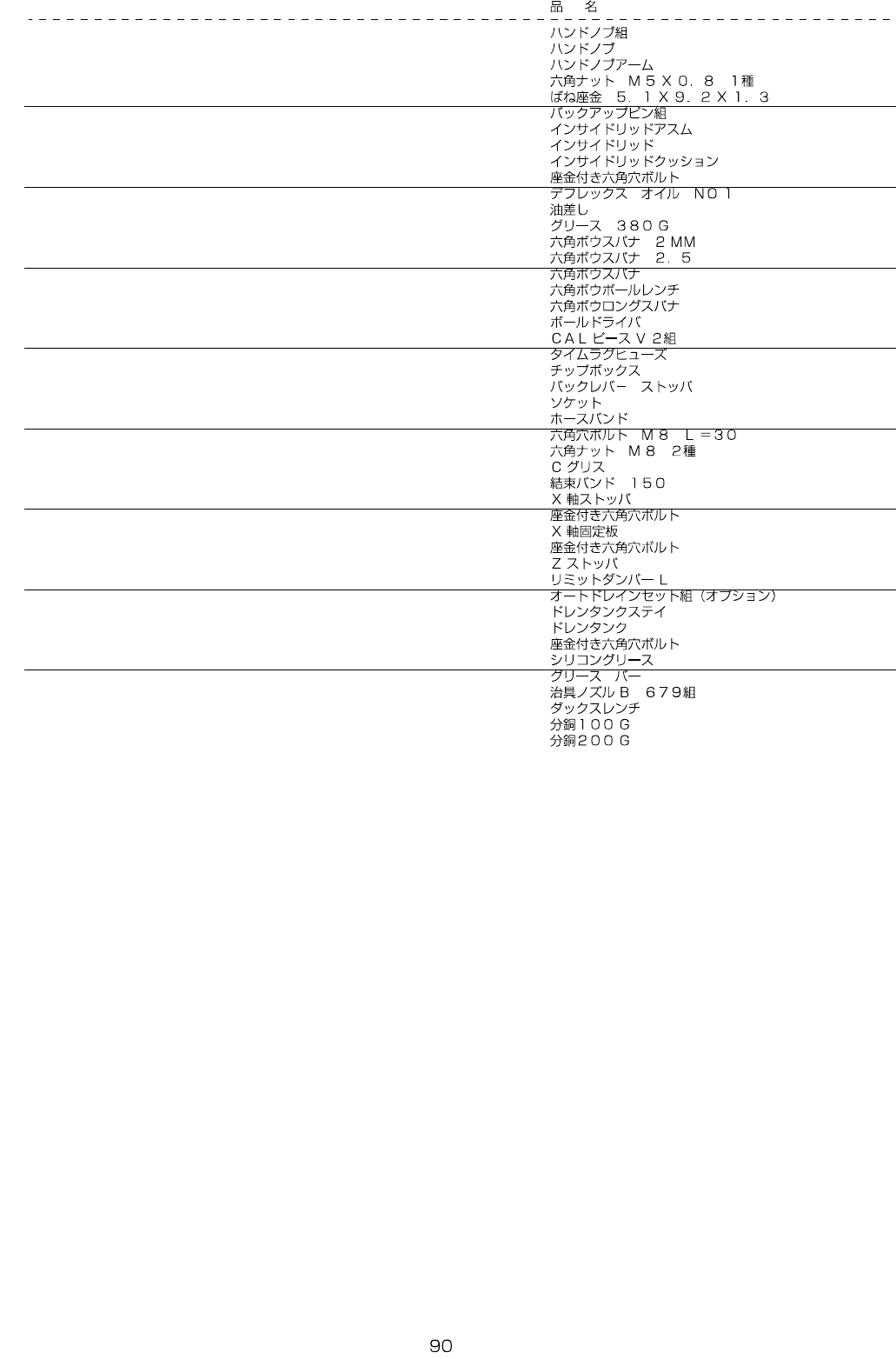

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-72349 HAND KNOB ASM 1
2 400-72363 HAND KNOB (1)
3 400-72364 HAND KNOB ARM (1)
4 NM-6050001-SC NUT M5 (1)
5 WS-0510002-KN SPRING WASHER (1)
6 400-34506 BACK UP PIN ASSEMBLY 8
7 400-45258 INSIDE LID ASM 1
8 400-45259 INSIDE LID (1)
9 400-45260 INISIDE LID CUSHION (1)
10 SL-6042592-TN SCREW 1
11 MDF-RX1001L0 DEFRIX OIL NO.1 800CC 1
12 J1067-000-000 OILER 1
13 MGR-EAS380G0 GREASE 380G 1
14 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
15 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 1
16 J1066-000-00D HEXAGONAL WRENCH KEY 1
17 J1066-000-00E HEXAGONAL BOWL WRENCH 1
18 J1066-000-A0G HEXAGONAL LONG SPANNER 1
19 J1080-000-000 BOLL SCREWDRIVER 1
20 400-31355 CAL PIECE V2 ASM 1
21 HF-0110025-S0 SLO-BLO FUSE 3
22 400-01601 CHIP BOX 1
23 111-00500 REVERSE FEED LEVER STOPPER 1
24 PJ-0700000-01 SOCKET 1
25 161-21907 HOSE BAND 1
26 SM-6083002-TN SCREW M8 L=30 12
27 NM-6080002-SC NUT M8 12
28 MGR-EAS050GA C GREASE 1
29 EA-9500B02-00 CABLE BAND 150 10
30 E5501-729-000 X AXIS STOPPER 1
31 SL-6030892-TN SCREW 2
32 400-01631 X FRAME FIXNG PLATE 2
33 SL-6061092-TN SCREW 4
34 400-01133 Z STOPPER 1
35 E3005-729-000 LIMIT DAMPER L 1
36 400-01639 AUTO DRAIN SET ASM (OPTION) 1
37 400-16814 DRAIN TANK STAY (1)
38 400-16815 DRAIN TANK (1)
39 SL-6040892-TN BOLT (2)
40 400-35318 SILICON GREASE 1
41 L191E-121-000 GREASE BAR 1
42 400-38984 JIG NOZZLE B 679 ASM 1
43 400-34685 DX KEY WRENCH 1
44 400-35041 WEIGHT 100G 1
45 400-35042 WEIGHT 200G 1
- -
OPTION

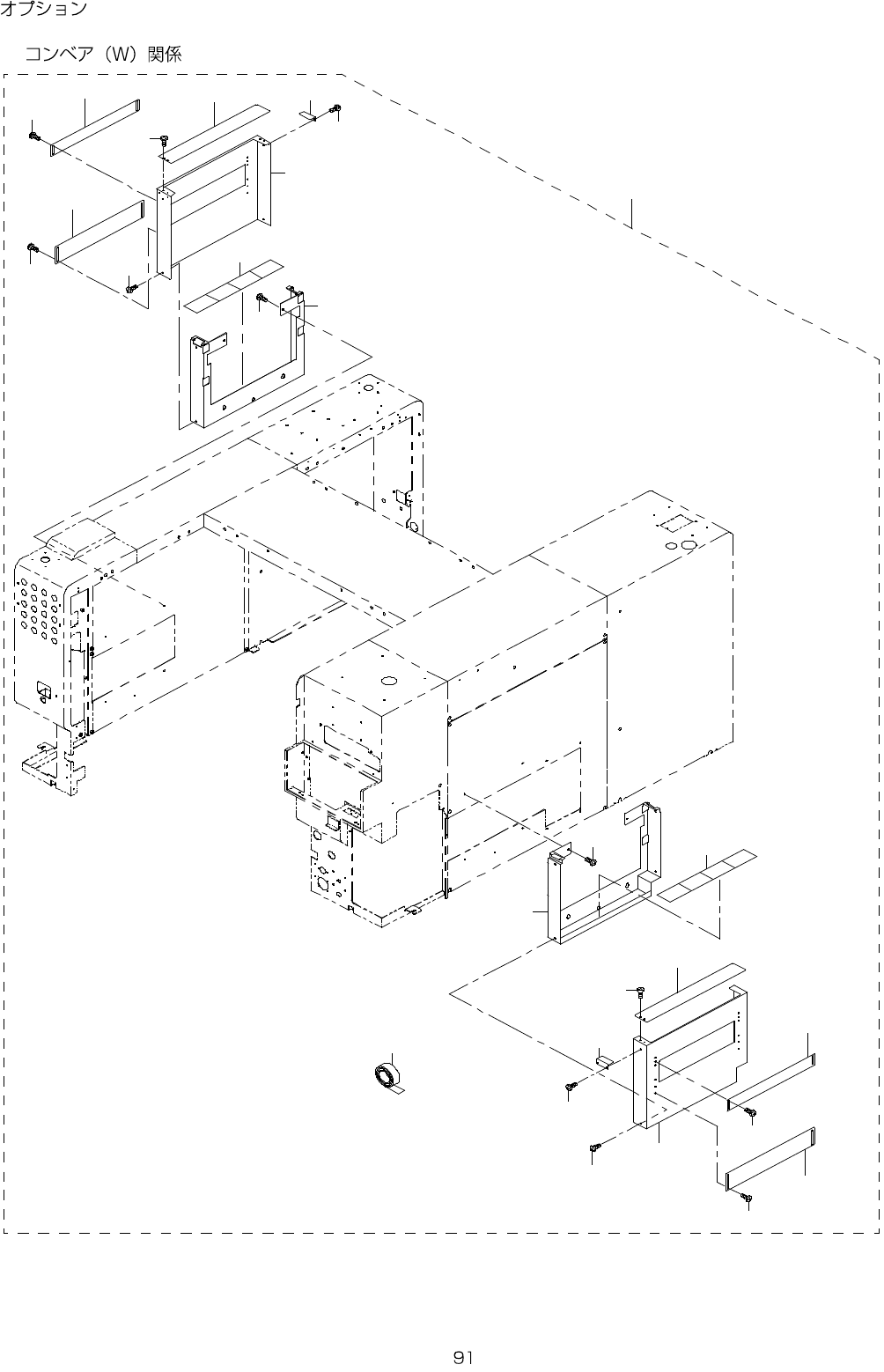

46.CONVEYOR (W) COMPONENTS
3
4
5
6
6
7
7
8
8
9
9
1 0
1 0
1 0
1 0
1 0
1 0
1 0
1 0
1 0
1 0
1 0
2
1 1
1
1 2
1 0
1 1
