Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 12/2005 EN 4.2 Configuring the Factory Configuration Utility
109
If a connection to the specified host can be established, a list of all available production lines
will be shown. The
Name and URL will be shown for each line. 4
4

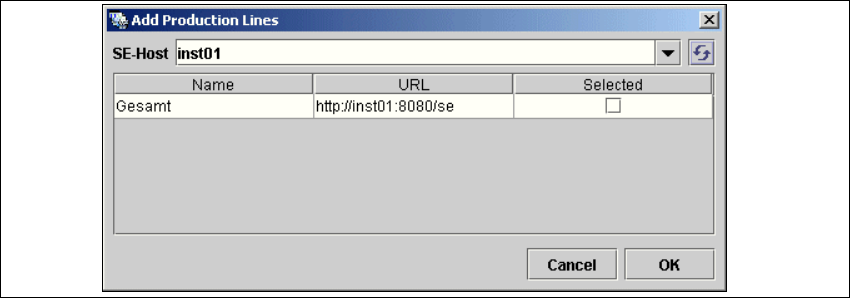

Fig. 4 - 43 Factory Configuration Utility - add production lines
→ Now select the required production lines by enabling the relevant checkbox(es) in the Selected
column.
→ Confirm your choice with OK.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.2 Configuring the Factory Configuration Utility Edition 12/2005 EN
110
The selected production lines will be added to the list and shown in the
Factory Configuration
Utility
dialog box. 4
4

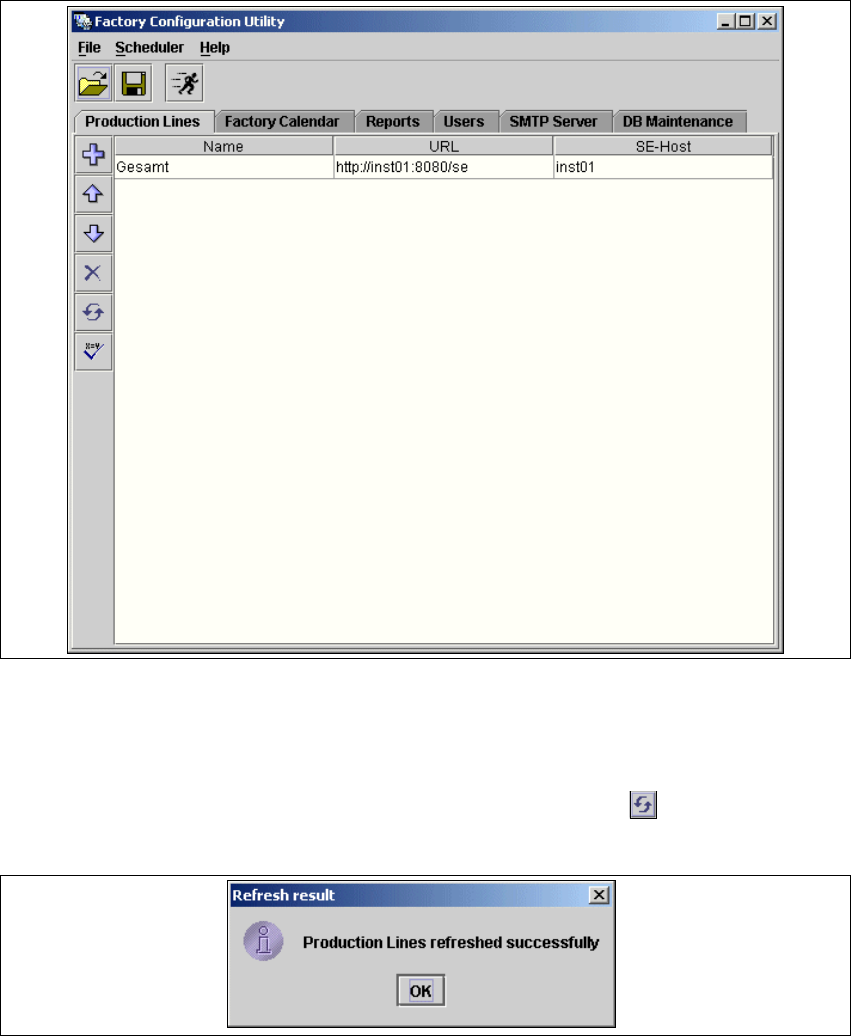

Fig. 4 - 44 Factory Configuration Utility - production lines
→ After the data for the selected production line has been transferred, the line name, line URL
and host name can no longer be changed.
→ If you have made changes to the other tabs, you will need to synchronize this data with the
data in the SIPLACE Explorer host, by clicking on the
Refresh lines icon. If the data have
been successfully synchronized, you will see the following information box:
4
Fig. 4 - 45 Factory Configuration Utility - refresh result
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 12/2005 EN 4.2 Configuring the Factory Configuration Utility
111
4.2.3 Factory Calendar
This is where you can create a calendar with details of working times e.g. on which day the work-
ing week begins, at which time a shift begins etc.
4
→ Select the Factory Calendar tab.
4

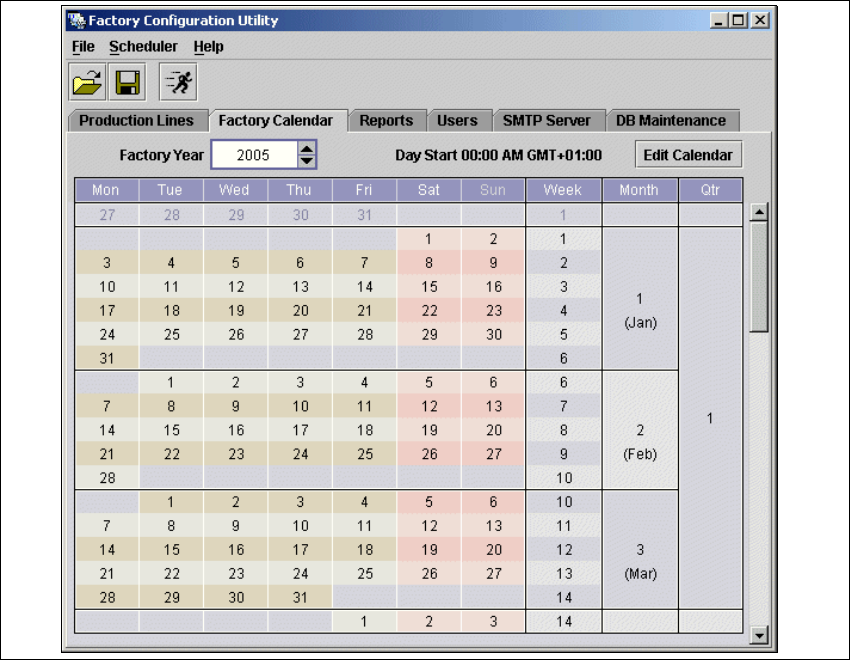

Fig. 4 - 46 Factory Configuration Utility - factory calendar
