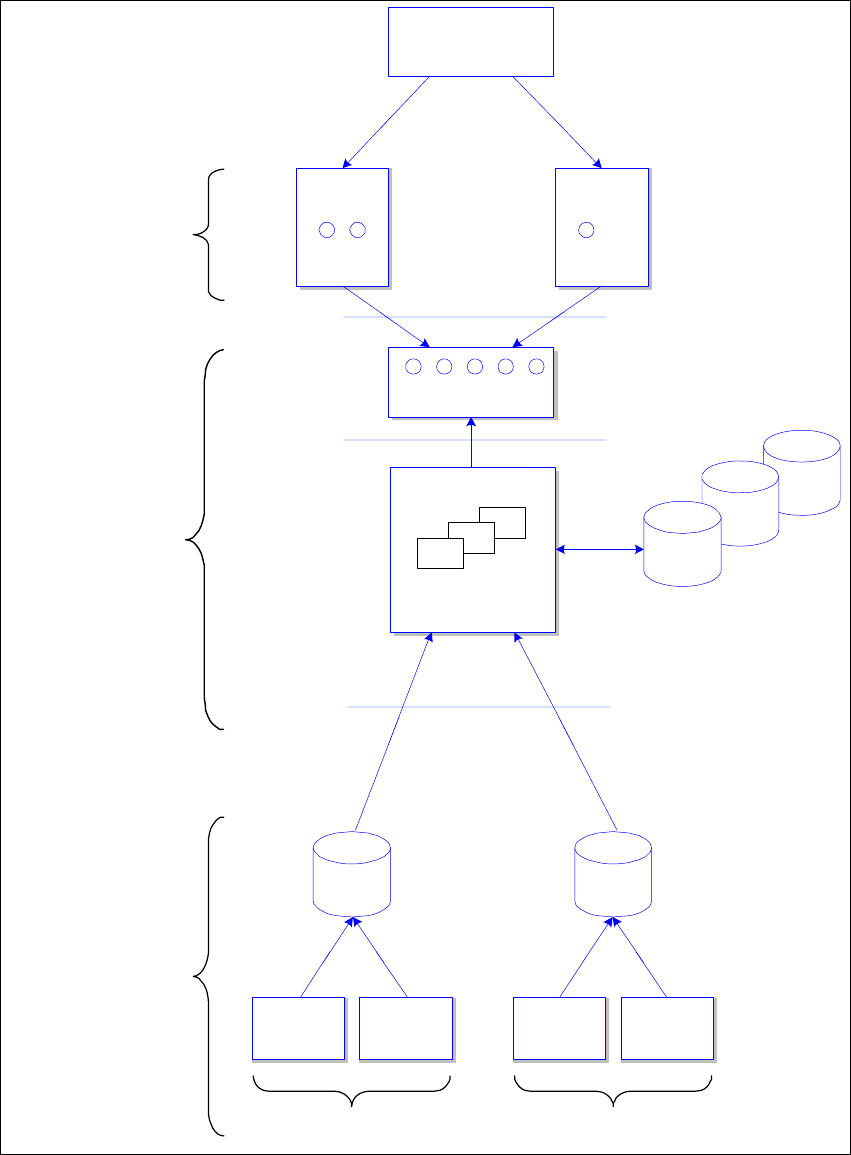

Fig. 2.1 - 1 SIPLACE Explorer architecture
System
DB
System
DB
Web
Browser
applets
SMA / Line 1
...
Web
Browser
applets
SMA / Line 5
servlets, JSP
Tomcat Web Server
SIPLACE Explorer Host
SIPLACE Explorer
Applications 1.. 5
Web Clients
Software
Architecture
One or several NT Servers
SIPLACE
Station 1
SIPLACE
Station N
SIPLACE
Station 1
SIPLACE
Station N
Production Line 1 Production Line 5
...
OIS/SIS
DB
OIS/SIS
DB
...
SIPLACE OIS / SIS
compliant machines
Line 1 ... 5
System
DB
Factory Website
"Single Entry Point"
Installation and Configuration Guide SIPLACE Explorer 2 System Components and Configurations
Edition 12/2005 EN 2.1 Overview of System Components
13
SIPLACE Explorer "Runtime Environment" can monitor multiple SIPLACE lines at the same time.
The computer on which SIPLACE Explorer "Runtime Environment" is installed is know as the
SIPLACE Explorer host. This host can simultaneously monitor up to five SIPLACE lines with up
to 20 stations. If you have also installed Factory Configuration Utility, you can configure factory
reports. 2
Another benefit is the creation of a special factory website for the monitoring of multiple production
lines at a particular factory. This special factory website provides a "single entry point" for all line
applications currently in use. 2
SIPLACE Explorer V2.0 supports central organization of User Management via the Factory Con-
figuration Utility. This includes administration of all users with certain rights at line level. If central
organization of User Management is not used, only two standard users will be available at line
level: administrator and operator. Other users can not be created at line level. 2
2
The typical architecture is shown in the diagram below. 2
2 System Components and Configurations Installation and Configuration Guide SIPLACE Explorer
2.1 Overview of System Components Edition 12/2005 EN
14
2

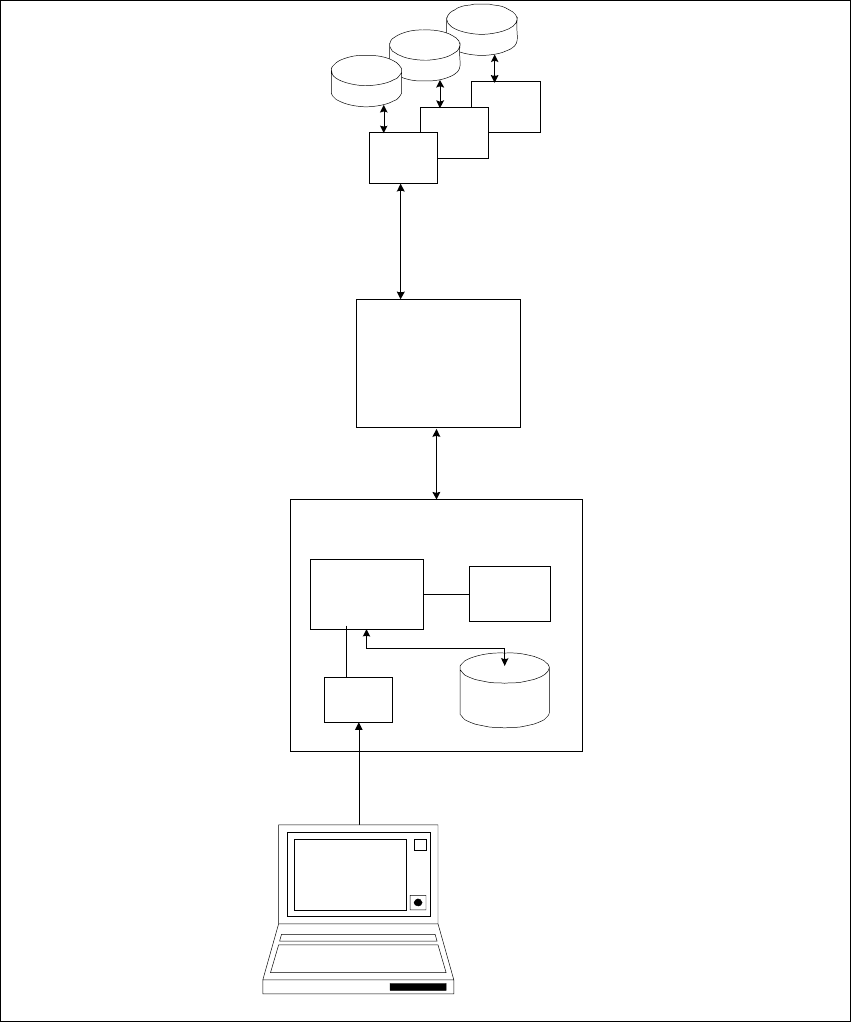

Fig. 2.1 - 2 SIPLACE Explorer factory architecture
System DB
System DB
Factory
website
Factory Host
Factory
DB
Factory
Configuration
utility
MS Excel
Reports
Web Client
SIPLACE Explorer
Application 1 ... 5
SIPLACE
Explorer Host
System DB
