3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.2 Update-Installation of SIPLACE Explorer 2.0 SP1 Edition 12/2005 EN
56
→ The actual installation of SIPLACE Explorer V2.0 SP1 will begin.
3

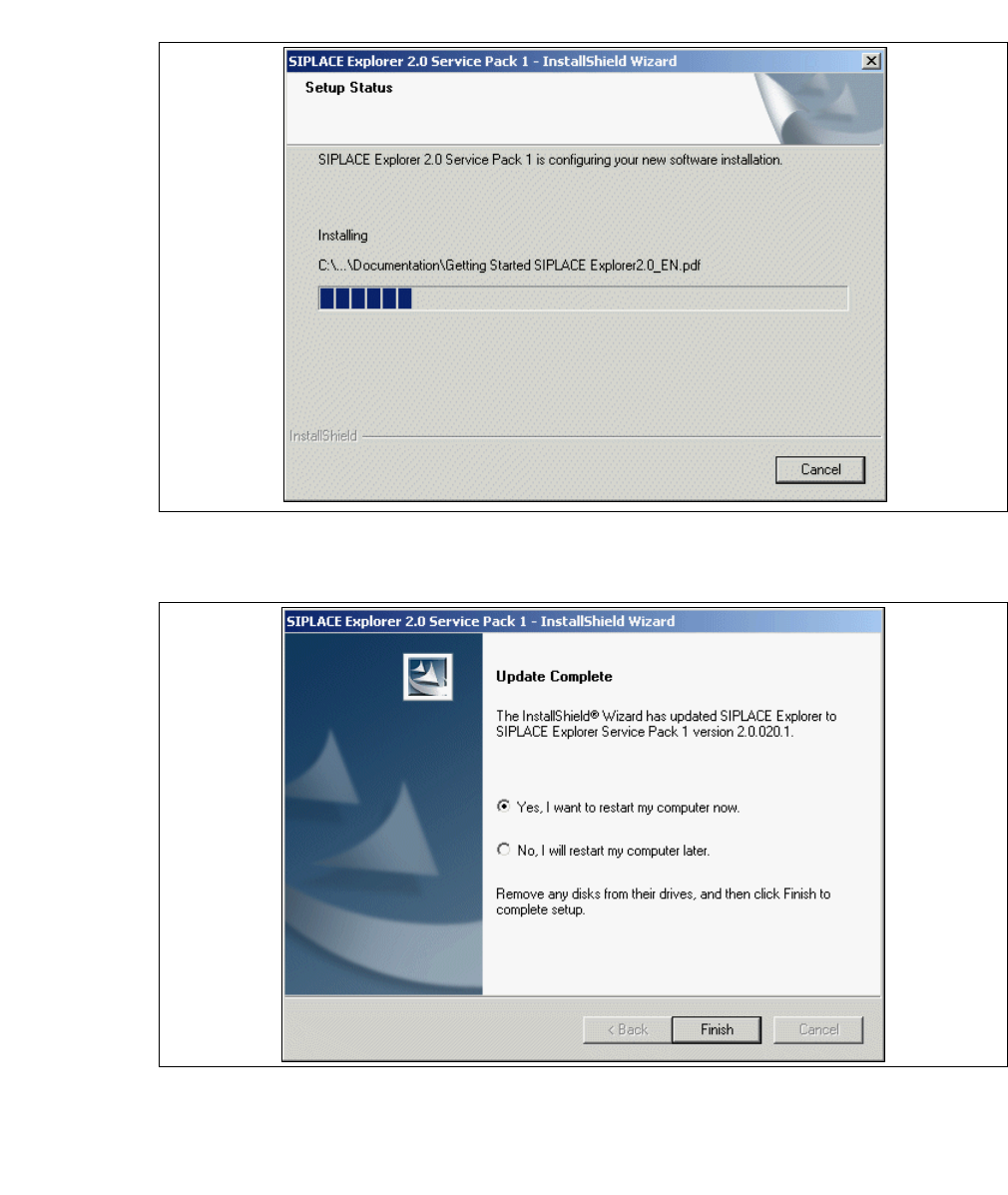

Fig. 3 - 42 SIPLACE Explorer setup - setup status
→ Once the installation procedure has finished, the following dialog box will appear.
3
Fig. 3 - 43 SIPLACE Explorer setup - installation complete
→ Click on Finish. After you have rebooted your computer, the update of SIPLACE Explorer 2.0
SP1 will be available for use. Follow the instructions at “Starting SIPLACE Explorer” on
page 57.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 12/2005 EN 3.3 Starting SIPLACE Explorer
57
3.3 Starting SIPLACE Explorer
→ SIPLACE Explorer can be started by selecting Programs → SIPLACE Explorer 2.0 from the
Windows menu and will be loaded to correspond with your selected installation options.
→ SIPLACE Explorer V.2.0 Runtime Environment:
"Runtime Environment" runs as a Windows NT service and is automatically started whenever
you reboot your computer. You will see the icon in your console. Right-click with the mouse
to open other applications and tools. The following options are available:
3
– SE Manager
– SE Security Manager
– Line Configuration
– Performance Analyzer
–Console
– Language
These additional applications and tools can also be started via the
Programs → SIPLACE
Explorer 2.0
menu in Windows. 3
3

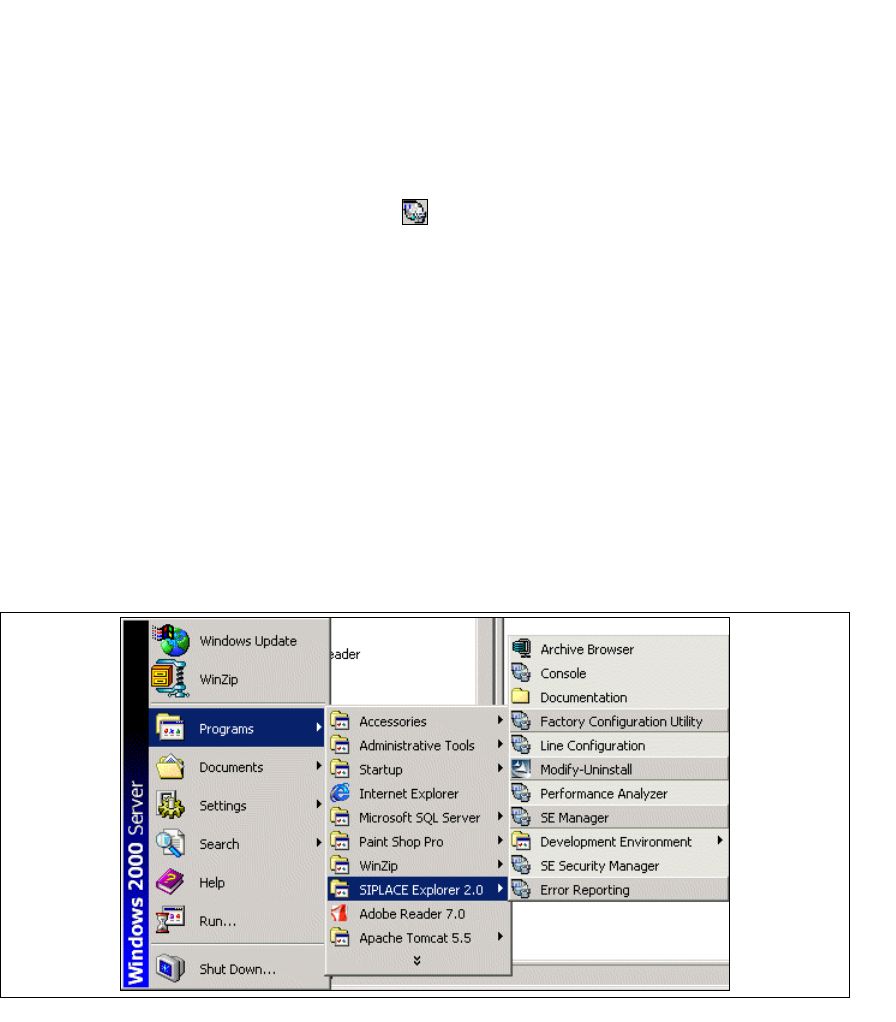

Fig. 3 - 44 RTE Windows Start menu
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.3 Starting SIPLACE Explorer Edition 12/2005 EN
58
The following options are available:
3
– Archive Browser
–Console
– Line Configuration
– Performance Analyzer
– SE Manager
– SE Security Manager
– Modify-Uninstall
– Documentation
→ SIPLACE Explorer V.2.0 Development Environment
Start the Development Environment via the
Programs → SIPLACE Explorer 2.0 →
Developer Tools
menu in Windows. 3
3

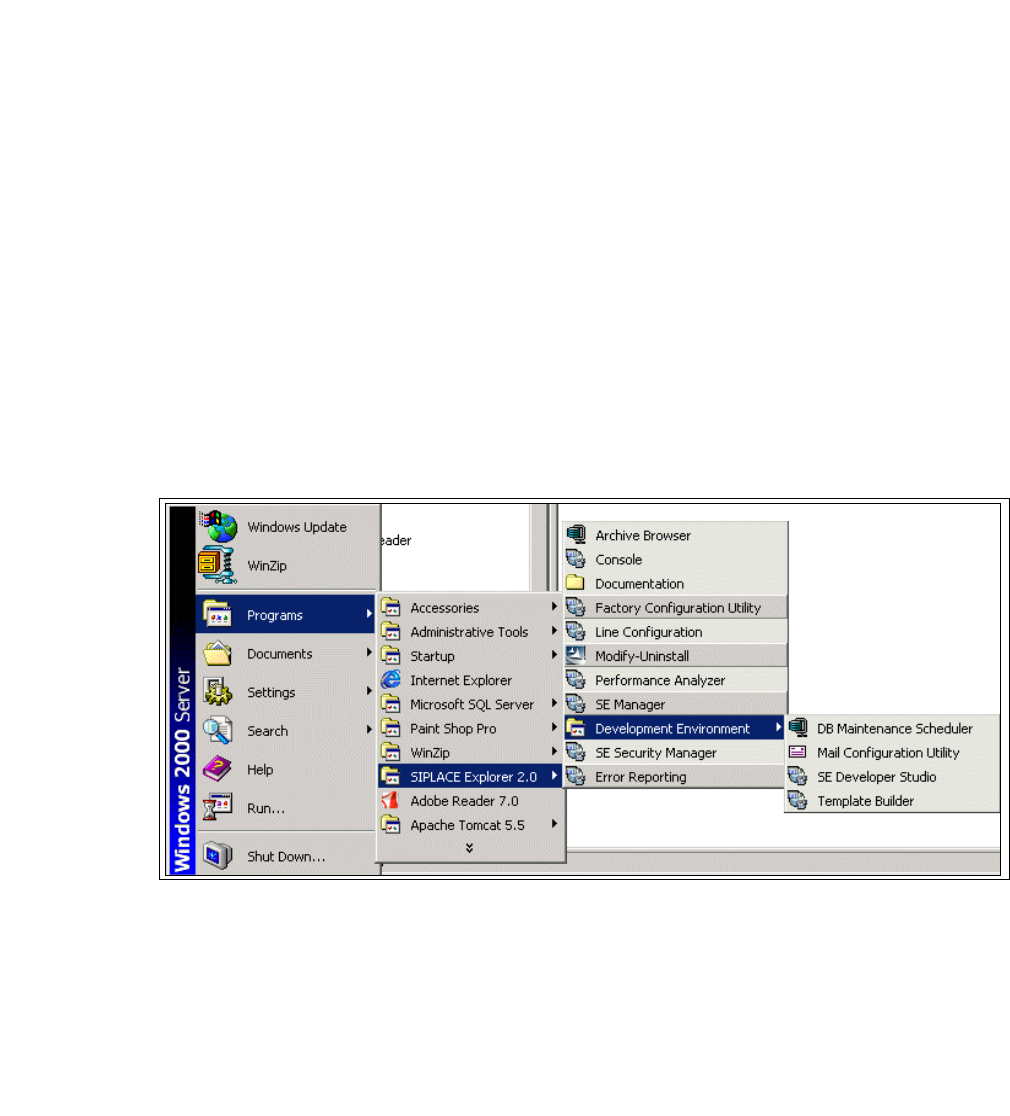

Fig. 3 - 45 DE Windows Start menu
The following applications and tools are available: 3
– DB Maintenance Scheduler
– Mail Configuration Utility
– SE Developer Studio
– Template Builder
