Page +$1:+$ 89 SM481 PLUS Head Ass’y(5/5) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference
Page
+$1:+$
88
SM481
PLUS
Head Ass’y(5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
29 FC30-000927A PLATE-BEARING_P_PLATE;SPCC 1
30 FC09-001494A S_PULLEY_CLAMP 1
31 FC18-000967 SCREW-T_SPINDLE_SCREW 1
32 MC19-000339A PULLEY-SPINDLE_PULLEY 1
33 MC05-000120 TIMING BELT;1.5GT,160.5,1.5,4,1,107,0.56 5
34 J90551225A NOZZLE_HOLDER_ASSY 1
35 FC09-001493A BRACKET-Z_SENSOR_DOG 10
36 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 3
37 FC18-902001 PRECISION_S_PLUS_BOLT_M2X6 KN219-M2X6 6
38 FC18-902708 SOCKET HEAD CAP SCREW M2.5*4 (NI/ZN) 2
Page
+$1:+$
89
SM481
PLUS
Head Ass’y(5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
Page
+$1:+$
90
SM481
PLUS

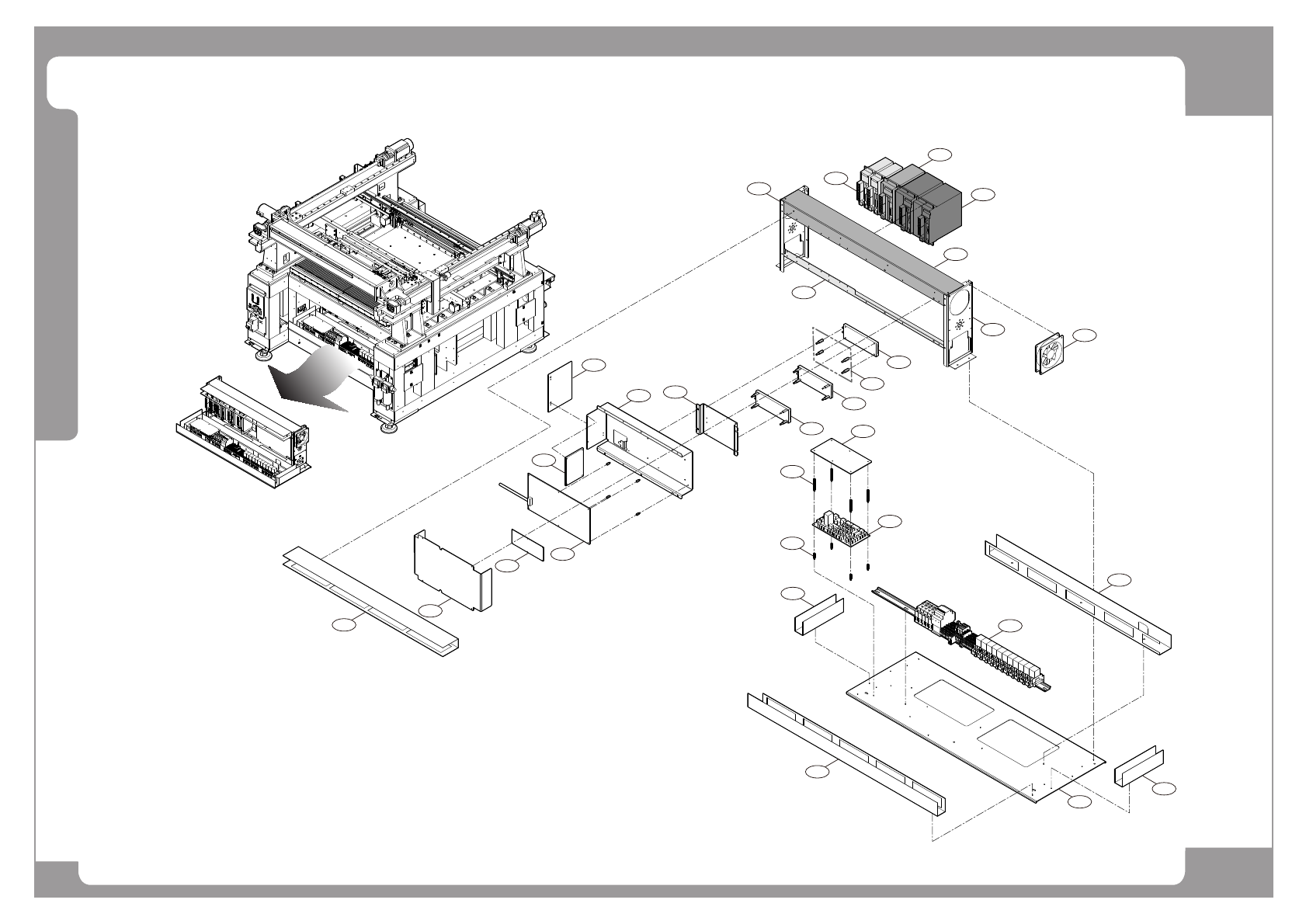

Electric Panel Ass’y
1
7
11
25
26
27
14
8
17
18
19
28
5
2
13
3
6
12
10
7
15
16
23
29
24
20
21
22
30
27
