SM481PLUS_TRM(Ver1.1_CS17.01) - 第18页
Page +$1:+$ 6 SM481 PLUS Feeder Base Ass’y - DC (1/4) 4 3 2 13 1 4 17 16 4 18 5 6 8 9 19 20 20 11 14 12 4 18 17 15 16 14 12 13 19 7 10
Page
+$1:+$
5
SM481
PLUS
Feeder Base Ass'y - ST
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A J90571018A FEEDER_BASE_ST J90571018A 1
1 FC07-000033B BLOCK-VERTICAL LOCATOR;ME1:Steel 1
2 J70570262C CAP-TOP PLATE 5
3 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
4 FC05-000122A BASE-SM411_FEEDER_BASE_BODY2;GCD 450-
10
1
5 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A
6 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
7 AM03-000694A ASSY,BOARD-FBLN 1
8 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
9 AM03-000693A ASSY,BOARD-FBRN 1
11 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 32
12 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 32
13 FC14-000876 COUPLER 60 HP06-900169
14 FC18-902787 SOCKET HEAD CAP SCREW M8*20 (NI/ZN) 7
15 FC09-000901A BRACKET-Top_Plate_S 1
16 FC09-001200A BRACKET-TOP-PLATE-BACK-HOLE 1
Page
+$1:+$
6
SM481
PLUS

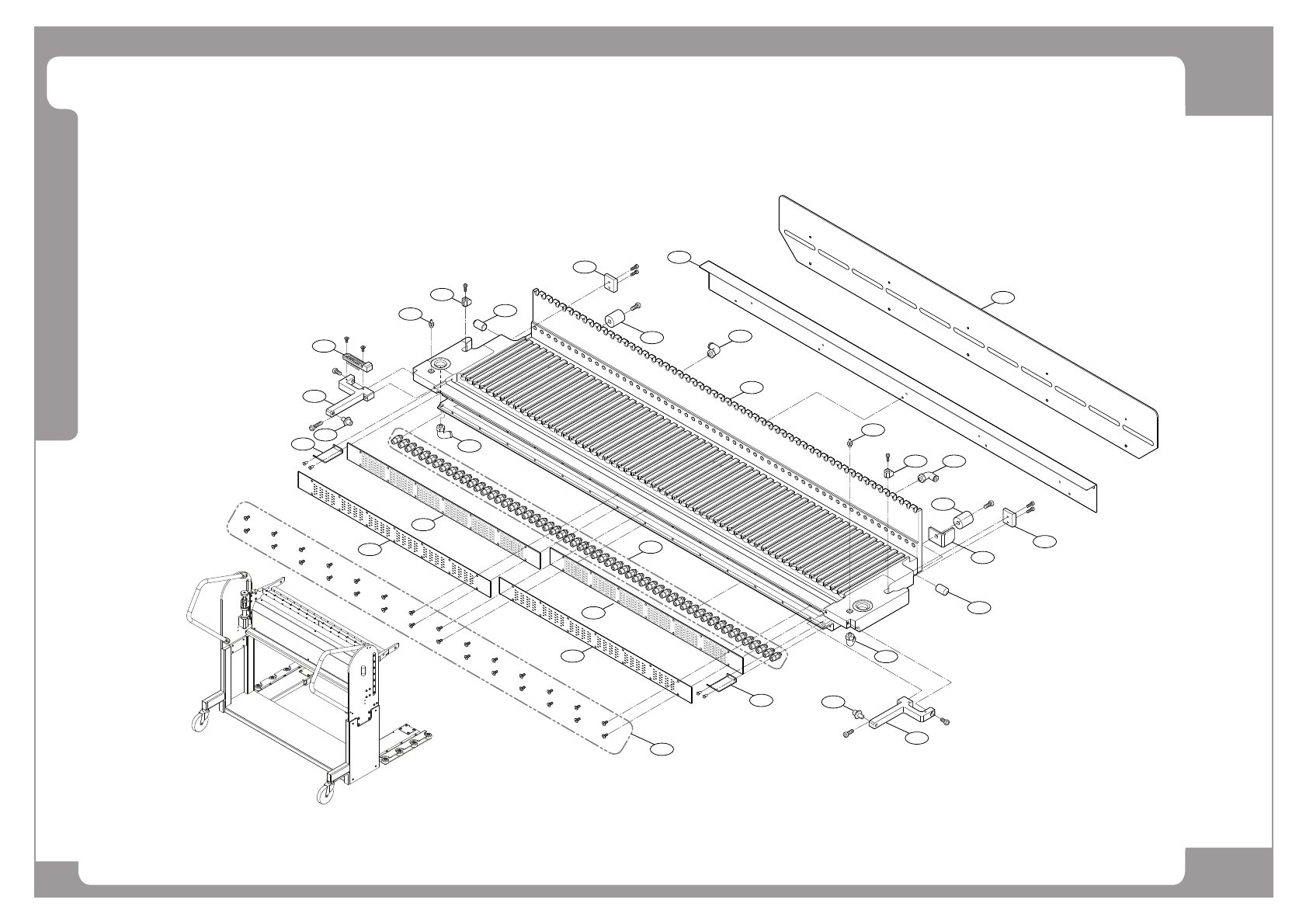

Feeder Base Ass’y - DC (1/4)
4
3
2
13
1
4
17
16
4
18
5
6
8
9
19
20
20
11
14
12
4
18
17
15
16
14
12
13
19
7
10
Page
+$1:+$
7
SM481
PLUS
Feeder Base Ass’y - DC (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1
1 J90600354B FEEDERBASE_RIGHT_COVER_PCB 1 J9060354A
2 J90600353B FEEDERBASE_LEFT_COVER_PCB 1 J9060353A
3 HP06-900299 COUPLER[KD-M5-SA34697KR] 56
4 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4
5 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D
6 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D
7 FC09-000901C BRACKET-Top_Plate_S 1 FC09-000901A
8 J90571009A FEEDER_BASE_MODULE J90571009A 1
9 FC09-002060A BRACKET-SME_DC_BKT 1
10 FC09-001200C BRACKET-TOP-PLATE-BACK-HOLE 1 FC09-001200A
11 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 28
12 J7057239B CABLE HOLDER[J7057239B] 2
13 J7057238B ANTI-PITCH PIN[J7057238B] 2
14 J7057237C ANTI-PITCH ARM[J7057237C] 16
15 AM03-001738C CABLE ASSY-D-CART INNER IF 1
16 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2
17 J7257013A CUSHION-LOCATION PIN[J7257013A] 2
18 HP15-900008 BALL PLUNGERS[BSX12] 2
19 FC29-900535 URETHANS[AZXS 20-23-M5-7] 2
20 MC14-900015 URETAN WHEEL[TP8015-PLY] 2
