Page +$1:+$ 35 SM481 PLUS Control Rack Ass’y NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Su pply L T Reference 1 EP06-901 01 1 SM41 1F_POWER_SUPPL Y_STW400-S STW400-S 4 400W EP06-901039 SMPS_800W_DC24V US8…
Page
+$1:+$
34

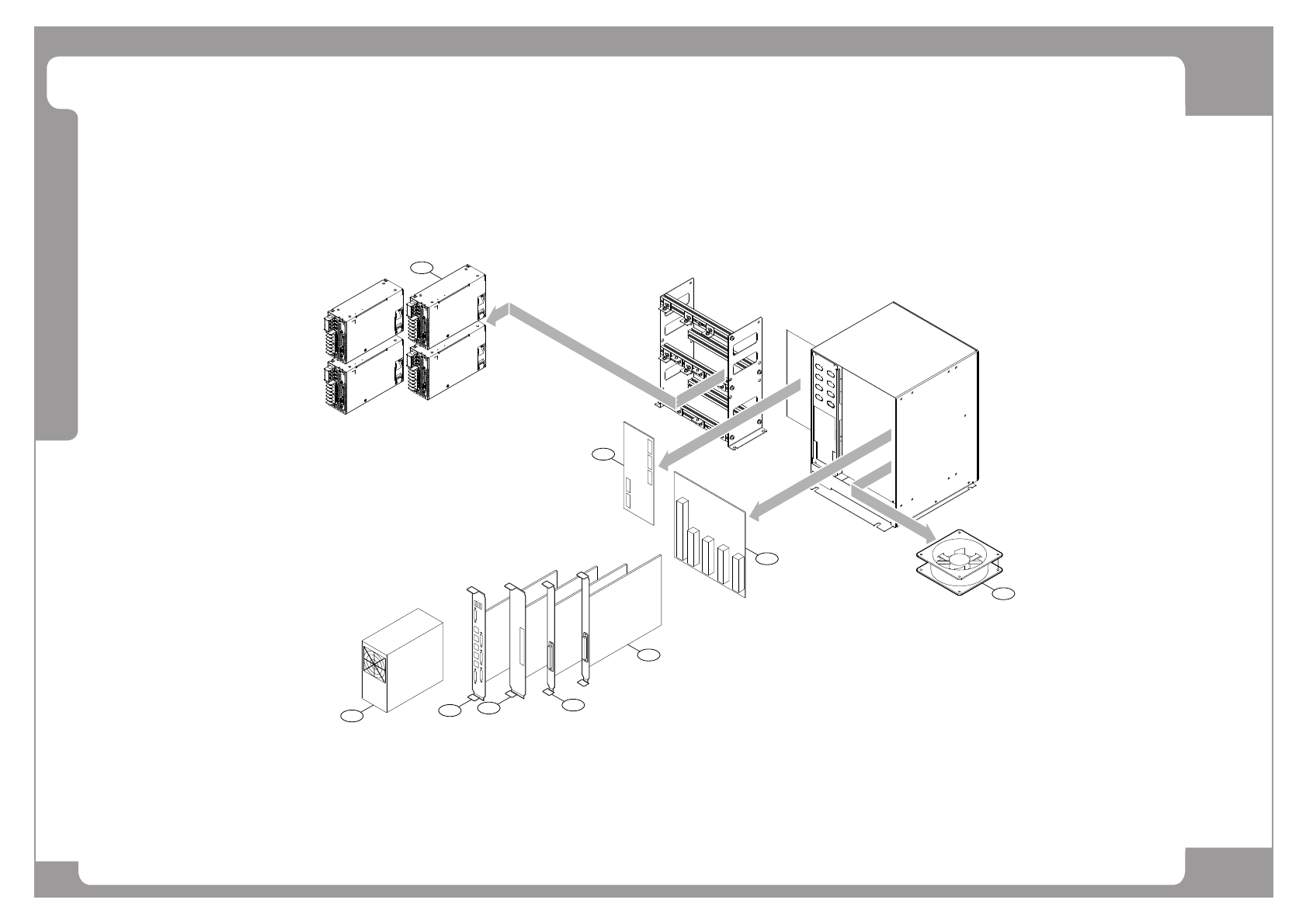

SM481
PLUS
Control Rack Ass’y
1
8
6
7
5
5
4
3
2
Page
+$1:+$
35
SM481
PLUS
Control Rack Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP06-901011 SM411F_POWER_SUPPLY_STW400-S STW400-S 4 400W
EP06-901039 SMPS_800W_DC24V US800D24 2 800W
2 EP06-000384 SUPPLY,POWER,AC-DC-STW350-ABDDATX 1
3 CD05-001002 MOTHERBOARD,CPU-ADLINK;CPCI,6626 I3 1 CD05-000059
CD03-000060 HARD DRIVE-TS64GSSD630 1
4 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C
5 AM03-017389A PROCESSOR BOARD-NT-A8 2 EP06-000338
6 EP10-001013A BOARD,ETC-LKCB-53L32-ST 1 AM03-014089A/ EP10-001534
7 AM03-014333A CABLE ASSY-CPU-BOX FAN 1
8 AM06-000359C ASSY,PCB SMD-SM400_VISION_IF BD 1 AM06-000359A
AM03-000054 CABLE ASSY-PCIE_CABLE_3M CB-CE-3
Page
+$1:+$
36
SM481
PLUS
Base Frame Ass’y
2
4
5
6
7
3
1
