3.2.5 Importing Boards in SIPLACE Pro
► Select the appropriate folder to your software.
► Click on the file with the board programs on the ACT CD (Figure 3-11).

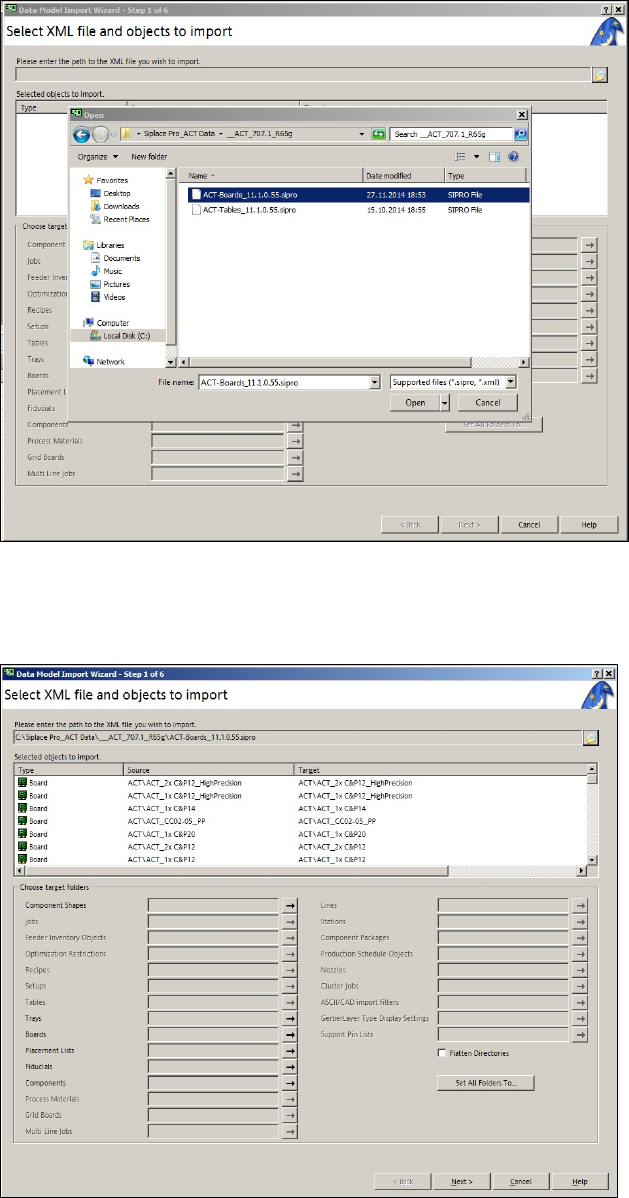

Figure 3-11: ACT board import screen
► Click Open (Figure 3-11).
► Click Next (Figure 3-12).
Figure 3-12: XML file import screen
ACT with SSW 7xx / User Manual 07/2017 Edition
22
NOTICE
Import of data
► Please do not change the destination folder.
► Do not select the Flatten directories check box.
If ACT data has already been imported, the following screen will be displayed (Figure 3-13).
► To overwrite the objects, set the option The following object(s) exist in the destination
folder(s). Would you like to overwrite them? to Yes.
► Enable the option Resolve conflict by creating new image data.
► Click Next.

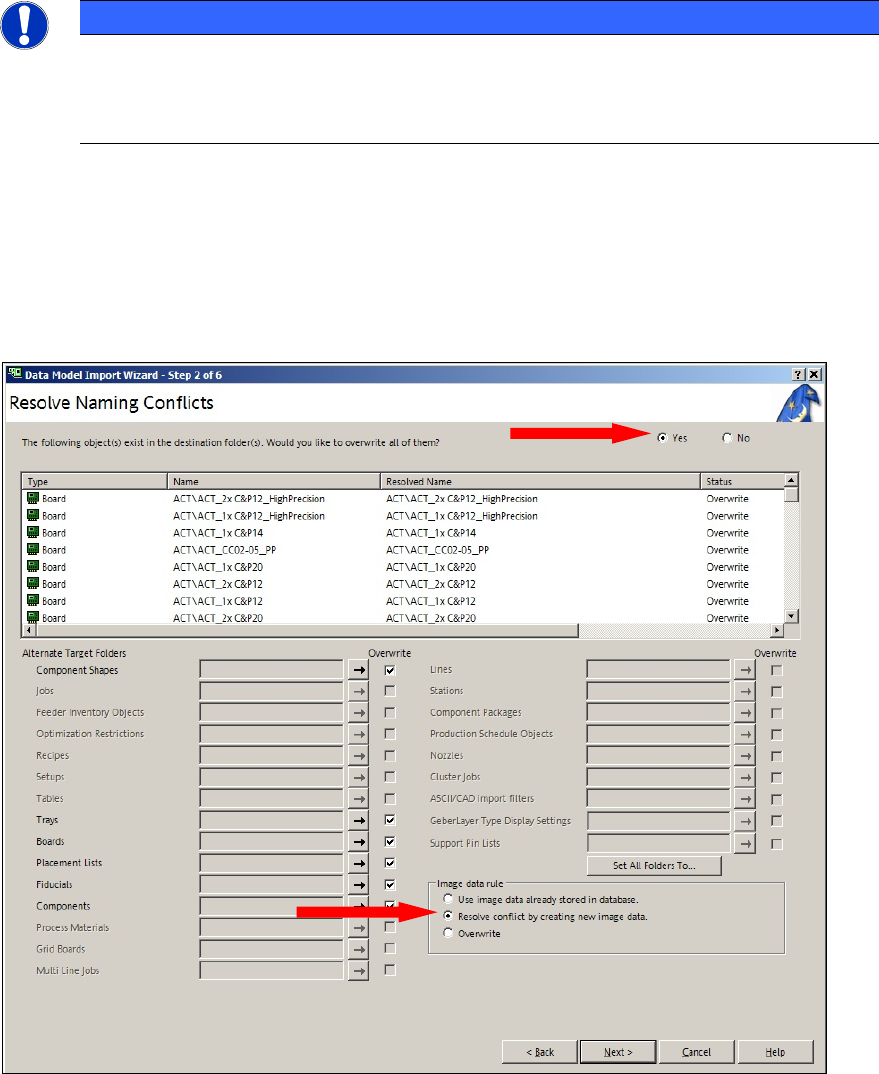

Figure 3-13: Information screen: Resolve conflict by creating new image data
ACT with SSW 7xx / User Manual 07/2017 Edition
23
If data is to be overwritten, the following screen is displayed:

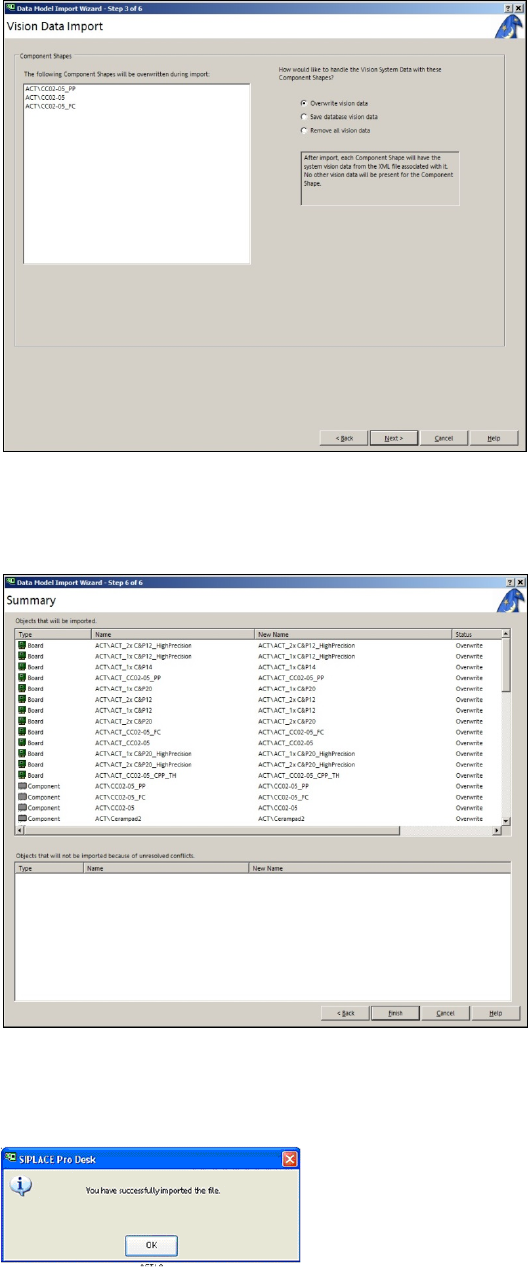

Figure 3-14: Vision data import
► Activate the Overwrite Vision data option.
► Click Next.
Figure 3-15: Screen for finishing the import of files for ACT
► Click Finish.
The following message is displayed on the screen:
Figure 3-16: Screen for finishing the import of files for ACT
► Click OK.
The next screen is displayed in which you will see the folder structure for the boards.
