ACT with SSW 7xx / User Manual 07/2017 Edition 67 ► Click the Return to regular production but ton (1) in the next window. Figure 4-43: Returning to regular production ► Click on the butt on to the left at the bot tom (2…
ACT with SSW 7xx / User Manual 07/2017 Edition
66
If one or more stations are positioned behind it, for which there is no specification for components
to be placed, the board is passed through these machines and can then be removed from the last
station of the line.
► Click on the button, to switch to the Service view.
► Click on the Stop Accuracy Check job button.

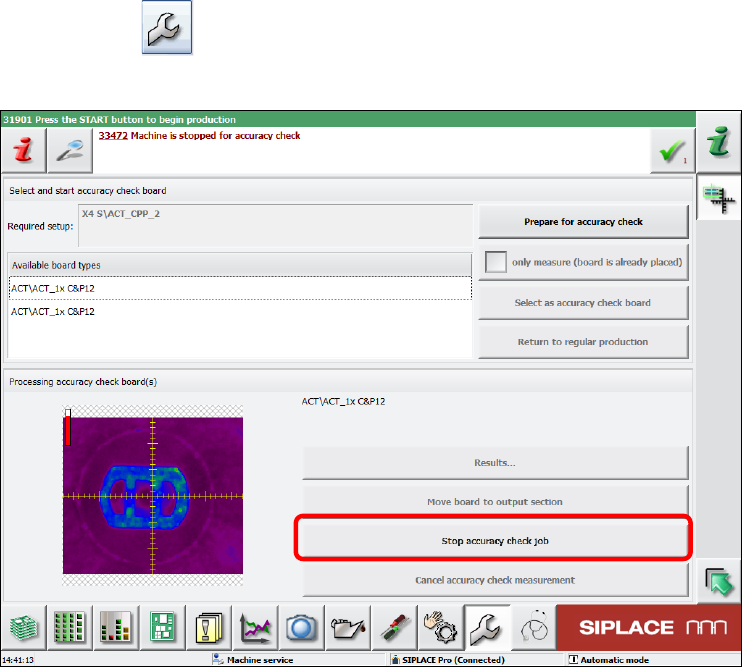

Figure 4-42: Stop Accuracy Check job
ACT with SSW 7xx / User Manual 07/2017 Edition
67
► Click the Return to regular production button (1) in the next window.

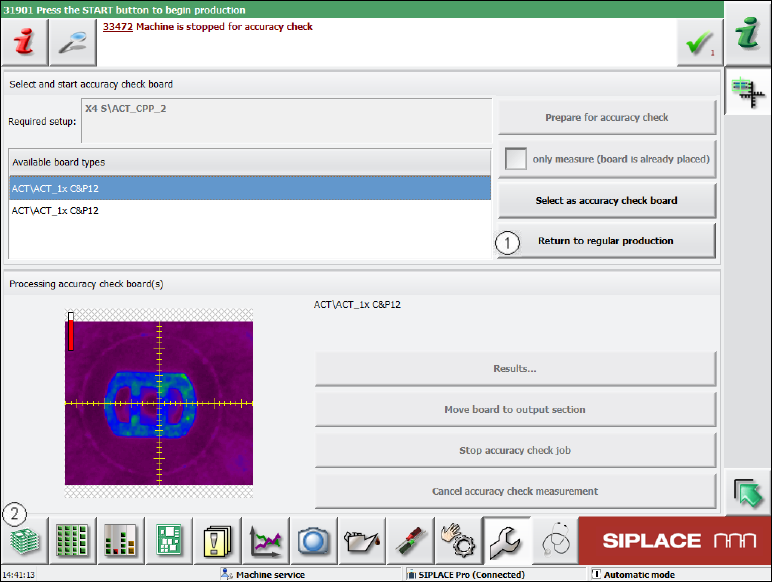

Figure 4-43: Returning to regular production
► Click on the button to the left at the bottom (2) to return to the main view of the GUI.
ACT with SSW 7xx / User Manual 07/2017 Edition
68
4.2.7 Working with the ACT under Station Software 709.xx and Higher
NOTICE
It is not
necessary to install any additional software on the station computer on machines
running version 7.xx and higher of the station software.
Requirements:
● You have already sent a placement/measurement program to the station as described in
section 4.1.
● You have set up the station as described in section 4.2.1.

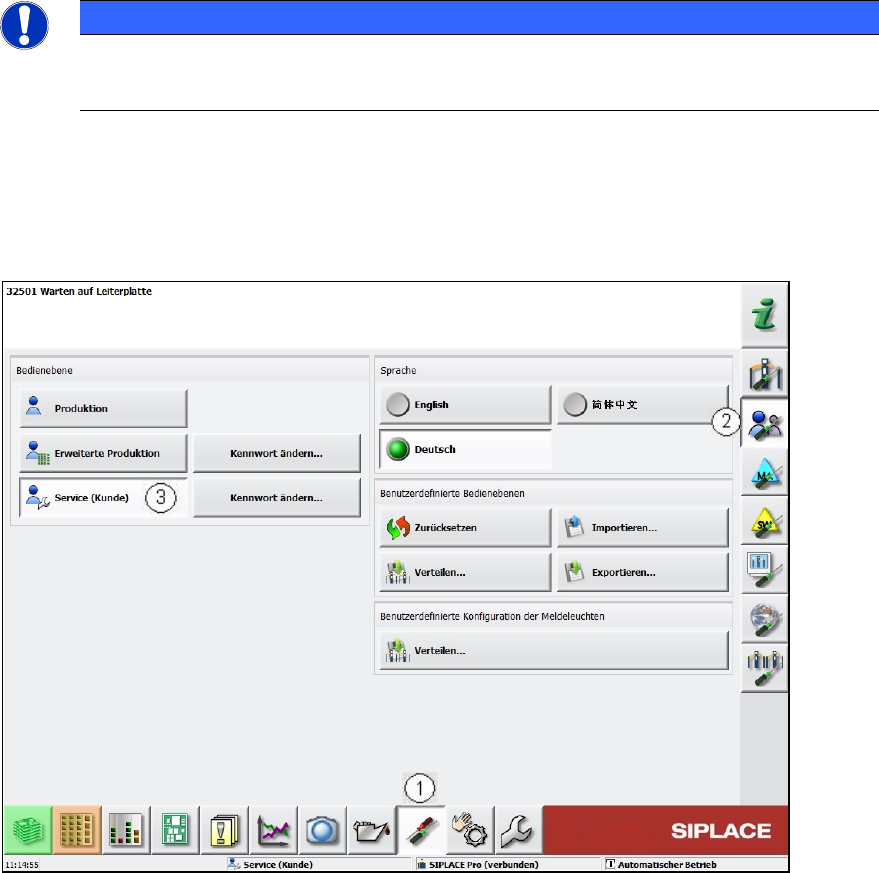

Figure: 4-44: Switching the user level
► Switch to the Einstellungen (Settings) view (1).
► Switch to Benutzereinstellungen (User settings) (2).
► Switch to the Service (Kunde) (Machine service) user level (3).
► Enter the service password.
