ACT - Accuracy Check Tool - 第178页
ACT with SSW 7xx / User Manual 07/2017 Edition 70 Figure 4-47: Selecting board ► Select the required board (1). The boa rd most recent ly specified is al ways at the top of the list. When you have sele cted a board, the …
ACT with SSW 7xx / User Manual 07/2017 Edition
69
Figure 4-45: Service Tools view
► Switch over to the Display maintenance related views view (1).
► Switch over to the Verify machine and subsystems view (2).
► Click the Machine verification button (3).
Figure 4-46: Preparing for the accuracy check
► Click the Prepare for machine verification button (1).
The machine automatically switches to standalone mode.
ACT with SSW 7xx / User Manual 07/2017 Edition
70

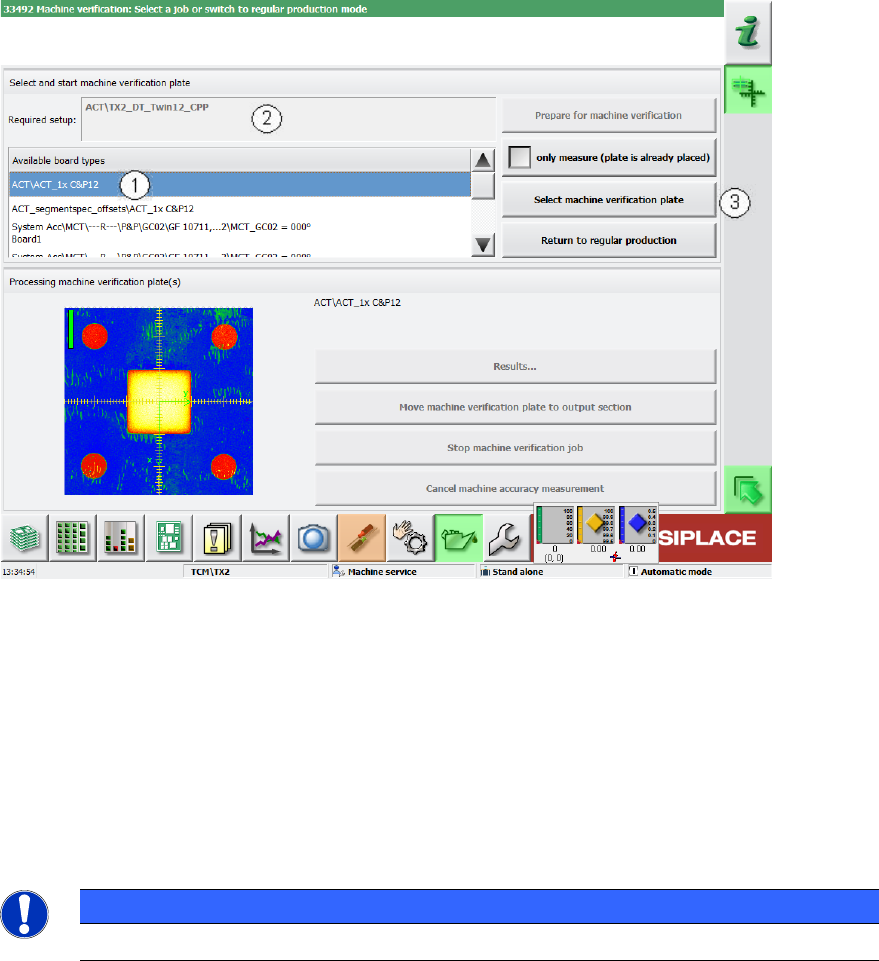

Figure 4-47: Selecting board
► Select the required board (1). The board most recently specified is always at the top of the list.
When you have selected a board, the corresponding setup appears at this point (2).
► Confirm the selection of the board and click the Select machine verification plate button (3).
► Press the Start key before you insert the board (otherwise it will not be placed but immediately
be moved to the output section).
► Push the board into the input section (see also section 4.2.2 and section 4.2.4.2).
The board gets placed and then the measurement starts automatically.
NOTICE
The machine should not be operated during the measurement!
A dialog box opens in which the current measurement operation is displayed.
The fiducials which are currently being measured will be displayed.
ACT with SSW 7xx / User Manual 07/2017 Edition
71
Example of measurement operation with the Cerampads ceramic components:
Figure 4-48: Example of measurement window with Cerampads
Example of measurement operation with glass components:
Figure 4-49: View of measurement window with glass components (pseudo color view)
Key:
(1) Fiducials on the ACT plate
(2) Fiducials on the glass component
