ACT with SSW 7xx / User Manual 07/2017 Edition 98 ► Select the Configure conv eyor view (1). ► Set the Vacuum tooling placement section 1 para meter to Installed . ► Set the Use vacuum tooling paramet er to Yes . Figure …
ACT with SSW 7xx / User Manual 07/2017 Edition
97
► Select "250 mm x 100 mm" under Conveyor – Vacuum tooling left.
► Select "250 mm x 100 mm" under Conveyor – Vacuum tooling right.
Figure 6-8: Machine configuration, transport
► Click the Save changes and restart machine button.
► Switch over to Conveyor configuration after the restart.
Figure 6-9: Conveyor configuration
NOTICE
► For the following settings, please observe that you always have to perform them on
both conveyor lanes !
ACT with SSW 7xx / User Manual 07/2017 Edition
98
► Select the Configure conveyor view (1).
► Set the Vacuum tooling placement section 1 parameter to Installed.
► Set the Use vacuum tooling parameter to Yes.

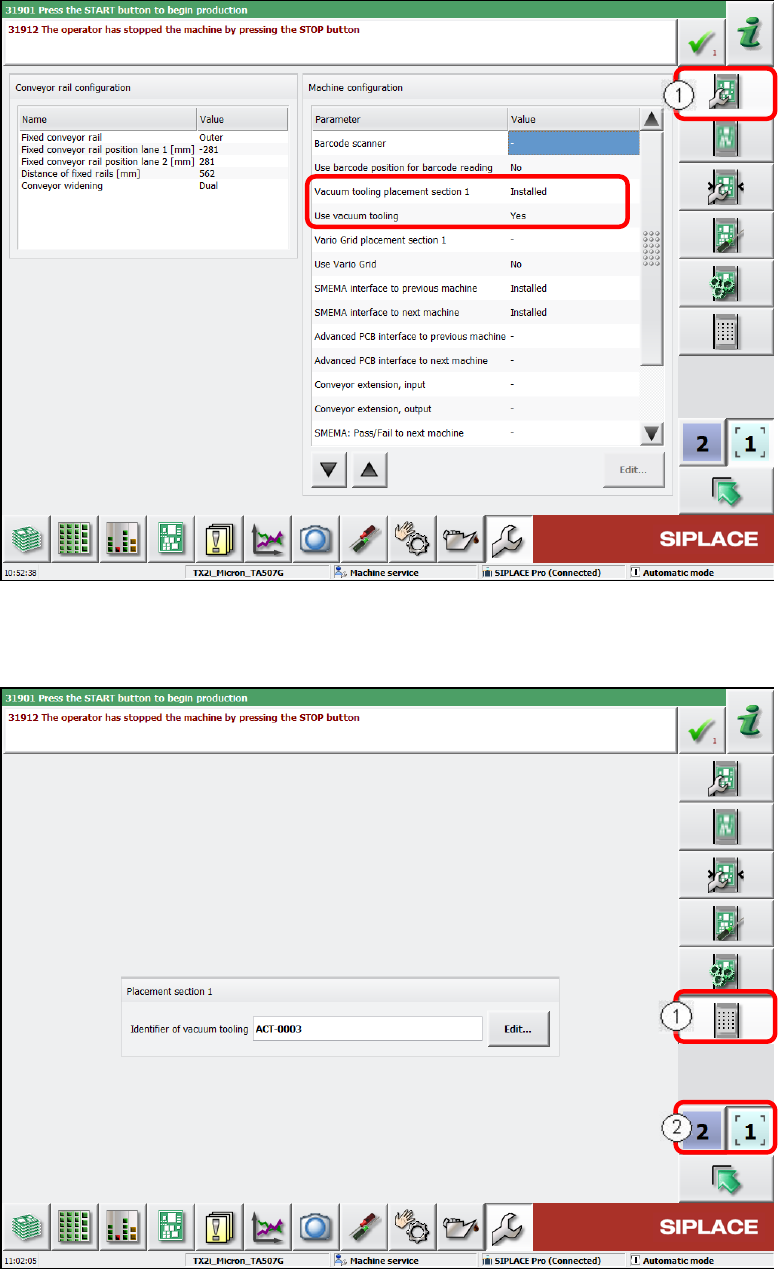

Figure 6-10: Configuring conveyor
► Under Conveyor configuration, switch over to the Set identifier of vacuum tooling and
transfer correction data view (1).
Figure 6-11: Setting identifier of vacuum tooling and transferring correction data
ACT with SSW 7xx / User Manual 07/2017 Edition
99
► Click the Edit button and import the data from the enclosed USB stick of the respective vacuum
tooling for each conveyor lane (2).
NOTICE
The serial number of the vacuum tooling is composed as follows:
Item number_4-digit sequential number
Lane 1 and Lane 2 have different material numbers!
Figure 6-12: Loading correction data
► Under Conveyor configuration switch over to the Conveyor lane set parameter view (1).
► Set the corresponding values as displayed in Figure 6-13 and Figure 6-14.
