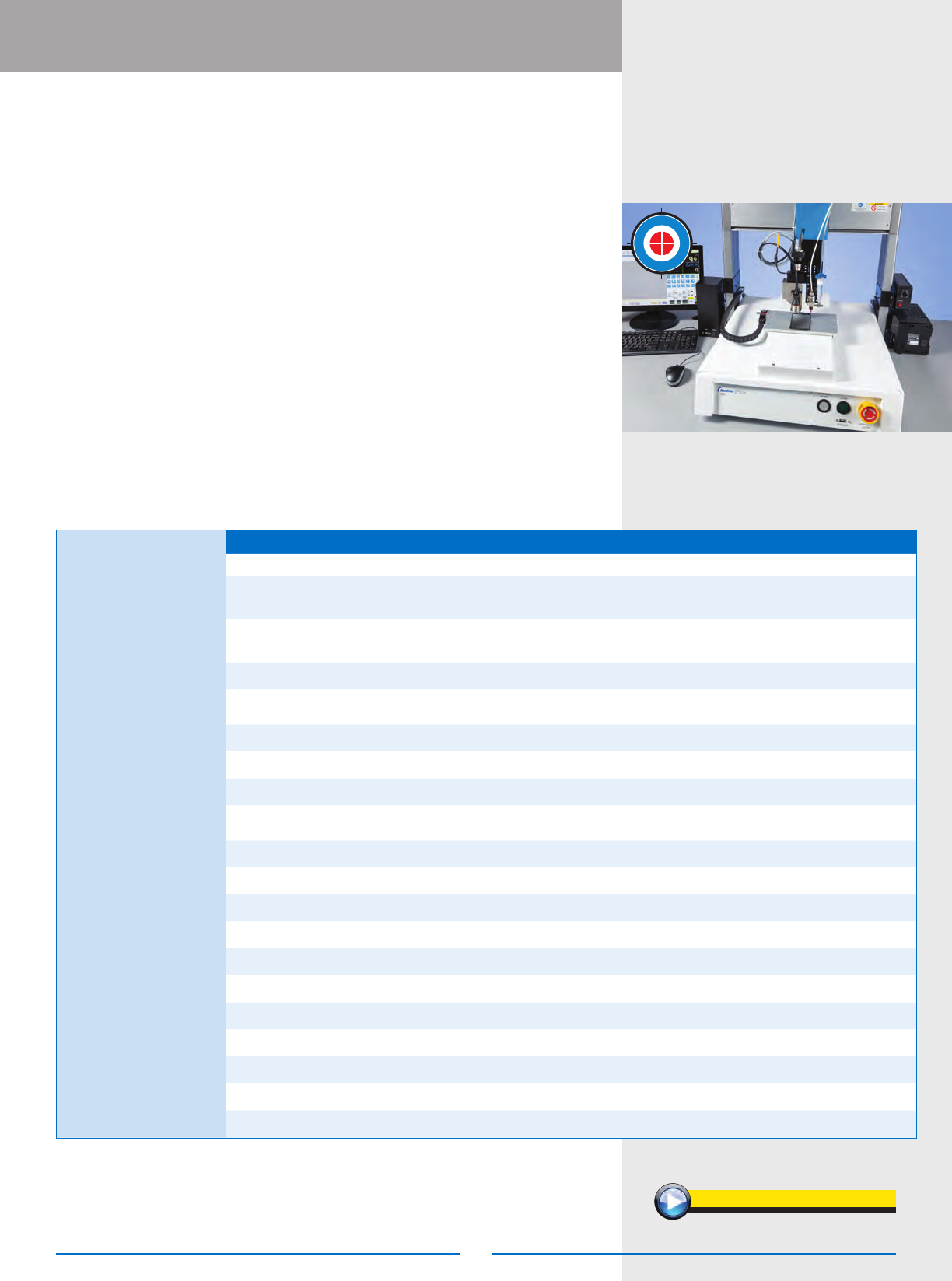

Automated Dispensing System – System Setup
101
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Automated Dispensing Systems
SPECIFICATIONS
Items/Models
PRO3 PRO4 PROPlus3 PROPlus4
Part # 7362911 7360860 7363536 7363539
Part # Europe* 7363829 7361353 7363650 7363653
Laser B (Optional)
_____________________________________________________
7361240 (optical height sensing of most surfaces)
_________________________________________________________
Laser C (Optional)
_______________
7364992 (optical detection of deposit measurement regardless of uid transparency or reective substrate)
_________________
Number of Axes
_______________________________________________________________________________________
3
___________________________________________________________________________________________
Maximum Working Area
(X / Y / Z)
250 / 250 / 100 mm (10 / 10 / 4") /
250 / 220 / 100 mm (10 / 9 / 4")
350 / 350 / 100 mm (14 / 14 / 4") /
350 / 320 / 100 mm (14 / 13 / 4")
250 / 250 / 100 mm (10 / 10 / 4") /
250 / 220 / 100 mm (10 / 9 / 4")
350 / 350 / 100 mm (14 / 14 / 4") /
350 / 320 / 100 mm (14 / 13 / 4")
Workpiece Payload 10.0 kg (22.0 lb) 10.0 kg (22.0 lb) 25.0 kg (55.1 lb) 25.0 kg (55.1 lb)
Tool Payload 3.5 kg (7.7 lb) / 1.5 kg (3.3 lb) 3.5 kg (7.7 lb) / 1.5 kg (3.3 lb) 6.0 kg (13.2 lb) 6.0 kg (13.2 lb)
Weight 45.0 kg (99.2 lb) / 46.5 kg (102.5 lb) 57.5 kg (126.8 lb) / 59 kg (130.1 lb) 50.5 kg (111.3 lb) / 52 kg (114.6 lb) 63.5 kg (140.0 lb) / 65 kg (143.3 lb)
Dimensions
720
w x 690h x 590d mm
(28w x 27h x 22d")
820w x 690h x 690d mm
(32w x 27h x 27d")
720w x 690h x 590d mm
(28w x 27h x 22d")
820w x 690h x 690d mm
(32w x 27h x 27d")
Maximum Speed (X / Y / Z) 500 / 250 mm/s (20 / 10"/s) 500 / 250 mm/s (20 / 10"/s) 800 / 250 mm/s (31 / 10"/s) 800 / 250 mm/s (31 / 10"/s)
Drive System 5-phase micro stepping motor 5-phase micro stepping motor Servomotor Servomotor
Memory Capacity
___________________________________________________________________________________
PC storage
___________________________________________________________________________________
General Purpose I/O
________________________________________________________________
8 inputs / 8 outputs (16 / 16 optional)
________________________________________________________________
Input AC (to power supply)
_________________________________________________
100–240 VAC, ±10%, 50/60Hz, 20 Amp maximum, 380 W
_________________________________________________
Repeatability** ±0.004 mm / axis ±0.004 mm / axis ±0.003 mm / axis ±0.003 mm / axis
Tip Detection System
_____________________________________________________________________________________
Included
____________________________________________________________________________________
Vision
______________________________________________________________________________
CCD smart camera
_____________________________________________________________________________
DispenseMotion Software
_____________________________________________________________________________________
Included
____________________________________________________________________________________
Laser Height Detection
______________________________________________________________________________________
Optional
____________________________________________________________________________________
Approvals / Warranty CE, UKCA, RoHS, WEEE, China RoHS / 1 year, limited
*Complies with European safety regulations. **Repeatability results may vary depending on method of measurement.
For Replacement Parts:
www.nordsonefd.com/RP
PROPlus / PRO Series
Automated Dispensing
System
Features and Benets
• Dual linear guide, advanced servomotor, and ball screw actuation (PROPlus only)
• Best-in-class repeatability and speed (PROPlus ±0.003 mm; PRO ±0.004 mm)
• Simplied setup and programming with EFD’s advanced vision-guided
DispenseMotion software
• On-screen preview of the dispensing path facilitates programming
• Constant closed-loop feedback with encoding, smart vision camera, and precision
laser non-contact sensing
• Improved product quality; more precise, accurate dispensing
• Quicker learning curve for operators; programming is easier, more visual
• Produces more parts and reduces process time
The PROPlus / PRO Series is EFD’s most advanced automated dispensing system.
Along with specialized DispenseMotion software and fully integrated vision and laser
height sensing capabilities, the system includes closed-loop encoding to deliver
best-in-class dispensing performance and exceptional process control.
Verify uid deposit placement and accuracy with the OptiSure automated optical
inspection (AOI) software add-on. When paired with the OptiSure confocal laser,
the AOI system measures the height of uid deposits in addition to width and
diameter, providing 3D dispense verication.
Integrated vision and laser make the PROPlus /
PRO Series a complete automated solution.
www.nordsonefd.com/PROVideo
+
/
-
0
.
0
0
3
m
m
I
M
P
R
O
V
E
D
R
E
P
E
A
T
A
B
I
L
I
T
Y
102102
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
SPECIFICATIONS
Item/Model
E2V E3V E4V E5V E6V
Part # 7360856 7360857 7360858 7360859 7362103
Part # Europe* 7361349 7361350 7361351 7361352 7362104
Number of Axes
_____________________________________________________________________________________
3
____________________________________________________________________________________
Maximum Working Area
(X / Y / Z)
150 / 200 / 50 mm
(6 / 8 / 2")
250 / 300 / 100 mm
(10 / 12 / 4")
350 / 400 / 100 mm
(14 / 16 / 4")
450 / 500 / 150 mm
(18 / 20 / 6")
570 / 500 / 150 mm
(22 / 20 / 6")
Workpiece Payload 10.0 kg (22.0 lb) 10.0 kg (22.0 lb) 10.0 kg (22.0 lb) 10.0 kg (22.0 lb) 10.0 kg (22.0 lb)
Tool Payload 1.5 kg (3.3 lb) 3.0 kg (6.6 lb) 3.0 kg (6.6 lb) 3.0 kg (6.6 lb) 3.0 kg (6.6 lb)
Weight 25.5 kg (56.2 lb) 47.5 kg (104.7 lb) 52.5 kg (115.7 lb) 55.0 kg (121.3 lb) 58.0 kg (127.9 lb)
Dimensions
495
w x 556.5h x 410d mm
(19w x 22h x 16d")
596w x 644h x 543d mm
(23w x 25h x 21d")
696w x 644h x 638d mm
(27w x 25h x 25d")
796w x 814h x 718d mm
(31w x 32h x 28d")
913w x 812h x 718d mm
(36w x 32h x 28d")
Maximum Speed
500 / 250 mm/s
(20 / 10"/s)
800 / 320 mm/s
(31 / 13"/s)
800 / 320 mm/s
(31 / 13"/s)
800 / 320 mm/s
(31 / 13"/s)
800 / 320 mm/s
(31 / 13"/s)
Drive System
________________________________________________________________
3-phase micro stepping motor
________________________________________________________________
Memory Capacity
_____________________________________________________________________________
PC storage
______________________________________________________________________________
General Purpose I/O
___________________________________________________________
8 inputs / 8 outputs (16 / 16 optional)
___________________________________________________________
Input AC
(to power supply)
100–240 VAC, ±10%,
50/60Hz, 20 Amp maximum,
350 W
100–240 VAC, ±10%,
50/60Hz, 20 Amp maximum,
350 W
100–240 VAC, ±10%, 50/60Hz,
20 Amp maximum,
350 W
100–240 VAC, ±10%,
50/60Hz, 20 Amp maximum,
350 W
100–240 VAC, ±10%,
50/60Hz, 20 Amp maximum,
350 W
Repeatability**
________________________________________________________________________
±0.008 mm / axis
__________________________________________________________________________
Vision
____________________________________________________________________________
Pencil camera
__
__________________________________________________________________________
DispenseMotion Software
______________________________________________________________________________
__
Included
_
_
__
__
__________________________________________________________________________
Tip Detection
______________________________________________________________________
Tip detector (optional)
______________________________________________________________________
Height Detection
______________________________________________________________________
Mechanical (optional)
________________________________________________________________________
Approvals / Warranty CE, UKCA, RoHS, WEEE, China RoHS / 1 year, limited
Automated Dispensing Systems
EV Series Automated
Dispensing Systems
*Complies with European safety regulations. **Repeatability results may vary depending on method of measurement.
For Replacement Parts:
www.nordsonefd.com/RP
Features and Benets
• Simple camera and dispensing software make setup and programming easy
• On screen preview of the dispensing path facilitates programming
• Streamlined le import and conversion
• True three-dimensional motion control
• Wide range of work envelopes
• Faster cycle and batch times
• Easy integration into any manufacturing operation
The EV Series offers simple vision for precise uid application in an automated
solution. Along with specialized DispenseMotion software and a pencil camera, the
system is quick to set up and easy to program. Platforms range from 150 x 200 mm
to 570 x 500 mm, making them an ideal solution for batching or critical dispensing
applications.
Verify uid deposit placement and accuracy with the OptiSure automated optical
inspection (AOI) software add-on.
EV Series pencil camera vision makes
programming patterns easier.
www.nordsonefd.com/EVSeriesVideo 
