www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Automated Dispensing Systems

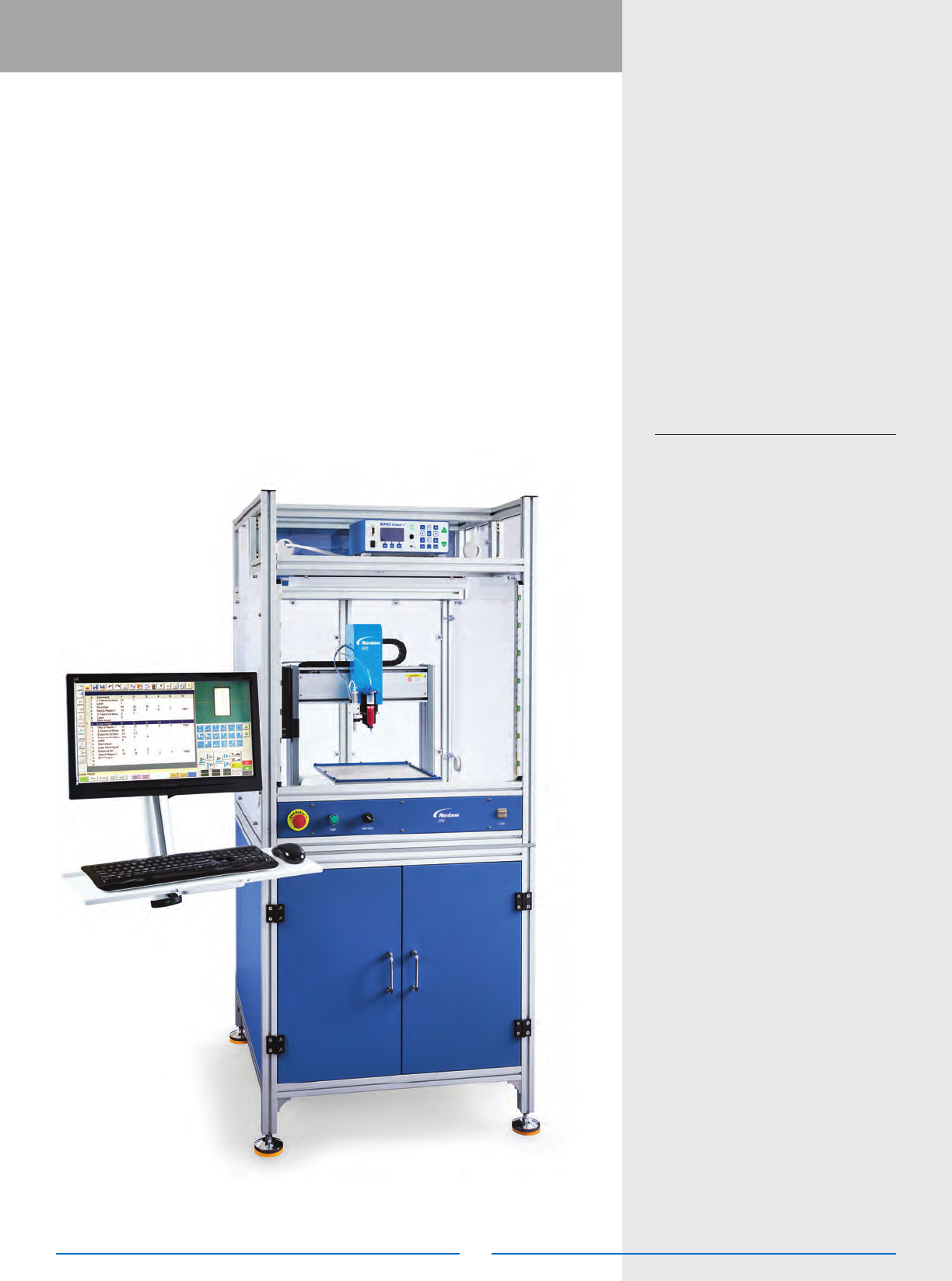

Complete Guarded

System

Features and Benets

• Light curtain meets safety requirements while providing easy access to the

dispensing system when necessary

• Complete control of the system from the outside of the enclosure, including

Start, Emergency Stop, and Run/Teach

• Solid construction resists bumps and jolts to maintain dispensing accuracy

• High-quality enclosure protects operators from operational hazards

• Protects the dispensing system from environmental conditions

• Compliant with EU Machinery Directive 2006/42/EC, essential for all

production requirements

Nordson EFD guarded safety enclosures integrate seamlessly with our complete line

of automated dispensing systems. Featuring external dispensing controls, a safety

light curtain, and an internal electrical control box and wireways for faster, safer

setup, these CE-compliant enclosures also fully comply with EU Machinery Directive

2006/42/EC.

7362738 Small Safety Enclosure

Compatible robot models E2, E2V, E3, E3V, PRO3,

PROPlus3.

7362766 Small Safety Enclosure, Europe

Compatible robot models E2, E2V, E3, E3V, PRO3,

PROPlus3.

7362739 Large Safety Enclosure

Compatible robot models E4V, E5, E5V, E6V, R3,

R3V, R4, R4V, G4V, PRO4, PROPlus4.

7362767 Large Safety Enclosure, Europe

Compatible robot models E4V, E5, E5V, E6V, R3, R3V,

R4, R4V, G4V, PRO4, PROPlus4.

“Automated tabletop dispensing has

significantly increased productivity by

removing the variability from our process. It

has also reduced our rejects by up to 90%.”

– Electrodynamics Inc.

108108

7360610

7361815

7362177

7364423*

7365000

7365933

7360613

7361758

7361114

7360609

7364040

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Automated Dispensing Accessories

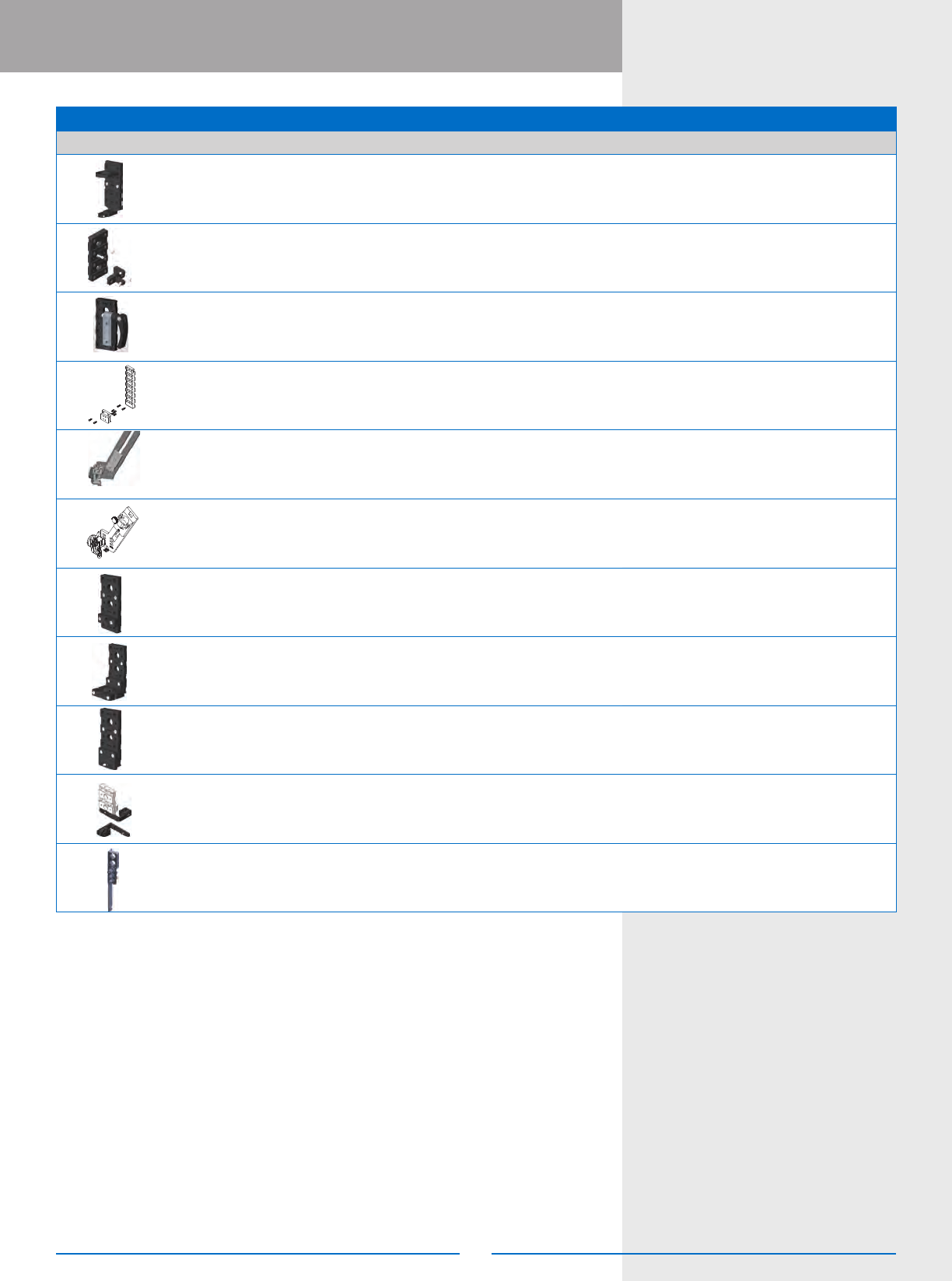

MOUNTING BRACKETS

Bracket Part # Recommended Use PROPlus / PRO EV E RV R GV

EFD syringe barrels, all sizes

     

PICO

Pµlse

valves

     

Liquidyn

P-Jet and P-Dot Series valves

     

797PCP pump for one-component uid applications

  

— —



Shutoff valve for 797PCP-2K pumps

(pumps not included)



E3V–E6V E3–E5 — —



Shutoff valve for Equalizer™

  

— —



Universal for valves with mounting holes (752, 725, 741,

736, 781, 787, and 782 Series)

     

Universal for valves without mounting holes

(702, 754, 794 Series)

     

xQR41 Series valves

     

EV Series pencil camera —



— — — —

Air and cable management bracket (replaces bracket

P/N 7361670)

     

*To use this bracket on any PROPlus / PRO robot or a G8V robot, also order P/N 7364856.

**To mount a 797PCP on any PROPlus / PRO robot or on a G8V robot, use this bracket in tandem with the 797PCP / 797PCP-2K pump mounting bracket. This bracket is attached to the robot camera.

109109

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Automated Dispensing Accessories

7360551

7363719

7360761

7360554

7360558

7362373

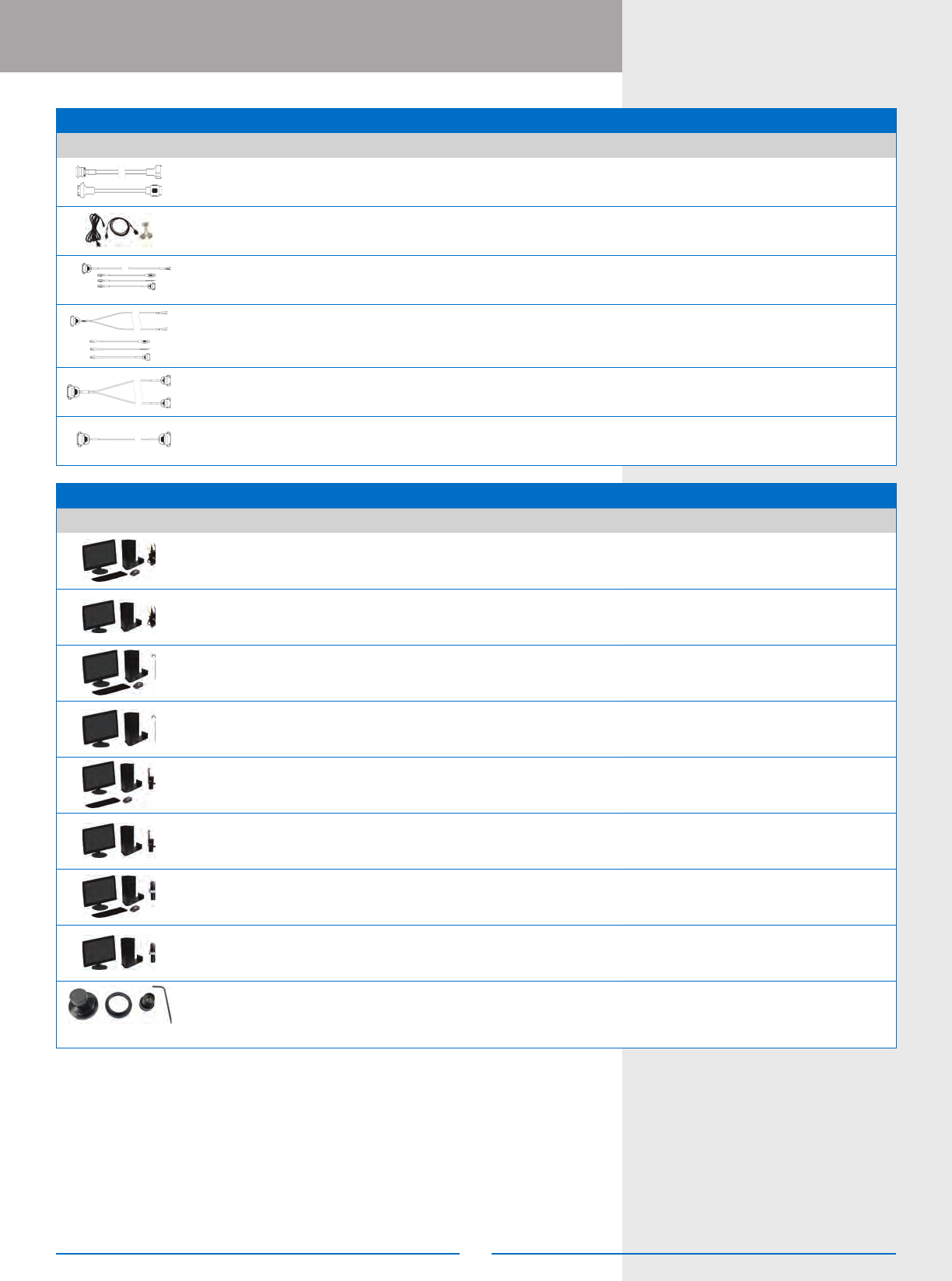

CABLES

Cable Part # Description PROPlus / PRO EV E RV R GV

Standard cable to connect dispenser and robot

     

Cable kit for safety enclosures (includes monitor

power cord, VGA monitor cable, and Y cable

for robot I/O port)

     

Single voltage initiate cable for one dispenser or

controller

     

Dual voltage initiate cable for up to two dispensers/

controllers

     

Dual-connector cable for one or two PICO Toμch

Controllers

     

Single-connector cable for one Liquidyn V200

Controller

     

7360864

7361527

7360863

7361528

7363461

7363672

7364066

7364067

7360867

VISION KITS

Vision Kit Part # Description PROPlus / PRO EV E RV R GV

Vision kit for CCD camera with light box

(includes camera, PC, monitor, keyboard, and mouse)

Included

 

— —

G8V included

G4V optional

Vision kit for CCD camera with light box, Europe

(includes camera, PC, and monitor)

Note: Order keyboard and mouse separately.

Included —



— —

G8V included

G4V optional

Vision kit for pencil camera

(includes camera, PC, monitor, keyboard, and mouse)

— Included



— — G4V included

Vision kit for pencil camera, Europe

(includes camera, PC, and monitor)

Note: Order keyboard and mouse separately.

— Included



— — G4V included

Vision kit for xed-mount camera

(includes camera, PC, monitor, keyboard, and mouse)

— — — Included



—

Vision kit for xed-mount camera, Europe

(includes camera, PC, and monitor)

Note: Order keyboard and mouse separately.

— — — Included



—

Vision kit for rotating-mount camera

(includes camera, PC, monitor, keyboard, and mouse)

— — — Included



—

Vision kit for rotating-mount camera, Europe

(includes camera, PC, and monitor)

Note: Order keyboard and mouse separately.

— — — Included



—

Lens accessory kit for high-precision CCD cameras

(allows different focal lengths and depths of eld;

compatible with CCD upgrade kits 7360864

and 7361527)



— — — — G8V optional

= Compatible
