2K Pistons
The AF
™

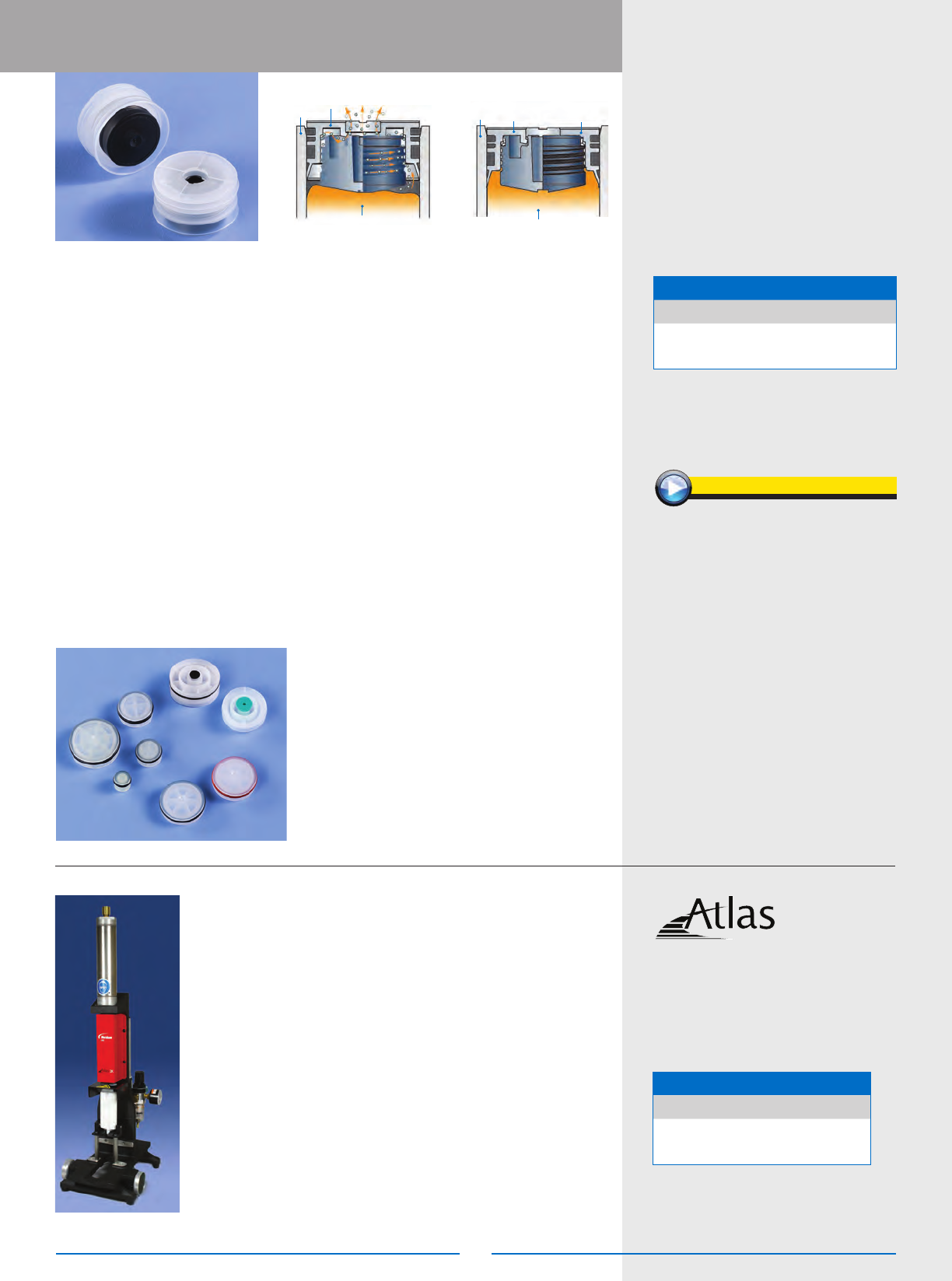

Air Free Piston does a superior job of venting all of the air between the
material and the piston. Its unique design does not require a shim to bleed the air,
nor does it require a second step to insert a center bleed plug. This piston bleeds air
around the circumference of the black plug and uses the force of hitting the material
to close itself in a single step.
The AF piston provides a more visible indication when the piston is completely closed,
i.e., the black center plug is ush with the top of the piston. Further, since the material
of construction of the AF piston is a PE/PBT combo, it is compatible with most
materials, simplifying inventory.
Atlas
™
2K Piston Inserters are a fast, convenient, and cost-
effective way to install AF pistons in 50mL, 200mL, and
300mL Side x Side cartridges.
AF AIR FREE PISTONS
Part # Ratio Cartridge Type
7704061 1:1 50mL Side x Side
7704307 1:1 200−300mL Side x Side
For other pistons, see cartridge P/N tables.
AF Air Free Pistons
2K Piston Inserter
Features and Benets
• Eliminates trapped air
• No need for shims or secondary plugging operations
• Ensures on-ratio dispensing
• Fast, foolproof operation
• Prevents material separation
• Solid Multi-seal
• Solid with O-ring
• Multi-seal with a Pre-staged Center
Bleed Plug
• For use with Side x Side cartridges;
see previous pages for part numbers
• Both u-TAH and Coaxial cartridges
come pre-installed with solid multi-seal
pistons
Features and Benets
• Simple to set up and operate
• Pistons seat correctly every time
• Compact, space-saving footprint
• Rugged, lightweight units are easily transported
for different jobs
• The 300mL unit can handle 200mL cartridges
• Designed for use with AF Air Free pistons that virtually
eliminate trapped air
Piston
Adhesive
Air
Cartridge
Opened Piston
Piston
Seal
Adhesive
Closed Piston
Cartridge
2K PISTON INSERTERS
Part # Description
7015502 50mL Piston Inserter
7015503 200mL Piston Inserter
Other 2K Pistons
www.nordsonefd.com/AFpistons
Bleed Path
123
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
2K Do-It-Yourself (DIY) Dual Syringes
Do-It-Yourself (DIY)
Dual Syringes

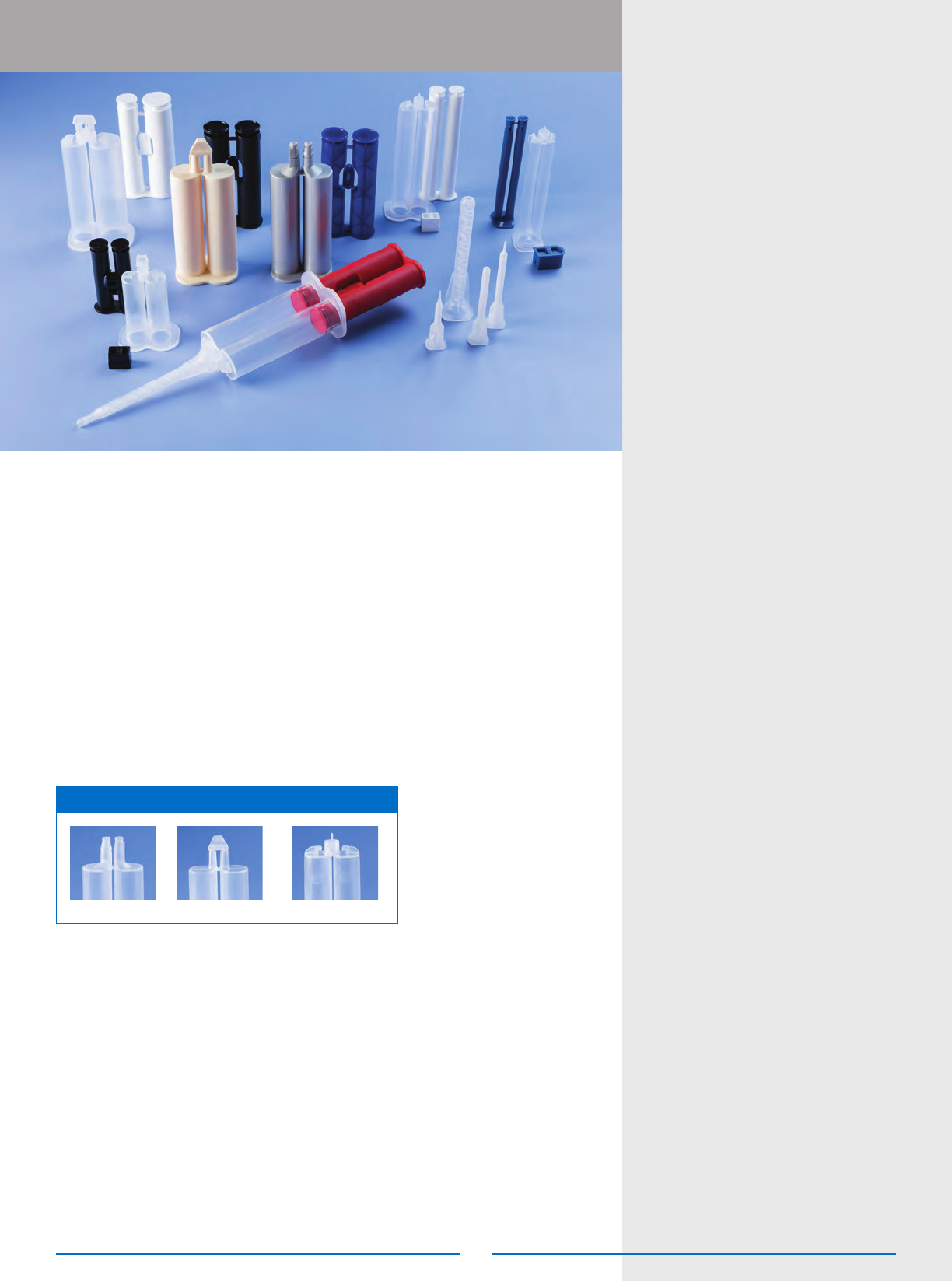

The DIY disposable dual syringe line is an ideal delivery system for the controlled
mixing and placement of two-component adhesives and sealants.
Along with being used for DIY adhesives, sealants, and paints in home repair
and automotive aftermarket products, dual syringes can be used in many other
applications, including dental, health and beauty, and animal health treatments.
Features and Benets
• Self-venting barrels with “lead-in” aid for easy ll
• Resealable, no-leak, position-oriented cap
• Anti-crossover material ports reduce A/B contamination
• Mixers and thin-wall syringes designed for reduced dispensing force
DIY SYRINGE OUTLET OPTIONS
E-Z SNIP DIY syringe Break-off DIY syringe Open-ended DIY syringe
Continued next page
124
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
2K Do-It-Yourself (DIY) Dual Syringes
14mL DIY SYRINGES
Sold individually. Order the DIY dual syringe, plunger, cap, and mixer separately for the complete system.
Part # Usable Volume Description 1:1 2:1 Material Color
7660301* 14mL
14B23. 7ml x 7ml dual syringe with break-off tip for simplied lling and lowest
cost. Available with one-piece plunger.
3
— PP Natural
7660305 — 14P23. 14ml Plunger with integrally molded cap
3
— HDPE Black
26mL DIY SYRINGES
7661364 26mL 26B33. 13ml x 13ml dual syringe with cut-off tip
3
— PE Silver
7660383 — 30P33. 26ml Plunger with integrally molded cap
3
— HDPE Black
28mL DIY SYRINGES
7661073 28mL
28B23. 14ml x 14ml dual syringe with break-off tip that eliminates need for cutting.
Plunger includes integrally molded cap for resealing nozzle.
3
— PP Natural
7660869 — 30P23. 28ml Plunger with integrally molded cap
3
— HDPE Black
7660382 — 30P23. 28ml Plunger with integrally molded cap
3
— HDPE Red
30mL DIY SYRINGES
7660377 30mL 30B33. 15ml x 15ml dual syringe with cut-off tip. Cut-off tip features two orice
openings (large or small).
3
— PP Natural
— — Note: P/N 7660377 (30B33) uses 30P33 plungers as 26ml listed on previous page — — — —
7661093* 30mL 30B43. 15ml x 15ml dual syringe with break-off tip
3
— PP Natural
7661322* 30mL 30B44. 20ml x 10ml dual syringe with break-off tip —
3
PP Natural
7661337 — 30P44. 30ml Plunger 2:1 —
3
HDPE White
*Mixer compatible
From previous page
DIY MIXERS
Part #
# Mixing
Elements
Element Diameter
(in/mm)
Housing
Outlet
Compatible
with (mL)
Element /
Housing
7660255 8 0.12 / 3.0 Blunt 4, 6, 14 ml PP / MDPE
7660499 16 0.18 / 24.6 Slip Luer 14 ml PP / PP
Sold individually.
