Productivity Tools
HPx High-Pressure
Dispensing Tool
The HP
™
Series high-pressure dispensing
tool applies RTV silicones, epoxies,
medical adhesives, and other thick uids
through dispensing tips as small as
0.004" in diameter. Designed to work
with EFD air-powered dispensers, these
tools will multiply the output of a standard
100 psi dispenser up to 7x.
Features and Benets
• Fast, fatigue-free application of thick uids
• Aluminum handpiece is easy to hold
• Easy tip installation/removal with built-in wrench
• Low uid level indicator
7023590 HP3cc Dispensing Tool
Uses 3cc EFD syringe barrels and pistons and
produces a maximum pressure of 700 psi
(48.2 bar).
7015289 HP5cc Dispensing Tool
Uses 5cc EFD syringe barrels and pistons and
produces a maximum pressure of 400 psi (27.6 bar).
7012598 HP10cc Dispensing Tool
Uses 10cc EFD syringe barrels and pistons and
produces a maximum pressure of 400 psi (27.6 bar).
www.nordsonefd.com/HPXTool
The pneumatically operated Equalizer
™
2K dispensing tool makes it possible to
dispense accurate, repeatable amounts
of 2-component materials. It is designed
for use with EFD dispensers and 50mL
Side x Side cartridges and static mixers
(order separately).
Equalizer 2K
Dispensing Tool
7360152
Standard configuration provides accurate 50mL 1:1
and 2:1 dispensing.
7015875
Kit Universal Stand Mount 25−50 mm.
11
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Productivity Tools
ProcessMate 5000
Universal Centrifuge
ProcessMate 6500
Temperature Control Unit

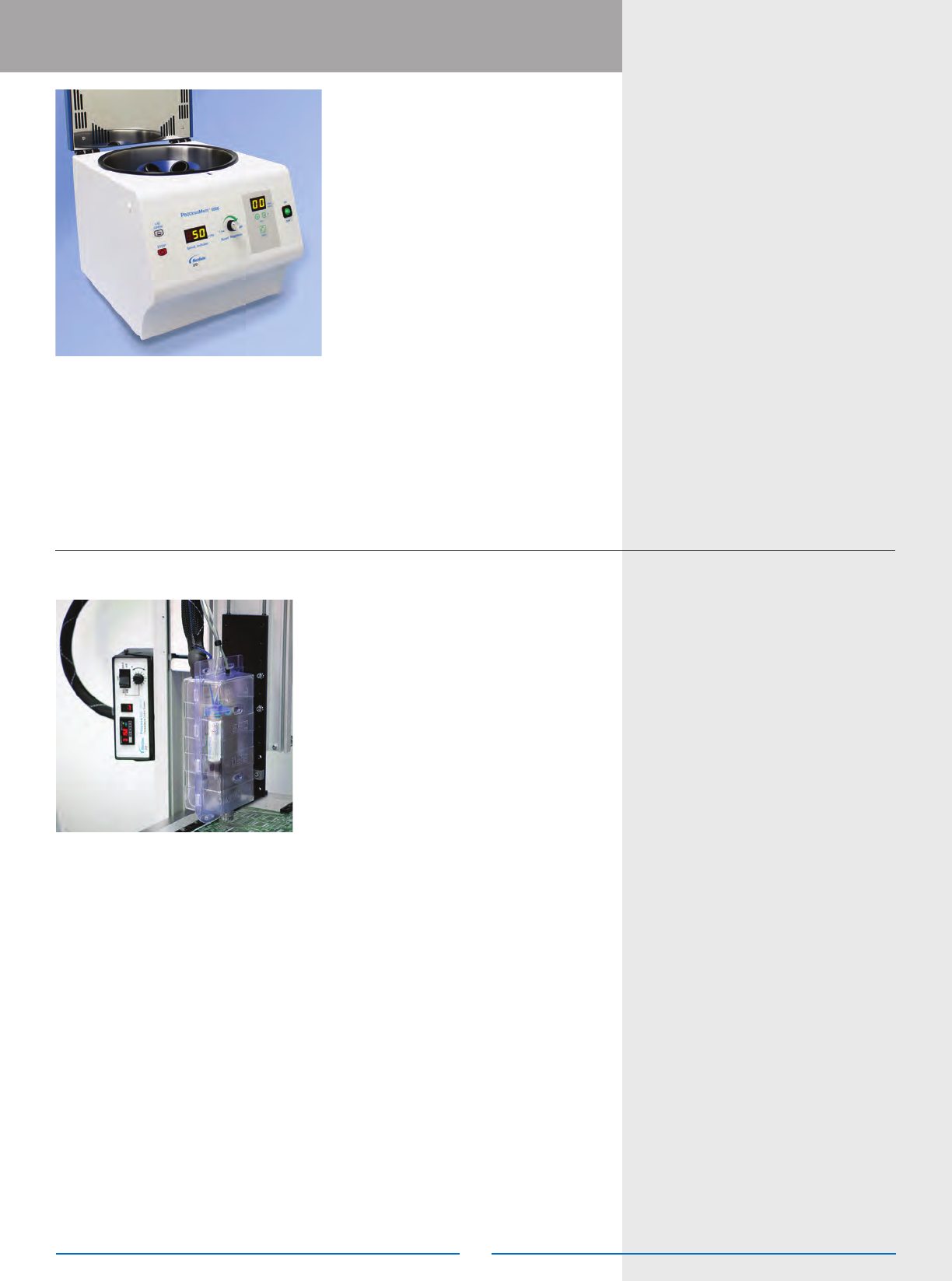

The Universal Centrifuge quickly and
efciently removes entrapped air
bubbles and air pockets from uid that
is packaged in syringes.
The adjustable speed control allows the
user to adjust the G-force for low- to
high-viscosity uids. The electric brake
can be initiated at the end of the cycle
to quickly stop the rotor from spinning,
saving additional process time.
The ProcessMate
™
controller maintains
temperature-sensitive dispensing
processes across a 10° to 40° C range
(50° to 104° F).
The ProcessMate
6500 is suitable for
manual and automated applications using
syringe barrels, dispense valves, and
other dispensing equipment.
Features and Benets
• Improves process control and reduces
rejected parts
• Spins up to (4) 3cc–30cc syringes
• Fixed angle rotor
• Lid locks for safety
• All-metal cabinet construction for safety
Features and Benets
• Compact — controls just the process, eliminating the need for machine enclosures
• Provides precise process control
• Cost effective — localized temperatures are reached within minutes
• Easy to install, adjust, and use
7015542 100-240 VAC Centrifuge
Multi voltage. RoHS compliant. Includes syringe
adapters and power cord.
7365995 Centrifuge Spare Parts
Includes 3cc, 5cc, 10cc, and 30cc centrifuge
adapter sets, plus rotor sleeves and tub seals.
7020340 ProcessMate 6500
Temperature Control Unit
Includes fittings, muffler, connectors, overlay,
and universal power cord.
For use with
• 2-part Epoxies
• Frozen Epoxies
• RTVs
• Greases
• Various other uids
12
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Productivity Tools

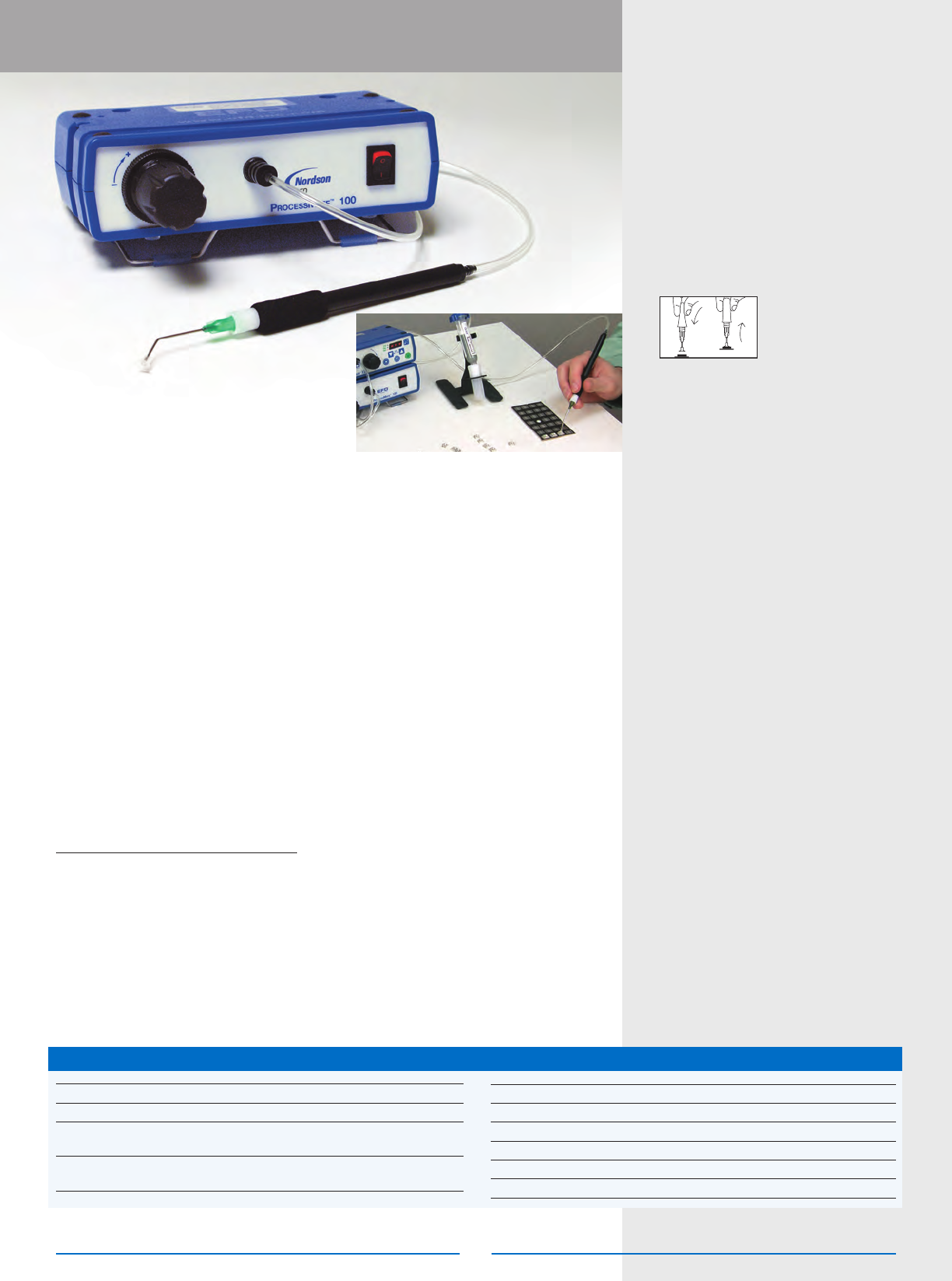

Vacuum Pickup System
ProcessMate 100
Features and Benets
• Faster, more precise placement than conventional tweezers
• Simple setup and operation
• Prevents damage to delicate or intricate components
• Cost-effective way to increase throughput
The ProcessMate 100 provides a simple, efcient way to lift and position small or
delicate components in benchtop assembly processes.
To lift the component, the operator simply places the pickup pen on the component
and presses an electric foot pedal to apply vacuum. When the component has been
positioned, releasing the foot pedal stops the vacuum and releases the component.
Note: If vacuum is only needed occasionally or there is no access to compressed air,
the VacTweezer is a useful, low-cost pick-and-place tool.
Soft, see-through pickup pads make it easy to accurately place components without
scratching or damage.
7012329 ProcessMate 100 Vacuum
Pickup Pen
Includes assorted antistatic tips and vacuum cups.
7024803 VacTweezer
Pickup Tool
The kit includes the same assortment of silicone
rubber vacuum cups and tips, along with a small
squeeze bulb with a luer fitting that attaches to the
tips to generate vacuum.
“Cut board time from 4 minutes to 45
seconds. Pickup tool is great.”
– K.M.
Cabinet size: 18.3w x 5.1h x 8.6d cm (7.22w x 2.00h x 3.38d")
Weight: 1.0 kg (2.2 lb)
Input AC Universal Multi Voltage, 100/240 VAC, 50/60 Hz
(to power supply):
Output DC 24 VDC, 1.04 Amp maximum
(from power supply):
Cycle initiate: Foot pedal, nger switch
Input air pressure: 7.0 bar (100 psi) maximum
Air output: 0–110 inH2O dependent on user setting
Vacuum output: 0–110 inH2O dependent on user setting
Approvals: CE, UKCA, RoHS, WEEE, China RoHS, TUV
Warranty: 1 year, limited
Specications
