129 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 SERIES 480 OPTIMIXERS (SQUARE) Part # # Mixing Elements Housing Length (in/cm) Housing Inlet* Housin…

128

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

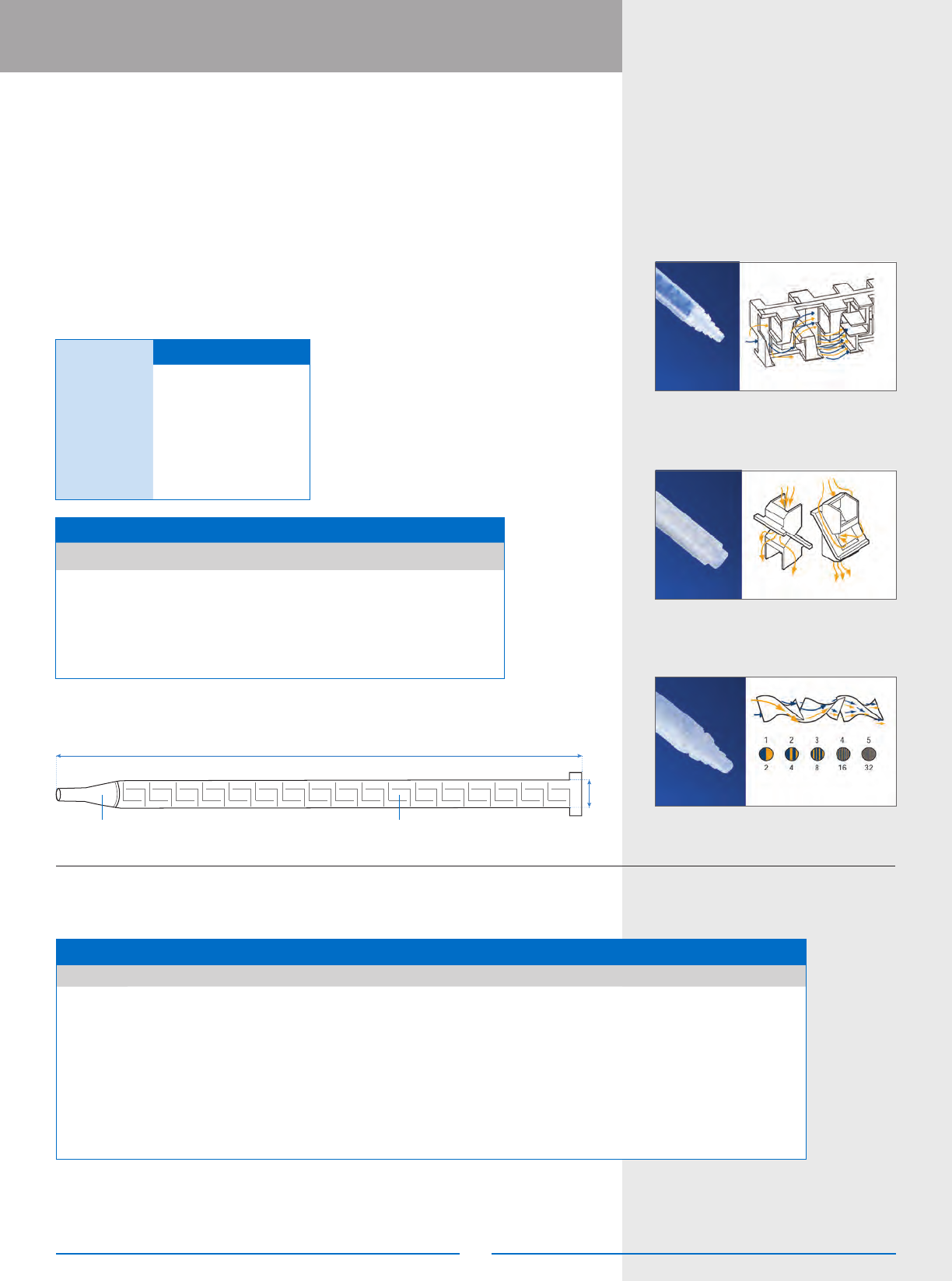

Disposable Mixers

Disposable Static

Mixers

Nordson EFD offers a wide variety of static mixers, including square OptiMixers

™

and

Turbo

™

Mixers or round Spiral

™

Mixers. It’s important to note, you should always use

an OptiMixer or Turbo unless your application requires elements with a small diameter

or long reach.

Mixer Selection

Choose the higher number of elements if one of two things occurs. Ask an EFD

application specialist for recommendations.

1. Material A and B are of very different viscosities.

2. Material A and B are very wide in mix ratio (i.e. 4:1 or greater for certain types

of uids).

Mixer Dimension Guide

Disposable Static Mixers Quick Reference

How Mixers Work — Element

Geometry

Fluid # OF MIXER ELEMENTS

Acrylic 8 − 10

Epoxy 15 − 24

Polysulﬁde 24 − 32

PU Foam 10 − 24

Silicone 20 − 30

Urethane 24 − 36

MATERIAL VISCOSITY

Viscosity Mixer Element Diameter

Thin < 5,000 cps (Thinner than syrup) 0.093–0.25" (2.4–6.4 mm)

Medium 5,000–50,000 cps

(Thicker than honey,

less than ketchup)

0.212–0.314" (5.4–8.0 mm)

Thick > 50,000 cps (Thicker than ketchup) > 0.366" (9.3 mm)

Housing Length

Mixing ElementsHousing Outlet

Element Diameter

DISPOSABLE STATIC MIXERS QUICK REFERENCE

Page Mixer Cartridge Volume & Type Element / Housing

129 Square OptiMixer 480 u-TAH (all), Coax 380mL, Side x Side 200−1500mL Acetal / PP

129 Turbo 295 Side x Side 50mL PP / PP

129 Turbo 280 u-TAH (all), Coax 380mL, Side x Side 200−1500mL PP / PP

131 Spiral 160 u-TAH (all), Coax 380mL, Side x Side 200−1500mL Acetal / PP

132 Spiral 160AA u-TAH (all), Coax 380mL, Side x Side 200−1500mL Acetal / PP

133 Spiral 161N u-TAH (all), Coax 380mL, Side x Side 200−1500mL Acetal / PP

133 Spiral 260 u-TAH (all), Coax 380mL, Side x Side 200−1500mL PP / PP

130 Spiral 190 Side x Side 50–160mL Acetal / PP

OptiMixer (Square)

Turbo Mixer (Square)

Spiral Mixer

129

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

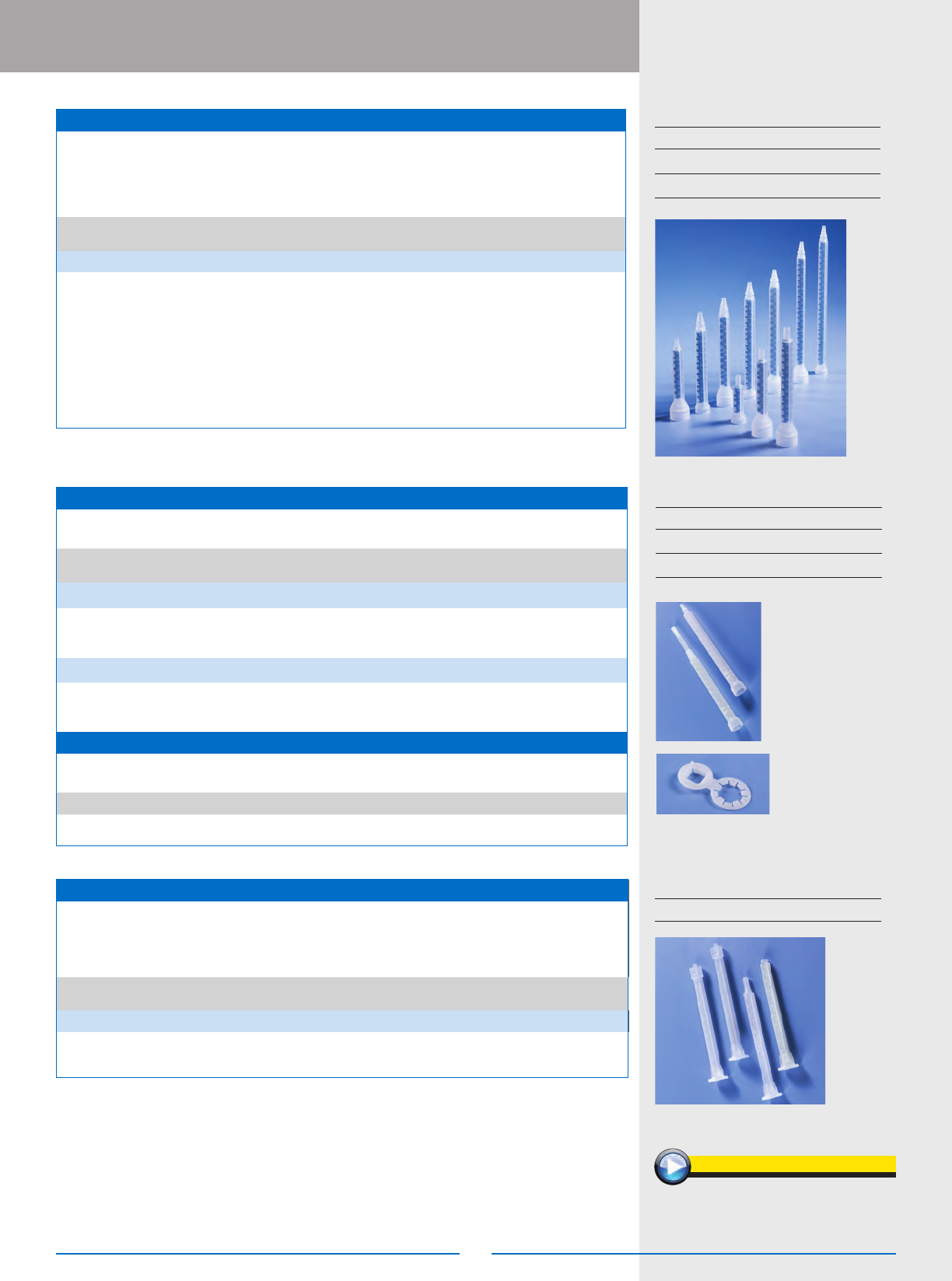

SERIES 480 OPTIMIXERS (SQUARE)

Part #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet*

Housing

Outlet

Retained

Volume (ml)

Element /

Housing

Element Width 0.344 / 8.7 (in/mm)

7363817 9 2.4 / 6.1 Bell Barbed 1.6 Acetal / PP

7361689 17 4.0 / 10.2 Integral Nut Stepped 4.7 Acetal / PP

7361695 25 5.1 / 13.0 Bell* Stepped 6.5 Acetal / PP

7361697 25 5.6 / 14.2 Integral Nut Stepped 6.5 Acetal / PP

7361703 33 6.3 / 16.0 Bell* Stepped 7.5 Acetal / PP

7361705 33 6.8 / 17.3 Integral Nut Stepped 7.5 Acetal / PP

7361707 41 8.1 / 20.6 Integral Nut Stepped 10.0 Acetal / PP

Using proprietary ow simulation technology to improve the material ow path design and element wedges, the OptiMixer

Series 480 delivers better mix quality in a 20% shorter length, without impacting other performance factors. It allows users

to dispense in closer proximity to applications, providing greater control and higher job quality with 30% less retained

volume. Integral nut mixers have a 7/8-9 thread.

*Needs retaining nut #7702598.

Disposable Mixers

For use with:

u-TAH Universal Cartridges

380mL Coaxial Cartridges

200−1500mL Side x Side Cartridges

www.nordsonefd.com/2kOptiMixer

SERIES 280 TURBO MIXERS (SQUARE)

Part #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet

Housing

Outlet

Retained

Volume (ml)

Element /

Housing

Element Width 0.442 / 11.2 (in/mm)

7701816 20 7.52 / 19.1 Integral Nut Short Barb 15.1 PP / PP

7701818 26 9.00 / 22.9 Integral Nut Short Barb 17.0 PP / PP

Element Width 0.344 / 8.7 (in/mm)

7701370 18 5.6 / 14.2 Integral Nut ProTip 6.5 Acetal / PP

7701385 24 6.8 / 17.3 Integral Nut ProTip 7.5 Acetal / PP

HANGING BRACKET

Part # Description

7703203 Hanging Bracket

The Series 280 Turbo Mixer

square geometry can provide superior mixing, allowing the operator to be closer to the applica-

tion, and reducing the retained waste within the mixer. All mixers have 7/8 - 9 Integral Nut.

The optional “hanging bracket” attaches the Series 280 Mixer to Nordson EFD’s u-TAH Cartridge Systems. The double-looped

form snaps onto the 11.2 mm nozzle’s unique ribs and over the neck of a cartridge creating a durable attachment.

SERIES 295 BAYONET TURBO MIXERS (SQUARE)

Part #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet

Housing

Outlet

Retained

Volume (ml)

Element /

Housing

Element Width 0.203 / 5.15 (in/mm)

7701830 20 4.05 / 10.2 Bayonet Slip Luer 1.4 PP / PP

7701836 20 4.05 / 10.2 Bayonet Luer Lok 1.4 PP / PP

The patented Series 295 Turbo Mixer ensures superior mixing performance and allows the operator to be closer to the

workpiece. Designed for 50mL two-component cartridges, the Turbo geometry consists of a series of alternating left- and

right-hand elements with intermittent ow inverters. The ow inverters effectively channel the uids from the walls into the

center of the mixer and from the center to the walls.

For use with:

50mL Side x Side Cartridges

For use with:

u-TAH Universal Cartridges

380mL Coaxial Cartridges

200−1500mL Side x Side Cartridges

130

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Disposable Mixers

SERIES 190 BAYONET MIXERS (SPIRAL)

Part #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet

Housing

Outlet

Retained

Volume (ml)

Element /

Housing

Element Diameter 0.093 / 2.36 (in/mm)

7701408 12 1.5 / 3.8 Bayonet Slip Luer 0.10 Acetal / PP

Element Diameter 0.125 / 3.18 (in/mm)

7701411 12 2.1 / 5.3 Bayonet H-Tapered

* 0.20 Acetal / PP

7701416 24 3.4 / 8.6 Bayonet H-Tapered

* 0.40 Acetal / PP

Element Diameter 0.187 / 4.75 (in/mm)

7701424 16 3.4 / 8.6 Bayonet Slip Luer 0.90 Acetal / PP

7701436 16 3.4 / 8.6 Bayonet H-Tapered

* 0.90 Acetal / PP

Element Diameter 0.213 / 5.40 (in/mm)

7701449 17 4.4 / 11.2 Bayonet Stepped 1.90 Acetal / PP

7701453 21 5.3 / 13.5 Bayonet Stepped 2.40 Acetal / PP

Element Diameter 0.250 / 6.35 (in/mm)

7701458 12 3.9 / 9.9 Bayonet Slip Luer 1.90 Acetal / PP

7701487 20 5.9 / 15.0 Bayonet Slip Luer 3.00 Acetal / PP

7701488 20 5.9 / 15.0 Bayonet Stepped 3.00 Acetal / PP

7701510 20 5.9 / 15.0 Bayonet

H-Tapered* 3.00 Acetal / PP

7701507 20 5.3 / 13.5 Bayonet Full Bore 2.80 Acetal / PP

7701521** 20 5.3 / 13.5 Bayonet Slip Luer 2.75 Acetal / PP

Featuring a standard Bayonet connection, the Series 190 Mixer is designed for use with 50mL and 160mL two-component

cartridges. The Series 190 has ve diameters available with four outlet styles: Slip Luer, Full Bore, H-Tapered, and Stepped. The

Slip Luer is our standard offering. The Full Bore ensures maximum ow with minimal back pressure.

* The H-Tapered outlet is offered where precise placement of the adhesive is required. In order to connect Luer needles or

extensions, it is molded with an interlocking connection. This requires the attachment of a Luer Lok Adapter #7700943

(bag of 50), ordered separately.

**For use with 160mL Side x Side cartridge.

MIXER HOUSING OUTLET TYPES

H-Tapered

Full Bore

Stepped

Luer Lok Slip Luer

Luer Lok

Adapter

For use with:

50mL−160mL Side x Side Cartridges
