133

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

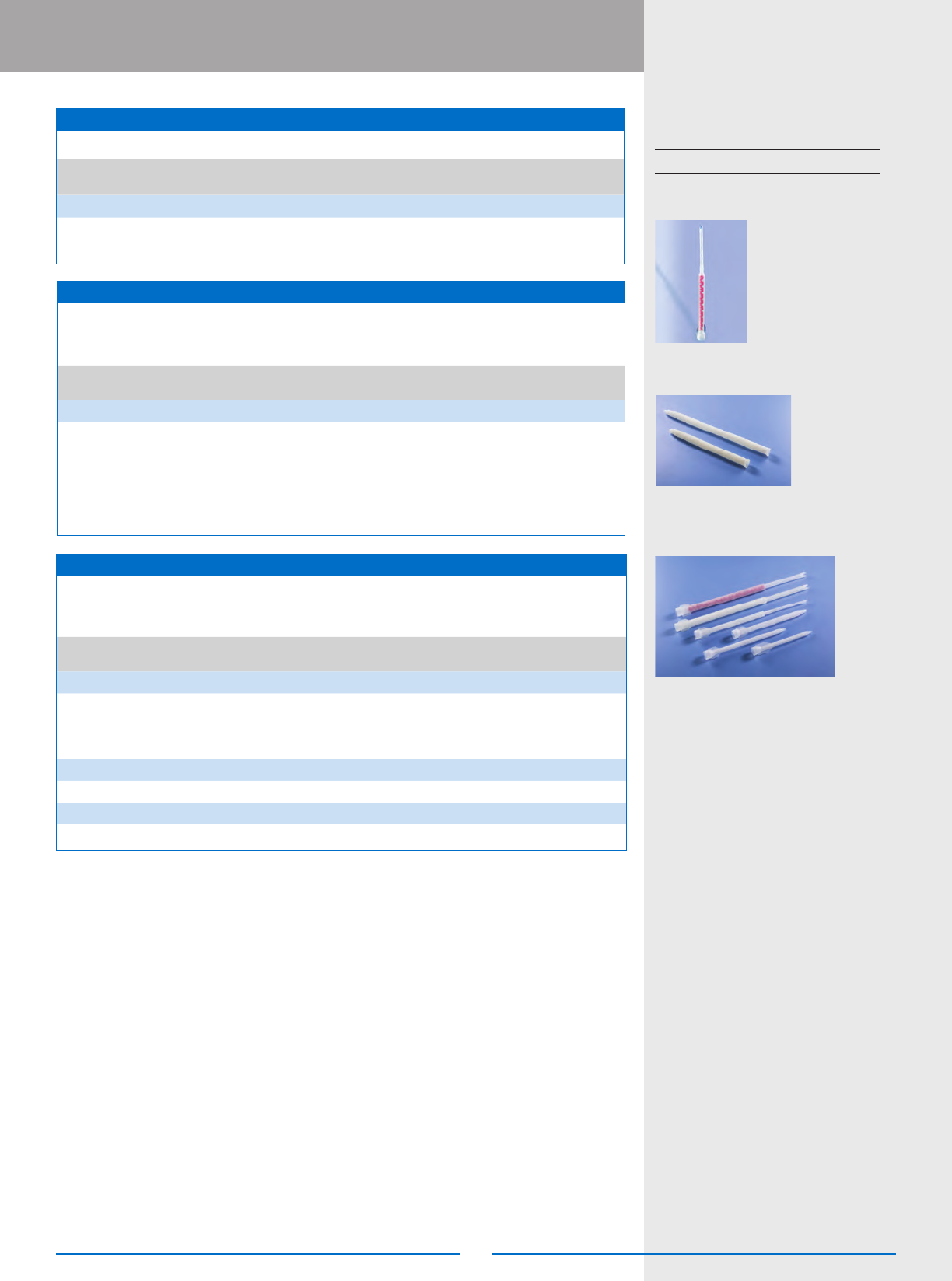

Disposable Mixers

SERIES 161N HIGH-FLOW INTEGRAL NUT MIXER (SPIRAL)

P art #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet

Housing

Outlet

Integral

Nut

Element /

Housing

Element Diameter 0.630 / 16.00 (in/mm)

7703903 20 17.26 / 43.84 Integral Nut Full Bore 7/8-9 Acetal / PP

7703927 20 17.26 / 43.84 Integral Nut Full Bore 7/8-14 Acetal / PP

This mixer is similar to the Series 260, but is constructed of a different material (element is acetal and housing is PP).

SERIES 162A HIGH-FLOW BELL MIXERS (SPIRAL)

Part #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet

Housing

Outlet

Element /

Housing

Element Diameter 0.784 / 19.9 (in/mm)

7701057 16 12.5 / 31.7 Large Bell ProTip Acetal / Nylon

7701059 23 17.0 / 43.2 Large Bell ProTip Acetal / Nylon

7701063 32 24.5 / 62.2 Large Bell ProTip Acetal / Nylon

7701066 39 30.3 / 77.0 Large Bell ProTip Acetal / Nylon

7701067 48 36.4 / 92.5 Large Bell ProTip Acetal / Nylon

Intended for high-ow rate meter mix applications, this series contains our largest disposable bell mixers: 0.784" in diameter

with either 16, 23, 32, 39, 48, or 64 elements. The rugged nylon housing has an oversized bell inlet. The downstream outlet

is designed with a 1/2" NPS male thread to attach extensions or other types of accessories.

For use with:

u-TAH Universal Cartridges

380mL Coaxial Cartridges

200−1500mL Side x Side Cartridges

SERIES 260 MIXERS (SPIRAL)

P art #

# Mixing

Elements

Housing

Length (in/cm)

Housing

Inlet

Housing

Outlet

Retained

Volume (ml)

Element /

Housing

Element Diameter 0.502 / 12.8 (in/mm)

7701749 12 6.7 / 17.02 Bell Stepped 15 PP / PP

7701770 24 11.7 / 29.72 Bell Stepped 25 PP / PP

7701759 18 14.1 / 35.8 Bell Barb Ext 24 PP / PP

Element Diameter 0.502 / 12.8 (in/mm)

7701782 18 9.6 / 24.4 Integral Nut Stepped 19 Acetal / PP

Element Diameter 0.789 / 20.0 (in/mm)

7701804 16 12.9 / 32.7 Bell Full Bore 71 Acetal / PP

Series 260 Spiral Mixers are available in Standard Bell and Integral Nut inlet connections. Integral Nut eliminates the need for a

separate retaining nut. Options are the Series 260 Spiral Bell Mixer, Series 260 Spiral Barbed Extension Mixer, and Series 260N

Spiral Integral Nut Mixer (7/8 - 9).

134

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Inline Mixers

SERIES 140 & 145 PLASTIC MIXERS

Part #

# Mixing

Elements

Housing Ends

(mnpt)

Housing

Length (in/cm)

Pressure

Limit

Element /

Housing

Element Diameter 0.125 / 3.18 (in/mm)

7700634 30 Plain 3.50 / 8.89 580 / 40 Acetal* / Nylon

Element Diameter 0.370 / 9.40 (in/mm)

7700713 24 1/4" 11.50 / 29.21 460 / 32 Acetal* / Nylon**

7700715 30 1/4" 13.50 / 34.29 460 / 32 Acetal* / Nylon**

Element Diameter 0.497 / 12.62 (in/mm)

7700738 18 3/8" 11.10 / 28.19 350 / 24 Acetal* / Nylon**

7700741 30 3/8" 16.00 / 40.64 350 / 24 Acetal* / Nylon**

Element Diameter 0.630 / 16.00 (in/mm)

7700755 20 1/2” 14.40 / 36.58 300 / 21 Acetal* / Nylon**

7700757 30 1/2” 19.70 / 50.04 300 / 21 Acetal* / Nylon**

Element Diameter 0.784 / 19.91 (in/mm)

7700770 16 3/4” 15.10 / 38.35 240 / 17 Acetal* / Nylon**

7700773 24 3/4” 20.40 / 51.82 240 / 17 Acetal* / Nylon**

7700776 32 3/4” 25.60 / 65.02 240 / 17 Acetal* / Nylon**

This all-plastic assembly is ideal for short pot life adhesives. Its low cost allows disposal of the mixer instead of purging

or baking. The housing is translucent, so the operator can inspect the condition of the mixer. With the interior mixing

elements molded of acetal, it has the toughness and chemical resistance to be inert to common solvents. Maximum

service temperature is 250° F (121° C).

Pressure limit based on psi @300° F / bar @150° C

*Elements are non-removable

**Housing also available in nylon with brass threaded ends

Nordson EFD offers a wide range of reusable mixers with either metal or plastic elements.

Inline mixers typically feature pipe threads on both ends to simplify connection to

material lines.

SERIES 120 PLASTIC SPIRAL MIXER ELEMENTS

Part #

# Mixing

Elements

Element Diameter

(in/mm)

Element Length

(in/cm)

Element

7700465 12 0.093 / 2.36 1.16 / 2.95 Acetal

7700166 7 0.212 / 5.38 1.48 / 3.76 Acetal

7700478 21 0.212 / 5.38 4.45 / 11.30 Acetal

7700481 16 0.251 / 6.38 3.96 / 10.06 Acetal

7700489 24 0.248 / 6.30 5.94 / 15.09 Acetal

7700500 12 0.370 / 9.40 3.90 / 9.91 Acetal

7700509 24 0.370 / 9.40 7.83 / 19.89 Acetal

7700515 12 0.497 / 12.62 5.00 / 12.70 Acetal

7700523 10 0.630 / 16.00 5.42 / 13.77 Acetal

7700526 8 0.790 / 20.07 5.42 / 13.77 Acetal

7700528 4 1.025 / 26.04 5.90 / 14.99 Acetal

The Series 120 plastic spiral elements have an “apple core” cross section. Elements are

injection-molded in one operation ensuring excellent quality control and low unit cost.

Benets include long life and great ow rate, plus element ushes clean with less solvent.

135

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Inline Mixers

SERIES 100 INLINE MIXERS

Part #

# Mixing

Elements

Housing Ends

(mnpt)

Housing

Length (in/cm)

Pressure

Limit

Element / Housing

Element Diameter 0.267 / 6.78 (in/mm)

7700364 12 1/8" 5.38 / 13.67 8750 / 600 316 stainless steel* / 304 stainless steel

Element Diameter 0.363 / 9.22 (in/mm)

7700366 6 1/4" 3.75 / 9.53 8500 / 585 316 stainless steel* / 304 stainless steel

7700367 12 1/4" 7.00 / 17.78 8500 / 585 316 stainless steel* / 304 stainless steel

Element Diameter 0.494 / 12.55 (in/mm)

7700370 12 3/8" 9.50 / 24.13 7250 / 500 316 stainless steel* / 304 stainless steel

Element Diameter 0.623 / 15.83 (in/mm)

7700373 12 1/2" 11.00 / 27.94 7250 / 500 316 stainless steel* / 304 stainless steel

Element Diameter 0.779 / 19.79 (in/mm)

7700377 12 3/4" 14.75 / 37.47 6000 / 415 316 stainless steel* / 304 stainless steel

Element Diameter 1.032 / 26.21 (in/mm)

7700384 12 1" 18.50 / 46.99 4500 / 310 316 stainless steel* / 304 stainless steel

Element Diameter 1.580 / 40.13 (in/mm)

7700391 6 1-1/2" 14.00 / 35.56 3000 / 207 316 stainless steel* / 304 stainless steel

Element Diameter 2.035 / 51.69 (in/mm)

7700395 6 2" 17.50 / 44.45 2500 / 170 316 stainless steel* / 304 stainless steel

Rugged and reliable, the Series 100 Mixers are all stainless steel and feature a modular design so you can remove the

elements for easy cleaning. Two or more mixers can be coupled together using a pipe connector. Streamlined contour of the

elements ensures the mixer ushes clean with less solvent. Heavy-walled tubing resists warpage during furnace cleaning

(maximum furnace temperature should not exceed 1250° F / 676° C) and increases the life of the mixer.

Pressure limit based on psi @300° F / bar @150° C

*Elements are removable.

Contact EFD for replacement part recommendations.

PU FOAM (FFR) MIXERS

Part #

# Mixing

Elements

Flow Rate

(PPM)

Housing

Length (in/cm)

Element / Housing

Element Diameter 0.50 / 12.70 (in/mm)

7701023 24 15 13.2 / 33.53 Acetal / PP

Element Diameter 0.64 / 16.23 (in/mm)

7700679 10 30 40.0 / 101.60 Acetal / Nylon

7700682 20 30 24.0 / 60.96 Acetal / Nylon

7701712 10 30 15.0 / 38.10 PP / Nylon

Element Diameter 0.79 / 20.07 (in/mm)

7700688 12 60 25.0 / 63.50 Acetal / Nylon

7700690 16 60 28.0 / 71.12 Acetal / Nylon

7700692 16 60 40.0 / 101.60 Acetal / Nylon

Foam Froth Remover (FFR) mixers are intended for urethane foam applications. The extended tube serves two purposes:

(1) for reach, and (2) to reduce the spiraling of material after the elements to allow for a more accurate dispense.

For use with:

Meter Mix Valves
