135 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Inline Mixers SERIES 100 INLINE MIXERS Part # # Mixing Elements Housing Ends (mnpt) Housing Length (…
134
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Inline Mixers

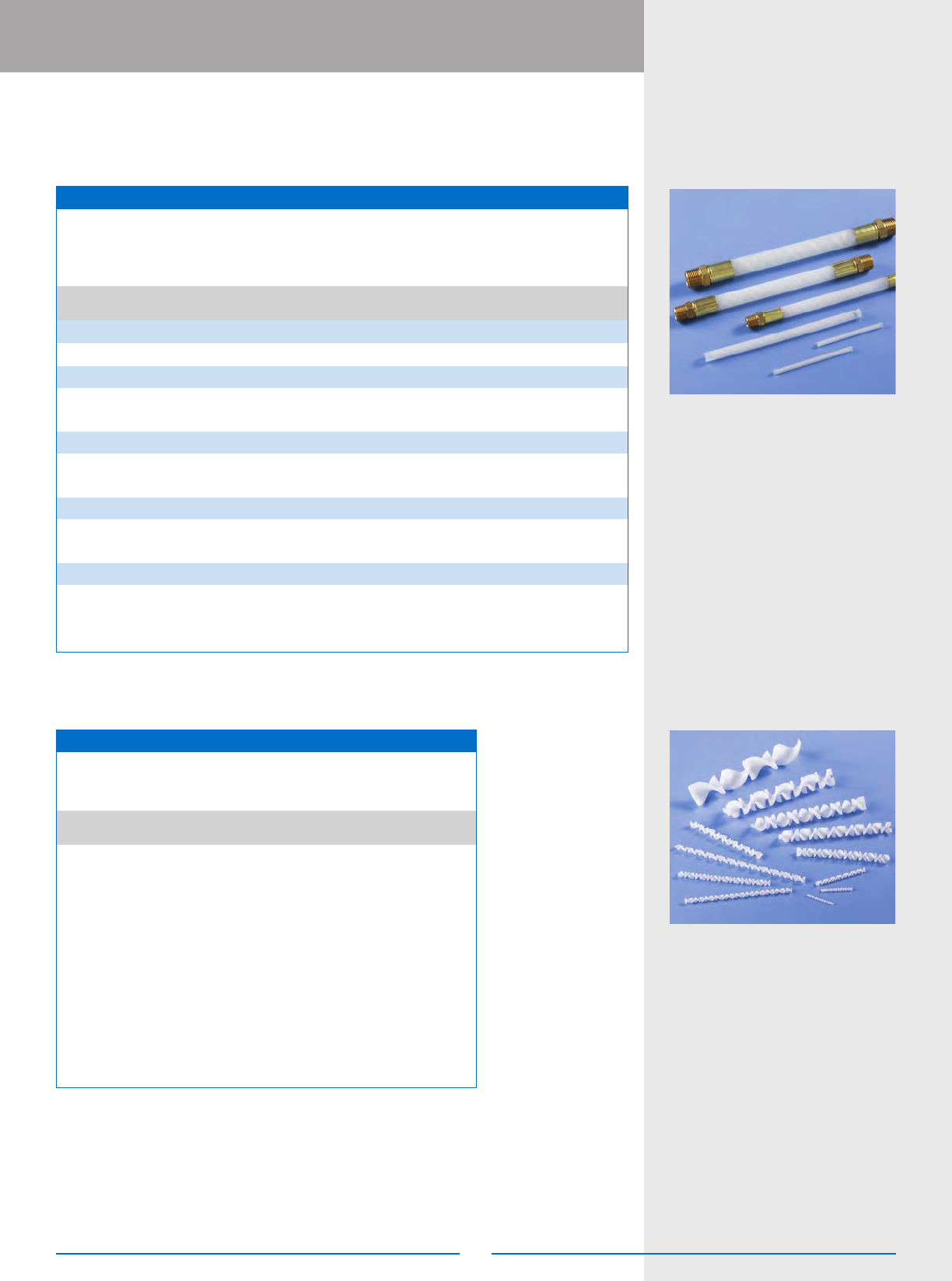

SERIES 140 & 145 PLASTIC MIXERS
Part #
# Mixing
Elements
Housing Ends
(mnpt)
Housing
Length (in/cm)
Pressure
Limit
+
Element /
Housing
Element Diameter 0.125 / 3.18 (in/mm)
7700634 30 Plain 3.50 / 8.89 580 / 40 Acetal* / Nylon
Element Diameter 0.370 / 9.40 (in/mm)
7700713 24 1/4" 11.50 / 29.21 460 / 32 Acetal* / Nylon**
7700715 30 1/4" 13.50 / 34.29 460 / 32 Acetal* / Nylon**
Element Diameter 0.497 / 12.62 (in/mm)
7700738 18 3/8" 11.10 / 28.19 350 / 24 Acetal* / Nylon**
7700741 30 3/8" 16.00 / 40.64 350 / 24 Acetal* / Nylon**
Element Diameter 0.630 / 16.00 (in/mm)
7700755 20 1/2” 14.40 / 36.58 300 / 21 Acetal* / Nylon**
7700757 30 1/2” 19.70 / 50.04 300 / 21 Acetal* / Nylon**
Element Diameter 0.784 / 19.91 (in/mm)
7700770 16 3/4” 15.10 / 38.35 240 / 17 Acetal* / Nylon**
7700773 24 3/4” 20.40 / 51.82 240 / 17 Acetal* / Nylon**
7700776 32 3/4” 25.60 / 65.02 240 / 17 Acetal* / Nylon**
This all-plastic assembly is ideal for short pot life adhesives. Its low cost allows disposal of the mixer instead of purging
or baking. The housing is translucent, so the operator can inspect the condition of the mixer. With the interior mixing
elements molded of acetal, it has the toughness and chemical resistance to be inert to common solvents. Maximum
service temperature is 250° F (121° C).
+
Pressure limit based on psi @300° F / bar @150° C
*Elements are non-removable
**Housing also available in nylon with brass threaded ends
Nordson EFD offers a wide range of reusable mixers with either metal or plastic elements.
Inline mixers typically feature pipe threads on both ends to simplify connection to
material lines.
SERIES 120 PLASTIC SPIRAL MIXER ELEMENTS
Part #
# Mixing
Elements
Element Diameter
(in/mm)
Element Length
(in/cm)
Element
7700465 12 0.093 / 2.36 1.16 / 2.95 Acetal
7700166 7 0.212 / 5.38 1.48 / 3.76 Acetal
7700478 21 0.212 / 5.38 4.45 / 11.30 Acetal
7700481 16 0.251 / 6.38 3.96 / 10.06 Acetal
7700489 24 0.248 / 6.30 5.94 / 15.09 Acetal
7700500 12 0.370 / 9.40 3.90 / 9.91 Acetal
7700509 24 0.370 / 9.40 7.83 / 19.89 Acetal
7700515 12 0.497 / 12.62 5.00 / 12.70 Acetal
7700523 10 0.630 / 16.00 5.42 / 13.77 Acetal
7700526 8 0.790 / 20.07 5.42 / 13.77 Acetal
7700528 4 1.025 / 26.04 5.90 / 14.99 Acetal
The Series 120 plastic spiral elements have an “apple core” cross section. Elements are
injection-molded in one operation ensuring excellent quality control and low unit cost.
Benets include long life and great ow rate, plus element ushes clean with less solvent.
135
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Inline Mixers

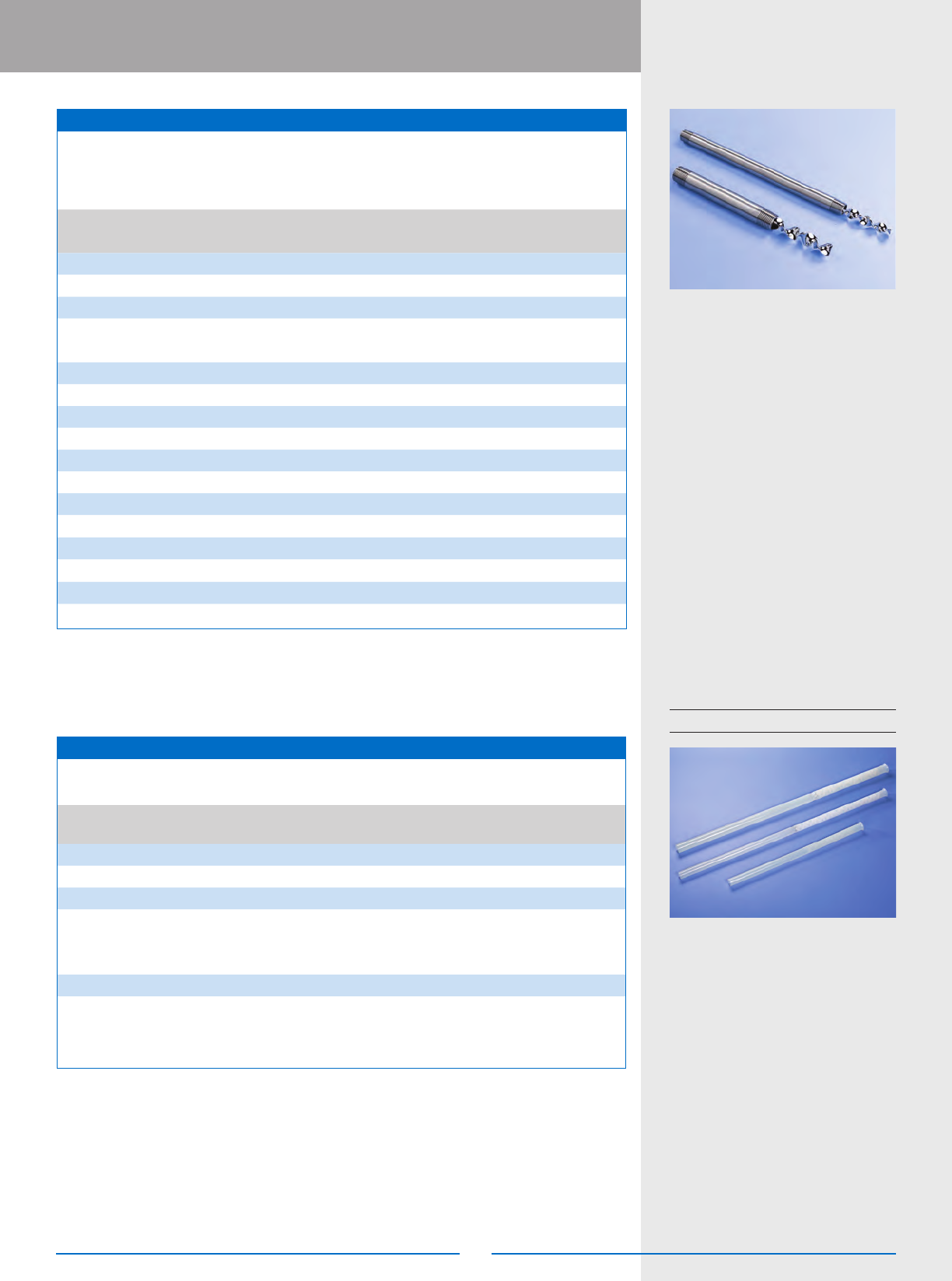

SERIES 100 INLINE MIXERS
Part #
# Mixing
Elements
Housing Ends
(mnpt)
Housing
Length (in/cm)
Pressure
Limit
+
Element / Housing
Element Diameter 0.267 / 6.78 (in/mm)
7700364 12 1/8" 5.38 / 13.67 8750 / 600 316 stainless steel* / 304 stainless steel
Element Diameter 0.363 / 9.22 (in/mm)
7700366 6 1/4" 3.75 / 9.53 8500 / 585 316 stainless steel* / 304 stainless steel
7700367 12 1/4" 7.00 / 17.78 8500 / 585 316 stainless steel* / 304 stainless steel
Element Diameter 0.494 / 12.55 (in/mm)
7700370 12 3/8" 9.50 / 24.13 7250 / 500 316 stainless steel* / 304 stainless steel
Element Diameter 0.623 / 15.83 (in/mm)
7700373 12 1/2" 11.00 / 27.94 7250 / 500 316 stainless steel* / 304 stainless steel
Element Diameter 0.779 / 19.79 (in/mm)
7700377 12 3/4" 14.75 / 37.47 6000 / 415 316 stainless steel* / 304 stainless steel
Element Diameter 1.032 / 26.21 (in/mm)
7700384 12 1" 18.50 / 46.99 4500 / 310 316 stainless steel* / 304 stainless steel
Element Diameter 1.580 / 40.13 (in/mm)
7700391 6 1-1/2" 14.00 / 35.56 3000 / 207 316 stainless steel* / 304 stainless steel
Element Diameter 2.035 / 51.69 (in/mm)
7700395 6 2" 17.50 / 44.45 2500 / 170 316 stainless steel* / 304 stainless steel
Rugged and reliable, the Series 100 Mixers are all stainless steel and feature a modular design so you can remove the
elements for easy cleaning. Two or more mixers can be coupled together using a pipe connector. Streamlined contour of the
elements ensures the mixer ushes clean with less solvent. Heavy-walled tubing resists warpage during furnace cleaning
(maximum furnace temperature should not exceed 1250° F / 676° C) and increases the life of the mixer.
+
Pressure limit based on psi @300° F / bar @150° C
*Elements are removable.
Contact EFD for replacement part recommendations.
PU FOAM (FFR) MIXERS
Part #
# Mixing
Elements
Flow Rate
(PPM)
Housing
Length (in/cm)
Element / Housing
Element Diameter 0.50 / 12.70 (in/mm)
7701023 24 15 13.2 / 33.53 Acetal / PP
Element Diameter 0.64 / 16.23 (in/mm)
7700679 10 30 40.0 / 101.60 Acetal / Nylon
7700682 20 30 24.0 / 60.96 Acetal / Nylon
7701712 10 30 15.0 / 38.10 PP / Nylon
Element Diameter 0.79 / 20.07 (in/mm)
7700688 12 60 25.0 / 63.50 Acetal / Nylon
7700690 16 60 28.0 / 71.12 Acetal / Nylon
7700692 16 60 40.0 / 101.60 Acetal / Nylon
Foam Froth Remover (FFR) mixers are intended for urethane foam applications. The extended tube serves two purposes:
(1) for reach, and (2) to reduce the spiraling of material after the elements to allow for a more accurate dispense.
For use with:
Meter Mix Valves
136
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

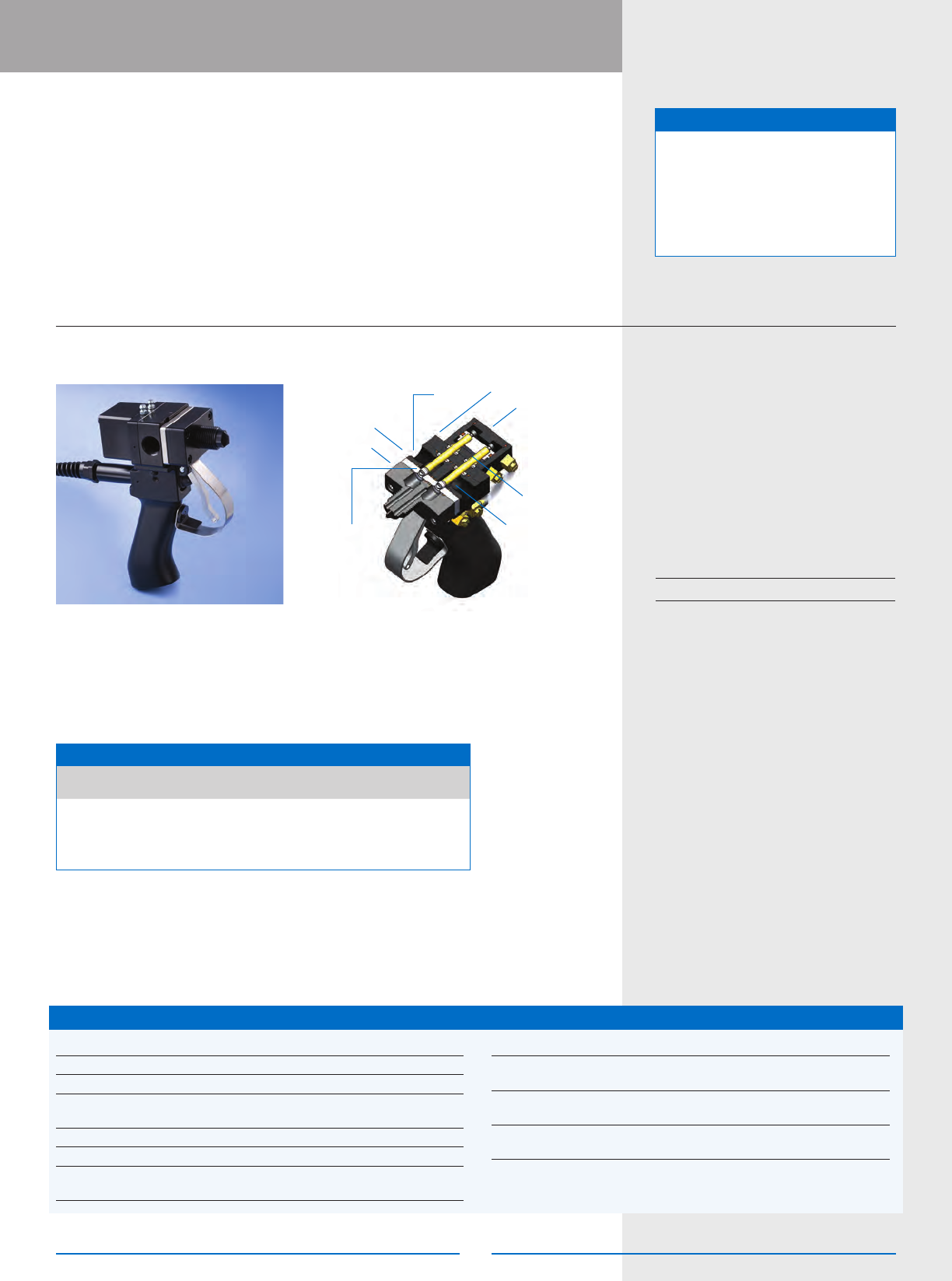

Meter Mix Valves
Recommended Mixer:
Series 160 Mixer
Series 400 Autovalve
Manifold
Seat Plate
Valve Body
Tie Plate
Lip Seal
O-ring
Front Seal
Air Cylinder Body
Nordson EFD provides a complete line of modular metal valves that can be easily
disassembled and cleaned after mixing. Maintaining valves that handle reactive
resins can be time-consuming and expensive — a plugged valve translates to lost
production, and even a partially plugged mixer results in poor quality.
With meter mix and dispense systems, the pneumatic Series 400 Autovalve is a
durable and reliable valve. The A and B shut-off pistons have PTFE seals allowing high
ow with minimal maintenance as these seals can be adjusted without disassembly of
the valve body. The 9/16-18 uid inlet ports of the Series 400 Autovalve allows ow
rates of 3-4 gallons per minute, depending on pump capability and material viscosity.
7701895 400 Autovalve
Aluminum Valve, Single Air Cylinder, TPV Seals
Order handle separately; see Autovalve Accessories
for details.
MANIFOLDS FOR SERIES 400 AUTOVALVES
Ratio
Part #
(Manifold)
Part # (Manifold
with solvent port)
Material Flow
1:1 7701933 7701935 Aluminum Low Flow
1:1 7701942 — Aluminum High Flow
Wide 7701946 — Aluminum High Flow
• Valve, manifold, and handle are ordered
individually
• For high back pressure conditions (i.e. over
1000 psi/69 bar) order a double air cylinder
• Seal Designations: T=PTFE,
P=Polyurethane, V=Viton, G=Polytuff
ORDERING GUIDE
Features and Benets
• Eliminate solvent ushing
• Less adhesive waste
• Cleans up easily for increased productivity
Specications (Models 400 / 450)
Valve
Size: 83.8l x 63.5w x 58.4h mm (3.3l x 2.5w x 2.3h")
Body: 6061-T6 aluminum or 303 stainless steel
Manifold
Size: 48.3l x 63.5w x 38.1h mm (1.9l x 2.5w x 1.5h")
Material: 6061-T6 aluminum or 303 stainless steel
Outlet thread 7/8"-14 (for standard bell mixers)
size options: 1 5/16"-12 (for oversized bell mixers)
Valve System
Weight: Aluminum valve and manifold: 1.6 lb (0.7 kg)
Stainless steel valve and manifold: 2.5 lb (1.1 kg)
Operating parameters: Min. operating pressure: 5.5 bar (80 psi)
Max. uid pressure: 240 bar (3500 psi)
Electric handle 24V
mount switch:
Options:
O-ring options: Viton, PTFE, Ethylene-Propylene
(E-P)
Lip seal options: Viton, Polyurethane (PU), PTFE,
Polytuff, Ethylene-Propylene (E-P)
Repair kits containing a complete set of lip seals
and O-rings are available.
