143
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Useful Resources
Bead Volumes
Dot Volumes
Volume
1 fluid ounce = 29.57 cubic centimeters
1 gallon = 3785 cubic centimeters
1 gallon = 3.785 liters
1 gallon = 128 fluid ounces
1 gallon = 4 quarts
1 gallon = 8 pints
1 gallon = 16 cups
1 gallon = 231 cubic inches
1 gallon = 0.134 cubic feet
1 liter = 0.264 gallons
1 liter = 1.06 quarts
1 liter = 1000 milliliters
1 cubic foot = 1728 cubic inches
1 cubic foot = 7.48 gallons
1 cubic inch = 16.387 cubic centimeters
1 cubic centimeter = 1 milliliter
1 microliter = 0.001 cc’s
1 microliter = 1000 nanoliters
1 nanoliter = 0.000001 cc’s
1 nanoliter = 1000 picoliters
Weight
1 kilogram = 1000 grams
1 kilogram = 2.2 pounds
1 pound = 16 ounces
1 pound = 453.6 grams
1 pound = 7000 grains
1 ounce = 28.35 grams
Length
1 micron = .0000394 inches
1 micron = 0.001 millimeters
1 centimeter = 10 millimeters
1 centimeter = 10,000 microns
1 inch = 2.54 centimeters
1 inch = 25.4 millimeters
1 inch = 25,400 microns
1 foot = 30.48 centimeters
1 yard = 91.44 centimeters
1 mile = 5280 feet
1 mile = 1.6 kilometers
Pressure
1 psi = 0.069 bar
1 psi = 0.070 kgf/cm
2
1 psi = 6894.8 Pa
1 psi = 27.680 in H
2
0@4° C

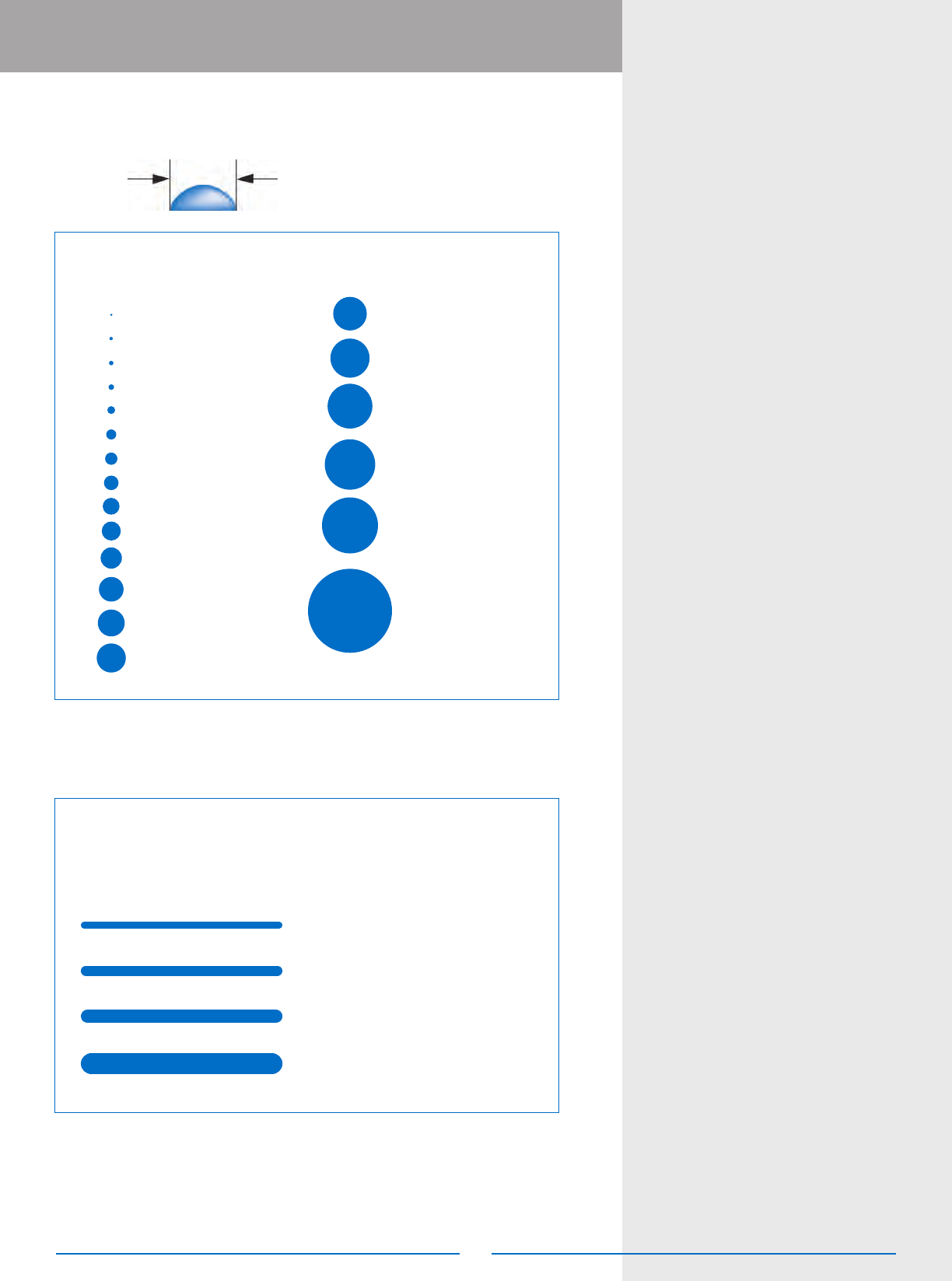

Volumes and
Conversions
Volume of Beads
Bead diameter Volume per linear inch
mm inches cubic inch cc’s
1.6 0.06 0.0031 0.050
2.4 0.09 0.0069 0.113
3.2 0.12 0.0123 0.201
4.8 0.19 0.0276 0.453
Volume of Dots
dot mm inches V cc
0.5 0.02 0.00003
0.8 0.03 0.0001
1.0 0.04 0.0003
1.3 0.05 0.0005
1.8 0.07 0.001
2.3 0.09 0.003
2.8 0.11 0.006
3.3 0.13 0.009
3.8 0.15 0.014
4.3 0.17 0.021
4.8 0.19 0.029
5.6 0.22 0.046
6.1 0.24 0.059
6.6 0.26 0.075
Volume of Dots
dot mm inches V cc
7.6 0.30 0.116
8.9 0.35 0.184
10.2 0.40 0.275
11.4 0.45 0.391
12.7 0.50 0.536
19.1 0.75 1.810
Volume = D
3
x 0.5236 ÷ 2*
(*1/2 the volume of a sphere)
144
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Useful Resources
Conversion Factors
Dispensing conditions are driven by many factors. When selecting the correct
system for your application, the material’s properties, including viscosity and deposit
size, are important considerations.
Viscosity is the measurement of a uid’s internal resistance to ow. This is
usually designated in units of centipoise or poise, but can be expressed in other
measurements as well. Refer to the chart below.
100 Centipoise = 1 Poise
1 Centipoise = 1 mPa
•
s (Millipascal Second)
1 Poise = 0.1 Pa
•
s (Pascal Second)
Centipoise = Centistoke x Density
APPROXIMATE VISCOSITIES OF COMMON MATERIALS
(at room temperature — 21° C (70° F)
Material Viscosity in Centipoise
Water 1 — 5
Kerosene 10
Anti-freeze or Ethylene Glycol 15
Motor Oil SAE10 50 — 100
Motor Oil SAE30 or Maple Syrup 150 — 200
Motor Oil SAE40 or Castor Oil 250 — 500
Motor Oil SAE60 or Glycerin 1,000 — 2,000
Corn Syrup or Honey 2,000 — 3,000
Molasses 5,000 — 10,000
Chocolate Syrup 10,000 — 25,000
Ketchup or Mustard 50,000 — 70,000
Tomato Paste or Peanut Butter 150,000 — 250,000
Shortening or Lard 1,000,000 — 2,000,000
Caulking Compound 5,000,000 — 10,000,000
Window Putty
100,000,000
• RTV/Sealants
• Solder Pastes
• Solvents
• UV-Cure & Light-Cure
• White Glues
Typical Assembly Materials Dispensed with EFD Systems
• Activators
• Anaerobics
• Coatings
• Cyanoacrylates
• Electrolytes
• Epoxies
• Fluxes
• Gels
• Greases
• Lubricants
• Oils
• Marking Inks
Fluid Viscosities
“We ordered supplies yesterday and 17
hours later, they arrived! 2 years and never
a problem of any kind. Thanks.”
– Progressive Mfg. Co.
Provide best-in-class uid
management solutions, built
on EFD’s continued investment
in applications knowledge,
innovative products, operational
excellence, superior customer
service, and a lasting
commitment to quality.
Be the global leader
in providing our
customers premium
uid management
solutions for low-
volume precision
dispensing markets.
Contents
EFD Mission
and Vision
Since 1963, Nordson EFD dispensing
systems have helped thousands of
companies make precise deposits
of adhesives, lubricants and other
assembly uids.
Our business is to match your
specic application needs with our
wide range of dispensing tools to
maximize your total cost savings.
From benchtop dispensers to high-
performance automated dispensing
systems, EFD devices are used
by manufacturers in hundreds of
industries throughout the world.
We invite you to learn more, and look
forward to working with you.
Dispensers
Components
Robots
Solder
Sistemas de Dosicación 2K
Resources
Valves
Fluid Dispenser Selection Guide ..................................................... 3
UltimusPlus High Precision ............................................................. 4
Ultimus High Precision ............................................................... 5–6
Performus X Series ........................................................................ 7
Dispenser Accessories ................................................................... 8
Portable Dispensers ....................................................................... 9
Productivity Tools .................................................................. 10–12
Filling Systems ............................................................................. 13
Syringe Barrel Systems .......................................................... 15–21
Cartridge Systems ................................................................. 22–26
Dispensing Tips ..................................................................... 27–30
Valve Selection Guide / Valve Accessories
................................. 31–41
Precision Jetting Systems
.......................................................... 42–50
PICO Jetting .......................................................................... 43–49
Liquidyn Jetting ...................................................................... 50–53
Dispense Valve Systems
............................................................ 54–65
Diaphragm ............................................................................ 53–56
Piston ................................................................................... 57–58
Needle .................................................................................. 59–62
High Pressure ............................................................................. 63
Auger .................................................................................... 64–65
Radial Spinner System ................................................................. 66
ValveMate Dispense Valve Controllers .................................... 67–73
Spray Valve Systems
................................................................. 74–86
General Purpose / Mini Spray Valves ...................................... 75–78
Radial Spray Valve ....................................................................... 78
MicroCoat Lubrication System ..................................................... 80
ValveMate Spray Valve Controllers ......................................... 79–86
Volumetric Dispensing Systems
................................................. 87–94
797PCP Series Pumps .......................................................... 88–89
PCP Controllers ..................................................................... 90–94
Tanks, Reservoirs, and Pumps
.................................................. 95–97
Automated Dispensing Systems
.............................................. 98–111
Robot Selection Guide ................................................................. 99
Automated Dispensing Accessories ................................... 100–111
Solder Solutions / Thermal Compound
.................................. 112–116
2K Cartridges / Pistons
.......................................................... 118–122
Do-It-Yourself (DIY) Dual Syringes
.......................................... 123–124
2K Dispensers / HSS System
................................................ 125–127
Mixers
................................................................................... 128–135
Meter Mix Valves
................................................................... 136–139
2K Accessories
..................................................................... 140–141
Useful Resources
.................................................................. 142–144
