15 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Dispensing Components Optimum Syringe Barrels EFD produces the highest quality syringe barrels and pi…
14
Optimum Components
& Precision Dispense Tips
The Standard in Fluid Dispensing
What makes EFD’s Optimum
dispensing components
better than the rest? Engineered Fluid Dispensing
™
.
Each patented component has been designed as part
of a complete, integrated system that improves yields
and reduces costs by producing the most accurate,
repeatable uid deposits possible.
Our syringe barrels are made of a proprietary
polypropylene blend that delivers exceptional clarity
and dimensional stability. The unique internal design
enhances uid ow and minimizes turbulence and
shear during lling and dispensing.
Matching pistons are available in six styles to ensure
control for virtually any uid in any application. When
uid is dispensed, the close tolerance wiping action
eliminates waste and residue.
Syringe barrel adapters have a design that facilitates
installation/removal, and a positive safety locking action
that prevents accidental disengagement.
Free of ash, burrs, or other contaminants, EFD
dispensing tips are designed with engineered hub ats
for easy twist on, twist off, and SafetyLok threads to
ensure safe, positive attachment to the syringe barrel.

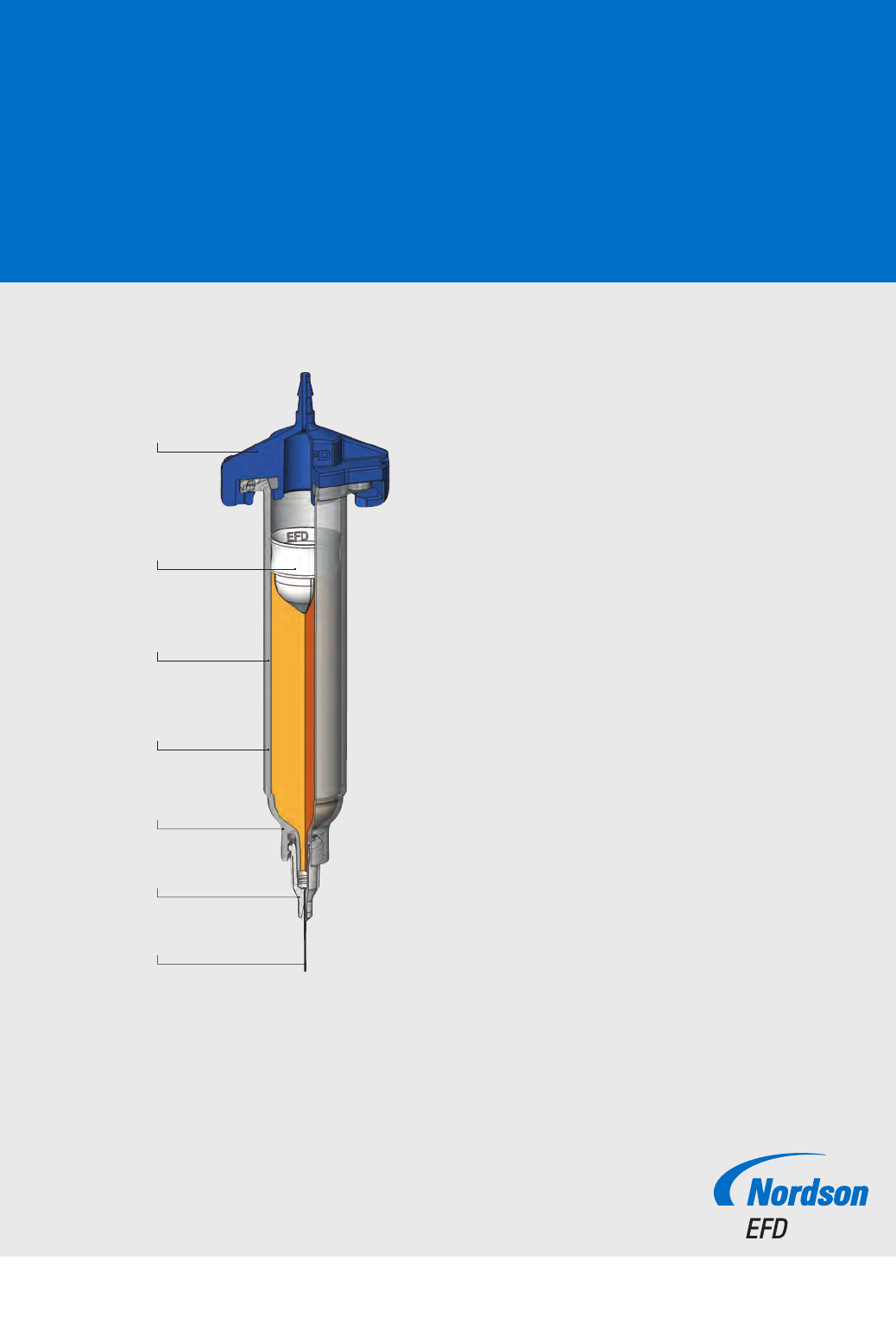

Precision-fit adapter for easy, safe
attachment
Channeled wiper piston eliminates
trapped air, waste, and dripping
Uniform barrel wall thickness
for safety
0º taper barrels for smooth
top-to-bottom piston travel
Threaded tip hubs for safe,
secure attachment
Consistent color coding and tip
diameters, regardless of style/length
Tips are free of burrs and flash that
could obstruct fluid flow
15
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Dispensing Components
Optimum Syringe
Barrels

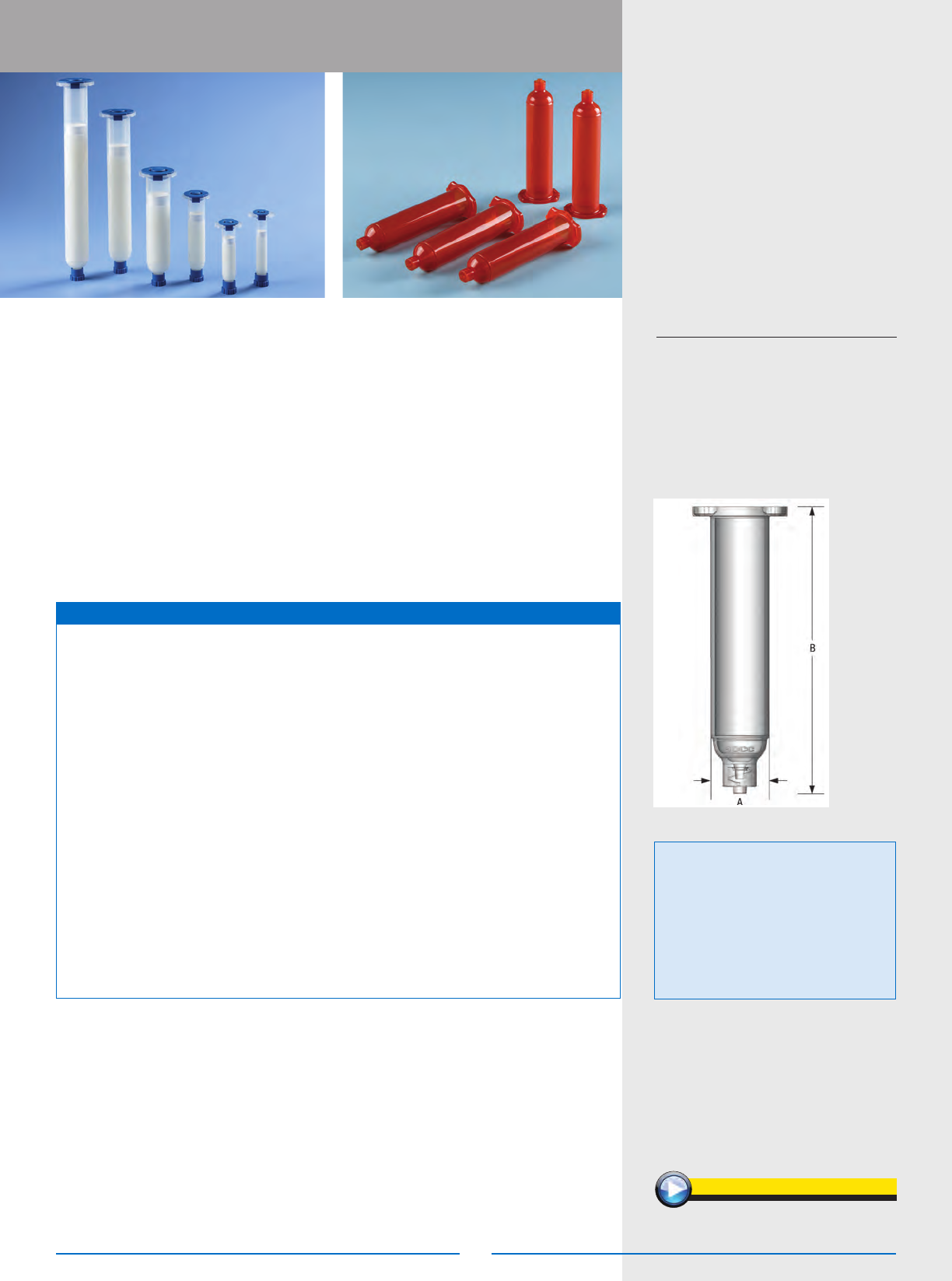

EFD produces the highest quality syringe barrels and pistons in the industry.
Syringe barrels and pistons are produced in our own silicone-free facilities, where
they are subjected to stringent quality control inspections throughout the entire
manufacturing process.
Features and Benets
• Precision t between syringe and piston ensures consistent uid deposits
• Wiper piston improves uid control, keeps uids from dripping and eliminates
waste by wiping the syringe wall clean
• Wide variety of styles and sizes
• Package labels include lot numbers for process control and traceability
BARREL DIMENSIONS
Size A B
3cc 11.1 mm (0.44") 73.0 mm (2.88")
5cc 14.3 mm (0.56") 68.3 mm (2.69")
10cc 19.1 mm (0.75") 88.9 mm (3.50")
30cc 25.4 mm (1.0") 115.9 mm (4.56")
55cc 25.4 mm (1.0") 173.0 mm (6.81")
70cc 25.4 mm (1.0’’) 213.1 mm (8.39")
Note: This data is typical and does not constitute a specication.
“One stop shopping for syringes, barrel
adapters, needles and tips along with
excellent reference materials and pictures
of actual applications to spark new ideas.”
– Infinera
www.nordsonefd.com/1kOptimum
SYRINGE BARRELS
Size
MOST FLUIDS
Clear Barrels
UV/Light Sensitive
Amber Barrels
UV/Light Block
Black Barrels
QTY
3cc 7366095 7366092 7366093 100
3cc 7012073 7012084 7012090 1000
5cc 7366101 7366098 7366099 100
5cc 7012095 7012102 7012108 1000
10cc 7366089 7366086 7366087 100
10cc 7012113 7012123 7012129 1000
30cc 7366060 7366057 7366058 50
30cc 7012135 7012144 7012148 1000
55cc 7366066 7366063 7366064 50
55cc 7012154 7012159 7012163 500
70cc 7366070 7366069 – 50
70cc 7364912 7365016 – 500
Each box contains syringes in dust-free packaging
Sets are available in clear for most uids; transparent amber for UV- and light-sensitive materials
(less than 12% visible light from 550 nm or less); and opaque black for complete light blockage.
16
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Dispensing Components
Optimum Syringe
Barrel Kits

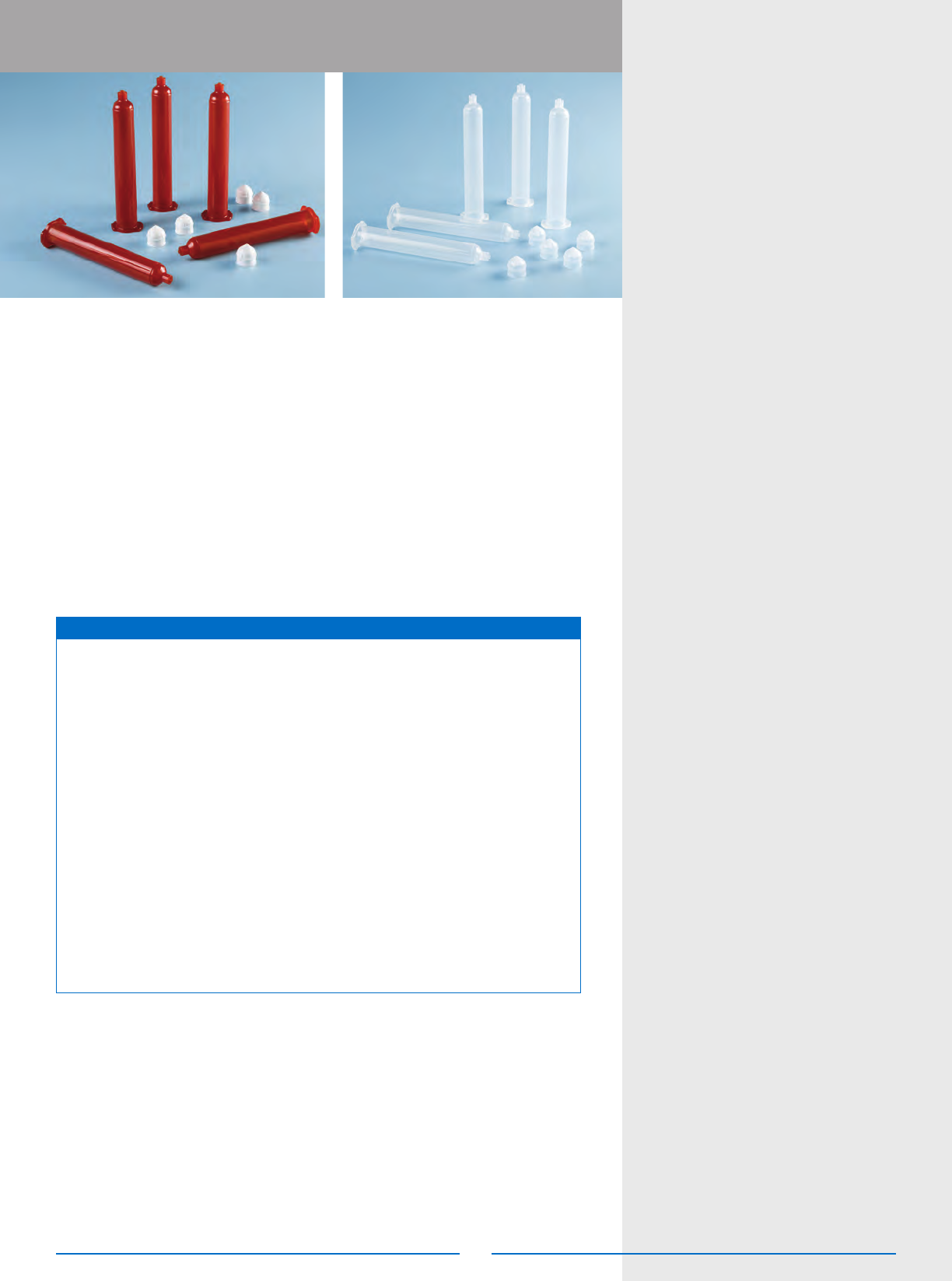

Nordson EFD syringe barrel kits provide the most convenient and reliable way to
package uids. Each kit contains 50, 500, or 1000 complete sets of syringes and
pistons or syringes, pistons, tip caps, and end caps. White SmoothFlow wiper
pistons and blue end and tip caps are standard.
These components come packaged in anti-static bags. Individual bags are
sealed with tamper-evident seals.
Features and Benets
• Simplify handling and control distribution to lling stations
• Reduce waste and loss of individual components — EFD kits are organized in
boxed sets
• Easily manage inventory and order placement
• Anti-static bags protect components from dust and other contaminants
• Easily track parts by lot numbers that are placed on each component bag
SYRINGE BARREL & PISTON KITS
Size
MOST FLUIDS
Clear Barrels
White Pistons
THIN FLUIDS
Clear Barrels
Red Pistons
UV/Light Sensitive
Amber Barrels
White Pistons
UV/Light Block
Black Barrels
White Pistons
QTY
3cc 7366044 7366043 7366041 7366042 100
3cc 7012081 7015793 7013603* 7013614* 1000
5cc 7366045 – – – 100
5cc 7012097* – 7013602* 7013615* 1000
10cc 7366040 – 7366039 – 100
10cc 7012115 7013989* 7013457* 7012131* 1000
30cc 7366054 7366053 7366051 7366052 50
30cc
7013227
7012137*
7013990* 7013598* 7012150* 1000
55cc 7366056 – 7366055 – 50
55cc 7012156 7361946* 7013456* 7012165* 500
Each box contains syringes and pistons in dust-free packaging.
Syringe barrels are available in clear for most uids; transparent amber for UV- and light-sensitive materials
(less than 12% visible light from 550 nm or less); and opaque black for complete light blockage.
*Includes pre-installed piston
