Optimum Cartridge Systems

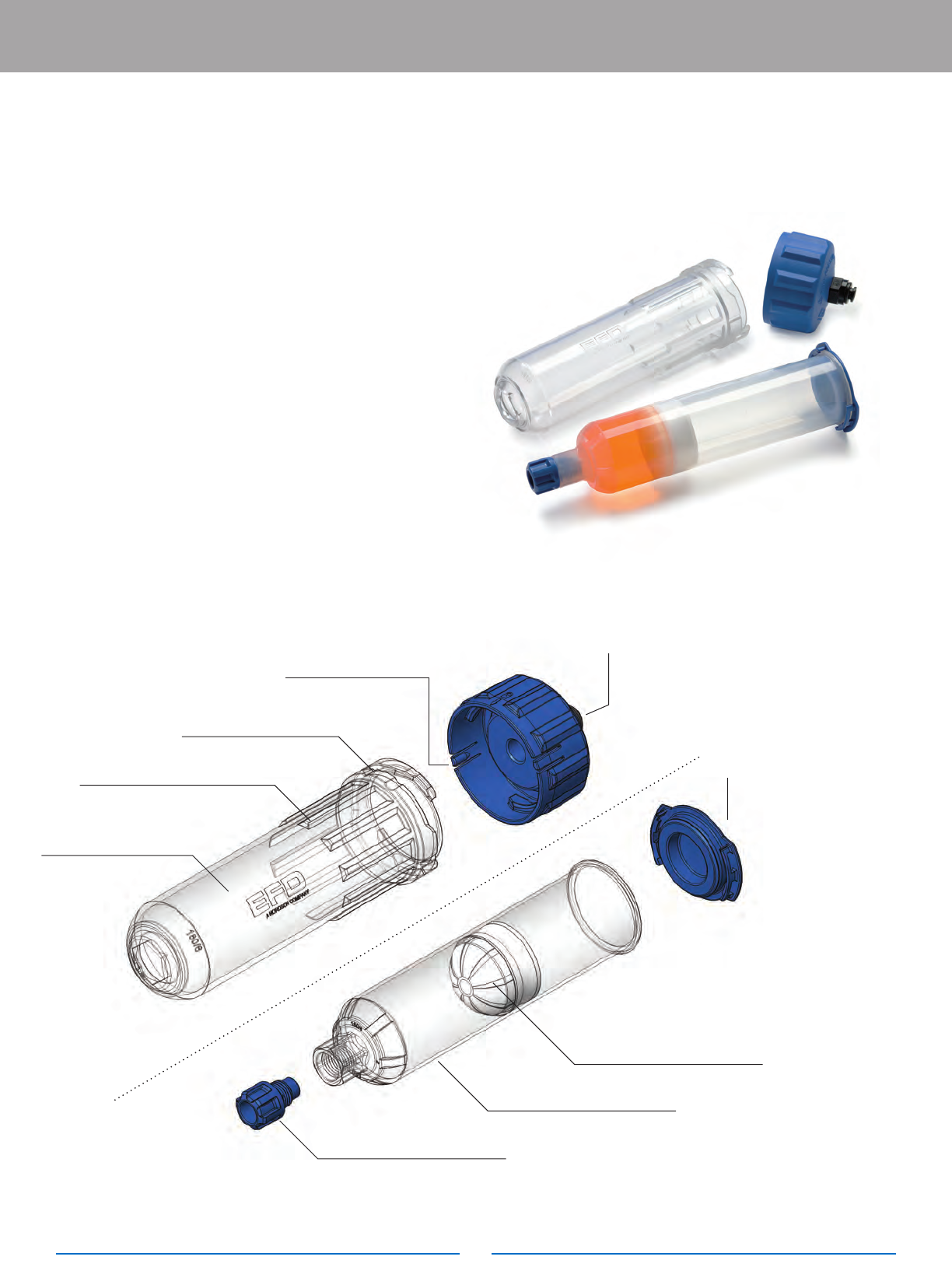

Push-in air line connector
End cap
Locking tabs
Detent for locking tab
in cap
Ergonomic grips for
cap installation
Clear retainer for easy
visual monitoring
Retainer
Cartridge
Self-venting outlet cap
0º taper cartridge
Piston channels help
dissipate air during lling
Optimum cartridges and retainers have been designed to function as a complete,
integrated system that improves yields and reduces costs in uid packaging and
dispensing processes.
Cartridge systems are designed for applications that require a reservoir larger than a
70cc syringe barrel. They are available in 2.5 oz, 6 oz, 12 oz, 20 oz, and 32 oz
capacities, and can be used to make timed or visual deposits.
Features and Benets
• Exceptional clarity to allow visual conrmation of uid levels
• High-impact strength and dimensional stability
• ZeroDraft
™
design ensures that internal diameter is
consistent from top to bottom
• Excellent chemical compatibility with a wide range of uids
• Available in clear, black, amber, and white
• White cartridges are molded from a proprietary blend and have
better frozen temperature resistance
23
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Optimum Cartridge Systems
Note: This data is typical and does not constitute a specication.

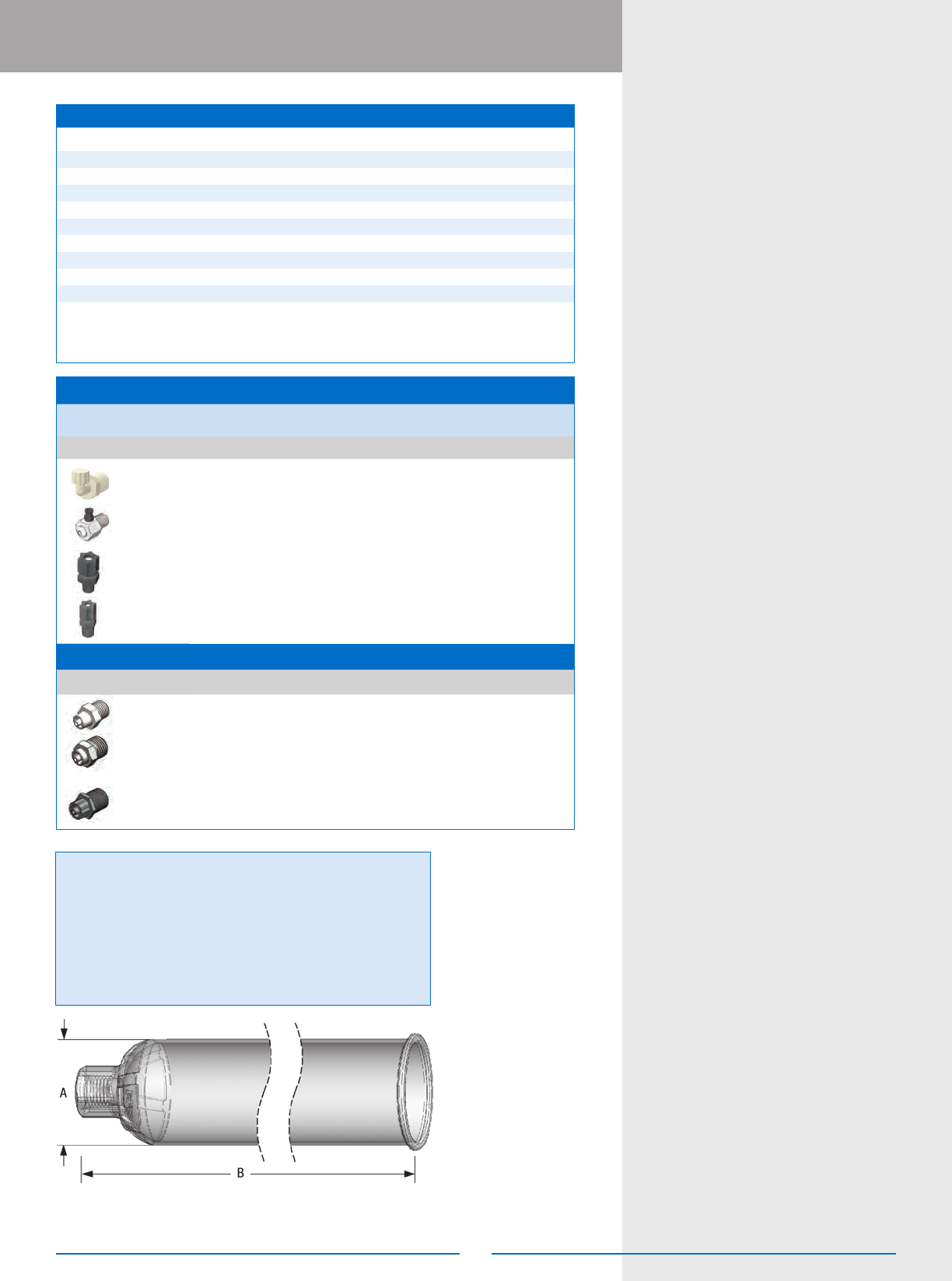

CARTRIDGE DIMENSIONS
Size A B
2.5 oz (75 ml) 43.2 mm (1.70") 98.8 mm (3.89")
6 oz (180 ml) 43.2 mm (1.70") 181.5 mm (7.15")
12 oz (360 ml) 43.2 mm (1.70") 314.3 mm (12.38")
20 oz (600 ml) 68.3 mm (2.69") 249.7 mm (9.83")
32 oz (960 ml) 68.3 mm (2.69") 346.4 mm (13.69")
CARTRIDGES
Size Clear White Amber Black QTY
2.5 oz (75 ml) 7659163 – 7659166 – 25
2.5 oz (75 ml) 7659164 – 7659167 – 250
6 oz (180 ml) 7012398 7361311 7012399 7012400 25
6 oz (180 ml) 7012401 7026679 7012402 7012403 250
12 oz (360 ml) 7012407 7029498 7012408 7012409 25
12 oz (360 ml) 7012410 7028389 7012411 7012412 250
20 oz (600 ml) 7012416 7028361 7012736 7013878 10
20 oz (600 ml) 7012417 7028362 7012737 7013879 100
32 oz (960 ml) 7014088 7028392 7014089 7014091 10
32 oz (960 ml) 7014092 7028393 7014093 7014095 100
Sets are available in clear for most uids; transparent amber for UV- and light-sensitive materials
(less than 12% visible light from 550 nm or less); and opaque black for complete light blockage.
CARTRIDGE FITTINGS
For both internal molded nozzle cartridges and external threaded cartridges.
For cartridge nozzles, see Precision Dispensing Tips.
Fitting Part # Material Description
7022420 Nylon
Barrel loader tting 90° 1/4 NPT male
Female luer lock to barrel elbow
7022415 Stainless Steel
Barrel loader tting 1/4 NPT male
Female luer lock
7017020 Black Polypropylene 1/4 NPT x 3/8 compression
7017014 Black Polypropylene 1/4 NPT x 1/4 compression
TIP ADAPTERS
Adapter Part # Material Description
7016941 Polypropylene 1/4 NPT standard cartridge tip adapter
7016945 Nickel-plated Brass
1/4 NPT special purpose tip adapter for 725D Series,
725DA Series, 725HF-SS, 736HPA-NV, and cartridges
7016948 Black Polypropylene 1/4 NPT tip adapter
Cartridge Systems
24
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Optimum Cartridge Systems
RETAINER SYSTEMS
Retainer Systems* Retainer Bodies
Part # Size Part # Size
7012430 2.5 oz (75 ml) 7013857 2.5 oz (75 ml)
7012433 6 oz (180 ml) 7013858 6 oz (180 ml)
7012436 12 oz (360 ml) 7013859 12 oz (360 ml)
7012439 20 oz (600 ml) 7013860 20 oz (600 ml)
7013899 32 oz (960 ml) 7013900 32 oz (960 ml)
Retainer Cap Assemblies
Part # Size
7012531 2.5, 6, 12 oz (75, 180, 360 ml)
7012532 20, 32 oz (600, 960 ml)
Retainer Cap O-Ring Kits (2/pkg.)
Part # Material Size
7014373 Buna 2.5, 6, 12 oz (75, 180, 360 ml)
7026914 EPR 2.5, 6, 12 oz (75, 180, 360 ml)
7014372 Buna 20, 32 oz (600, 960 ml)
7026916 EPR 20, 32 oz (600, 960 ml)
7026917 Viton 20, 32 oz (600, 960 ml)
Optimum cartridge retainers are molded from high-tensile, claried resin that permits
easy visual monitoring of uid levels. Large textured ribs provide an ergonomic grip for
cap installation.
Retainer caps feature locking tabs that snap securely into detents on the retainer
body with an audible click. A push-in air line connector on top of the cap eliminates
the need for bayonet connectors.
*The retainer cap O-rings are available in three different materials. Please select the one most compatible
with your uid. Standard O-ring material is Buna.
Cartridge Retainer
Systems
