Valve Fittings

VALVE FITTINGS

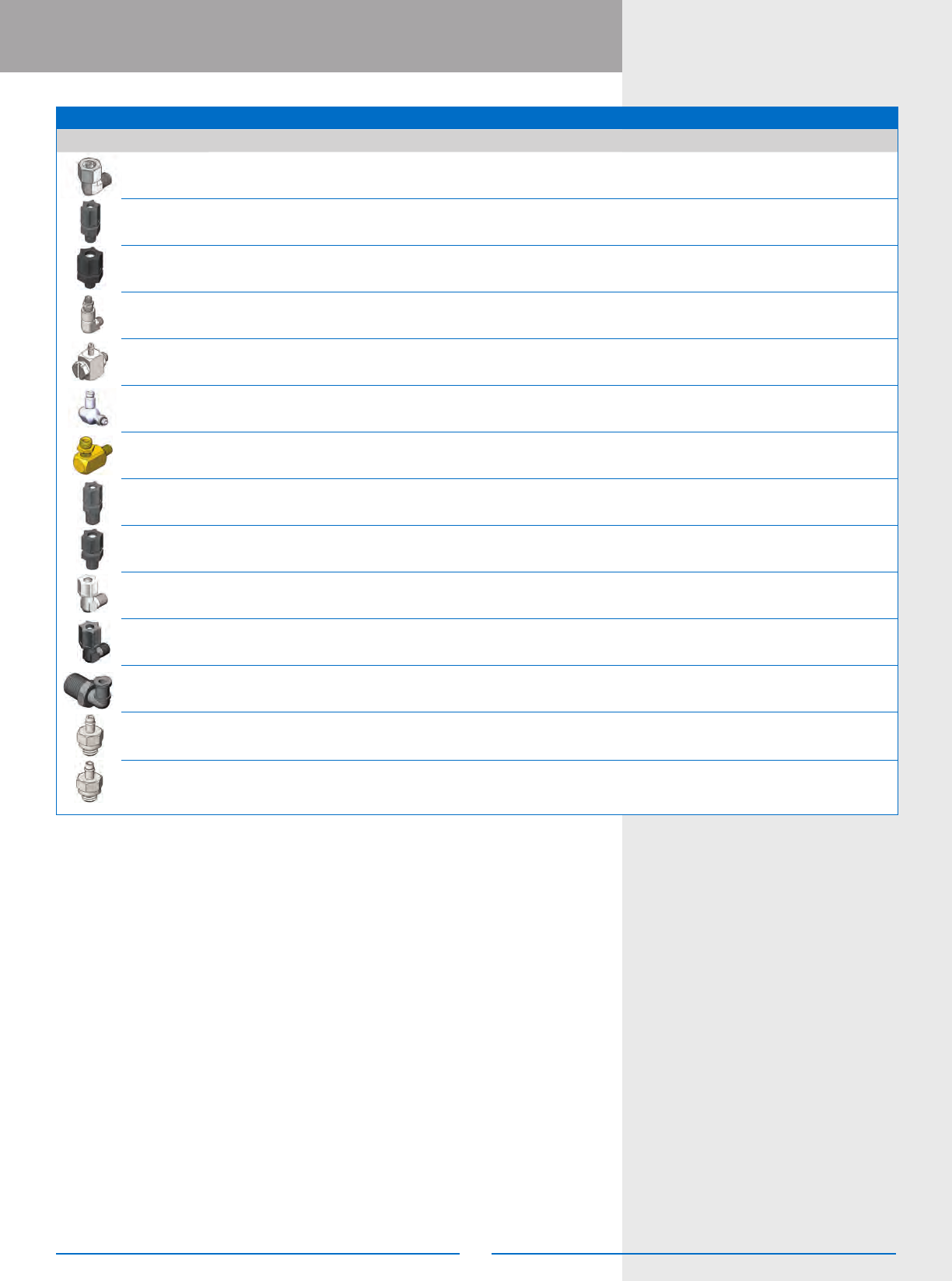

Fitting Part # Description Color Recommended Use

1/4 hose to barrel adapter, polypropylene White Dispensing wand inlet from barrel, 1/8" ID hose

1/4 pass-thru bulkhead, nylon Black 1.0 liter tank outlet to 1/4" OD tubing

1/4 NPT x 1/4 NPT stainless steel street elbow Silver 19 liter top-ported tank outlet

3/8 pass-thru bulkhead, nylon Black

5 liter top-ported tank outlet to 3/8" OD tubing,

pass-thru style

Barrel adapter 3/32 barb, polypropylene White Dispensing wand inlet from barrel 3/32" ID hose

Barrel to 750V input nickel-plated brass Silver 750V inlet to barrel

Elbow tting: 1/8 NPT x 1/8 barb, polypropylene Clear 752V and 741V Series inlet to 1/8" ID tubing

Fitting: 1/8 NPT x 3/8 compression elbow, nylon Black 1/8 NPT elbow to 3/8" OD tubing

Fitting, uid: 4 mm barb − 754V Silver 754V inlet to 6 mm OD x 4 mm ID tubing

Fitting: 1/4-28 to barrel black, polypropylene Black 750V inlet to barrel

Fitting: 1/4-28 x 1/8 barb, black, polypropylene Black 750V inlet to 1/8" ID tubing

Fitting: 1/4 NPT x 3/8 compression elbow, stainless steel Silver 725HF-SS inlet tting

Fitting: 1/8 NPT x 1/4 compression elbow, stainless steel Silver

725D-SS, 725DA-SS, 741V-SS, 781S-SS inlet

to 1/4" OD tubing

Order Valve Replacement Parts:

www.nordsonefd.com/ValveKits

7014732

7021532

7007038

7020894

7020673

7361411

7020905

7017014

7017020

7021038

7021499

7020903

7020671

7020669

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Valve Fittings

VALVE FITTINGS

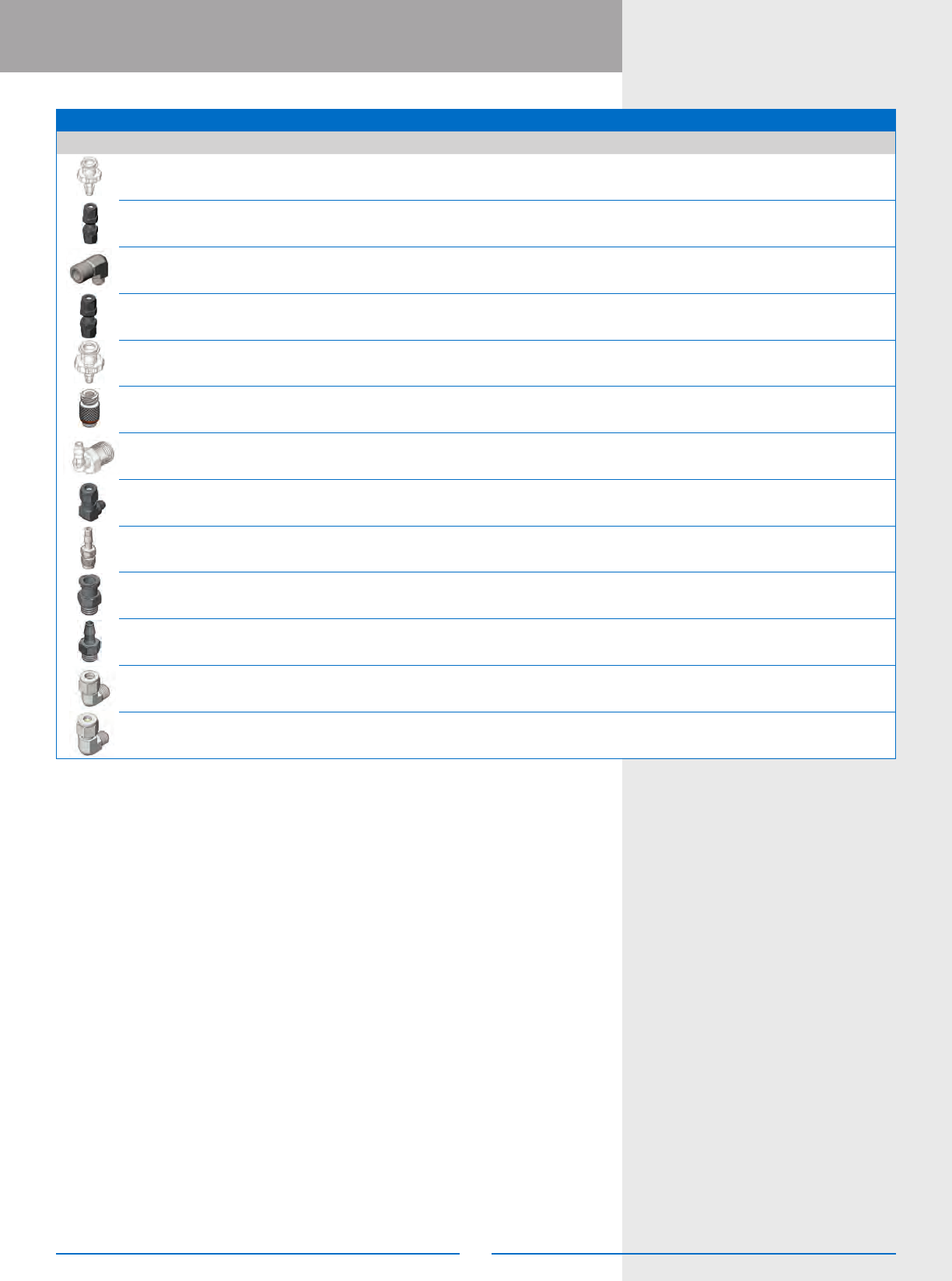

Fitting Part # Description Color Recommended Use

Fitting: 1/8 NPT x 3/8 compression elbow, stainless steel Silver

725D-SS, 725DA-SS, 741V-SS, and 781S-SS Series

inlet to 3/8" OD tubing

Fitting: 1/8 NPT x 1/4 compression, black, polypropylene Black 725D, 741V, 752V, and 781S Series inlet to 1/4" OD tubing

Fitting: 1/8 NPT x 3/8 compression, black, polypropylene Black 725D, 741V, 752V, and 781S Series inlet to 3/8" OD tubing

Fitting: Cartridge to 1/8 NPT elbow, stainless steel Silver

725D-SS, 725DA-SS, 741V-SS, and 781S-SS Series

inlet from cartridge

Fitting: M5 x 1/8" ID barb stainless steel, elbow Silver 702 Series inlet to 1/8" ID x 1/4" OD tubing

Fitting: 90° luer inlet White xQR41, 781Mini for direct syringe barrel feed connection

Fitting: RTV cartridge to 1/8 NPT brass Brass 725D, 725DA to threaded caulking cartridge

Fitting: 1/4 NPT x 1/4 compression, black, polypropylene Black Cartridge and 19 liter tank outlet to 1/4" OD tubing

Fitting: 1/4 NPT x 3/8 compression, black, polypropylene Black Cartridge and 19 liter tank outlet to 3/8" OD tubing

Fitting: 1/4 NPT x 3/8 compression elbow, polypropylene White Standard 725HF-SS and 725HF-A inlet tting

Fitting: 1/8 NPT x 1/4 compression elbow, black, polypropylene Black 725D, 741V, 752V, and 781S Series inlet to 1/4" OD tubing

Fitting: Barrel to 1/8 NPT elbow, black, polypropylene Black 725D, 741V, 752V, 781S Series inlet to barrel

Fitting: M5 x 1/8" ID barb, stainless steel Silver 702 Series inlet to 1/8" ID x 1/4" OD tubing

Fitting: M5 x 3/32" ID barb, stainless steel Silver 702 Series inlet to 3/32" ID x 5/32" OD tubing

7021867

7007017

7021537

7021539

7021545

7016948

7016945

7007026

7007027

7021227

7021312

7021317

7014835

www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

Valve Fittings / Tip Adapters

VALVE FITTINGS

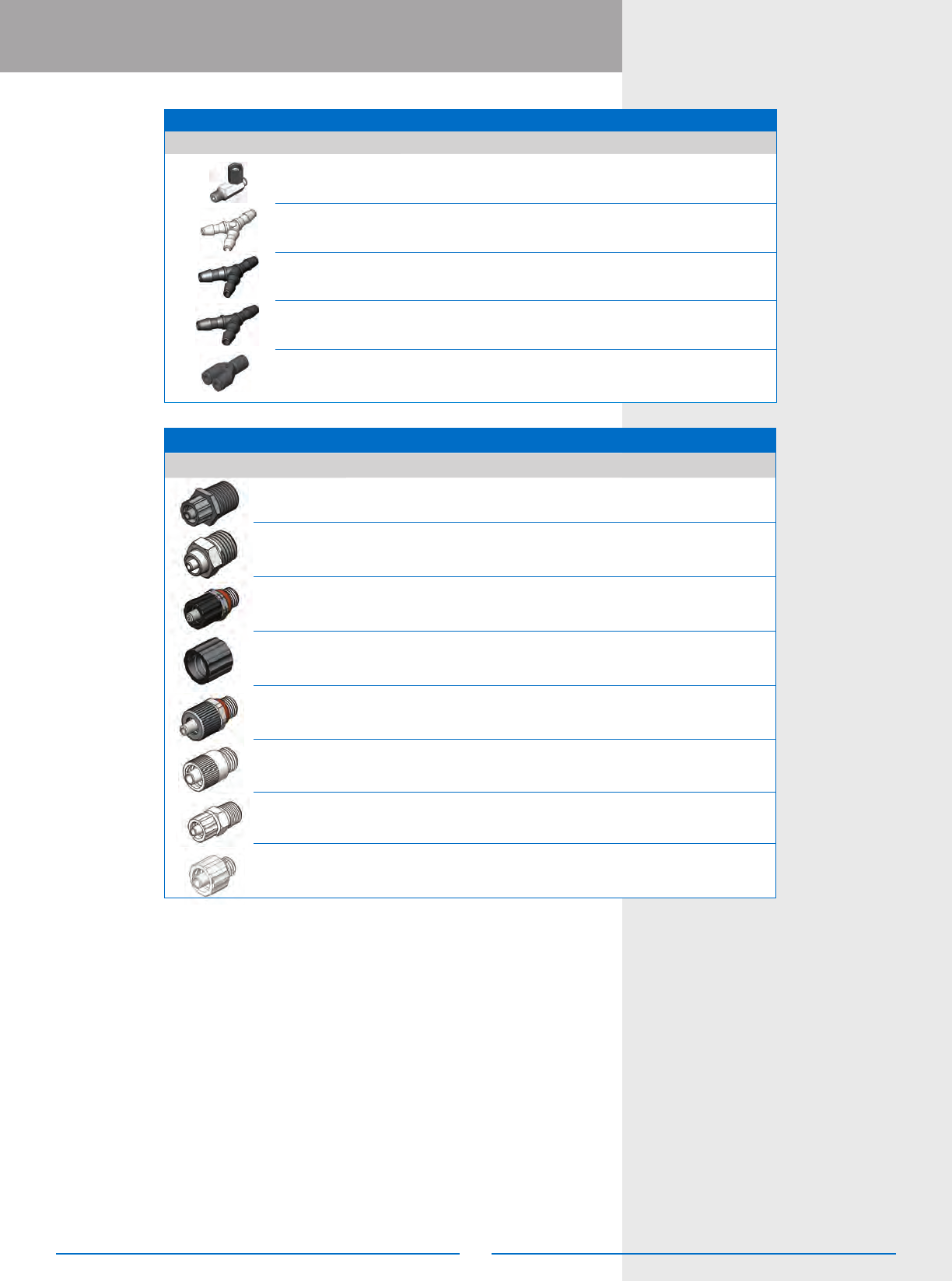

Fitting Part # Description

Inlet tting assembly, ELB, 303SS

Polypropylene Y-tting for 1/8" ID tubing

Black nylon Y barb tting for 3.2 mm (1/8") ID tube

Polypropylene Y-tting for 3/32" ID tubing

Black plastic push-in tting for 4.0 mm (5/32") OD tube

VALVE TIP ADAPTERS

Adapter Part # Valve Material Description

725 Series Polypropylene Tip adapter 1/4 NPT, black

725 Series Nickel-plated brass Tip adapter 1/4 NPT

741MD-SS,

741V Series

Stainless steel Tip adapter 741V, 0.046"

741MD-SS,

741V Series

Polypropylene

SafetyLok collar for

741MD-SS, 741V Series

741MD-SS Stainless steel Tip adapter with retaining nut

750V-SS Acetal Tip adapter

751V Nylon Tip adapter

752V-UHSS Polypropylene Tip adapter, natural
