43
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Jetting Systems
Features and Benets
• Exchangeable, modular design for
greater congurability
• Tool-free latch allows fast, easy
serviceability and reduces downtime
• Capability to jet low- to high-viscosity
uids creats exibility to meet changing
needs
• Dispenses at up to 1000Hz
continuous, with up to 1500Hz
maximum bursts*
• Variable stroke for precise dispensing
control
• Optional PEEK wetted parts resist
curing from reactive adhesives

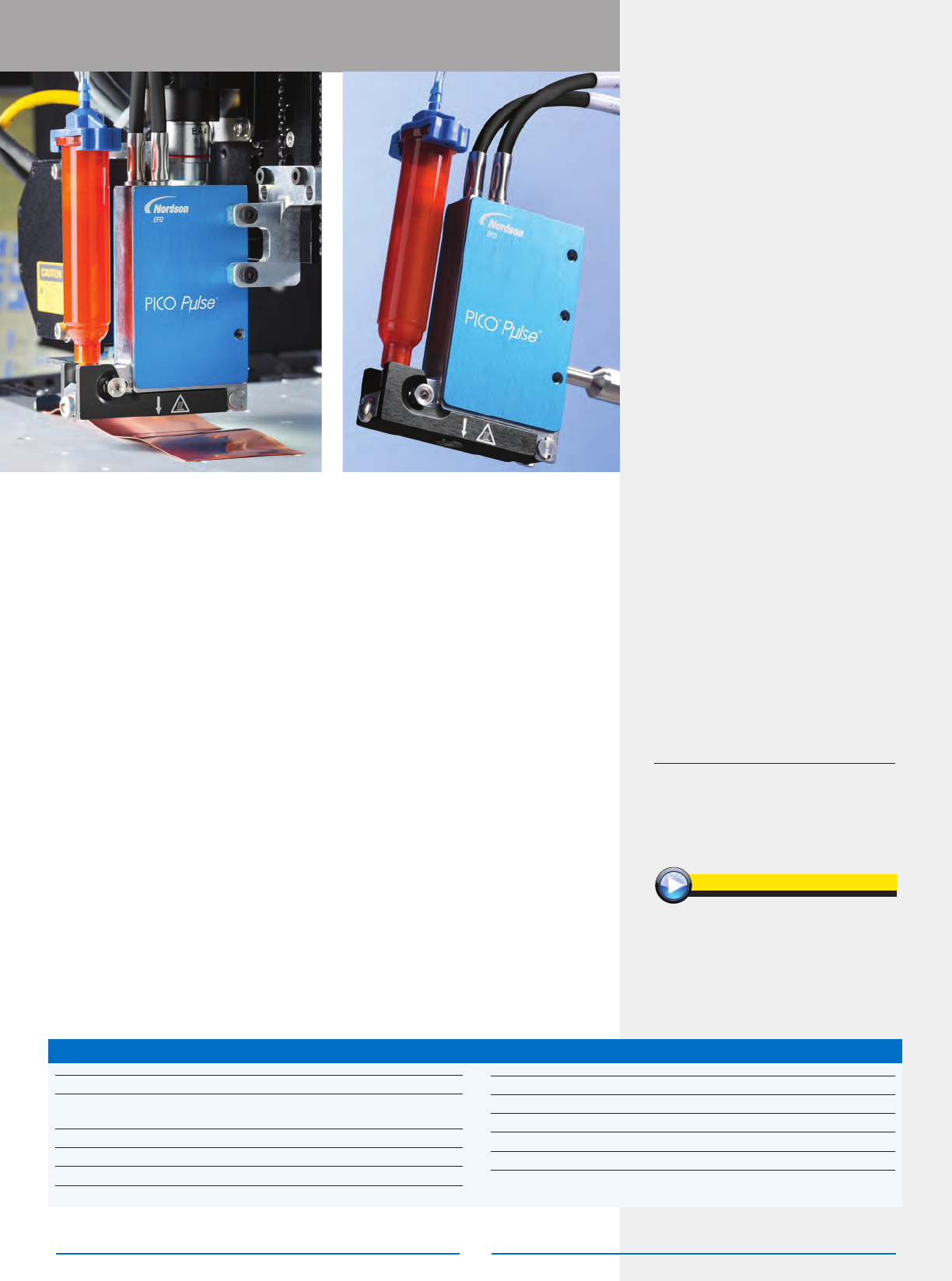

PICO Pμlse Jet Valve
7361283 PICO Pμlse Jet Valve HD
For heavy duty applications with cycle rates greater
than 250Hz.
PICO
Pµlse
®
modular jetting technology removes the barrier between speed and
accuracy. Even at max speed of 1000Hz continuous*, the PICO Pµlse non-contact
dispense valve provides industry-leading accuracy in deposit consistency and
placement for your most challenging applications.
Non-contact jet valve systems make it possible to apply uid in hard-to-access areas
or onto uneven or delicate substrates where a dispensing needle cannot be used.
www.nordsonefd.com/Pulse
“We are saving 2 to 4 hours on every
100 parts.”
– Grimes Aerospace
*With approved conditional settings.
Size: 22.0w x 120.0h x 75.0l mm (0.87w x 4.72h x 2.92l")
Weight: With cable: 524.0 g (18.5 oz)
Without cable: 362.0 g (12.8 oz)
Maximum uid pressure: 35.0 bar (500 psi)
Fluid inlet: M5
Mounting: M4 x 0.7
Fluid body: 303 stainless steel or PEEK*
Ball-and-seat: Ceramic
Heater body: Aluminum
Approvals: CE, UKCA, WEEE, TUV
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
Specications
For use with
• Adhesives & UV-cure Adhesives
• Conductive Epoxies
• Greases & Oils
• Hydrous Solutions
• Liquid Polymers
• Organic Solvents
• Underlls
44
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Jetting Systems
Features and Benets
• XP self-regulating calibration
• Improve valve-to-valve dispensing
repeatability and repeatability after
maintenance
• Maintain dispensing repeatability
regardless of environmental conditions
• System self-adjusts to minimize
production downtime needed to
recalibrate the jetting system
PICO Pμlse XP Jet Valve
7364876 PICO Pμlse XP Jet Valve HD
For greater dispensing repeatability and ability to
fine tune jetting performance.
PICO
Pµlse XP provides the same capabilities as the standard PICO Pµlse jet valve.
In addition, it controls for the slightest variation in uid body tolerances to maintain
optimal jetting results, even after maintenance.
Sustained stroke target seeking allows the system to produce a stable deposit weight,
even when environmental conditions change.
www.nordsonefd.com/PulseXP
Size: 22.0w x 120.0h x 75.0l mm (0.87w x 4.72h x 2.92l")
Weight: With cable: 524.0 g (18.5 oz)
Without cable: 362.0 g (12.8 oz)
Maximum uid pressure: 35.0 bar (500 psi)
Fluid inlet
: M5
Mounting: M4 x 0.7
Fluid body: 303 stainless steel or PEEK*
Ball-and-seat: Ceramic
Heater body: Aluminum
Approvals: CE, UKCA, WEEE, TUV
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
Specications
For use with
• Adhesives & UV-cure Adhesives
• Conductive Epoxies
• Greases & Oils
• Hydrous Solutions
• Liquid Polymers
• Organic Solvents
• Underlls
45
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Contact Dispense Systems
PICO Pμlse Contact Valve
Features and Benets
• Highly precise, repeatable, and faster
contact dispensing
• Capability for high speed actuation up
to 1000Hz* continuous
• Ideal for critical line dispensing and
repeatable deposits as small as 0.5 nL
• Apply extremely small dots and well-
dened lines with precise control of
the beginning and end points
• Optional PEEK wetted parts resist
curing from reactive adhesives
Apply precise micro-deposits and control surge when dispensing lines and stripes
with the PICO Pµlse contact dispense valve. Unique tip adapter assemblies allow use
of a variety of dispensing tip types such as Optimum general purpose and specialty
tips and DL Technology precision tips.
7362059 PICO Pμlse Contact
Dispense Valve
For contact dispensing applications with cycle rates
up to 1000Hz.
7366299 PICO Pμlse XP Contact
Dispense Valve
For greater contact dispensing repeatability and
ability to fine tune jetting performance.
Fluid body: 303 stainless steel or PEEK*
Ball-and-seat: Ceramic
Heater body: Aluminum
Tip adapter kits: 303 stainless steel
Approvals: CE, UKCA, WEEE, TUV
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
Specications
Download CAD Models:
www.nordsonefd.com/CAD
Size: 22.0w x 120.0h x 75.0l mm (0.87w x 4.72h x 2.92l")
Weight: With tip adapter / with cable: 538.0 g (19.0 oz)
With tip adapter / without cable: 376.0 g (13.3 oz)
Without tip adapter / with cable: 524.0 g (18.5 oz)
Without tip adapter / without cable: 362.0 g (12.8 oz)
Maximum uid pressure: 35.0 bar (500 psi)
Fluid inlet: M5
Mounting: M4 x 0.7
For use with
• Adhesives
• Conductive Epoxies
• Food Colors
• Greases
• Underlls
• UV-cure Adhesives
* With approved conditional settings.
