PICO Jetting Systems
Features and Benets
• XP self-regulating calibration
• Improve valve-to-valve dispensing
repeatability and repeatability after
maintenance
• Maintain dispensing repeatability
regardless of environmental conditions
• System self-adjusts to minimize
production downtime needed to
recalibrate the jetting system
PICO Pμlse XP Jet Valve
7364876 PICO Pμlse XP Jet Valve HD
For greater dispensing repeatability and ability to
fine tune jetting performance.
PICO
Pµlse XP provides the same capabilities as the standard PICO Pµlse jet valve.
In addition, it controls for the slightest variation in uid body tolerances to maintain
optimal jetting results, even after maintenance.
Sustained stroke target seeking allows the system to produce a stable deposit weight,
even when environmental conditions change.
www.nordsonefd.com/PulseXP
Size: 22.0w x 120.0h x 75.0l mm (0.87w x 4.72h x 2.92l")
Weight: With cable: 524.0 g (18.5 oz)
Without cable: 362.0 g (12.8 oz)
Maximum uid pressure: 35.0 bar (500 psi)
Fluid inlet
: M5
Mounting: M4 x 0.7
Fluid body: 303 stainless steel or PEEK*
Ball-and-seat: Ceramic
Heater body: Aluminum
Approvals: CE, UKCA, WEEE, TUV
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
Specications
For use with
• Adhesives & UV-cure Adhesives
• Conductive Epoxies
• Greases & Oils
• Hydrous Solutions
• Liquid Polymers
• Organic Solvents
• Underlls
45
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Contact Dispense Systems
PICO Pμlse Contact Valve
Features and Benets
• Highly precise, repeatable, and faster
contact dispensing
• Capability for high speed actuation up
to 1000Hz* continuous
• Ideal for critical line dispensing and
repeatable deposits as small as 0.5 nL
• Apply extremely small dots and well-
dened lines with precise control of
the beginning and end points
• Optional PEEK wetted parts resist
curing from reactive adhesives
Apply precise micro-deposits and control surge when dispensing lines and stripes
with the PICO Pµlse contact dispense valve. Unique tip adapter assemblies allow use
of a variety of dispensing tip types such as Optimum general purpose and specialty
tips and DL Technology precision tips.

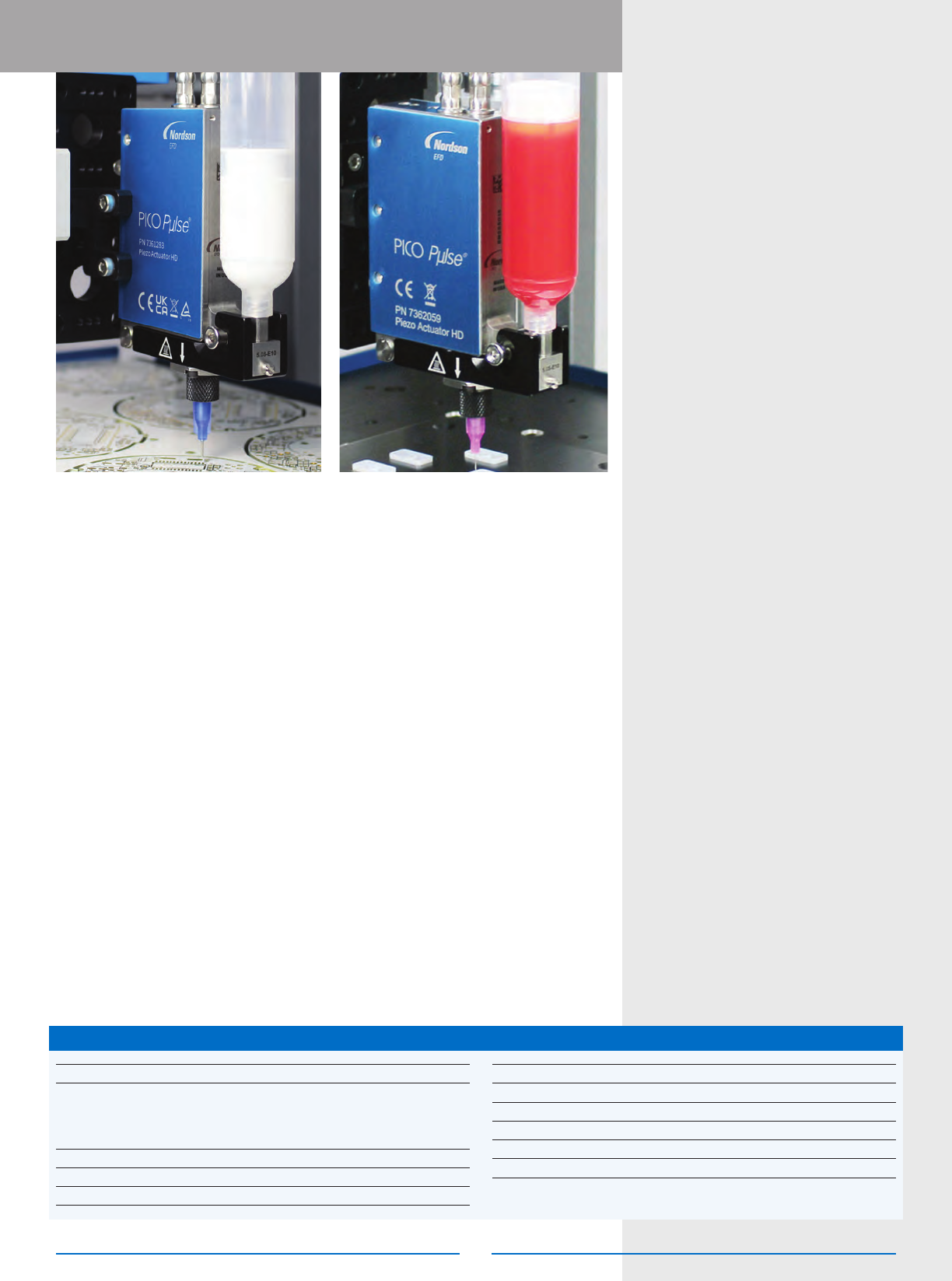

7362059 PICO Pμlse Contact
Dispense Valve
For contact dispensing applications with cycle rates
up to 1000Hz.
7366299 PICO Pμlse XP Contact
Dispense Valve
For greater contact dispensing repeatability and
ability to fine tune jetting performance.
Fluid body: 303 stainless steel or PEEK*
Ball-and-seat: Ceramic
Heater body: Aluminum
Tip adapter kits: 303 stainless steel
Approvals: CE, UKCA, WEEE, TUV
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
Specications
Download CAD Models:
www.nordsonefd.com/CAD
Size: 22.0w x 120.0h x 75.0l mm (0.87w x 4.72h x 2.92l")
Weight: With tip adapter / with cable: 538.0 g (19.0 oz)
With tip adapter / without cable: 376.0 g (13.3 oz)
Without tip adapter / with cable: 524.0 g (18.5 oz)
Without tip adapter / without cable: 362.0 g (12.8 oz)
Maximum uid pressure: 35.0 bar (500 psi)
Fluid inlet: M5
Mounting: M4 x 0.7
For use with
• Adhesives
• Conductive Epoxies
• Food Colors
• Greases
• Underlls
• UV-cure Adhesives
* With approved conditional settings.
46
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Jetting Systems
PICO PULSE FLUID BODY ASSEMBLIES
Nordson EFD offers a wide range of fluid bodies and cartridges that come together as matched sets to deliver the precise performance and repeatability needed to meet
specific application requirements.
Fluid body assemblies are available with flat or extended nozzles in seat orifice sizes ranging from 50–600 microns with a choice of Type D and Type E geometries.
• Type “D” seat: Standard version is suitable for most fluids and can result in less splashing of the deposit for low- to medium-viscosity fluids.
• Type “E” seat: Recommended for highly viscous/stringing type fluids, it generates more kinetic energy during jetting for better release off nozzle plate and less “tailing.”
Consult EFD’s Technical Service team for the best recommendation on Fluid Body Assembly/Seat Geometry for your application.
Fluid Body
Flat Nozzle
Part #
PEEK Flat
Nozzle Part #
P7 Extended
Nozzle Part #*
P30 Extended
Nozzle Part #*
Description Orifice Geometry Ball Size
7362574 7363321 7362703 n/a Fluid body assembly 50 µm E 3.0S
7362575 7363322 7362704 n/a Fluid body assembly 100 µm D 3.0S
7362576 – 7362705 n/a Fluid body assembly 200 µm D 3.0S
7362577 7363324 7362706 7363238 Fluid body assembly 50 µm E 5.0S
7362578 7363325 7362707 7363239 Fluid body assembly 100 µm E 5.0S
7362579 7363326 7362708 7363240 Fluid body assembly 150 µm E 5.0S
7362580 7363327 7362709 7363241 Fluid body assembly 300 µm E 5.0S
7362581 7363328 7362710 7363242 Fluid body assembly 100 µm D 5.0S
7362582 7363329 7362711 7363243 Fluid body assembly 150 µm D 5.0S
7362583 – 7362712 7363244 Fluid body assembly 200 µm D 5.0S
7362584 7363331 7362713 7363245 Fluid body assembly 300 µm D 5.0S
7362585 7363332 7362714 7363246 Fluid body assembly 400 µm
D 5.0S
7362586 7363333 7362715 7363247 Fluid body assembly 600 µm D 5.0S
*Extended nozzles for use with Pµlse non-contact jet valves only
PICO PULSE CONTACT VALVE TIP ADAPTER KITS*
Part Part # Description
7362028 Luer lock tip adapter kit for EFD General Purpose dispense tips
7362030 DL Technology tip adapter kit
7361969
Specialty plate adapter kit for legacy accessories
PICO PULSE FLUID INLET FITTINGS
Part Part # Description
7362606
Fitting: M5 x female Luer lock, straight, stainless steel (includes Viton O-ring)
7361303: O-rings: 5 x 1 mm, Viton, 10 pc
7361681: O-rings: 5 x 1 mm, FFKM, 3 pc
7363340
Fitting: M5 x female luer lock, straight, PEEK (includes FFKM O-ring)
7361303: O-rings: 5 x 1 mm, Viton, 10 pc
7361681: O-rings: 5 x 1 mm, FFKM, 3 pc
7020669 Fitting: M5 x 3/32" ID barb, stainless steel
7020671 Fitting: M5 x 1/8" ID barb, stainless steel
7020673 Fitting: M5 x 1/8" ID barb, stainless steel, elbow
7361498
Fitting: M5 x 35 mm male-female extension, stainless steel
*Tip adapter kits for use with Pµlse contact jet valves only
Flat Nozzle
P30 Extended
Nozzle
P7 Extended
Nozzle
PEEK Flat Nozzle
