PICO Jetting Systems

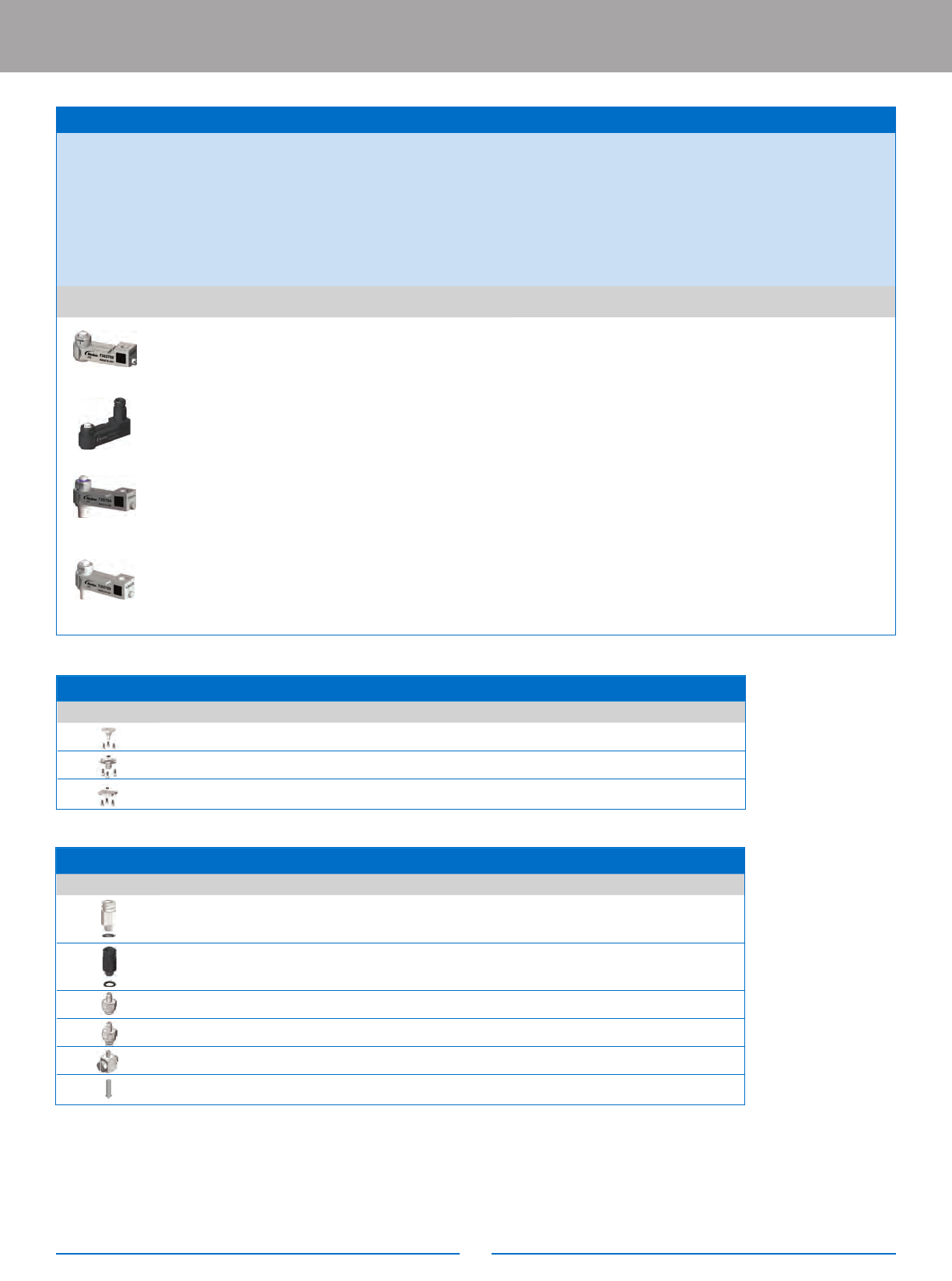

PICO PULSE FLUID BODY ASSEMBLIES
Nordson EFD offers a wide range of fluid bodies and cartridges that come together as matched sets to deliver the precise performance and repeatability needed to meet
specific application requirements.
Fluid body assemblies are available with flat or extended nozzles in seat orifice sizes ranging from 50–600 microns with a choice of Type D and Type E geometries.
• Type “D” seat: Standard version is suitable for most fluids and can result in less splashing of the deposit for low- to medium-viscosity fluids.
• Type “E” seat: Recommended for highly viscous/stringing type fluids, it generates more kinetic energy during jetting for better release off nozzle plate and less “tailing.”
Consult EFD’s Technical Service team for the best recommendation on Fluid Body Assembly/Seat Geometry for your application.
Fluid Body
Flat Nozzle
Part #
PEEK Flat
Nozzle Part #
P7 Extended
Nozzle Part #*
P30 Extended
Nozzle Part #*
Description Orifice Geometry Ball Size
7362574 7363321 7362703 n/a Fluid body assembly 50 µm E 3.0S
7362575 7363322 7362704 n/a Fluid body assembly 100 µm D 3.0S
7362576 – 7362705 n/a Fluid body assembly 200 µm D 3.0S
7362577 7363324 7362706 7363238 Fluid body assembly 50 µm E 5.0S
7362578 7363325 7362707 7363239 Fluid body assembly 100 µm E 5.0S
7362579 7363326 7362708 7363240 Fluid body assembly 150 µm E 5.0S
7362580 7363327 7362709 7363241 Fluid body assembly 300 µm E 5.0S
7362581 7363328 7362710 7363242 Fluid body assembly 100 µm D 5.0S
7362582 7363329 7362711 7363243 Fluid body assembly 150 µm D 5.0S
7362583 – 7362712 7363244 Fluid body assembly 200 µm D 5.0S
7362584 7363331 7362713 7363245 Fluid body assembly 300 µm D 5.0S
7362585 7363332 7362714 7363246 Fluid body assembly 400 µm
D 5.0S
7362586 7363333 7362715 7363247 Fluid body assembly 600 µm D 5.0S
*Extended nozzles for use with Pµlse non-contact jet valves only
PICO PULSE CONTACT VALVE TIP ADAPTER KITS*
Part Part # Description
7362028 Luer lock tip adapter kit for EFD General Purpose dispense tips
7362030 DL Technology tip adapter kit
7361969
Specialty plate adapter kit for legacy accessories
PICO PULSE FLUID INLET FITTINGS
Part Part # Description
7362606
Fitting: M5 x female Luer lock, straight, stainless steel (includes Viton O-ring)
7361303: O-rings: 5 x 1 mm, Viton, 10 pc
7361681: O-rings: 5 x 1 mm, FFKM, 3 pc
7363340
Fitting: M5 x female luer lock, straight, PEEK (includes FFKM O-ring)
7361303: O-rings: 5 x 1 mm, Viton, 10 pc
7361681: O-rings: 5 x 1 mm, FFKM, 3 pc
7020669 Fitting: M5 x 3/32" ID barb, stainless steel
7020671 Fitting: M5 x 1/8" ID barb, stainless steel
7020673 Fitting: M5 x 1/8" ID barb, stainless steel, elbow
7361498
Fitting: M5 x 35 mm male-female extension, stainless steel
*Tip adapter kits for use with Pµlse contact jet valves only
Flat Nozzle
P30 Extended
Nozzle
P7 Extended
Nozzle
PEEK Flat Nozzle
4747
7361770
7361771
7361772
7362459
7362543
7361630
7361295
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ACCESSORIES
Part Part # Description
PICO PULSE EXTENSION CABLES
Cable Part # Description
7362085 0.6 m (2.0 ft) valve extension cable set
7361298 2 m (6.6 ft) valve extension cable set
7361299 6 m (19.7 ft) valve extension cable set
7361300 9 m (29.5 ft) valve extension cable set
PICO PULSE XP EXTENSION CABLES
Cable Part # Description
7365311 2 m (6.6 ft) valve extension cable set, XP
7365312 6 m (19.7 ft) valve extension cable set, XP
7365313 9 m (29.5 ft) valve extension cable set, XP
7365314 12 m (39.4 ft) valve extension cable set, XP
Extension cable sets include a power cable and a communication cable for connection to the PICO Toµch Controller. Includes one each for
power and communication.
Extension cable sets include a power cable and a communication cable for connection to the PICO XP Controller. Includes one each for power
and communication.
HP High-Pressure Dispensing Tool. Used to jet very thick assembly uids such as RTV silicones,
epoxies, and medical-grade adhesives
HP3cc Adapter Kit for use with PICO Pµlse
HP5cc Adapter Kit for use with PICO Pµlse
HP10cc Adapter Kit for use with PICO Pµlse
PICO Pµlse Valve Cleaning Kit. Includes brushes, swabs, mini-reamers, and magnifying loupe
HP Adapter Kit for use with PICO Pµlse, straight tting
HP Adapter Kit for use with PICO Pµlse, 90 elbow
Varies
Latch release tool. Opens the piezo actuator heater body; useful for installations with limited access
to the valve
PICO Jetting Systems
48
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Jetting Systems
7361217 PICO Toµch Controller
For use with a PICO Pμlse valve only, the controller
system includes a USB cable, back shell, and
connector. Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
The Toµch controller uses a touchscreen and visual interface to greatly simplify setup
and operation, while allowing precise adjustment of parameters such as open and
close times. Easily integrate unprecedented control, precision, and performance into
any dispensing application.
PICO Toμch Controller
Features and Benets
• Intuitive, easy-to-use touchscreen interface for precise control of PICO Pµlse valve
• 480 x 272 resolution for sharper screen visibility
• More exact adjustment of valve parameters and performance
• Fine-tune dispensing performance by setting ramp open and close parameters
and stroke control from the unique Wave Prole screen
• Flexibility to control the dispense of a wide range of uids and viscosities
• Programmable lockout to prevent unintended changes to settings
The Toµch controller uses a touchscreen and visual interface to greatly simplify setup
and operation, while allowing precise adjustment of parameters such as open and
close times. Easily integrate unprecedented control, precision, and performance into
any dispensing application.
PICO Toμch Controller
“Nordson EFD’s wide variety of products,
and the numerous applications they can be
used for, is impressive.It makes it easy to
select the right products for the applications
we’re working on.”
– Nye Lubricants
Specications
Download CAD Models:
www.nordsonefd.com/CAD
Heater output voltage: 24 VDC, 30 W maximum
Feedback circuit: 0–24 VDC
Cycle initiate: 15–24 VDC
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Cabinet size: 14.2w x 13.3h x 16.8d cm (28 Hp x 3U)
(5.59w x 5.25h x 6.61d")
Weight: 2.6 kg (5.5 lb)
Time range: 100 µs to 9.9999 s
Input AC (to power supply): 100–240 VAC ±10%, 50/60 Hz, 2 A
Output DC (from power supply): 24 VDC, 6.25 A
