48 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 PICO Jetting Systems 7361217 PICO Toµch Controller For use with a PICO Pμlse valve only, the controll…
4747
7361770
7361771
7361772
7362459
7362543
7361630
7361295
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

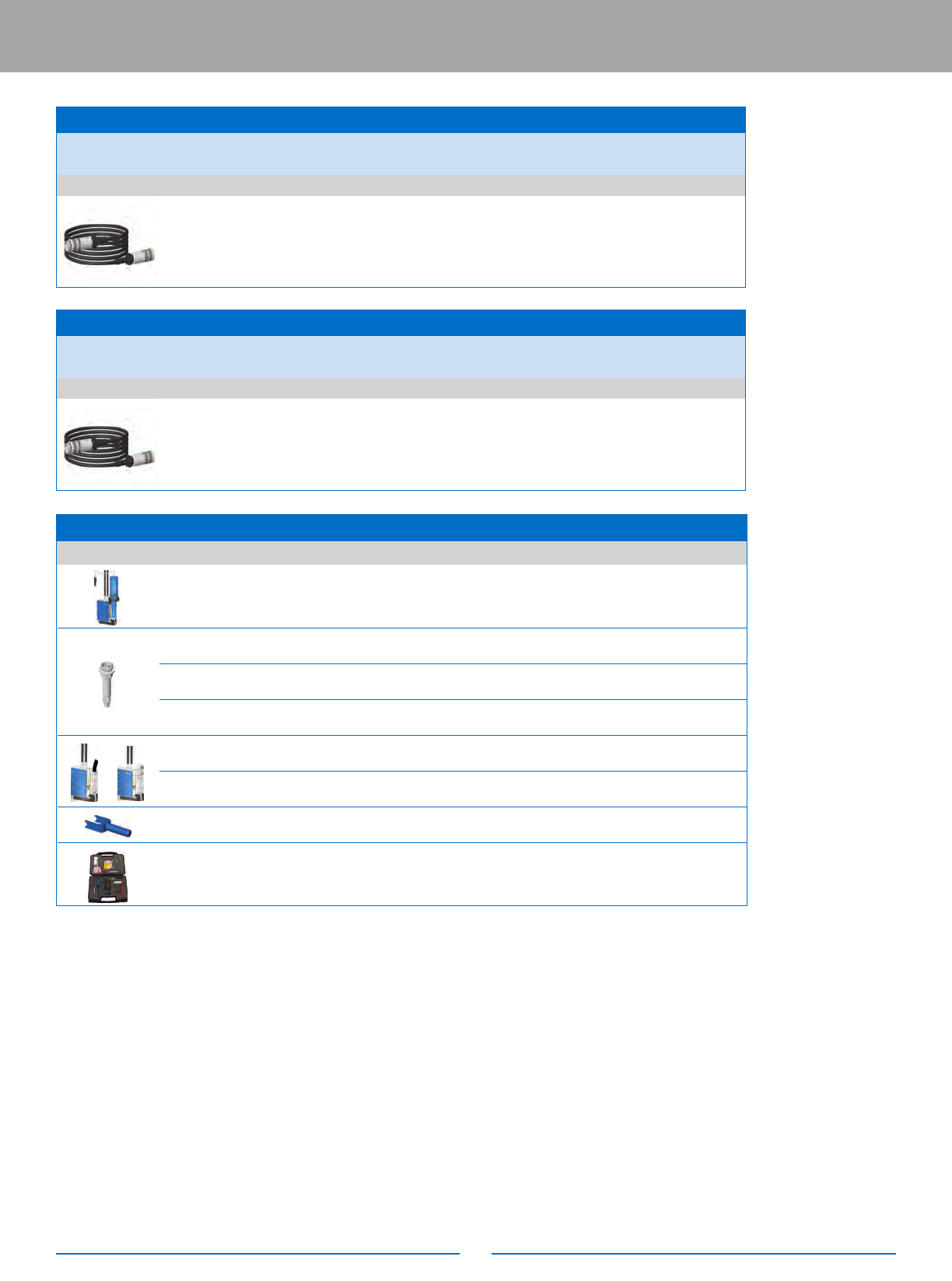

ACCESSORIES
Part Part # Description
PICO PULSE EXTENSION CABLES
Cable Part # Description
7362085 0.6 m (2.0 ft) valve extension cable set
7361298 2 m (6.6 ft) valve extension cable set
7361299 6 m (19.7 ft) valve extension cable set
7361300 9 m (29.5 ft) valve extension cable set
PICO PULSE XP EXTENSION CABLES
Cable Part # Description
7365311 2 m (6.6 ft) valve extension cable set, XP
7365312 6 m (19.7 ft) valve extension cable set, XP
7365313 9 m (29.5 ft) valve extension cable set, XP
7365314 12 m (39.4 ft) valve extension cable set, XP
Extension cable sets include a power cable and a communication cable for connection to the PICO Toµch Controller. Includes one each for
power and communication.
Extension cable sets include a power cable and a communication cable for connection to the PICO XP Controller. Includes one each for power
and communication.
HP High-Pressure Dispensing Tool. Used to jet very thick assembly uids such as RTV silicones,
epoxies, and medical-grade adhesives
HP3cc Adapter Kit for use with PICO Pµlse
HP5cc Adapter Kit for use with PICO Pµlse
HP10cc Adapter Kit for use with PICO Pµlse
PICO Pµlse Valve Cleaning Kit. Includes brushes, swabs, mini-reamers, and magnifying loupe
HP Adapter Kit for use with PICO Pµlse, straight tting
HP Adapter Kit for use with PICO Pµlse, 90 elbow
Varies
Latch release tool. Opens the piezo actuator heater body; useful for installations with limited access
to the valve
PICO Jetting Systems
48
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Jetting Systems

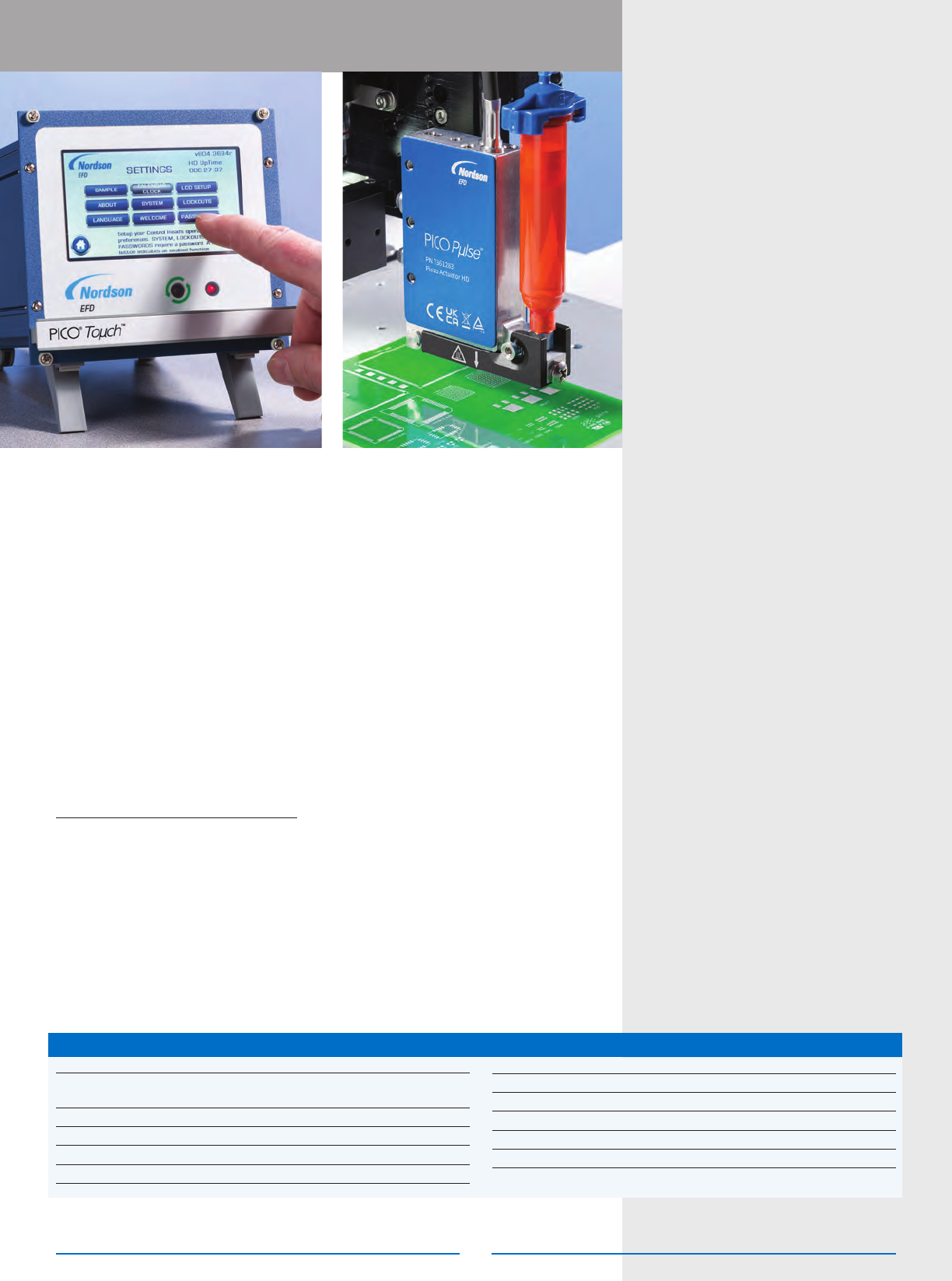

7361217 PICO Toµch Controller
For use with a PICO Pμlse valve only, the controller
system includes a USB cable, back shell, and
connector. Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
The Toµch controller uses a touchscreen and visual interface to greatly simplify setup
and operation, while allowing precise adjustment of parameters such as open and
close times. Easily integrate unprecedented control, precision, and performance into
any dispensing application.
PICO Toμch Controller
Features and Benets
• Intuitive, easy-to-use touchscreen interface for precise control of PICO Pµlse valve
• 480 x 272 resolution for sharper screen visibility
• More exact adjustment of valve parameters and performance
• Fine-tune dispensing performance by setting ramp open and close parameters
and stroke control from the unique Wave Prole screen
• Flexibility to control the dispense of a wide range of uids and viscosities
• Programmable lockout to prevent unintended changes to settings
The Toµch controller uses a touchscreen and visual interface to greatly simplify setup
and operation, while allowing precise adjustment of parameters such as open and
close times. Easily integrate unprecedented control, precision, and performance into
any dispensing application.
PICO Toμch Controller
“Nordson EFD’s wide variety of products,
and the numerous applications they can be
used for, is impressive.It makes it easy to
select the right products for the applications
we’re working on.”
– Nye Lubricants
Specications
Download CAD Models:
www.nordsonefd.com/CAD
Heater output voltage: 24 VDC, 30 W maximum
Feedback circuit: 0–24 VDC
Cycle initiate: 15–24 VDC
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Cabinet size: 14.2w x 13.3h x 16.8d cm (28 Hp x 3U)
(5.59w x 5.25h x 6.61d")
Weight: 2.6 kg (5.5 lb)
Time range: 100 µs to 9.9999 s
Input AC (to power supply): 100–240 VAC ±10%, 50/60 Hz, 2 A
Output DC (from power supply): 24 VDC, 6.25 A
49
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
PICO Jetting Systems

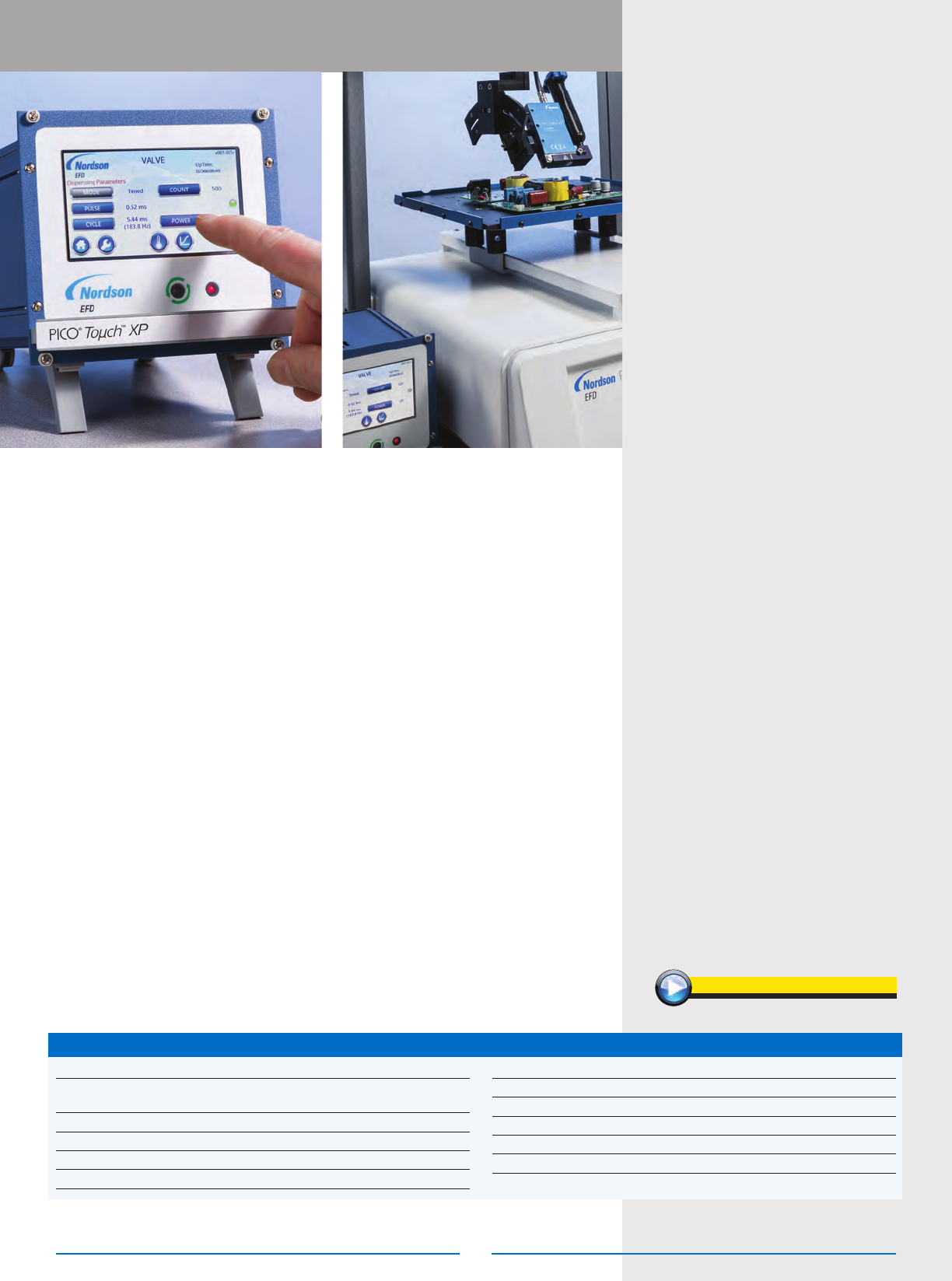

7364877 PICO Toµch XP Controller
For use with a PICO Pμlse XP valve only, the
controller system includes a USB cable, back shell,
and connector. Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
The PICO Toµch XP controller provides the same capabilities as the standard
PICO Toµch controller with a few important differences.
It allows users to program stroke in microns for the nest parameter
adjustments possible.
Program the most exact, repeatable uid deposits, regardless of external factors that
can affect deposit denition and repeatability.
PICO Toμch XP Controller
Features and Benets
• Intuitive, easy-to-use touchscreen interface for precise control of
PICO Pµlse XP jet valve
• Micron (µm) level stroke adjustment
• Fine-tune jetting performance for a wide range of applications
Specications
www.nordsonefd.com/PulseXP
Heater output voltage: 24 VDC, 30 W maximum
Feedback circuit: 0–24 VDC
Cycle initiate: 15–24 VDC
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Cabinet size: 14.2w x 13.3h x 16.8d cm (28 Hp x 3U)
(5.59w x 5.25h x 6.61d")
Weight: 2.6 kg (5.5 lb)
Time range: 100 µs to 9.9999 s
Input AC (to power supply): 100–240 VAC ±10%, 50/60 Hz, 2 A
Output DC (from power supply): 24 VDC, 6.25 A
