Liquidyn Jetting Systems

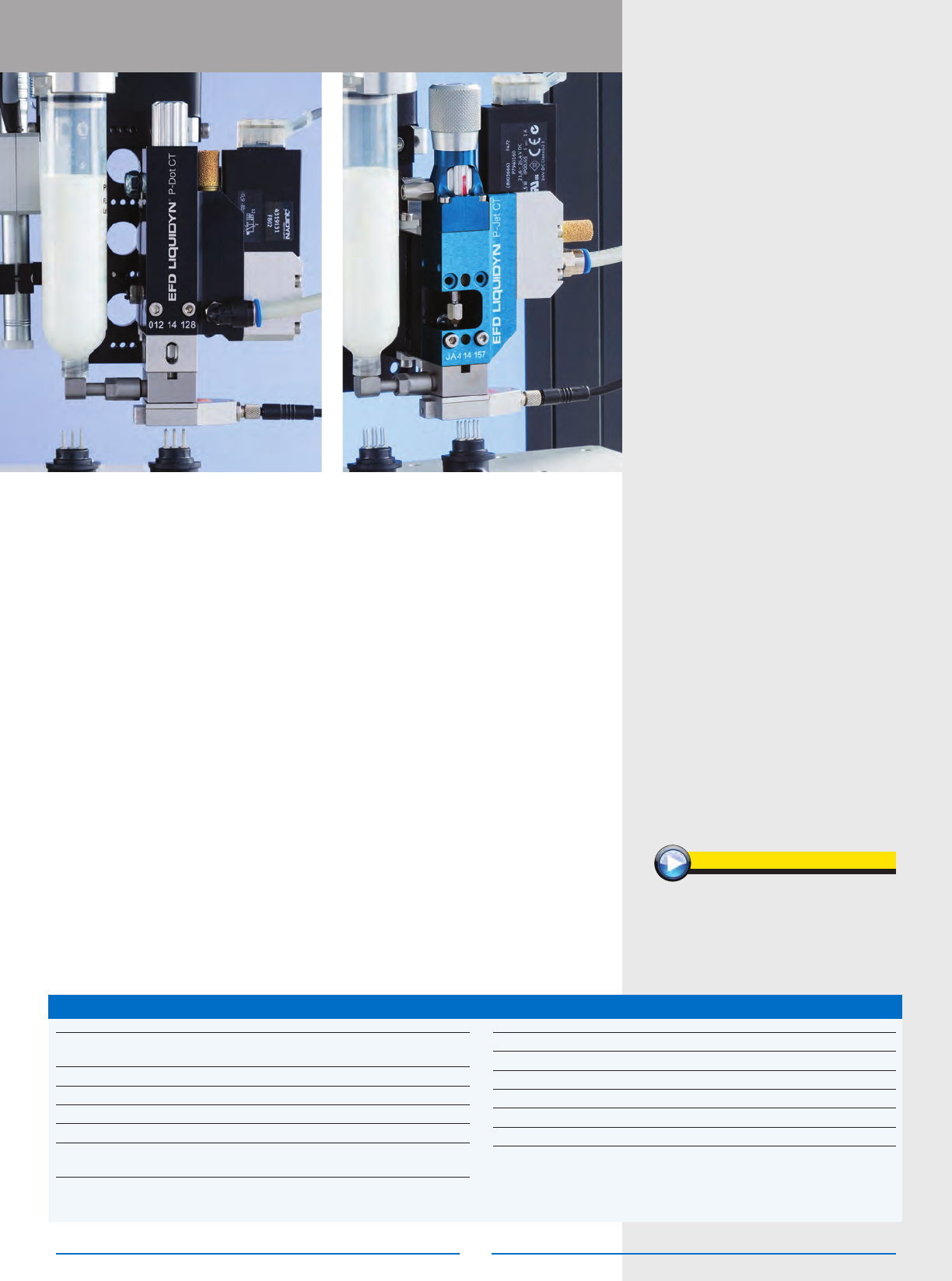

Liquidyn P-Jet Series
and P-Dot Series
7825004 Liquidyn P-Jet Actuator
Suitable for low- to medium-viscosity fluids with
cycle rates of up to 280Hz.
7825002 Liquidyn P-Dot Actuator
Suitable for medium- to high-viscosity fluids with
cycle rates of up to 150Hz.
7825932 Liquidyn P-Jet AN Valve
Complete valve preconfigured with metal-free
wetted parts; suitable for anaerobics with cycle
rates of up to 280Hz.
Features and Benets
• Highly repeatable and accurate
non-contact jet dispensing
• Micro-deposit dispensing at
frequencies up to 280Hz (P-Jet)
• Separate wetted parts allow for
simplied service and maintenance
• Modular design makes it easy to
customize for different applications
The Liquidyn
®
P-Jet and P-Dot pneumatic jet valves deliver precise, consistent non-
contact dispensing of low- to high-viscosity uids with micro-deposits starting at 3 nL.
Both feature easily exchangeable dispensing nozzles, tappets, and uid inlet ttings
to meet a wide range of application requirements. Rigorously tested to withstand
highly-industrial environments, the Liquidyn P-Jet and P-Dot also feature a low cost
of ownership.
www.nordsonefd.com/PJetCT
Download CAD Models:
www.nordsonefd.com/CAD
Pulse time: Starting at 2 ms (P-Jet); 2 ms (P-Dot)
Input air pressure: 3.0–8.0 bar (44–116 psi)
Fluid body: 303 stainless steel or PEEK (P-Jet only)
Heater body: Aluminum
Approvals: CE*, UKCA, TÜV
Warranty: 1 year, limited
All stainless steel parts are passivated.
*This valve meets the EN 61326-1:2013, FCC Part 15 Subpart B, and ICES-003 Issue 6 product
family standard for immunity and emissions when connected to a Nordson EFD Liquidyn controller.
Usage with any other controller does not guarantee electromagnetic compatibility (EMC) performance.
Specications
Size: P-Dot: 38.6w x 126.7h x 61.0l mm (1.52w x 4.99h x 2.40l")
P-Jet: 20.0w x 138.5h x 78.5l mm (0.79w x 5.4"h x 3.09l")
Weight: 270.0 g (9.5 oz)
Maximum uid pressure: 100 bar (1450 psi)
Fluid inlet: M8 x 1, at sealing
Mounting: M3 x 25
Maximum operating P-Dot: 150Hz
frequency: P-Jet: 280Hz
For use with
• Anaerobics
• Epoxies
• Fluxes
• Glues
• Greases
• Silicones
• Sealing Lacquers
• UV-cure Adhesives
5151
7825149
7825120
7825121
7825136
7825024
7825028
7825033
7825034
7825189
7825188
7825190
7825037
7825038
7825008
7825182
7825011
7825063
7825075
7825919
7825094
7825100
7825042
7825044
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
LIQUIDYN JET VALVE NOZZLES
Part Part # Description P-Dot P-Jet
Liquidyn Jetting Systems
LIQUIDYN JET VALVE COMPONENTS
Part Part # Description P-Dot P-Jet
The pneumatic jet valves can be uniquely configured to achieve the best dispensing result for your material and application. A Nordson EFD application
specialist will help select the best valve system components for optimal jetting performance.
Kit, standard nozzle heater
3 3
Steel luer lock adapter for syringe barrels
3 3
Plastic luer lock adapter for syringe barrels
—
3
Plastic tube connector for 3.2 mm OD tubing
—
3
Tappet, P-Jet, 40L x 2.0D mm, steel
—
3
Tappet, P-Jet, 40L x 2.0D mm, ceramic
—
3
Tappet, P-Dot , 27L x 2.0D mm, steel
3
—
Tappet nut, P-Dot
3
—
NBR O-ring (gasket)
3 3
EPDM O-ring (gasket)
3 3
Viton O-ring (gasket)
3 3
Steel uid body
3 3
Plastic uid body
—
3
Drainage block
3
—
2.5 m (8.2 ft) M8 valve cable
3 3
Safety plate
3
—
Other selections are available. Please consult EFD’s Technical Service team for available components.
Key:
3
Applicable
—
Not applicable
Steel at nozzle, 150 m
3 3
Steel needle nozzle, 150 m
3 3
Steel needle nozzle, 250 m
—
3
Plastic needle nozzle with steel tip, 150 m
—
3
Plastic needle nozzle with PTFE tip, 200 m
—
3
Hexagon retaining nut
3 3
Knurled retaining nut for plastic nozzles with tip
—
3
LIQUIDYN JET VALVE FLUID FITTINGS
Fitting Part # Description P-Dot P-Jet
5252
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Liquidyn Jetting Systems
Liquidyn V200
Controller
7825168 Liquidyn V200 Controller
The Liquidyn V200 controller allows operators
to quickly find the best settings for optimal
dispensing results. Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
Features and Benets
• Programmable dispensing parameters — up to four programs
• Continuous shot operation up to 150Hz (P-Dot) and 280Hz (P-Jet)
• Continuous display of actual pressure and temperature readings
• Setpoint Counter sets the number of shots and shows the actual number
of shots deposited
The Liquidyn V200 controller provides safe, easy operation of the Liquidyn P-Jet and
P-Dot jet valves and greater control over dispensing outcomes. By providing control
of dispensing parameters, the Liquidyn V200 makes it possible to optimize valve
performance. Two precision pressure regulators and a digital display make it easy to
adjust parameters to get the perfect deposit.
“The benefits of working with EFD include
product support, product reliability, and a
wide range of products to handle almost
anything we encounter.”
– Micro Instrument Corp.
External power AC/DC power supply and power cord: 100–240 VAC, 50/60Hz,
adapter: 1.4 Amp input; 24 VDC, 2.5 Amp, 60 W maximum output
Feedback circuit: 0 VDC (logical low), 24 VDC (logical high)
Input air pressure: 6.2–10.3 bar (90–150 psi)
Temperature control: 0–90° C (32–194° F)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Specications
Cabinet size: 45.0w x 12.5h x 25.0d cm (17.72w x 4.92h x 9.84d")
Weight: 5.5 kg (12.1 lb)
Cycle rate: Up to 280Hz
Time range: 2–9,999 ms
Electrical power input: 24 VDC, 2.5 Amp minimum
Electrical input Lumberg KFV70
connector:
