52 52 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Liquidyn Jetting Systems Liquidyn V200 Controller 7825168 Liquidyn V200 Controller The Liquidyn V2…
5151
7825149
7825120
7825121
7825136
7825024
7825028
7825033
7825034
7825189
7825188
7825190
7825037
7825038
7825008
7825182
7825011
7825063
7825075
7825919
7825094
7825100
7825042
7825044
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

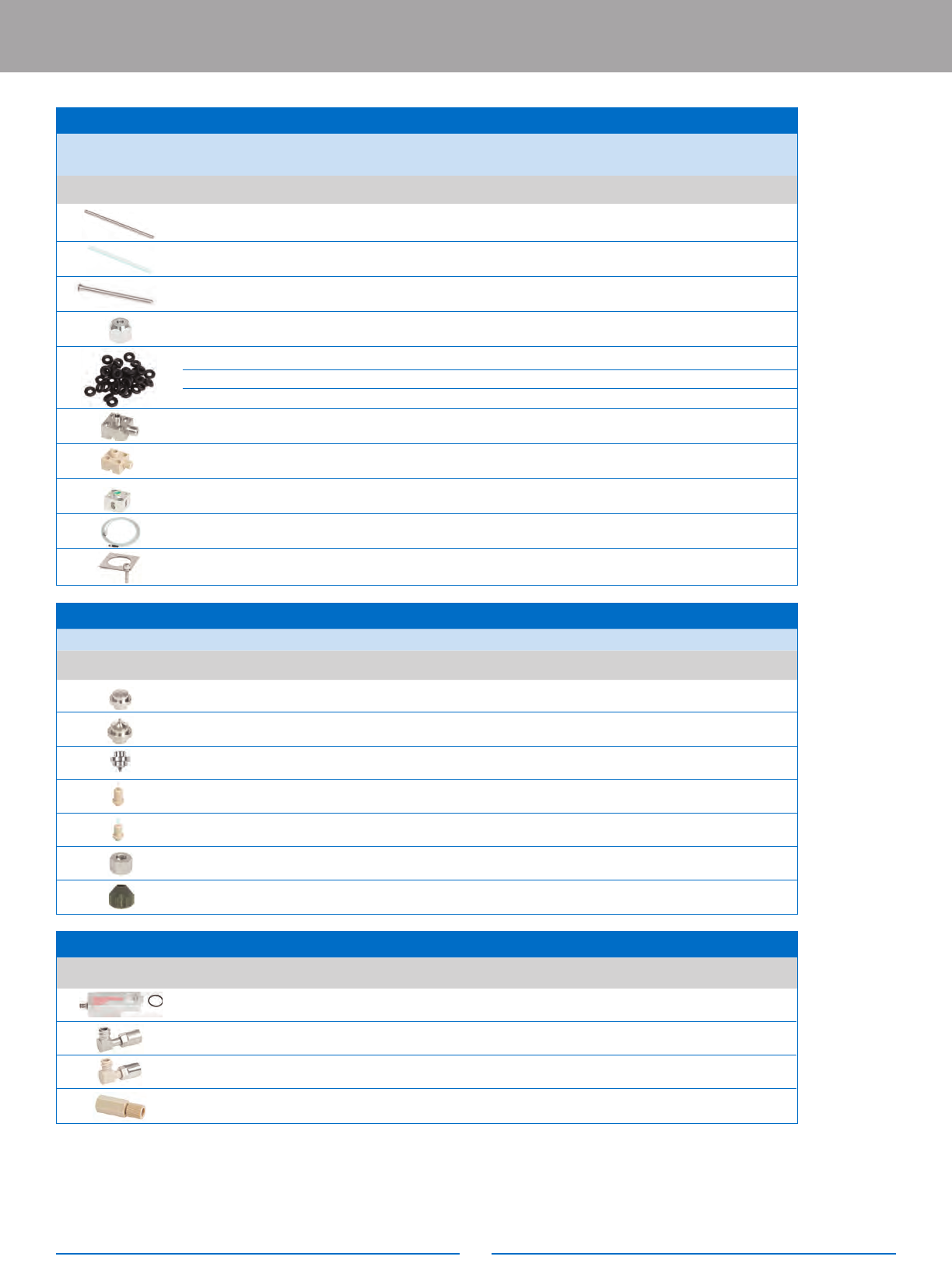

LIQUIDYN JET VALVE NOZZLES
Part Part # Description P-Dot P-Jet
Liquidyn Jetting Systems
LIQUIDYN JET VALVE COMPONENTS
Part Part # Description P-Dot P-Jet
The pneumatic jet valves can be uniquely configured to achieve the best dispensing result for your material and application. A Nordson EFD application
specialist will help select the best valve system components for optimal jetting performance.
Kit, standard nozzle heater
3 3
Steel luer lock adapter for syringe barrels
3 3
Plastic luer lock adapter for syringe barrels
—
3
Plastic tube connector for 3.2 mm OD tubing
—
3
Tappet, P-Jet, 40L x 2.0D mm, steel
—
3
Tappet, P-Jet, 40L x 2.0D mm, ceramic
—
3
Tappet, P-Dot , 27L x 2.0D mm, steel
3
—
Tappet nut, P-Dot
3
—
NBR O-ring (gasket)
3 3
EPDM O-ring (gasket)
3 3
Viton O-ring (gasket)
3 3
Steel uid body
3 3
Plastic uid body
—
3
Drainage block
3
—
2.5 m (8.2 ft) M8 valve cable
3 3
Safety plate
3
—
Other selections are available. Please consult EFD’s Technical Service team for available components.
Key:
3
Applicable
—
Not applicable
Steel at nozzle, 150 m
3 3
Steel needle nozzle, 150 m
3 3
Steel needle nozzle, 250 m
—
3
Plastic needle nozzle with steel tip, 150 m
—
3
Plastic needle nozzle with PTFE tip, 200 m
—
3
Hexagon retaining nut
3 3
Knurled retaining nut for plastic nozzles with tip
—
3
LIQUIDYN JET VALVE FLUID FITTINGS
Fitting Part # Description P-Dot P-Jet
5252
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Liquidyn Jetting Systems

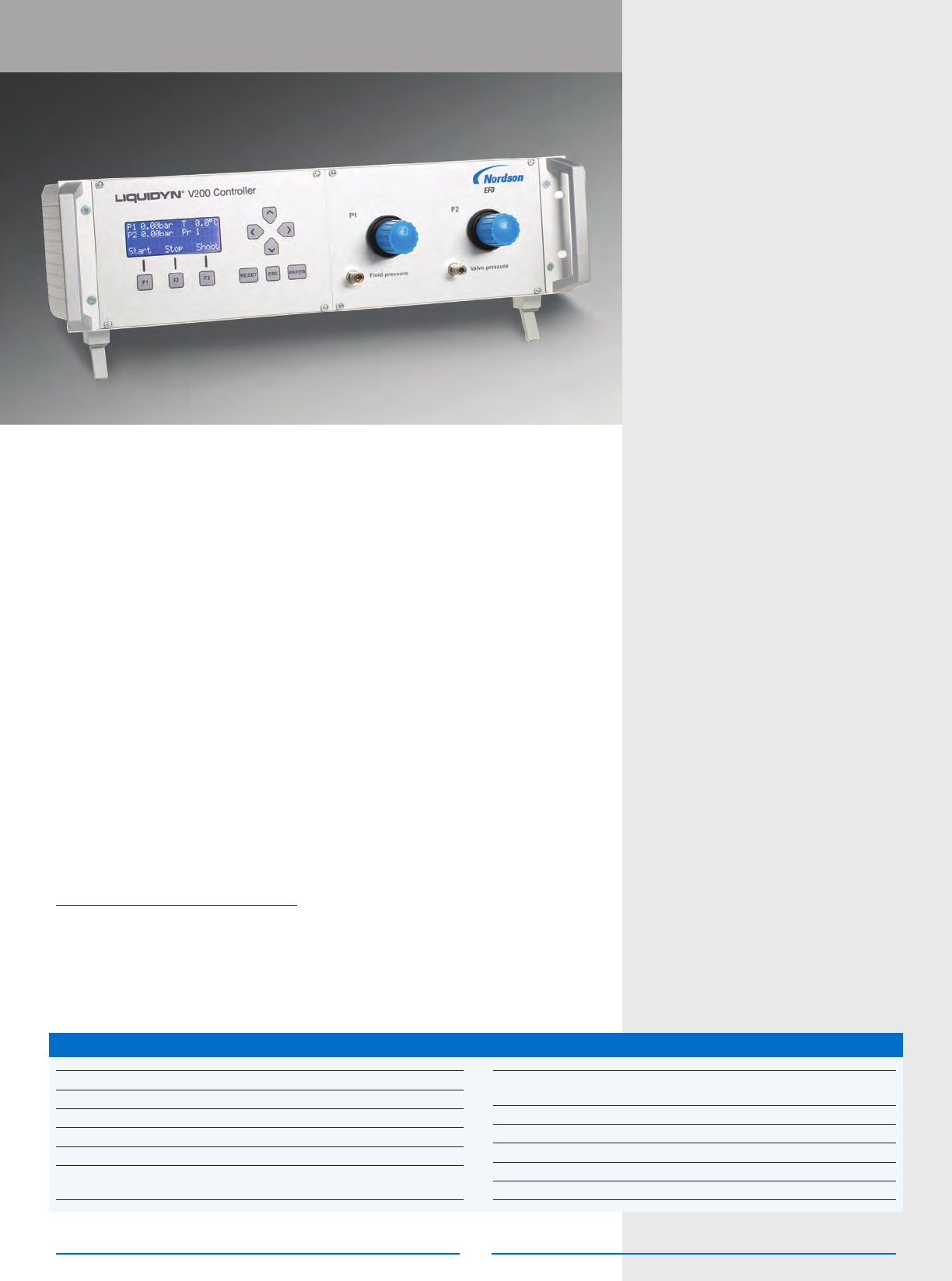

Liquidyn V200
Controller
7825168 Liquidyn V200 Controller
The Liquidyn V200 controller allows operators
to quickly find the best settings for optimal
dispensing results. Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
Features and Benets
• Programmable dispensing parameters — up to four programs
• Continuous shot operation up to 150Hz (P-Dot) and 280Hz (P-Jet)
• Continuous display of actual pressure and temperature readings
• Setpoint Counter sets the number of shots and shows the actual number
of shots deposited
The Liquidyn V200 controller provides safe, easy operation of the Liquidyn P-Jet and
P-Dot jet valves and greater control over dispensing outcomes. By providing control
of dispensing parameters, the Liquidyn V200 makes it possible to optimize valve
performance. Two precision pressure regulators and a digital display make it easy to
adjust parameters to get the perfect deposit.
“The benefits of working with EFD include
product support, product reliability, and a
wide range of products to handle almost
anything we encounter.”
– Micro Instrument Corp.
External power AC/DC power supply and power cord: 100–240 VAC, 50/60Hz,
adapter: 1.4 Amp input; 24 VDC, 2.5 Amp, 60 W maximum output
Feedback circuit: 0 VDC (logical low), 24 VDC (logical high)
Input air pressure: 6.2–10.3 bar (90–150 psi)
Temperature control: 0–90° C (32–194° F)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Specications
Cabinet size: 45.0w x 12.5h x 25.0d cm (17.72w x 4.92h x 9.84d")
Weight: 5.5 kg (12.1 lb)
Cycle rate: Up to 280Hz
Time range: 2–9,999 ms
Electrical power input: 24 VDC, 2.5 Amp minimum
Electrical input Lumberg KFV70
connector:
Download CAD Models:
www.nordsonefd.com/CAD
5353

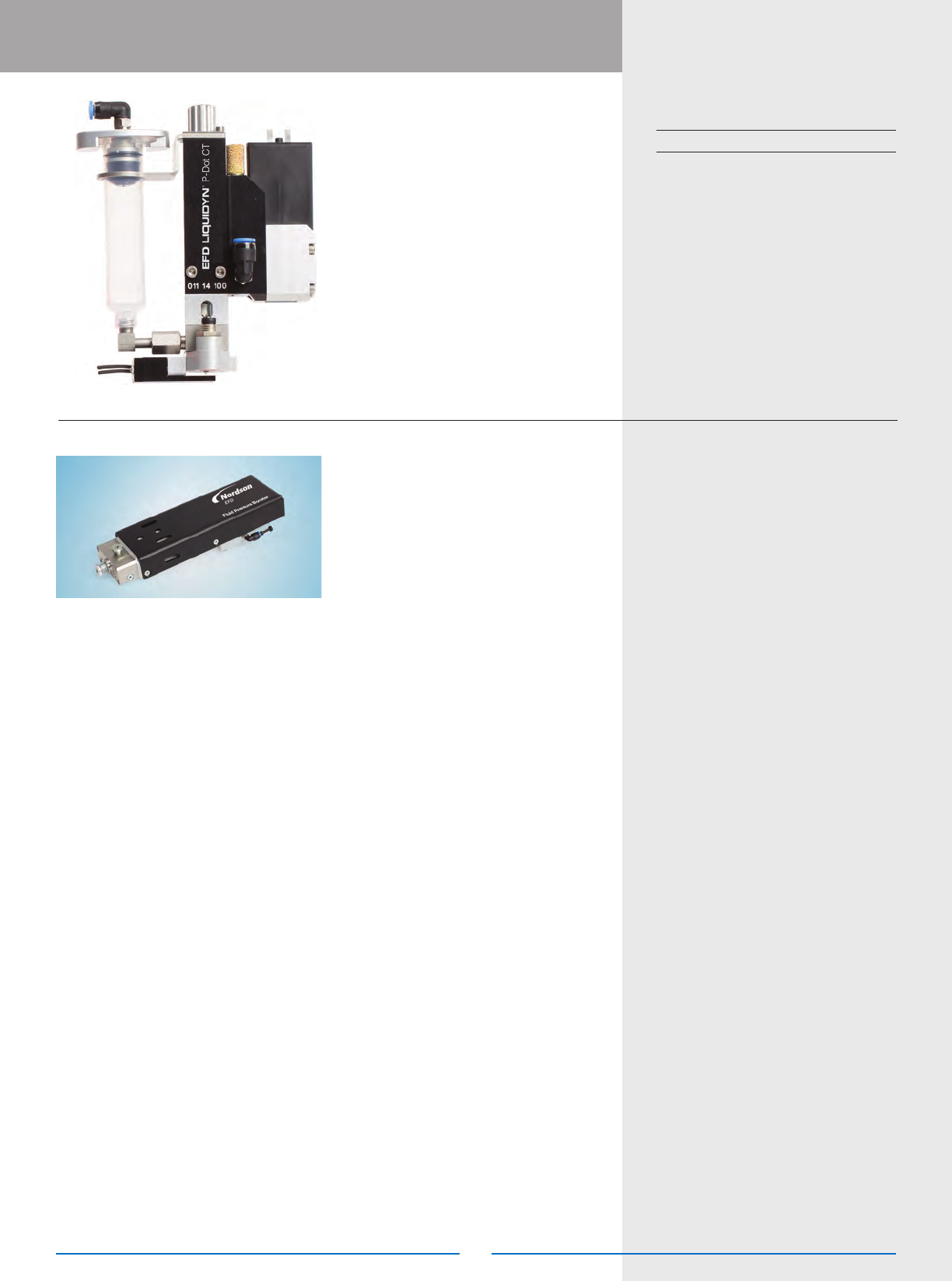

Laser Light Barrier
For use with:
Liquidyn Series Valves
The Laser Light Barrier installs easily
on Liquidyn P-Jet and P-Dot jet valves
to provide precise and reliable process
monitoring, essential for error-free
production.
• Precise detection of even the smallest
deposit volumes
• Standardized output signal
• Only requires compressed air
• Robust operation regardless of
environmental conditions
7825237 Laser Light Barrier
Laser Light Barrier kit includes the signal amplifier,
light barrier, spacer, and M2 screw. A mounting
bracket is sold separately.
Fluid Pressure
Booster
7825243 Fluid Pressure Booster
Designed for micro-dispensing of think materials.
The Nordson EFD Fluid Pressure
Booster is designed to help move thick
materials from a tank or cartridge to
an EFD precision valve by boosting
dispense pressure up to 100 bar
(1450 psi).
The Fluid Pressure Booster increases
the pressure applied to dispensed
materials, facilitating the supply of high-
viscosity greases, adhesives, and silicones. Its modular design allows quick and easy
cleaning of all uid-carrying components, making it particularly suitable for the supply
of adhesives and reactive materials.
Designed for micro-dispensing of thick materials, Fluid Pressure Boosters work with
EFD’s PICO Pµlse and Liqudyn jet valve systems.
Features and Benets
• Modular design
• Transmission ratio of 1:3 allows you to achieve a material pressure of up to
1450 psi (100 bar)
• Only a 24V power supply is required for operation of this standalone device.
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Jetting Accessories
