54
Precision Dispense Valve Systems
Dispense Valves / Controllers
Engineered for the most demanding mechanical and
environmental applications, EFD valve systems provide
reliable dispensing solutions for benchtop applications
machine builders, and cost-effective drop-in retrot
alternatives for automatic production lines.
EFD offers a wide range of valves for dispensing almost any
uid, from thin solvents to thick sealants and braze pastes —
in accurate, repeatable amounts.
Our unique valve designs are exceptionally reliable and will
provide tens of millions of trouble-free dispensing cycles
before maintenance is required.
Features and Benets
• Reliable, low maintenance
• Fast cycle rates allow production lines to run
at optimal speed
• Engineered for the most demanding production
environments
• Clean, drip-free cutoffs reduce waste, mess, and cleanup
• Interactive microprocessor-based controllers simplify PLC
settings and provide consistent operation
• Cost-effective replacement for older technology valves
55
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

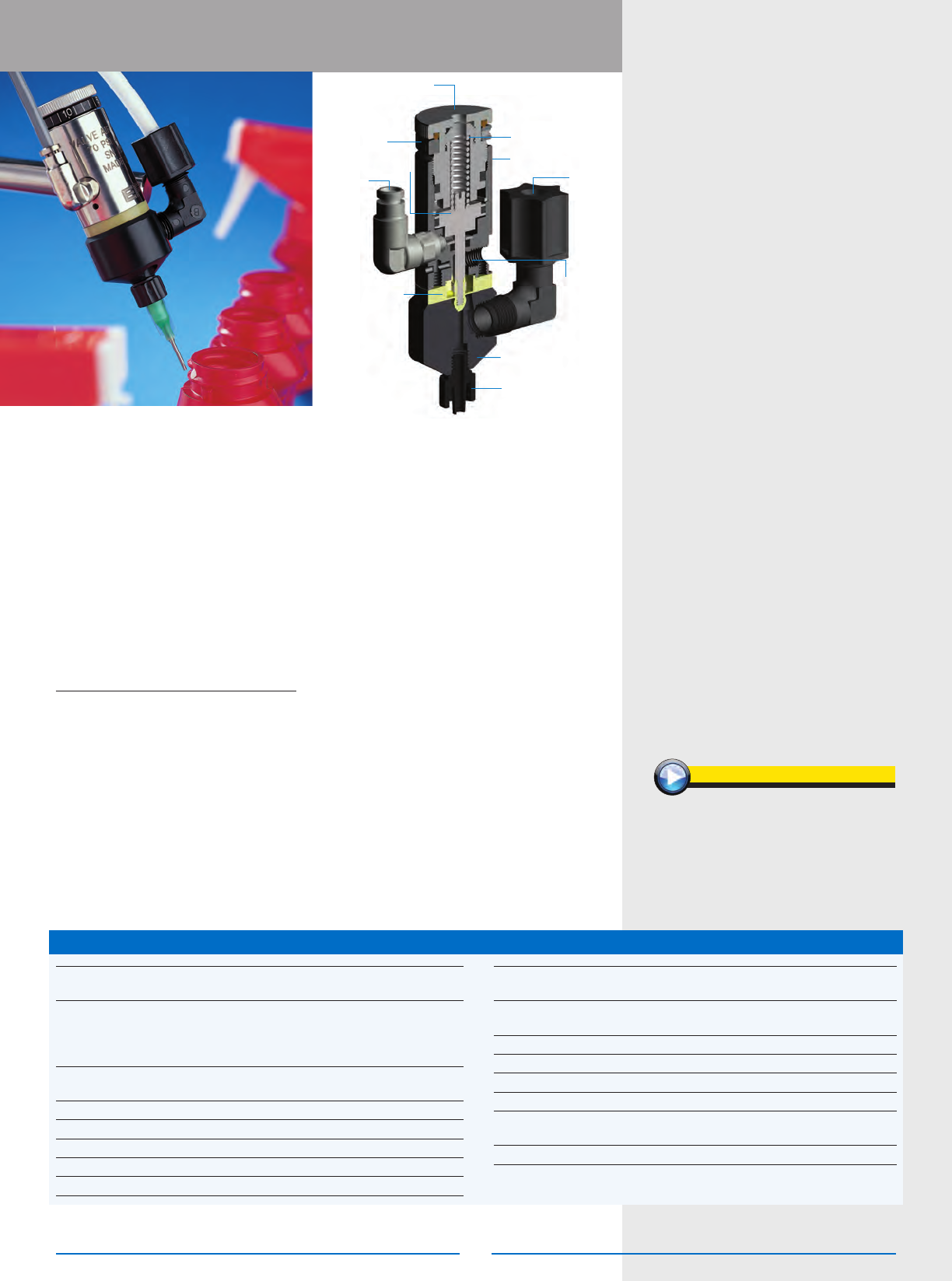

Diaphragm Valves
Piston
Stroke
Reference
Diaphragm
Fluid Body
Tip Adapter
Fluid Inlet
1/8 NPT
Mounting
Hole
10-32 UNF
Air Cylinder Body
Piston Spring
Stroke Adjustment
Actuating
Air Input
10-32 UNF
Features and Benets
• Compact size and weight
• Adjustable uid ow control
• Positive shutoff, no seals
• Low-maintenance design
7021428 752V-UHSS Valve
Air cylinder body assembly is passivated 303 stainless
steel. UHMW fluid body and diaphragm. Includes fluid
inlet fittings #7021499 and #7007038.
7021422 752V-UHMW Valve
Air cylinder body assembly is hard-coated anodized
aluminum. Tamper-resist stroke adjustment. UHMW
diaphragm and 303 stainless steel fluid body with
integral tip adapter. Includes inlet fitting #7021499.
7021419 752V-SS Valve
Air cylinder body assembly is passivated 303 stainless
steel. Acetal copolymer fluid body and UHMW
diaphragm. Includes fluid inlet fittings #7021499 and
#7007038.
7015583 752V-UHSS-BP Valve
Air cylinder body assembly is 303 stainless steel.
UHMW fluid body and diaphragm. Includes fluid fittings
and BackPack valve actuator.
7015582 752V-SS-BP Valve
Air cylinder body assembly is 303 stainless steel.
Acetal copolymer fluid body and UHMW diaphragm.
Includes fluid fittings and BackPack valve actuator.
7021411 752V-DVD Valve
Air cylinder body assembly is hard-coat anodized
aluminum. Tamper-resist stroke adjustment. UHMW
diaphragm and 303 stainless steel fluid body with
integral tip adapter. Includes inlet fitting #7021499.
752V Series
Diaphragm Valve
General-purpose valve is ideal for dispensing controlled amounts of most low-to-
medium viscosity uids. Wetted components are machined from inert UHMW (Ultra
High Molecular Weight) polyethylene, making the 752 Series ideal for use with
cyanoacrylates, anaerobic threadlockers, and other reactive uids.
“Your 752V-UH valves are just great for
cyanoacrylates. We replaced pinch-tube
valves with yours, and our problems are
gone!”
– Copreci
www.nordsonefd.com/752VSeries
See Valve Controllers for system setup
Air cylinder body: 303 stainless steel
752V-DVD, 752V-UHMW: Hard-coated anodized aluminum
Fluid body: 752V-UHSS: UHMW* polyethylene, FDA approved
Options: Acetal, 303 stainless steel, PTFE
Piston: 303 stainless steel
Diaphragm: FDA approved UHMW polyethylene or PTFE
Tip adapter: Polypropylene
Tip retaining nut: 752V-DVD: Aluminum
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
Specications
Size: 752V-UHSS / 752V-SS: 80.7l x 26.9dia mm (3.18l x 1.06dia")
752V-DVD: 76.3l x 26.9dia mm (3.00l x 1.06dia")
Weight: 752V-UHSS: 173.6 g (6.1 oz)
752V-SS: 181.4 g (6.4 oz)
752V-DVD: 172.9 g (6.1 oz)
752V-UHMW: 99.5 g (3.5 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 4.8 bar (70 psi)
Fluid inlet: 1/8 NPT female
Fluid outlet: 1/4-28 UNF
Mounting: (1) 10-32 UNF tapped hole
Cycle rate: Exceeds 500 per minute
For use with
• Activators
• Anaerobics
• Cyanoacrylates
• Fluxes
• Solvents
• UV-cure & Light-cure Adhesives
Download CAD Models:
www.nordsonefd.com/CAD
56
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

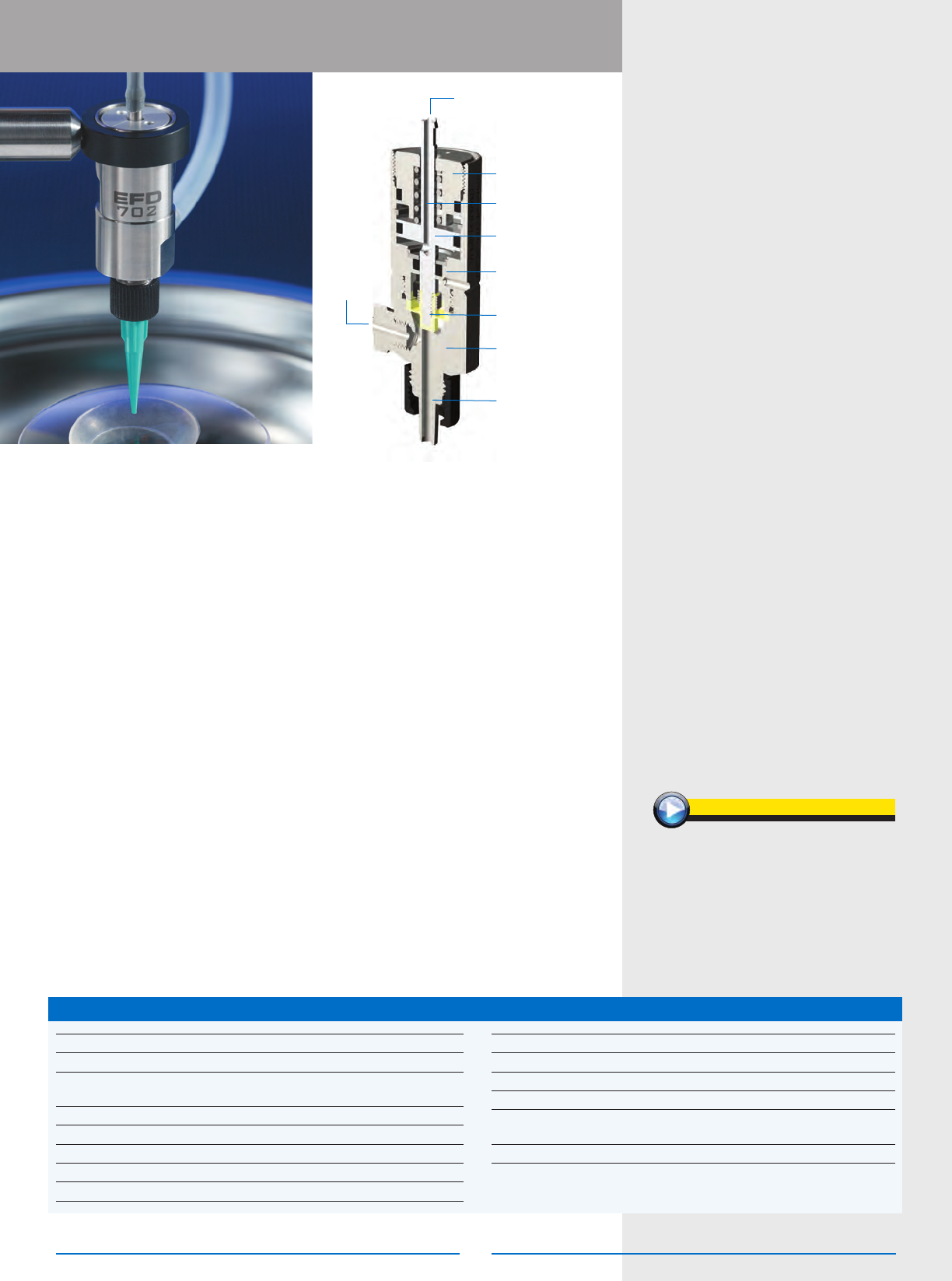

Diaphragm Valves
702 Series
Mini-diaphragm Valve
7020683 702V-SS Valve
For general industry applications. Air cylinder body
and fluid body are made of passivated 303 stainless
steel. UHMW diaphragm. Includes 1.5 m (5 ft) input air
hose with male quick-connect and fluid inlet fitting,
#7020671.
7020679 702M-SS Valve
For optical media applications. Air cylinder body and
fluid body are made of passivated 303 stainless steel.
UHMW diaphragm. Includes sample tip kit of PTFE-
coated tips, (4) each of 21 and 23 gauge.
7020680 702V-A Valve
For dispensing UV cure, anaerobics, and certain
cyanoacrylates. Fluid body is acetal copolymer
with a 303 stainless steel air cylinder body. UHMW
diaphragm. Acetal copolymer wetted parts are
preferred when dispensing UV-cure adhesives,
anaerobics, cyanoacrylates, and other fluids that might
otherwise react when in contact with stainless steel.
Includes 1.5 m (5 ft) input air hose with male quick-
connect and fluid inlet fitting, #7020677.
Features and Benets
• Unique design eliminates trapped air
and bubbles
• Tamper-resist stroke adjustments
• Quick, clean cutoff eliminates drips
• Faster throughput
60% smaller and 70% lighter than typical dispense valves, the 702 Series is ideal
for applications where space is tight or installation on movable arms where size and
weight must be considered.
The 702M-SS applies consistent, precise deposits of dye, UV-cure lacquers, and
UV-cure adhesives in the optical media industry.
The 702V is designed for drip-free coating and consistent shot-to-shot bonding of
UV-cure adhesives and other low- to medium-viscosity uids.
Air Cylinder Body
Diaphragm
Piston Spring
Tamper-resist
Stroke Adjustment
Piston
Fluid Inlet
M5 x 0.8
Actuating
Air Input
Fluid Body
Tip Retaining Nut
www.nordsonefd.com/702Series
See Valve Controllers for system setup
Fluid body: 303 stainless steel
Piston: 303 stainless steel
Diaphragm: FDA approved UHMW* polyethylene or PTFE
Tip retaining nut: Aluminum
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
Specications
Size: 63.5l x 19.1dia mm (2.50l x 0.75dia")
Weight (less ttings): 49.3 g (1.7 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 4.8 bar (70 psi)
Fluid inlet: M5 x 0.8
Mounting: Adjustable mounting block (#7020507)
Cycle rate: Exceeds 500 per minute
Air cylinder body: 303 stainless steel
For use with
• Dyes
• Resins
• Solvents
• UV-cure Adhesives
• UV-cure Coatings
• UV-cure Lacquers
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
