Diaphragm Valves
702 Series
Mini-diaphragm Valve
7020683 702V-SS Valve
For general industry applications. Air cylinder body
and fluid body are made of passivated 303 stainless
steel. UHMW diaphragm. Includes 1.5 m (5 ft) input air
hose with male quick-connect and fluid inlet fitting,
#7020671.
7020679 702M-SS Valve
For optical media applications. Air cylinder body and
fluid body are made of passivated 303 stainless steel.
UHMW diaphragm. Includes sample tip kit of PTFE-
coated tips, (4) each of 21 and 23 gauge.
7020680 702V-A Valve
For dispensing UV cure, anaerobics, and certain
cyanoacrylates. Fluid body is acetal copolymer
with a 303 stainless steel air cylinder body. UHMW
diaphragm. Acetal copolymer wetted parts are
preferred when dispensing UV-cure adhesives,
anaerobics, cyanoacrylates, and other fluids that might
otherwise react when in contact with stainless steel.
Includes 1.5 m (5 ft) input air hose with male quick-
connect and fluid inlet fitting, #7020677.
Features and Benets
• Unique design eliminates trapped air
and bubbles
• Tamper-resist stroke adjustments
• Quick, clean cutoff eliminates drips
• Faster throughput
60% smaller and 70% lighter than typical dispense valves, the 702 Series is ideal
for applications where space is tight or installation on movable arms where size and
weight must be considered.
The 702M-SS applies consistent, precise deposits of dye, UV-cure lacquers, and
UV-cure adhesives in the optical media industry.
The 702V is designed for drip-free coating and consistent shot-to-shot bonding of
UV-cure adhesives and other low- to medium-viscosity uids.
Air Cylinder Body
Diaphragm
Piston Spring
Tamper-resist
Stroke Adjustment
Piston
Fluid Inlet
M5 x 0.8
Actuating
Air Input
Fluid Body
Tip Retaining Nut
www.nordsonefd.com/702Series
See Valve Controllers for system setup
Fluid body: 303 stainless steel
Piston: 303 stainless steel
Diaphragm: FDA approved UHMW* polyethylene or PTFE
Tip retaining nut: Aluminum
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
Specications
Size: 63.5l x 19.1dia mm (2.50l x 0.75dia")
Weight (less ttings): 49.3 g (1.7 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 4.8 bar (70 psi)
Fluid inlet: M5 x 0.8
Mounting: Adjustable mounting block (#7020507)
Cycle rate: Exceeds 500 per minute
Air cylinder body: 303 stainless steel
For use with
• Dyes
• Resins
• Solvents
• UV-cure Adhesives
• UV-cure Coatings
• UV-cure Lacquers
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
57
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Diaphragm Valves
752HF Series
High Flow Diaphragm
Valve
7014315 752HF-SS Valve
Same as 752HF-A except fluid body is passivated 303
stainless steel.
7014139 752HF-A Valve
Air cylinder body assembly and tamper-resist stroke
reference knob are hard-coated anodized aluminum.
Acetal copolymer fluid body and UHMW diaphragm.
Includes fluid inlet fittings #7021499 and #7007038.
Features and Benets
• High-ow capability for thicker
UV-cure coatings
• Valve open time as short as
15 milliseconds
• Positive shutoff, no seals
• Compact and lightweight
The 752HF valve system is specically designed for precise dispensing of
UV-cure resins and similar uids used in media manufacturing of Blu-Ray DVDs,
DVDs, and CDs. Unrestricted material ow reduces turbulence and the formation
of micro bubbles.
Air Cylinder Body
Diaphragm
Tamper-resist
Stroke Adjustment
Piston
Fluid Body
Tip Retaining Nut
Piston Spring
Fluid Inlet
1/8 NPT
“We never expected these valves would
work this great and be this reliable! Over 50
million cycles without maintenance!”
– Capitol Records
See Valve Controllers for system setup
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Size: 77.3l x 28.6dia mm (3.04l x 1.13dia")
Weight (less ttings): 752HF-A: 81.0 g (2.8 oz)
752HF-SS: 123.0 g (4.3 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 4.8 bar (70 psi)
Fluid inlet: 1/8-27 NPT
Mounting: (1) M5 x 0.8
Cycle rate: Exceeds 500 per minute
Air cylinder body: Hard-coated anodized aluminum
Fluid body: 752HF-A: Acetal copolymer
752HF-SS: 303 stainless steel
Piston: 303 stainless steel
Diaphragm: FDA approved UHMW* polyethylene
Tip retaining nut: Aluminum
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
For use with
• Resins
• UV-cure Adhesives
• UV-cure Coatings
www.nordsonefd.com/752HFSeries
58
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Diaphragm Valves
Features and Benets
• Accurate, consistent shot size
• Clean cutoff eliminates drips
• Diaphragm life exceeds 1x10
8
• Positive shutoff, no seals

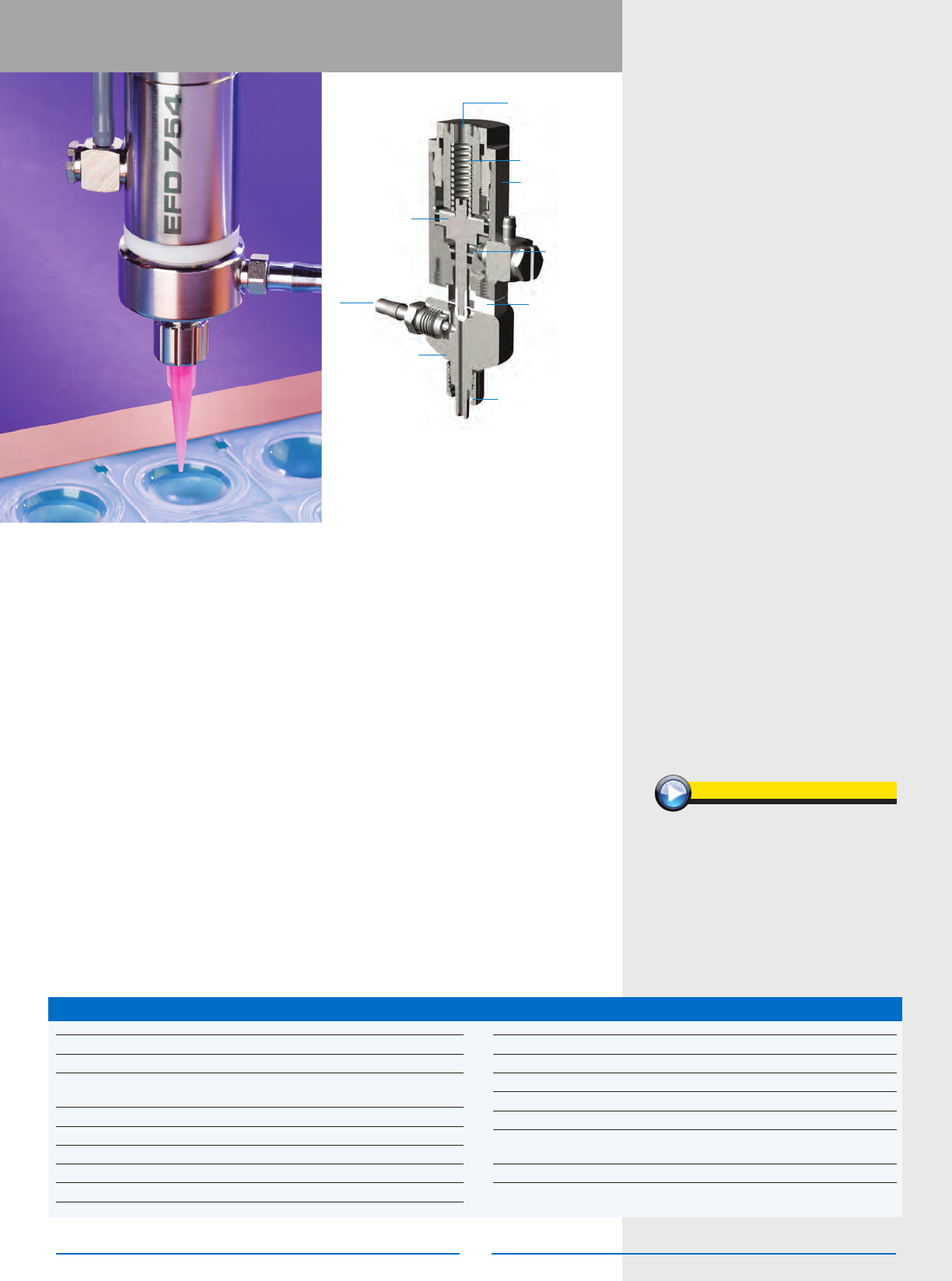

7021514 754V-SS Valve
Wetted components are made of 316L stainless
steel and PTFE, to conform to biopharmaceutical
regulations. Internal threads have been removed to
provide a smooth, easily cleaned fluid flow path, free
of entrapped areas. Fluid body is electro-polished to
increase corrosion resistance.
754V valve includes 1.5 m (5 ft) input air hose
with male quick-connect, barbed fluid inlet fitting,
polypropylene tip adapter, and dispensing tip kit.
754V Series
Aseptic Valve
The 754V aseptic valve features a smooth uid ow path that is free of any entrapment
areas. FDA-compliant wetted parts are made of 316L stainless steel and PTFE, making
the valve suitable for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes.
Piston
Air Cylinder Body
Diaphragm
Fluid Inlet
5/16-24 UNF
Tip Retaining Nut
Fluid Body
Piston Spring
Tamper-resist
Stroke Adjustment
Actuating Air
Input M5
x 0.8
For Aseptic Spray Valves, see Spray
Valves section.
www.nordsonefd.com/754VSeries
See Valve Controllers for system setup
Specications
Size: 77.5l x 26.9dia mm (3.05l x 1.06dia")
Weight: 193.3 g (6.8 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 4.8 bar (70 psi)
Fluid inlet: 5/16-24 UNF
Fluid outlet: Male luer lock
Mounting: None
Cycle rate: Exceeds 500 per minute
Air cylinder body: 316L stainless steel
Fluid body: 316L stainless steel
Piston: 316L stainless steel
Diaphragm: PTFE
Tip retaining nut: 316L stainless steel
Maximum operating 43° C (110° F)
temperature: Autoclaving: 260° C (500° F)
Warranty: 1 year, limited
All stainless steel parts are passivated.
For use with
• Food Processing
• Optical Monomers
• Pill Coating
• Saline Solutions
• Solvents
• Vial Filling
Download CAD Models:
www.nordsonefd.com/CAD
