www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 High Precision Dispensers 7364361 UltimusPlus I Features a 0.7–7.0 bar (10–100 psi) pressure regulator t…
33
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

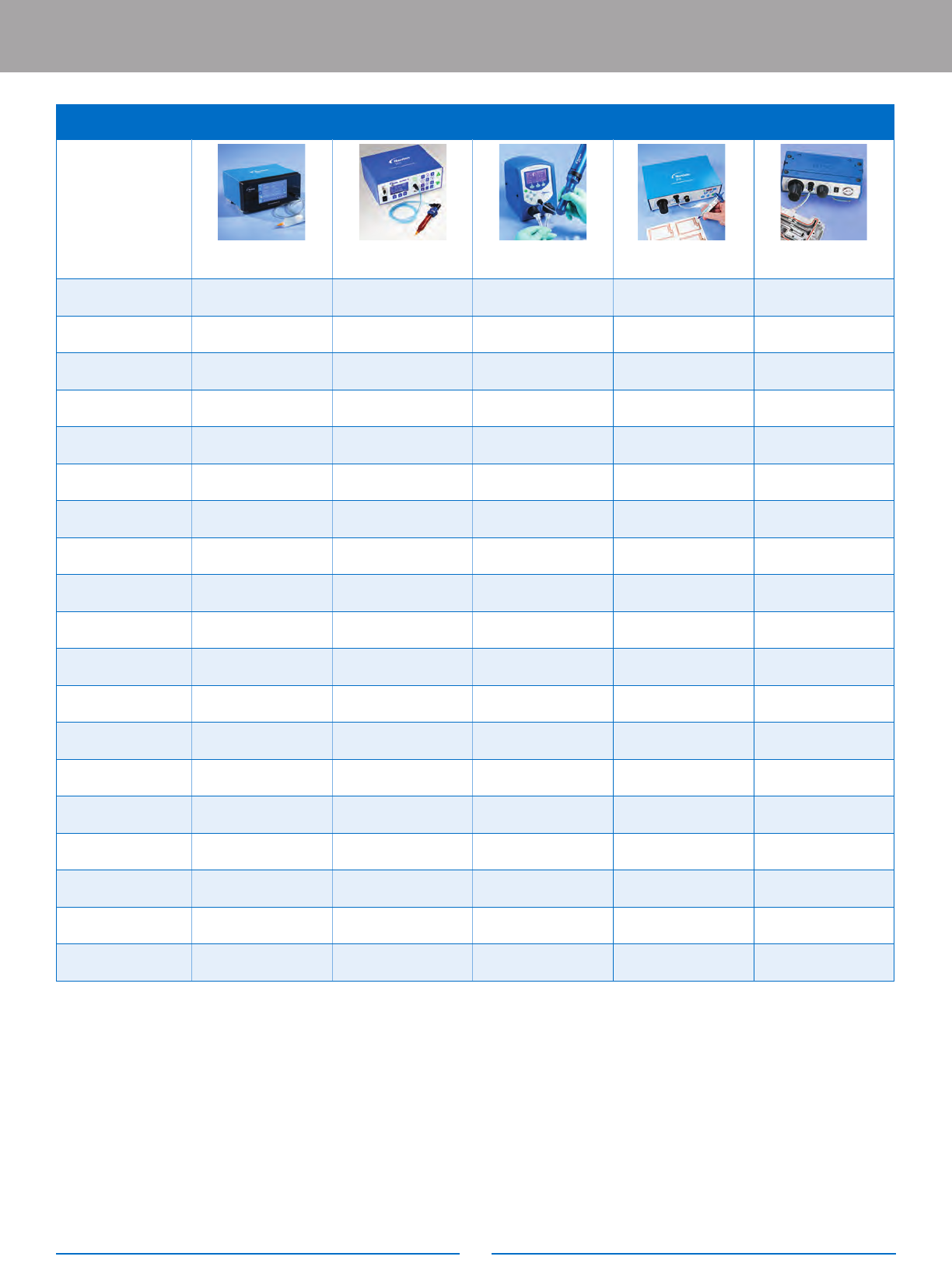

Precision Fluid Dispenser Selection Guide
BENCHTOP DISPENSERS
UltimusPlus I / II
Ultimus V
Ultimus I / II
Performus X100 / X15
Performus I
Type Air Powered Air Powered Air Powered Air Powered Air Powered
Recommended Fluids
All fluids /
Low-viscosity uids
All fluids
All fluids /
Low-viscosity uids
All fluids /
Low-viscosity uids
All uids
Air Pressure Range
0.7–7.0 bar (10–100 psi) /
0–1.0 bar (0.3–15 psi)
0–7.0 bar (0–100 psi)
0–7.0 bar (0–100 psi) /
0–1.0 bar (0–15 psi)
0–7.0 bar (0–100 psi) /
0–1.0 bar (0–15 psi)
0–7.0 bar (0–100 psi)
Time Range 0–999.9999 s 0-9.9999 s 0–999.9999 s 0–99.9 s —
Warranty 5 years
1
1 year 5 years
1
2 years 1 year
Steady Mode
P P P P P
Teach Mode
P P P P
—
Timed Mode
P P P P
—
Display Touchscreen LCD LCD — —
Digital Pressure / Time
P P P P
Analog
Digital Vacuum
P P P
Analog Analog
Multilingual
P P P
— —
Lockout All Parameters Time & Pressure Time — —
Number of Programs
16 (time, pressure, vacuum,
barcode)
400 (time, pressure, vacuum) 16 (time) — —
Multiple Cycles MultiShot
2
Auto Sequence
3
— — —
Initiate Signal
P P P P
—
End-of-Cycle Feedback
P P P P
—
RS-232 —
P
— — —
Ethernet
P
4
— — — —
1
Two years in Asia.
2
MultiShot
allows multiple shots from a single press of the foot pedal.
3
Programmable memory that automatically adjusts dispensing parameters for viscosity changes.
4
UltimusPlus allows remote control from a PLC or computer via NX protocol
P
Applicable | — Not applicable
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
High Precision Dispensers
7364361 UltimusPlus I
Features a 0.7–7.0 bar (10–100 psi) pressure
regulator that handles all fluids.
Also includes NX protocol via Ethernet.
Order power cord separately.
7364475 UltimusPlus I – Calibrated
Same as #7364361 but the unit has been
calibrated to EFD’s specifications using standards
traceable to the National Institute of Standards and
Technology (NIST). Also includes NX protocol via
Ethernet. Order power cord separately.
7364362 UltimusPlus II
Has a 0.02–1.0 bar (0.3–15 psi) regulator that
provides greater control when dispensing thin
fluids. Also includes NX protocol via Ethernet.
Order power cord separately.
7364476 UltimusPlus II – Calibrated
Same as #7364362 but the unit has been
calibrated to EFD’s specifications using standards
traceable to the National Institute of Standards and
Technology (NIST). Also includes NX protocol via
Ethernet. Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit

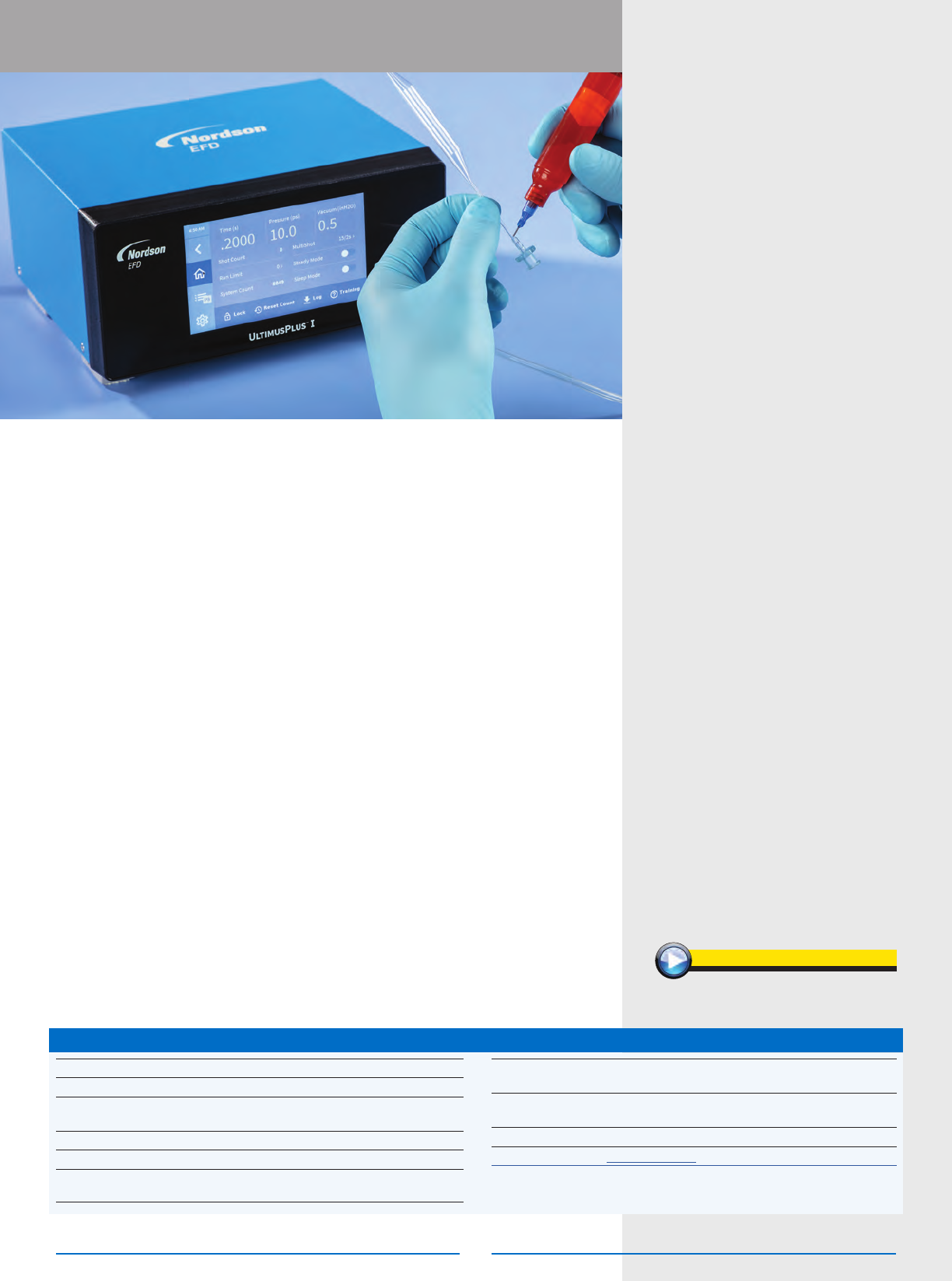

UltimusPlus Series
Experience a new level of ease with Nordson EFD’s UltimusPlus
™
dispensers. Train
operators in seconds with intuitive touchscreen control of dispensing parameters.
Designed to simplify setup and operation, the advanced functionality of the
UltimusPlus allows operators to focus on making accurate, controlled deposits.
Features and Benets
• Electronic pressure regulation with full
operator lockout
• Optional barcode scanner allows you
to automatically alternate between
16 programs
• Dispense multiple shots from a single
press of the foot pedal with MultiShot
™
• Enable process verication by
downloading Dispense Log data
• Support Smart Factory integration
using Ethernet compatibility with NX
protocol via TCP/IP
• Improve operational efciency
by programming and monitoring
dispensing from a PLC or personal
computer
Order Your Components
Nordson EFD Optimum
®
components are
designed to work with your dispenser as
part of a complete, integrated system that
produces the most accurate, repeatable
deposits possible. See Optimum
Dispensing Components for details.
4
Specications
Cabinet size: 21.2w x 10.8h x 19.2d cm (8.33w x 4.27h x 7.55d")
Weight: 1.8 kg (4.0 lb)
Power adapter: AC input: 100-240 VAC (+/-10%), ~50/60 Hz, 0.6 Amp
DC Output: 24 VDC @ 3.75 Amp
Cycle rate: Exceeds 600 cycles per minute
Time range: 0.0001–999.9999 s
End-of-cycle 24 VDC; 100 mA maximum
feedback circuits:
Cycle initiate: Foot pedal, nger switch, 24 VDC signal, or mechanical
contact closure
Air output: UltimusPlus I: 0.7–7.0 bar (10–100 psi)
UltimusPlus II: 0.02–1.0 bar (0.3–15 psi)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: See Product Manual
www.nordsonefd.com/UltimusPlusVideo
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
High Precision Dispensers
7012590 Ultimus V
Features a 0–7.0 bar (0–100 psi) pressure
regulator that handles all fluids. Order power
cord separately.
7012589 Ultimus V – Calibrated
Same as #7012590 but the unit has been
calibrated to EFD’s specifications using standards
traceable to the National Institute of Standards and
Technology (NIST). Order power cord separately.
7014503 Ultimus V Optimeter 30cc
Specifically designed to work with the
UltimusV, the patented Optimeter
TM
provides
evengreater control when dispensing all fluids
byautomatically increasing airflow as the
syringe barrel empties. Specify #7014504 for
Optimeter 10cc.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit

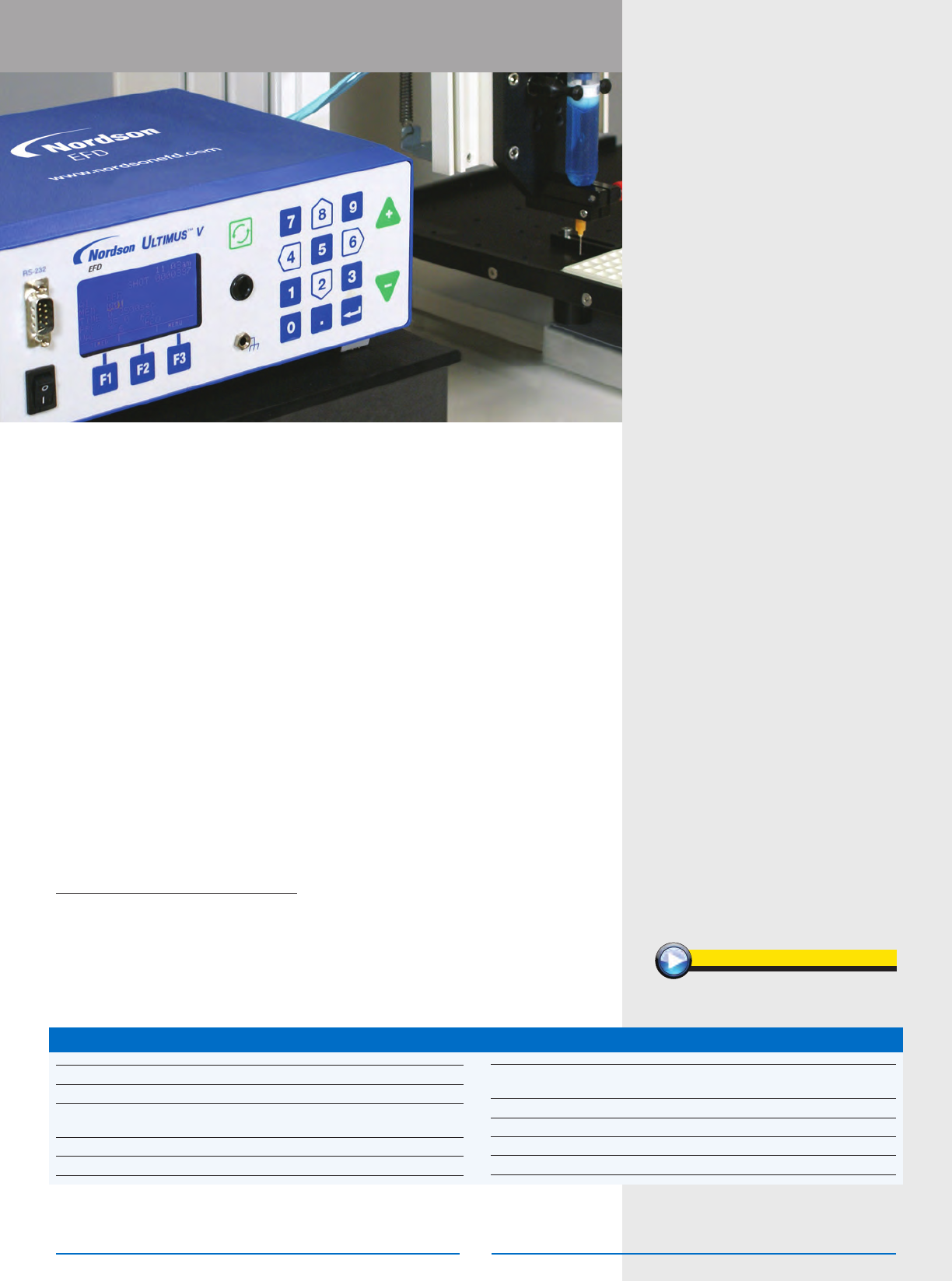

Ultimus
V Series
The Ultimus
™
V High Precision Dispenser provides the highest level of accuracy and
process control when applying uids that change viscosity, including 2-part epoxies
and other uids that thicken over time, as well as UV-cure adhesives and materials
that get thinner as ambient temperatures rise.
Features and Benets
• Fully electronic control of dispense
time, air pressure, and vacuum to
ensure exceptionally high accuracy,
repeatability, and shot consistency
• Programmable memory that
automatically adjusts dispensing
parameters for viscosity changes
• Interactive PC software and remote
communications with PC/PLC
via RS-232 protocol
• Selectable operator lockout and
alarm settings
www.nordsonefd.com/Ultimus-V
“Nordson EFD’s Ultimus V dispenser is a
notable improvement over the previous
generation, reducing variation and
improving shot-to shot-consistency.”
– Renishaw
Cabinet size: 22.5w x 9.50h x 19.9d cm (8.86w x 3.74h x 7.85d")
Weight: 3.4 kg (7.7 lb)
Internal AC-DC AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.5 A
power supply: DC output (internal): 24 VDC @ 1.7 A
Cycle rate: Exceeds 600 cycles per minute
Time range: 0-9.9999 s
End-of-cycle 5–24 VDC, 100 mA maximum
feedback circuits:
Cycle initiate: Foot pedal, nger switch, or 5–24 VDC signal
Air output: 0–7.0 bar (0–100 psi)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Specications
Order Your Components
Nordson EFD Optimum components are
designed to work with your dispenser as
part of a complete, integrated system that
produces the most accurate, repeatable
deposits possible. See Optimum
Dispensing Components for details.
