59 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Piston Valves Features and Benets • Positive shutoff • Excellent chemical resistance • End-of-cycle …
58
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Diaphragm Valves
Features and Benets
• Accurate, consistent shot size
• Clean cutoff eliminates drips
• Diaphragm life exceeds 1x10
8
• Positive shutoff, no seals
7021514 754V-SS Valve
Wetted components are made of 316L stainless
steel and PTFE, to conform to biopharmaceutical
regulations. Internal threads have been removed to
provide a smooth, easily cleaned fluid flow path, free
of entrapped areas. Fluid body is electro-polished to
increase corrosion resistance.
754V valve includes 1.5 m (5 ft) input air hose
with male quick-connect, barbed fluid inlet fitting,
polypropylene tip adapter, and dispensing tip kit.
754V Series
Aseptic Valve
The 754V aseptic valve features a smooth uid ow path that is free of any entrapment
areas. FDA-compliant wetted parts are made of 316L stainless steel and PTFE, making
the valve suitable for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes.
Piston
Air Cylinder Body
Diaphragm
Fluid Inlet
5/16-24 UNF
Tip Retaining Nut
Fluid Body
Piston Spring
Tamper-resist
Stroke Adjustment
Actuating Air
Input M5
x 0.8
For Aseptic Spray Valves, see Spray
Valves section.
www.nordsonefd.com/754VSeries
See Valve Controllers for system setup
Specications
Size: 77.5l x 26.9dia mm (3.05l x 1.06dia")
Weight: 193.3 g (6.8 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 4.8 bar (70 psi)
Fluid inlet: 5/16-24 UNF
Fluid outlet: Male luer lock
Mounting: None
Cycle rate: Exceeds 500 per minute
Air cylinder body: 316L stainless steel
Fluid body: 316L stainless steel
Piston: 316L stainless steel
Diaphragm: PTFE
Tip retaining nut: 316L stainless steel
Maximum operating 43° C (110° F)
temperature: Autoclaving: 260° C (500° F)
Warranty: 1 year, limited
All stainless steel parts are passivated.
For use with
• Food Processing
• Optical Monomers
• Pill Coating
• Saline Solutions
• Solvents
• Vial Filling
Download CAD Models:
www.nordsonefd.com/CAD
59
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Piston Valves
Features and Benets
• Positive shutoff
• Excellent chemical resistance
• End-of-cycle snuff-back
• Diaphragm life exceeds 50 million
cycles
7021014 725DA-SS Valve
Adjustable piston stroke provides fine-tuning of fluid
flow rate and pullback volume. UHMW diaphragm
and sealing head. Fluid body and body cap are
passivated 303 stainless steel. Includes fluid inlet
fittings #7021499 and #7007038.
7021010 725DA-AL Valve
Adjustable piston stroke provides fine-tuning of fluid
flow rate and pullback volume. UHMW diaphragm
and sealing head. Fluid body and body cap are
aluminum. Includes fluid inlet fittings #7021499
and #7007038.
7021009 725D-SS Valve
Fixed stroke travel. Fluid body and body cap are
passivated 303 stainless steel. UHMW diaphragm
and sealing head. Includes fluid inlet fittings
#7021499 and #7007038.

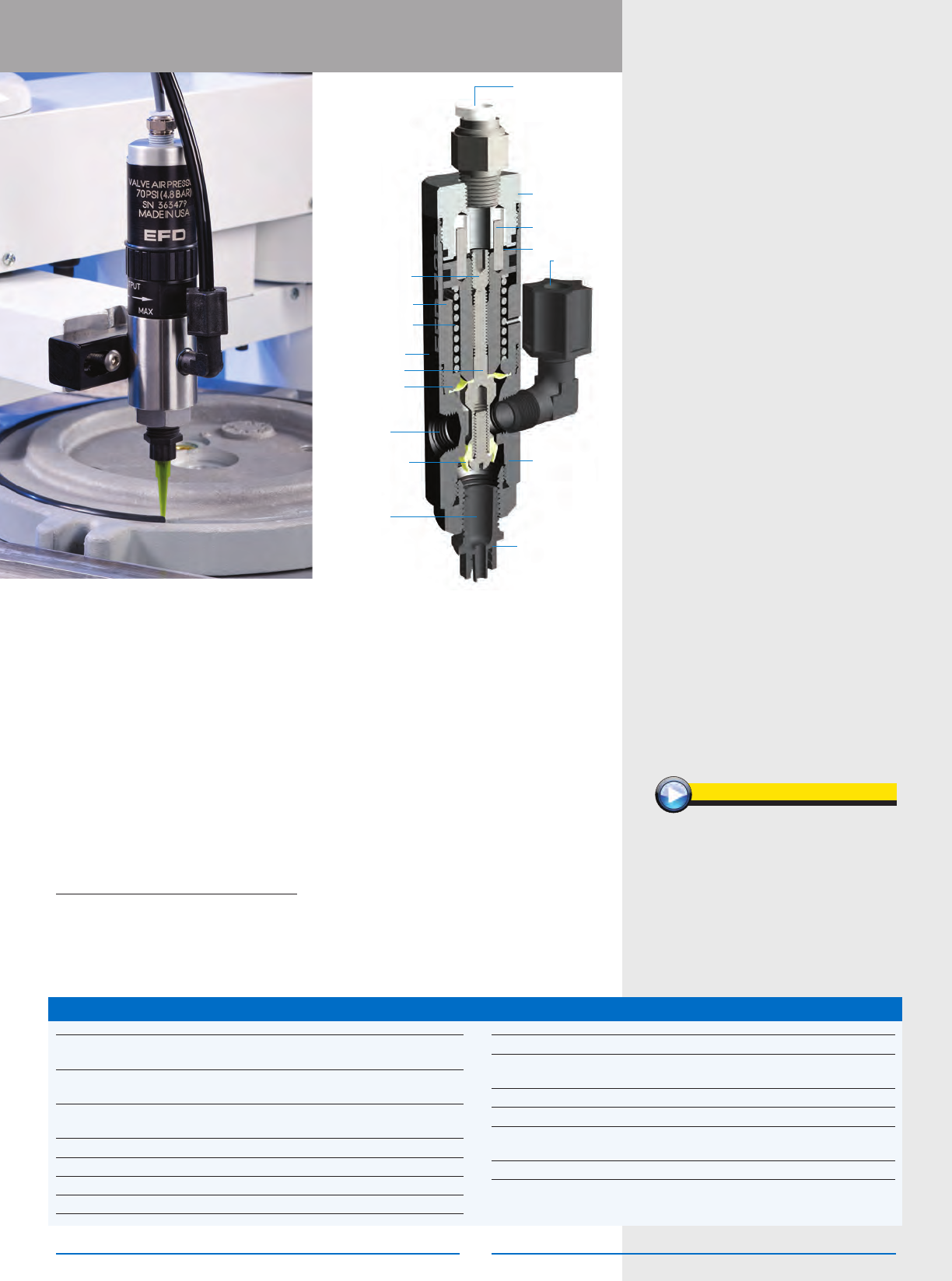

725D Series
Piston Valve
Piston Spring
Diaphragm
Mounting Hole
1/8 NPT
Fluid Body
Shaft Locking
Screw
Piston Stop
Body Cap
Fluid Outlet
1/4 NPT
Shaft
Sealing Head
Tip Adapter
Guide Pins
Piston
Air Cylinder Cap
Air Cylinder Body
Fluid Inlet
1/8 NPT
Actuating Air Input
1/8 NPT
The 725D Series valve systems consistently dispense a wide range of medium to thick
uids, including greases and silicones.
The 725DA-SS provides stroke adjustment for both uid ow and snuff-back control.
The 725D-SS version is non-adjustable and provides xed stroke travel.
“Watching EFD valves is boring. And that's
great. They just keep working and working.”
– Peavey Electronics
www.nordsonefd.com/725DSeries
See Valve Controllers for system setup
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Size: 725DA-SS: 152.4l x 29.5dia mm (6.00l x 1.16dia")
725D-SS: 127.0l x 28.4dia mm (5.00l x 1.12dia")
Weight: 725DA-SS: 326.0 g (11.5 oz)
725D-SS: 279.0 g (9.85 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: 1/8 NPT female
Fluid outlet: 1/4 NPT female
Mounting: (1) 1/8 NPT female blind hole or adjustable mounting block
Air cylinder body: Hard-coated anodized aluminum
Fluid body: 725DA-SS / 725D-SS: 303 stainless steel
725DA-AL: Aluminum
Piston: Hard-coated anodized aluminum
Diaphragm: UHMW* polymer, FDA-approved
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
For use with
• Braze Pastes
• Epoxies
• Greases
• Paste Fluxes
• RTV / Sealants
• Solder Resists
60
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Piston Valves
Air Cylinder
Body
Shaft
Sealing Head
Air Cylinder Cap
Actuating Air Input
1/8 NPT
Guide Pins
Piston
Shaft Locking
Screw
Piston Spring
Diaphragm
Mounting Hole
5/16-24 UNF
Fluid Body
Nozzle
Body Cap
Fluid Inlet
1/4 NPT

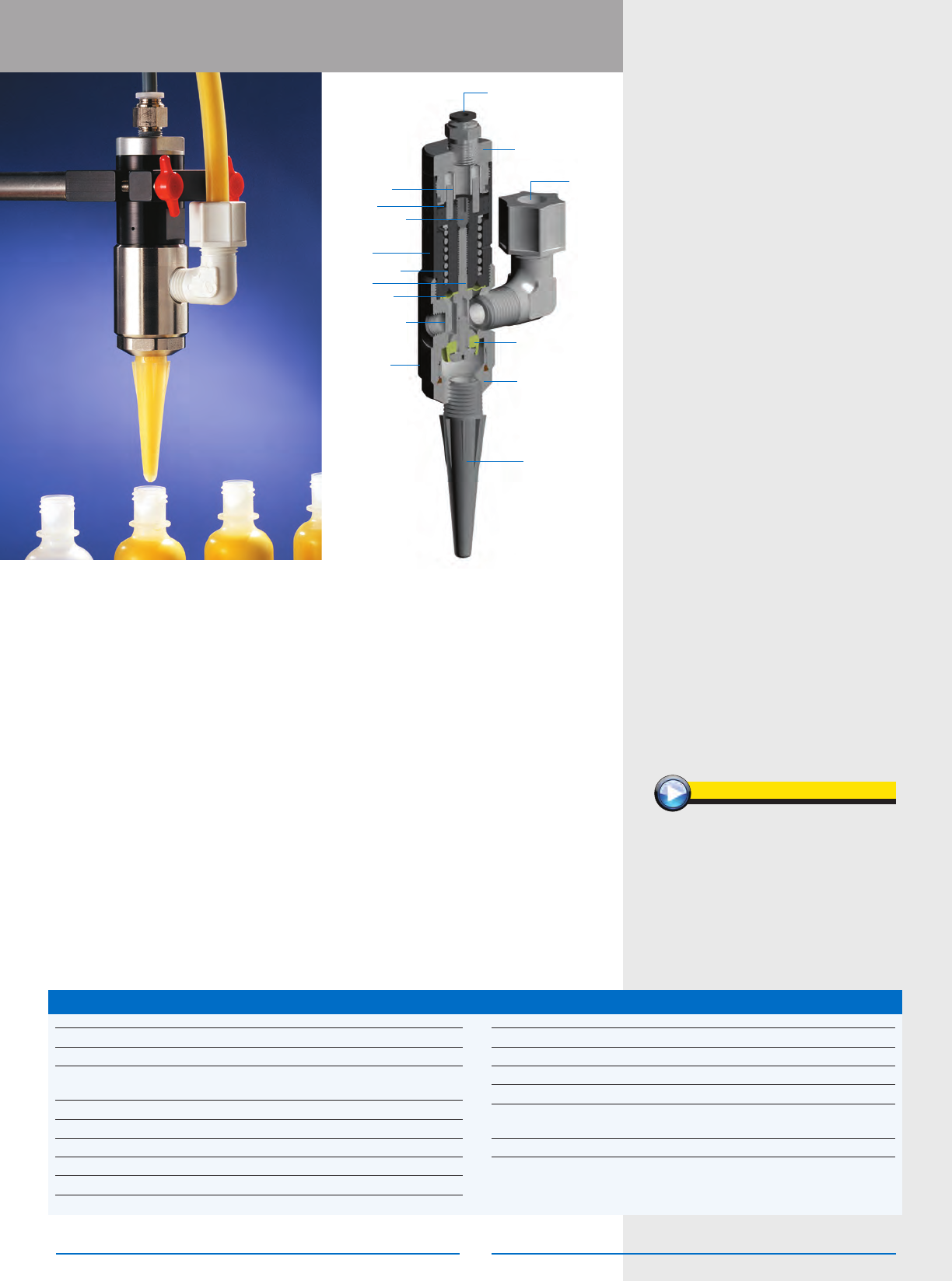

725HF Series
High Flow Piston Valve
Features and Benets
• FDA-compliant wetted parts
• Fully adjustable ow rates
• ±1° repeat ll tolerance
• Low-maintenance design
7021020 725HF-SS Valve
Hard-coat anodized aluminum air cylinder body
assembly with passivated 303 stainless steel fluid
body and shaft. UHMW diaphragm and sealing
head. Includes 1.5 m (5 ft) input air hose with
male quick-connect, fluid inlet fitting #7021038,
tip adapter, and two #7018554 disposable
polyethylene nozzles.
Dispenses a wide variety of uids at rates up to 450 ml/second. Use to ll small
bottles, vials, and foil packs with lotions, perfumes, and adhesives. Also used for
dispensing braze pastes and potting electrical connectors.
www.nordsonefd.com/725HFSeries
See Valve Controllers for system setup
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
Specications
Size: 725HF-SS: 108.7l x 31.2dia mm (4.28l x 1.23dia")
Weight: 725HF-SS: 309.0 g (10.9 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: 1/4 NPT
Fluid outlet: 1/4 NPT
Mounting: (1) 5/16 UNF or adjustable mounting block
Cycle rate: Exceeds 400 per minute
Air cylinder body: Hard-coated anodized aluminum
Fluid body: 303 stainless steel or acetal copolymer
Piston: Hard-coated anodized aluminum
Diaphragm: UHMW* polymer, FDA-approved
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
For use with
• Adhesives
• Cosmetics
• Creams
• Greases
• Lubricants
• Inks
• Sealants
