61 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Needle Valves xQR41 Series MicroDot Valve Features and Benets • 60% smaller form factor • QR (Quick …
60
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Piston Valves
Air Cylinder
Body
Shaft
Sealing Head
Air Cylinder Cap
Actuating Air Input
1/8 NPT
Guide Pins
Piston
Shaft Locking
Screw
Piston Spring
Diaphragm
Mounting Hole
5/16-24 UNF
Fluid Body
Nozzle
Body Cap
Fluid Inlet
1/4 NPT
725HF Series
High Flow Piston Valve
Features and Benets
• FDA-compliant wetted parts
• Fully adjustable ow rates
• ±1° repeat ll tolerance
• Low-maintenance design
7021020 725HF-SS Valve
Hard-coat anodized aluminum air cylinder body
assembly with passivated 303 stainless steel fluid
body and shaft. UHMW diaphragm and sealing
head. Includes 1.5 m (5 ft) input air hose with
male quick-connect, fluid inlet fitting #7021038,
tip adapter, and two #7018554 disposable
polyethylene nozzles.
Dispenses a wide variety of uids at rates up to 450 ml/second. Use to ll small
bottles, vials, and foil packs with lotions, perfumes, and adhesives. Also used for
dispensing braze pastes and potting electrical connectors.
www.nordsonefd.com/725HFSeries
See Valve Controllers for system setup
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
Specications
Size: 725HF-SS: 108.7l x 31.2dia mm (4.28l x 1.23dia")
Weight: 725HF-SS: 309.0 g (10.9 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: 1/4 NPT
Fluid outlet: 1/4 NPT
Mounting: (1) 5/16 UNF or adjustable mounting block
Cycle rate: Exceeds 400 per minute
Air cylinder body: Hard-coated anodized aluminum
Fluid body: 303 stainless steel or acetal copolymer
Piston: Hard-coated anodized aluminum
Diaphragm: UHMW* polymer, FDA-approved
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
For use with
• Adhesives
• Cosmetics
• Creams
• Greases
• Lubricants
• Inks
• Sealants
61
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Needle Valves
xQR41 Series
MicroDot Valve
Features and Benets
• 60% smaller form factor
• QR (Quick Release) clasp for fast,
easy serviceability
• Exchangeable, modular design
• Consistent microdots as small as
150 µm (0.15 mm) (0.006") diameter
• Optional PEEK wetted parts resist
curing from reactive adhesives
The xQR41 Series MicroDot
™
valve is a pneumatically operated, adjustable, modular
valve designed to apply precise micro-deposits of low- to high-viscosity uids.
Ideal for automated assembly processes that require small dispensing tips, the xQR41
valve provides exceptional control as well as the absolute minimum dead uid volume.
Its modular design makes it adaptable to a variety of specic applications.
ClosedOpen

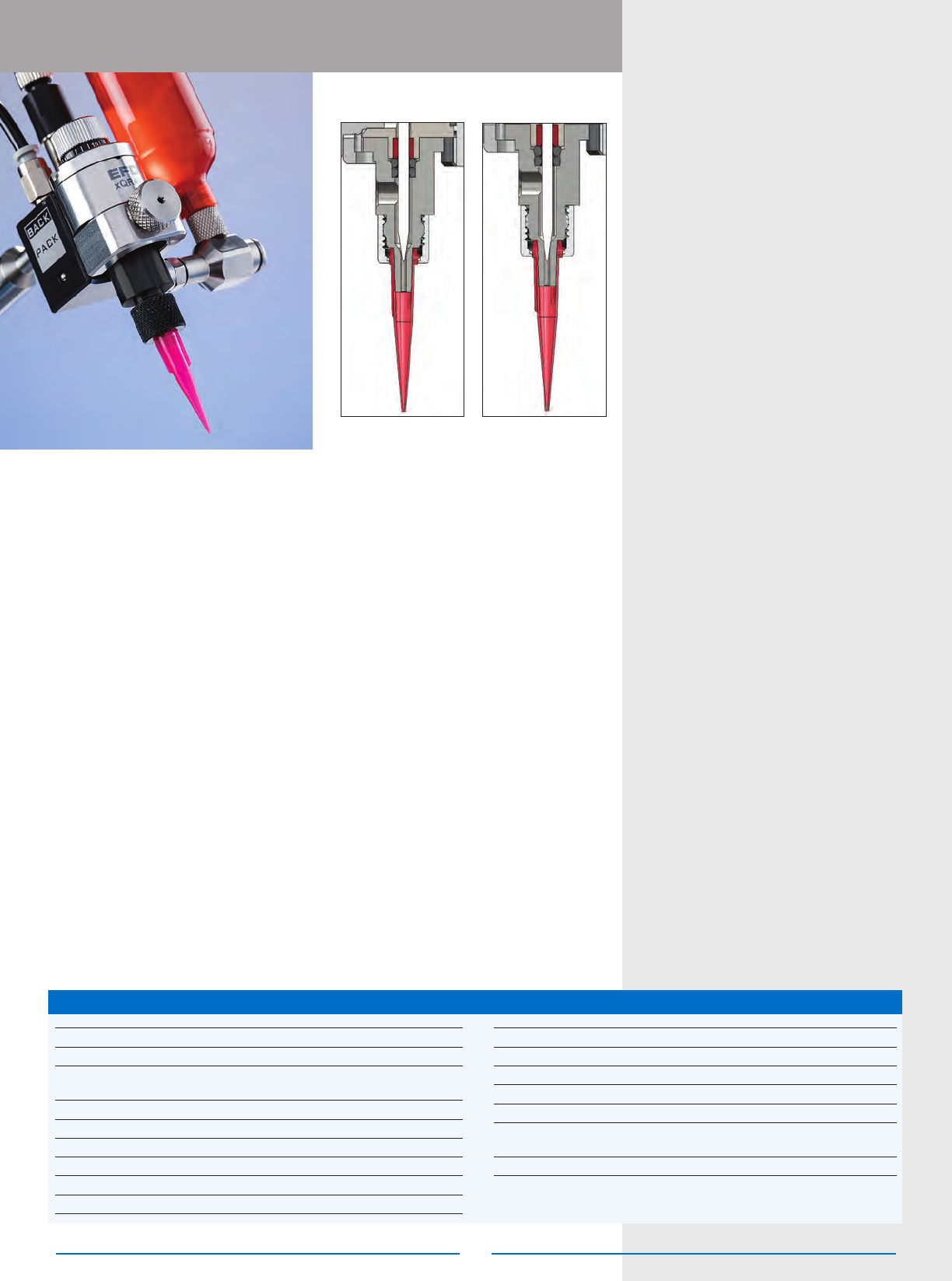

xQR41 with BackPack
Includes fluid inlet fittings #7020671 and #7361411.
7360817
Includes adjustable stroke control.
7361761
Includes adjustable stroke control and PEEK wetted
parts.
7360821
Includes adjustable stroke control and bullet-end
needle.
7360819
Includes non-adjustable cap and cup-end needle.
xQR41 with Mounting Block
Includes fluid inlet fittings #7020671 and #7361411.
7360824
Includes adjustable stroke control.
7361763
Includes adjustable stroke control and PEEK wetted
parts.
www.nordsonefd.com/xQR41Series
*Conditional use with PEEK wetted parts
See Valve Controllers for system setup
Specications
Size: 66.0l x 23.7dia mm (2.60l x 0.93dia")
Weight: 141.4 g (5.0 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: M5
Fluid outlet: Luer taper with retaining nut
Mounting: M4 (BackPack actuator or Mounting Block)
Cycle rate: Exceeds 400 per minute
Air cylinder body: 303 stainless steel
Fluid body: 303 stainless steel or PEEK*
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel or PEEK
Tip retaining nut: Hard-coated aluminum
SafetyLok collar: Hard-coated anodized aluminum
Maximum operating 80° C (176° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
For use with
• Anaerobics*
• Cyanoacrylates*
• Epoxies
• Fluxes
• Lubricants
• Primers
• Silicone Oils
• Solvents
• UV-cure & Light-cure Adhesives
6262
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Needle Valves
xQR41V Series
Needle Valve
Features and Benets
• 60% smaller form factor
• QR (Quick Release) clasp for fast,
easy serviceability
• Exchangeable, modular design
• Use with full range of Nordson EFD
dispensing tips
The xQR41V Series needle valve is a pneumatically operated, adjustable, modular
valve designed to apply precise amounts of low- to high-viscosity uids.
The valve's 60% smaller form factor and modular design allow for greater
customization to meet specic application requirements. Its compatibility with all
Nordson EFD dispensing tips make it adaptable to a wide variety of uid applications.
ClosedOpen

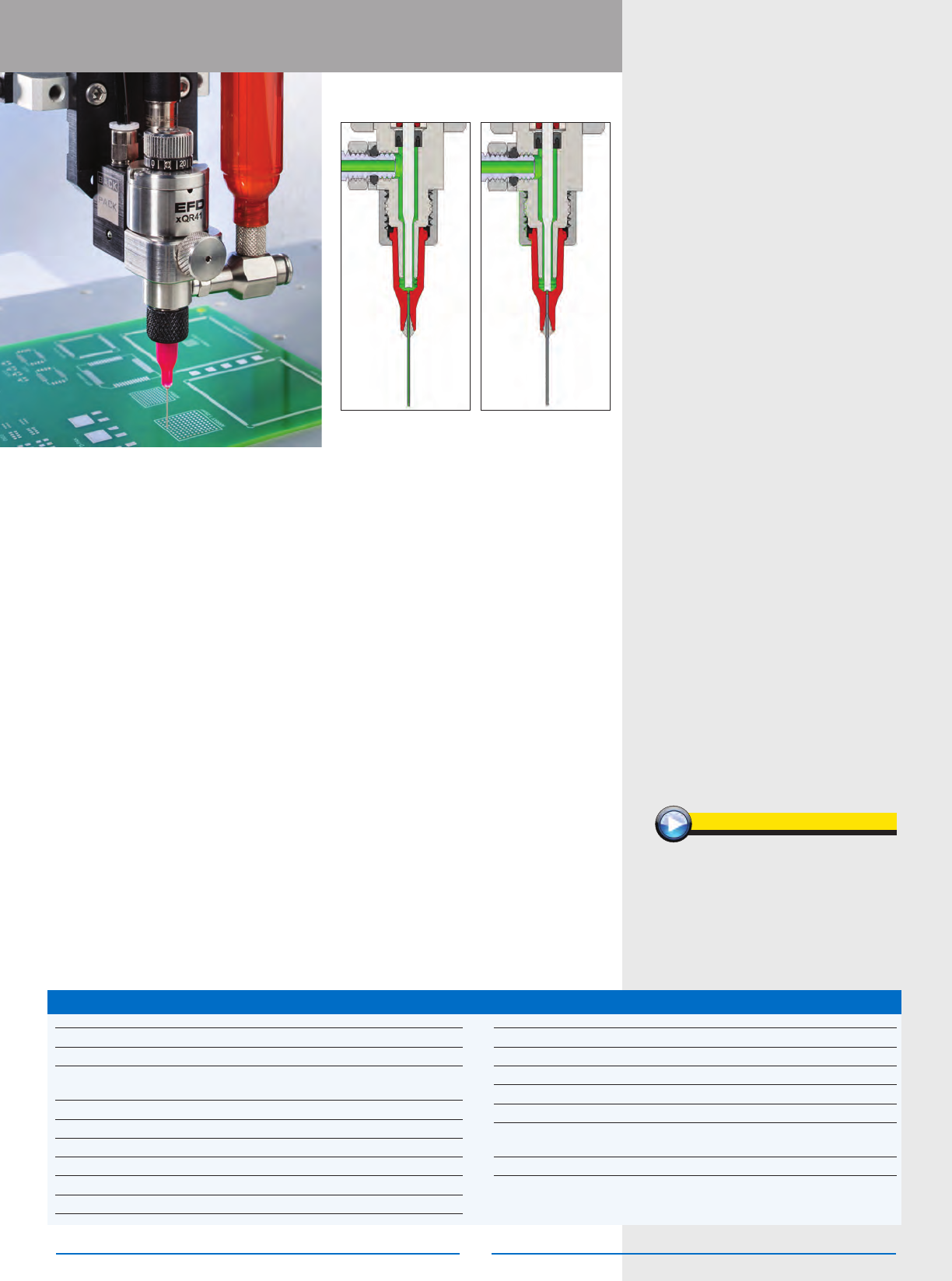

xQR41V with BackPack
Includes fluid inlet fittings #7020671 and
#7361411.
7362489
Includes adjustable stroke control.
xQR41V with Mounting Block
Includes fluid inlet fittings #7020671 and
#7361411.
7362488
Includes adjustable stroke control.
See Valve Controllers for system setup
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Size: 64.0l x 23.7dia mm (2.50l x 0.93dia")
Weight: 115.0 g (4.1 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: M5
Fluid outlet: Luer taper with retaining nut
Mounting: M4 (BackPack actuator or Mounting Block)
Cycle rate: Exceeds 400 per minute
Air cylinder body: 303 stainless steel
Fluid body: PEEK*
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel
Tip retaining nut: Hard-coated aluminum
SafetyLok collar: Hard-coated anodized aluminum
Maximum operating 80° C (176° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
*Polyetheretherketone
For use with
• Accelerators
• Marking Inks
• Silicone Oils
• Solvents
• UV-cure & Light-cure Adhesives
