64 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Needle Valves Piston and Needle Stroke Control Stroke Reference Piston Spring Air Cylinder Body Packi…
63
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Needle Valves
Stroke Control
Stroke Reference
Piston Spring
Air Cylinder Body
Packing
Spring
Needle
Packings
Fluid Body
Fluid Inlet
1/8 NPT
SafetyLok Collar
Piston and Needle
Mounting Hole
1/4-28 UNF
Needle Seat
Disposable
Dispensing Tip
Tip Adapter
Stroke Calibration
Actuating
Air Input
10-32 UNF

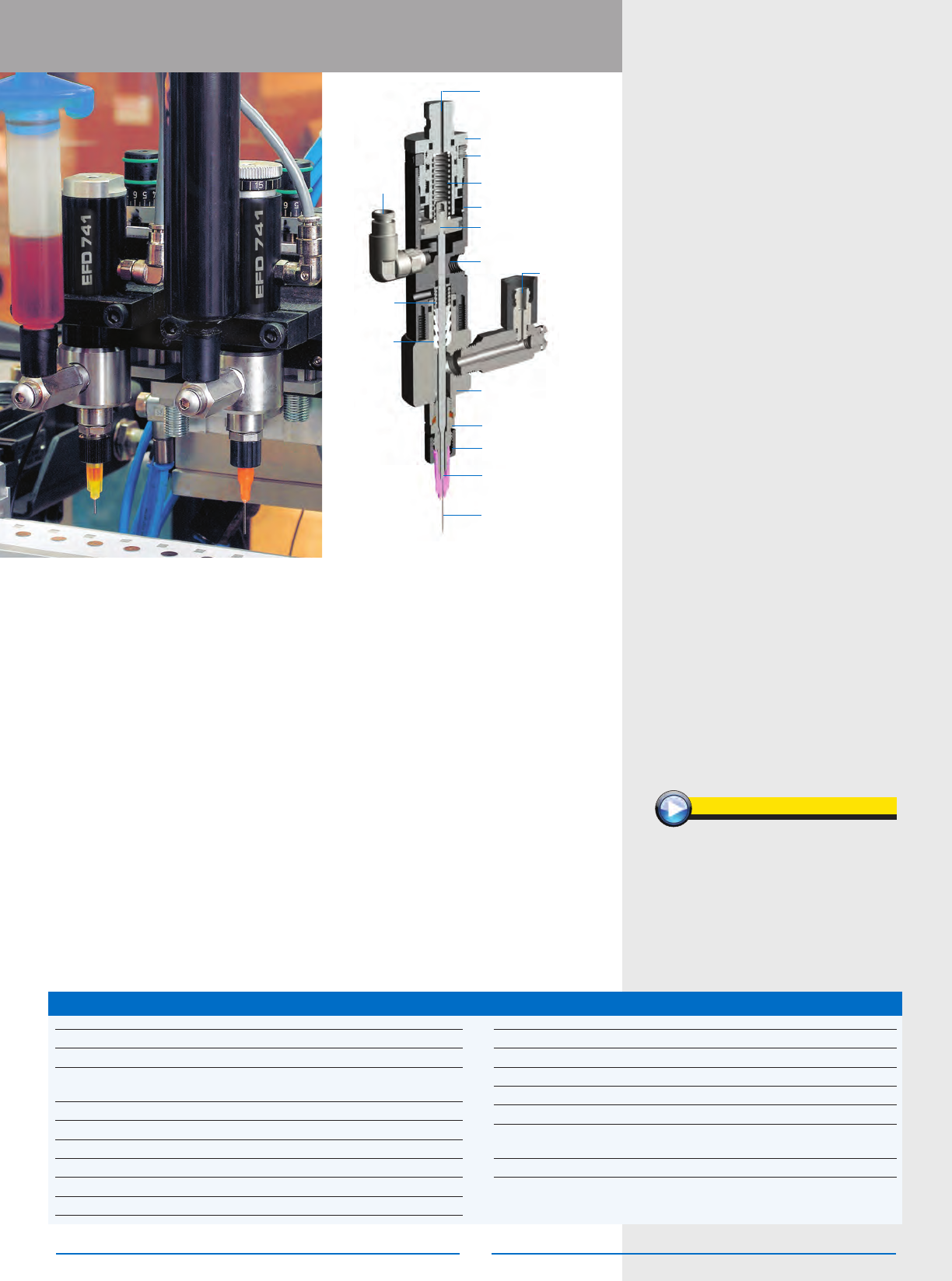

741MD-SS Series
MicroDot Valve
Features and Benets
• Zero dead uid volume
• Easy calibration; short setup time
• Consistent microdots as small as
0.18 mm (0.007") diameter
• Unaffected by entrapped air in uids
The 741MD-SS MicroDot valve is a pneumatically operated adjustable needle valve
designed to apply very precise deposits down to fractions of a microliter.
Ideal for automated assembly processes, the 741MD-SS valve has an adjustable
needle stroke with a unique calibration feature that allows the user to maintain exact
deposit size.
7021233 741MD-SS Valve
Fluid body is passivated 303 stainless steel.
Air cylinder body is hard-coated anodized
aluminum. Includes fluid inlet fitting #7021499.
7015585 741MD-SS-BP Valve
Fluid body is passivated 303 stainless steel.
Air cylinder body is hard-coated anodized
aluminum. Includes fluid inlet fitting #7021499
and BackPack valve actuator.
See Valve Controllers for system setup
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
For use with
• Epoxies
• Lubricants
• Marking Inks
• Solvents
• UV-cure & Light-cure Adhesives
Specications
Size: 127.5l x 26.9dia mm (5.02l x 1.06dia")
Weight: 251.0 g (9.0 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: 1/8 NPT female
Fluid outlet: Luer taper with retaining nut
Mounting: 1/4-28 UNF tapped hole
Cycle rate: Exceeds 400 per minute
Air cylinder body: Hard-coated anodized aluminum
Fluid body: 303 stainless steel
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel
Tip adapter: 303 stainless steel
SafetyLok collar: Hard-coated anodized aluminum
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
www.nordsonefd.com/741MDSeries
64
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Needle Valves
Piston and
Needle
Stroke Control
Stroke Reference
Piston Spring
Air Cylinder Body
Packing Spring
Needle Packings
Fluid Body
Fluid Inlet
1/8 NPT
Mounting Hole
1/4-28 UNF
Needle Seat and
Tip Adapter
Actuating
Air Input
10-32 UNF

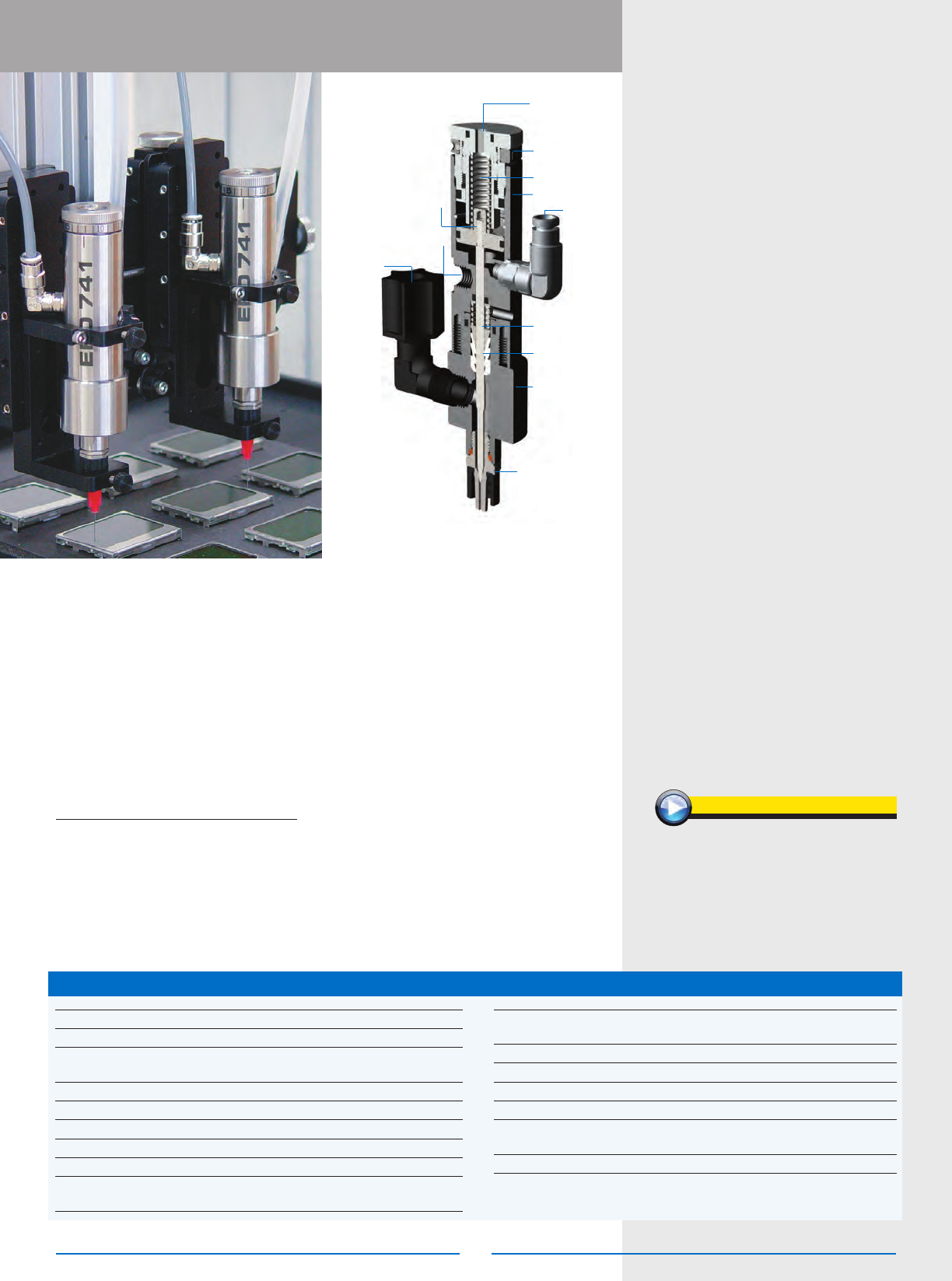

741V Series
Needle Valve
Features and Benets
• Low-maintenance design
• Zero dead uid volume
• Positive shutoff
The 741V precision needle valve applies low viscosity uids in accurate, repeatable
amounts. Because the stainless steel needle seats in the tip adapter, there is virtually
no dead uid volume between shots.
7007029 741V-SS Valve
Air cylinder body and fluid body are passivated 303
stainless steel. Includes fluid inlet fittings #7021499
and #7007038.
7021235 741V-AL Valve
Air cylinder body and fluid body are hard-coated
anodized aluminum. Includes fluid inlet fittings
#7021499 and #7007038.
7015584 741V-SS-BP Valve
Air cylinder body and fluid body are passivated 303
stainless steel. Includes fluid inlet fittings #7021499
and #7007038 and BackPack valve actuator.
“After we installed your valve system on our
automatic assembly machines, the dripping
– and the complaints – ended.”
– A.T. Cross Company
www.nordsonefd.com/741VSeries
See Valve Controllers for system setup
Download CAD Models:
www.nordsonefd.com/CAD
For use with
• Accelerators
• Marking Inks
• Silicone Oils
• Solvents
• UV-cure Adhesives
Specications
Size: 114.6l x 26.9dia mm (4.51l x 1.06dia")
Weight: 317.5 g (11.2 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 20.7 bar (300 psi)
Fluid inlet: 1/8 NPT female
Fluid outlet: Male luer lock
Mounting: 1/4-28 UNF tapped hole
Cycle rate: Exceeds 400 per minute
Air cylinder body: 741V-SS / 741V-SS-BP: 303 stainless steel
741V-AL: Hard-coated anodized aluminum
Fluid body: 741V-SS / 741V-SS-BP: 303 stainless steel
741V-AL: Hard-coated anodized aluminum
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel
Tip adapter: 303 stainless steel
SafetyLok collar: Nylon
Maximum operating 43° C (110° F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
65
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
High Pressure Valves

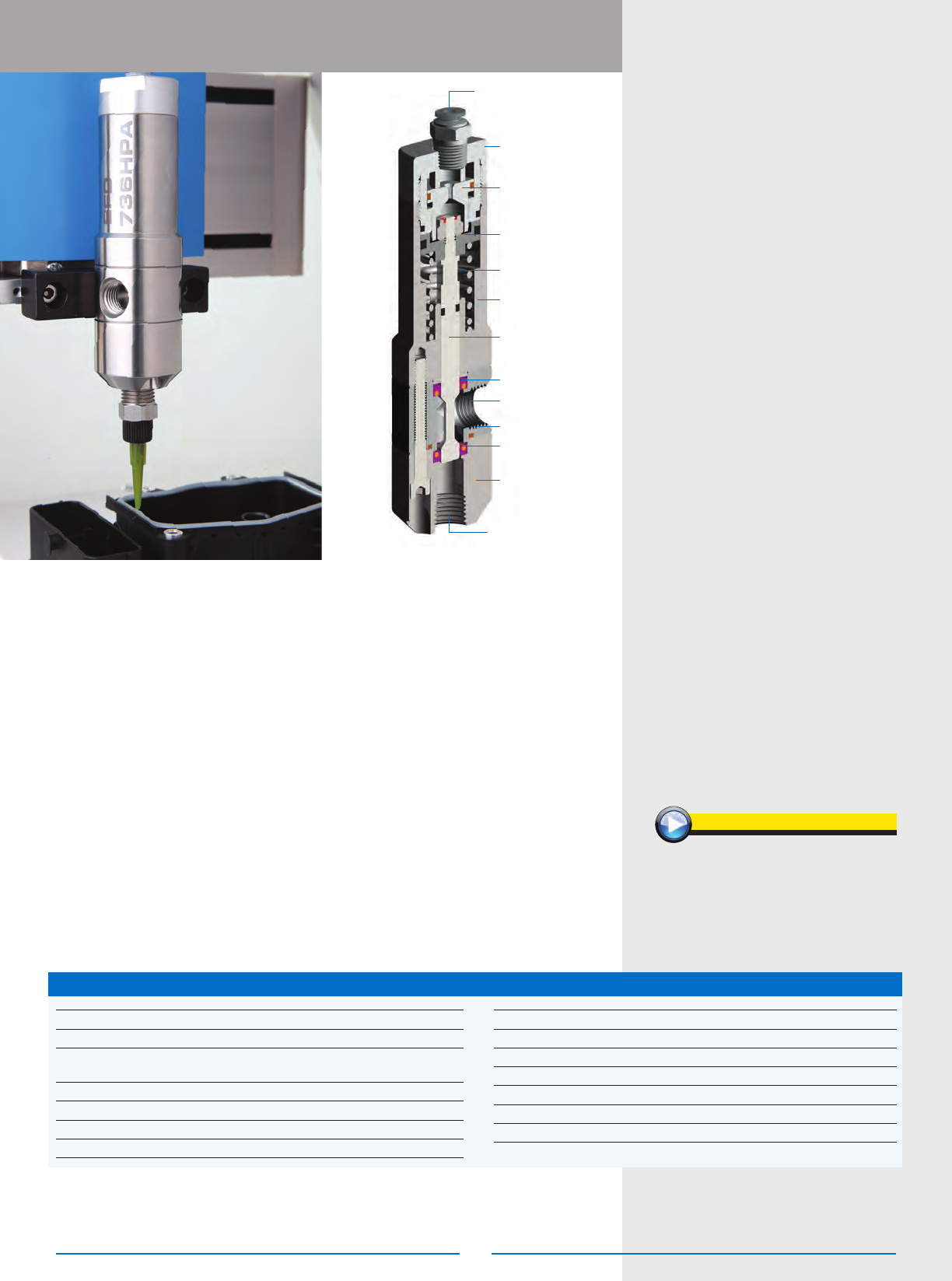

736HPA-NV Series
High Pressure Valve
Features and Benets
• Opening surge control
• Adjustable snuff-back cutoff
• Auxiliary air inlet air-assist closure
• Cycle rate exceeds 400/minute
7013449 736HPA-NV Valve
Chromium-plated spool
Fluid body and air cylinder body are passivated 303
stainless steel with a chromium-plated spool. The
fluid inlet and outlet threads are 1/4 NPT female.
7028951 736HPA-NV Valve
Titanium nitride-coated spool
Fluid body and air cylinder body are passivated
303 stainless steel with a titanium nitride-coated
spool. The fluid inlet and outlet threads are 1/4
NPT female.
High pressure fluid inlet fittings are not supplied by
EFD. They are available from the pump supplier.
Specify inlet size 1/4 NPT.
The 736HPA stainless steel balanced spool valve applies uniform amounts of thick
materials like greases and silicones at pressures up to 172 bar (2500 psi).
To keep dots and lines consistent and prevent drooling between shots, the
736HPA-NV valve uses an adjustable stroke control to regulate opening surge and
closing snuff-back.
Actuating Air Input
1/8 NPT
Air Cylinder Cap
Stroke Limit Stop
Piston
Piston Spring
Air Cylinder Body
Spool
Upper Seal
Fluid Body
Fluid Inlet 1/4 NPT
Lower Seal
Fluid Outlet 1/4 NPT
Body Cap
See Valve Controllers for system setup
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
For use with
• Adhesives
• Greases
• Sealants
• Silicones
Specications
Size: 134.4l x 35.1dia mm (5.29l x 1.38dia")
Weight: 544.0 g (19.2 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 172 bar (2500 psi)
Fluid inlet: 1/4 NPT female
Fluid outlet: 1/4 NPT female
Mounting: (1) 5/16-24 UNF tapped hole or adjustable mounting block
Cycle rate: Exceeds 400 per minute
Air cylinder body: 303 stainless steel
Fluid body: 303 stainless steel
Piston: Hard-coated anodized aluminum
Spool: Hard-chrome coated stainless
Spool seals: Polyester elastomer
Warranty: 1 year, limited
All stainless steel parts are passivated.
www.nordsonefd.com/736Series
