68 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 ValveMate Controllers ValveMate 8000 Multi-Valve Controller Features and Benets • 4 independent prog…
67
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Radial Spinner Systems

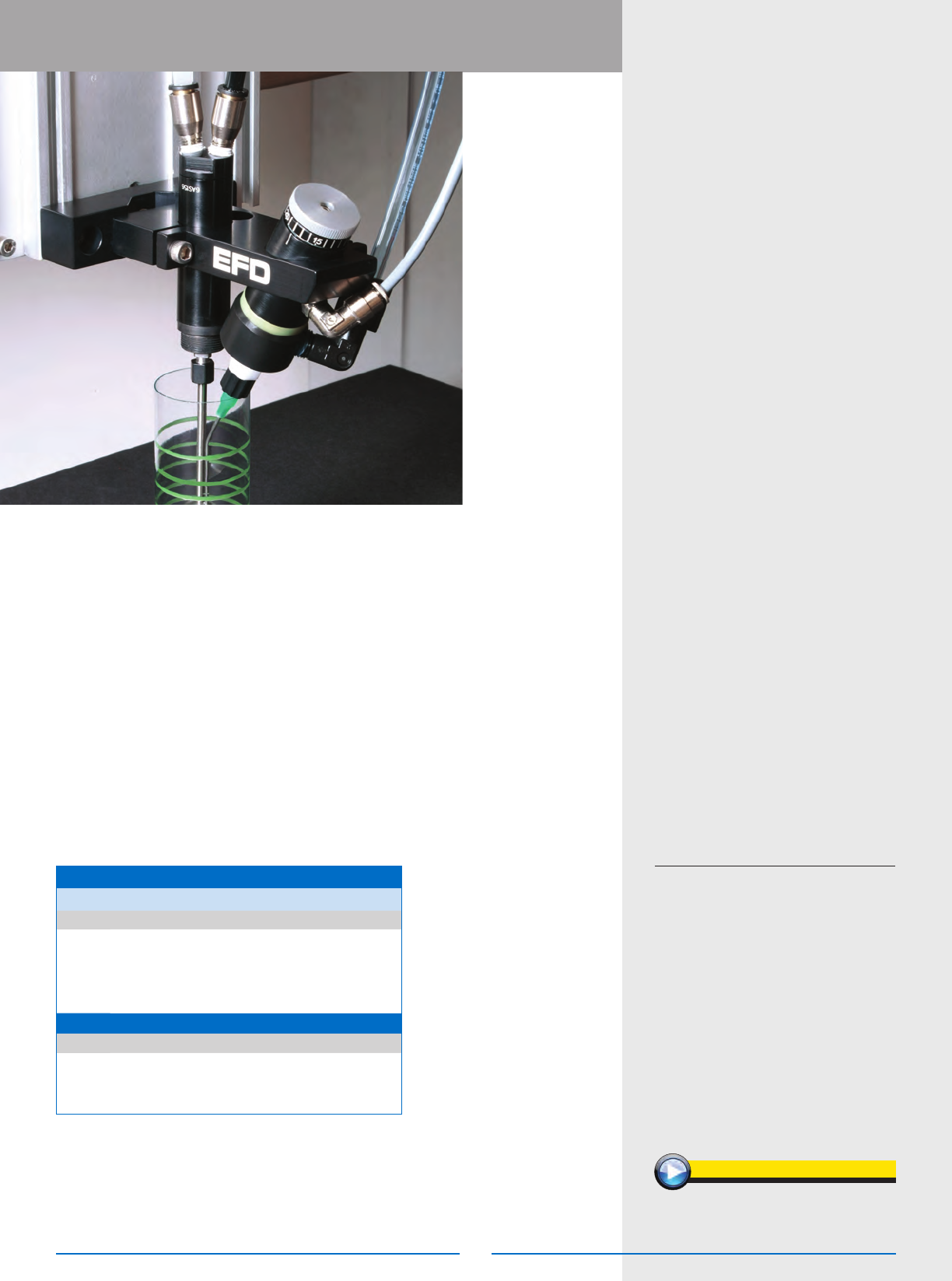

Radial Spinner System
Features and Benets
• Applies correct amount on every part
• Applies material in correct location
• Eliminates waste, mess, and rework
• Operates in vertical or horizontal
position
The Radial Spinner System applies consistent amounts of adhesives, lubricants,
and other production uids inside cylindrical parts between 10.2 mm (0.4") and
127.0 mm (5.0") in diameter.
The system combines a compact air-driven motor with a low maintenance EFD
dispense valve and ValveMate controller. The valve dispenses a precisely metered
amount of uid onto a spinning disk attached to the motor. As uid reaches the
edge of the disk, it spins off, forming a neat band inside the part.
RADIAL SPINNER / DISC ASSEMBLIES
Shaft length is 70 mm (2.75") x 3.18 mm (0.125") diameter
Part # Description
7021842 7880-9MM: 9 mm (0.354") radial spinner
/disc
7021836 7880-12MM: 12 mm (0.473") radial spinner
/disc
7021838 7880-15MM: 15 mm (0.590") radial spinner
/disc
7021840 7880-19MM: 19 mm (0.745") radial spinner
/disc
DISPENSING TIPS
Part # Description
7021846 18 gauge needle – 30 degree bend 20/box
7021844 Tip kit: Includes (2) each of 18, 21, and 23 gauge bent tips
7021448 Tip adapter: Rotating luer lock tip for 752V valve
7021798 7860C-RS
Air Motor Bracket Assembly
Radial spinner motor/bracket assembly. Includes all
hoses, #7021844 tip kit, and #7021448 rotating luer
lock tip adapter.
7021795 7860C
Radial spinner air motor only.
www.nordsonefd.com/RadialSpinner
“In manufacturing, reliability is everything.
That's what we get from EFD valves. If all
our equipment worked as well…our jobs
would be easier.”
– Ford Motor Company
For use with
• Anaerobics
• Cyanoacrylates
• Lubricants
• Silicone Gels
• Solvents
See Spray Valve Controllers for system setup
Note: Valves purchased separately. We recommend 752V Series
Diaphragm Valves for use with the Radial Spinner System.
68
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate Controllers

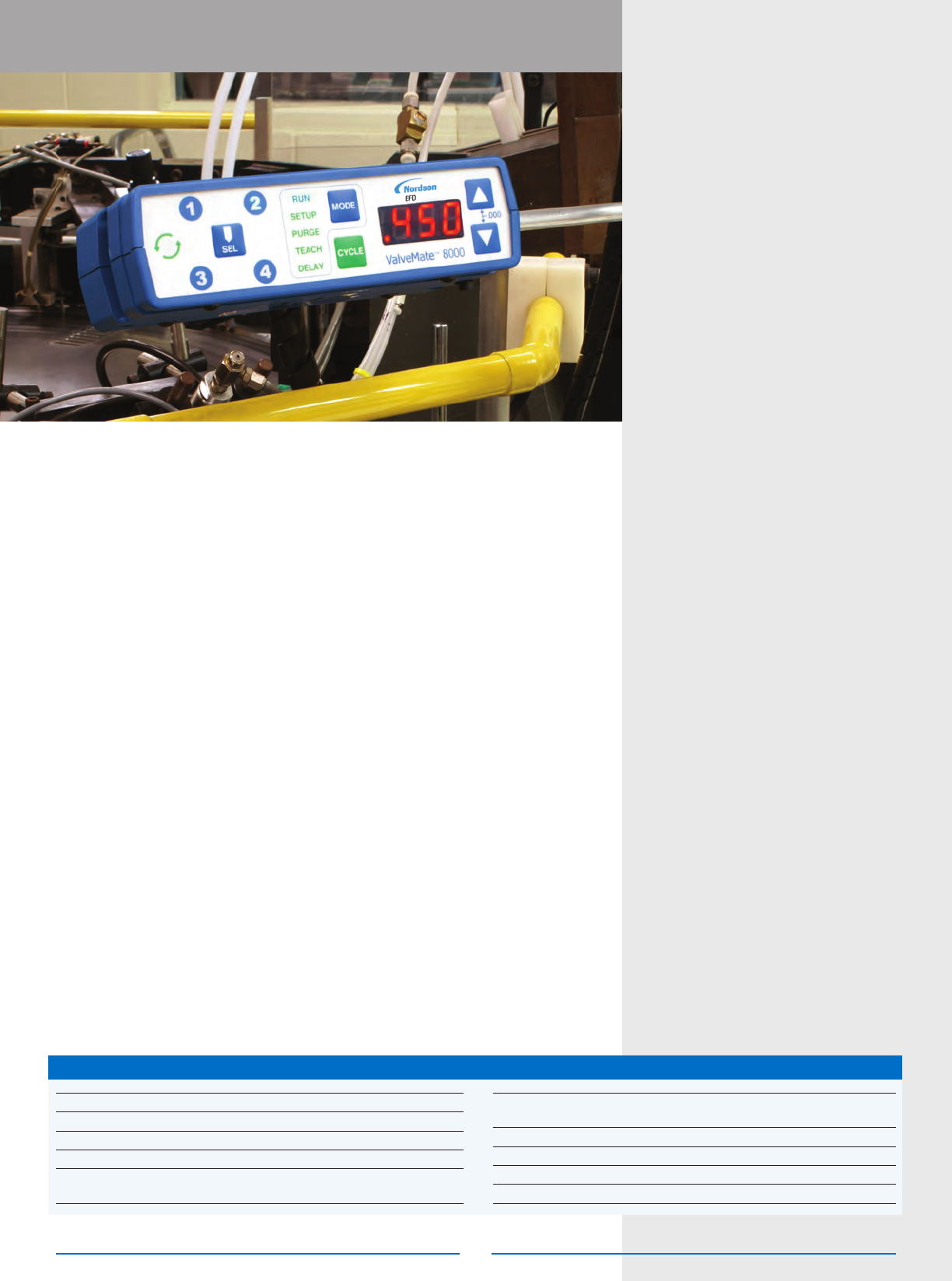

ValveMate 8000
Multi-Valve Controller
Features and Benets
• 4 independent programmable actuation channels
• Maximum process control
• “On the y” deposit adjustment
• Easily interfaced with a PLC
• Fast-response pneumatic solenoids
7022004 8000 Multi-Valve Controller
Includes controller, stand, panel mount bezel
and spring clips, filter regulator, and air manifold
assembly with pre-wired pressure sensor.
Order single or dual valve solenoid
assemblies separately.
For each ValveMate 8000 ordered, select the
appropriate solenoid assembly for the number of
valves used. Each solenoid kit includes the pre-
wired 6 pin connector and housing, 3.6 m (12 ft)
cable cordset, input air hose, and push-in fittings.
7022246 Single
Single in-line solenoid for one valve operation.
7022247 Dual
Dual-solenoid block for two valve operation.
7022249 Quad
Quad-solenoid block for four valve operation.
Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
Automated dispensing stations run at maximum speed and efciency when EFD
dispense valves are operated by ValveMate controllers. The ValveMate 8000 Multi-
Valve Controller provides the primary control for deposit size. The controller is designed
to bring uid dispensing control close to the dispense valve and provide numerous
user-friendly features that simplify valve setup and operation.
Capable of operating up to (4) dispense valves independently or simultaneously, the
ValveMate 8000 controller and control air solenoids offer state-of-the-art features and
capability, maximizing automated assembly machine efciency and convenience.
Specications
Cabinet size: 18.3w x 5.1h x 8.6d cm (7.20w x 2.00h x 3.38d")
Weight: 0.3 kg (0.6 lb)
Cycle rate: Exceeds 600 per minute
Time range: 0.001–99.9 s
Input AC 100–240 VAC, 50/60Hz
(to power supply):
Output DC 24 VDC, 1.25 Amp maximum
(from power supply):
Feedback circuits: 5–24 VDC NC solid-state switch, 100 mA maximum
Cycle initiate: 5–24 VDC signal
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Download CAD Models:
www.nordsonefd.com/CAD
See next page for compatible valves
69
20
0
5
20
0
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

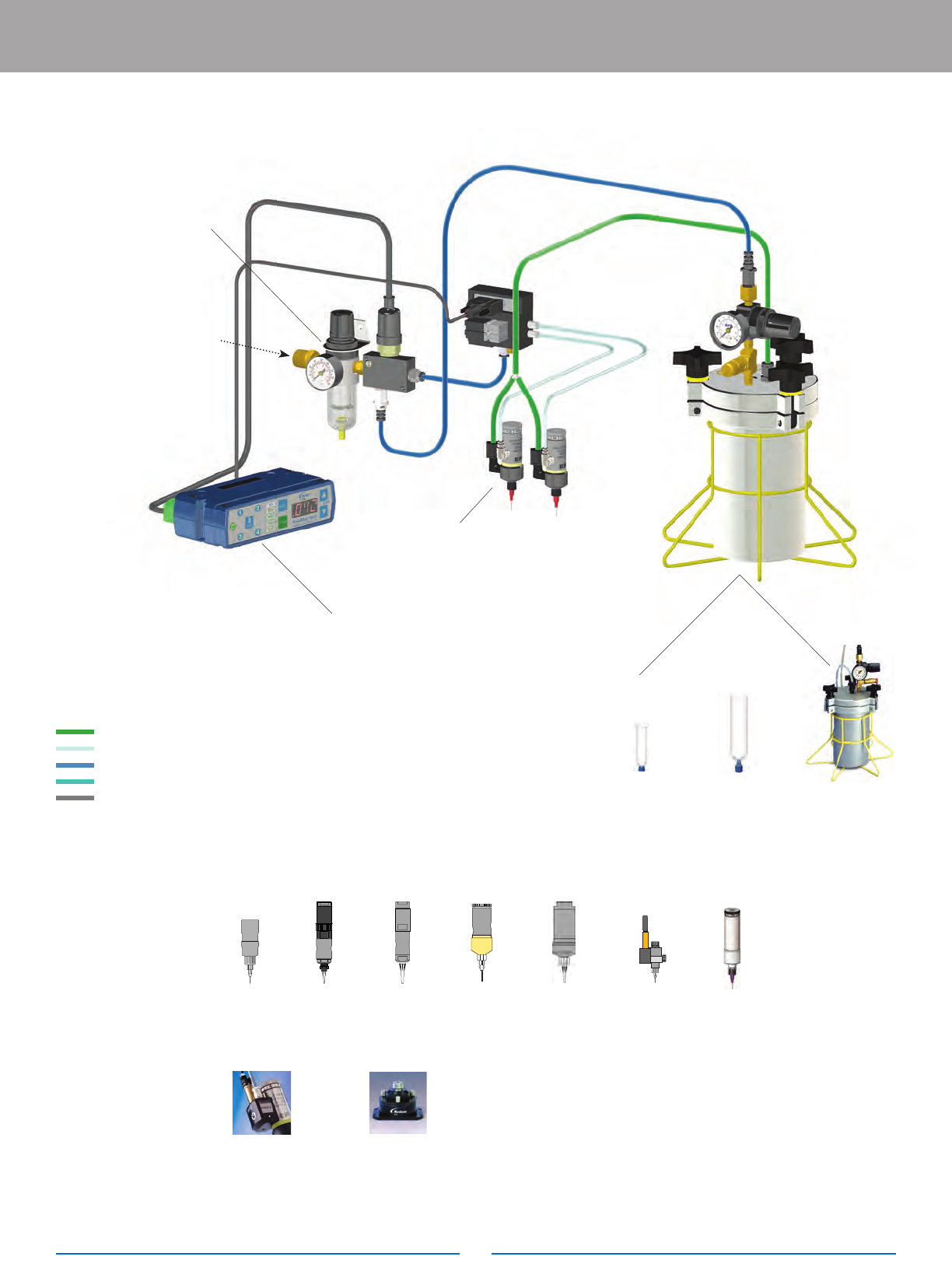

ValveMate 8000 Valve Controller – System Setup
ValveMate 8000
EFD Valves
Regulator
For use with
Syringe
Cartridge
Fluid Reservoir
(Shown with tank)
Tank
Accessories
BackPack Needle Nozzle
Cleaning Station
702 725 736 752 754 xQR41 741
Plant air
Fluid
Actuating air
Constant air
Nozzle air
Electrical
