70 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 ValveMate Controllers ValveMate 7100 Single Valve Controller Features and Benets • Maximum process c…
69
20
0
5
20
0
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate 8000 Valve Controller – System Setup
ValveMate 8000
EFD Valves
Regulator
For use with
Syringe
Cartridge
Fluid Reservoir
(Shown with tank)
Tank
Accessories
BackPack Needle Nozzle
Cleaning Station
702 725 736 752 754 xQR41 741
Plant air
Fluid
Actuating air
Constant air
Nozzle air
Electrical
70
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate Controllers

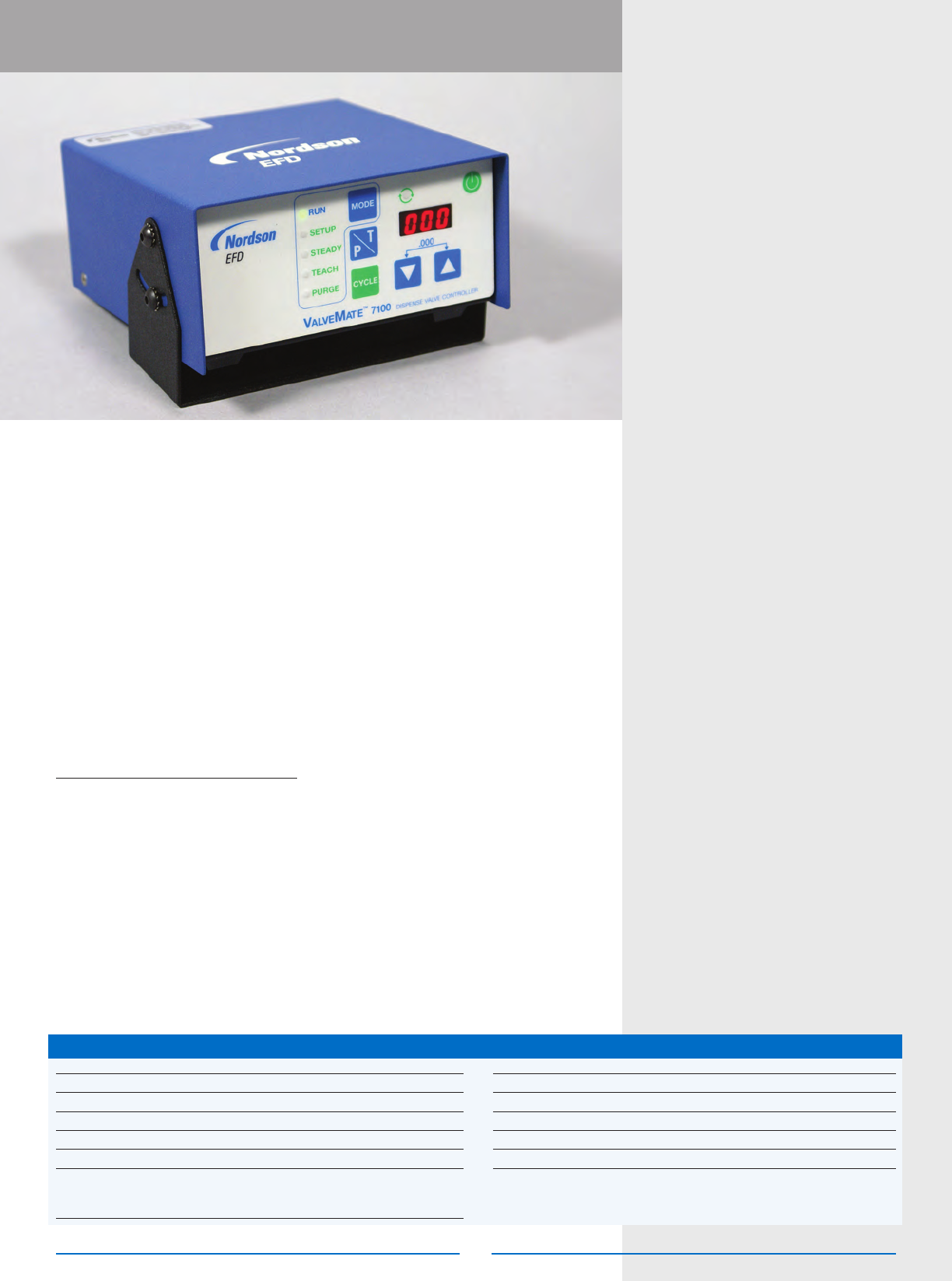

ValveMate 7100
Single Valve Controller
Features and Benets
• Maximum process control
• Intuitive, easy operator interface
• Cost-effective
• Simple to set up and operate
• Easily interfaced with a PLC
7015340 7100 Single Valve Controller
Includes controller, stand, panel mount bezel
and spring clips, filter regulator, and air manifold
assembly with pre-wired pressure sensor.
Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
The ValveMate 7100 Single Valve Controller puts push-button adjustment of valve
open time in increments as small as 0.001 seconds, right at the dispensing station.
The result is exceptional process control without time-consuming programming or
mechanical adjustments that require the production line to be shut down.
The controller is designed for semi-automated or fully automated dispensing
applications and features an internal control air solenoid.
“We had a skilled technician spending 8
to 10 hours a week adjusting equipment. By
putting a controller at each dispense valve
station, we've reduced that time to almost
zero.”
– A.T. Cross Company
Specications
Cabinet size: 14.0w x 6.8h x 14.2d cm (5.51w x 2.68h x 5.59d")
Weight: 1.2 kg (2.9 lb)
Cycle rate: Exceeds 600 per minute
Time range: 0.001–99.9 s
Electrical power input: 24 VDC (+/-5%), 0.63 Amp maximum
External power 100–240 VAC (+/-10%), ~50/60Hz input, 24 VDC
adapter: (+/-5%), 0.63 Amp output, Switchcraft S761K locking DC plug
or equivalent, wall mount, changeable AC plugs
Feedback circuits: 5–24 VDC NC solid-state switch, 100 mA maximum
Cycle initiate: 5–24 VDC signal, foot pedal, or contact closure initiate
Input air pressure: 4.8–6.9 bar (70–100 psi)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
Download CAD Models:
www.nordsonefd.com/CAD
See next page for compatible valves
71
20
0
5
20
0
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate 7100 Valve Controller – System Setup
ValveMate 7100
EFD Valve
Regulator
702 725 736 752 xQR41 741
For use with
Syringe
Cartridge
Tank
Fluid Reservoir
(Shown with tank)
Accessories
BackPack Needle Nozzle
Cleaning Station
Plant air
Fluid
Actuating air
Constant air
Nozzle air
Electrical
